1972 Satellite Sebring Plus Heater Control Valve Cable Hookup

[gibber]

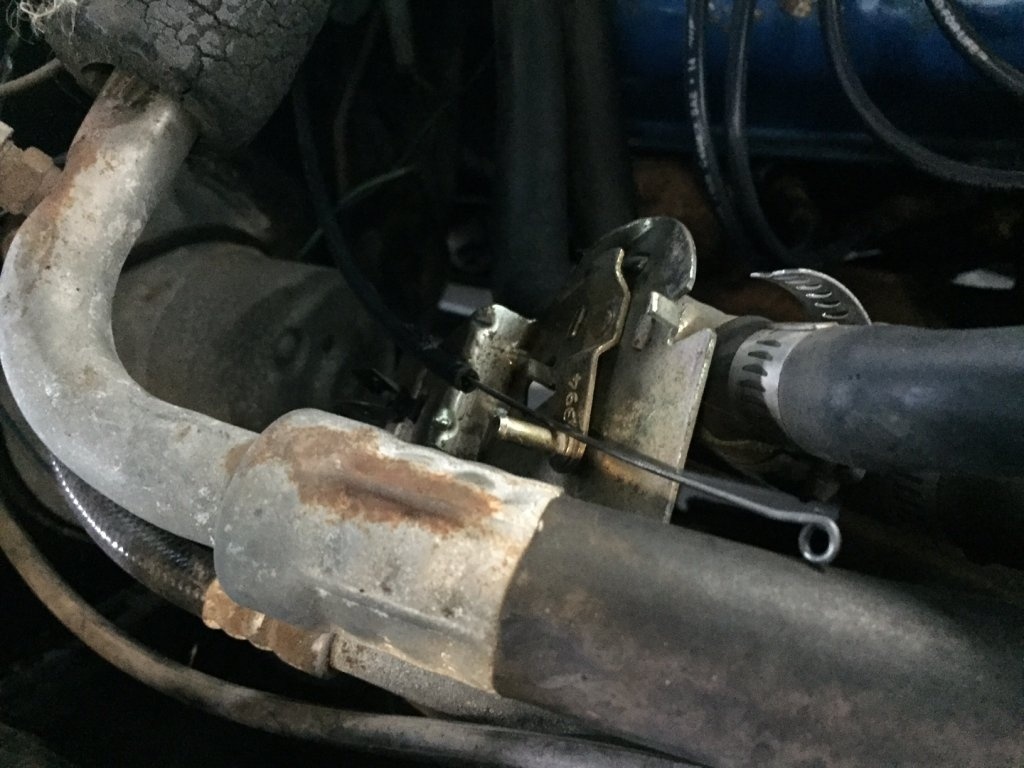

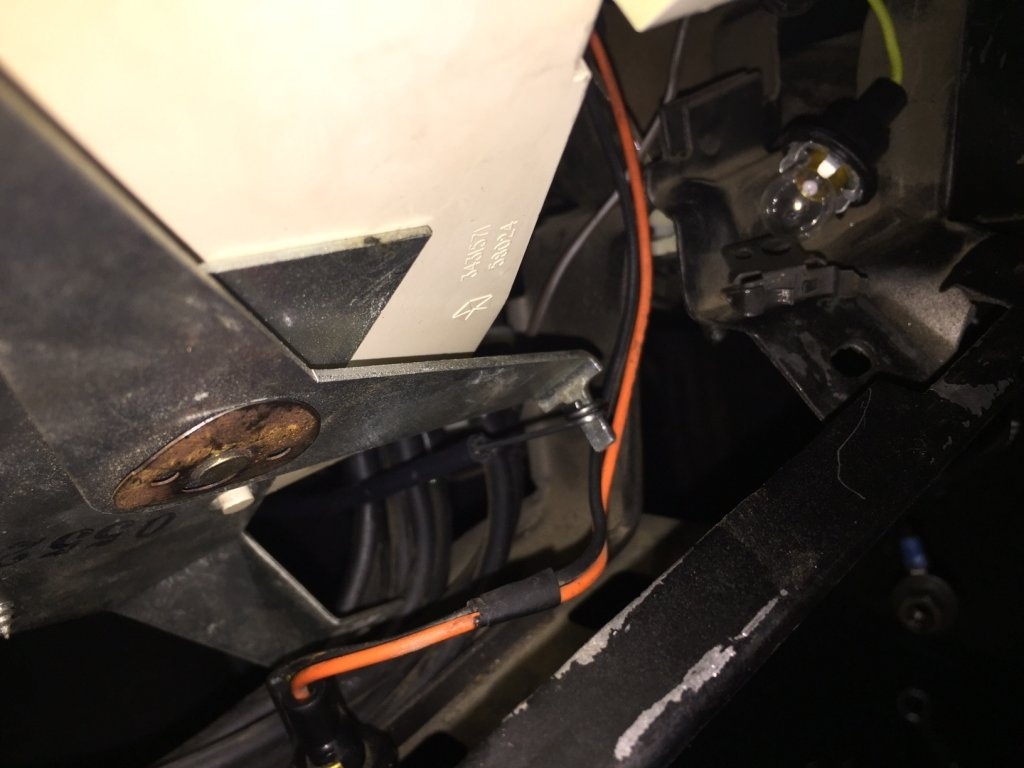

I can kick myself for not taking pictures of this, but I neglected to and so now I'm hoping someone here has a few pictures that can help me. My 72 Satellite has factory air and the heater valve control cable was frozen, so while I had the rally dash out for other issues I removed the cable and freed it up. But I neglected to see how the clips hold the cable in place both at the AC control assembly and also at the heater control valve. Pics attached. Any help greatly appreciated!

Thanks,

Mark



[RT4ever]

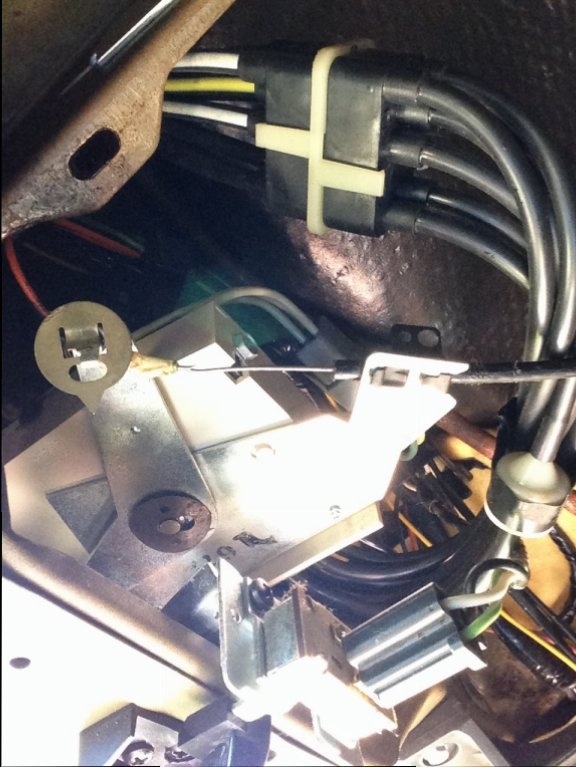

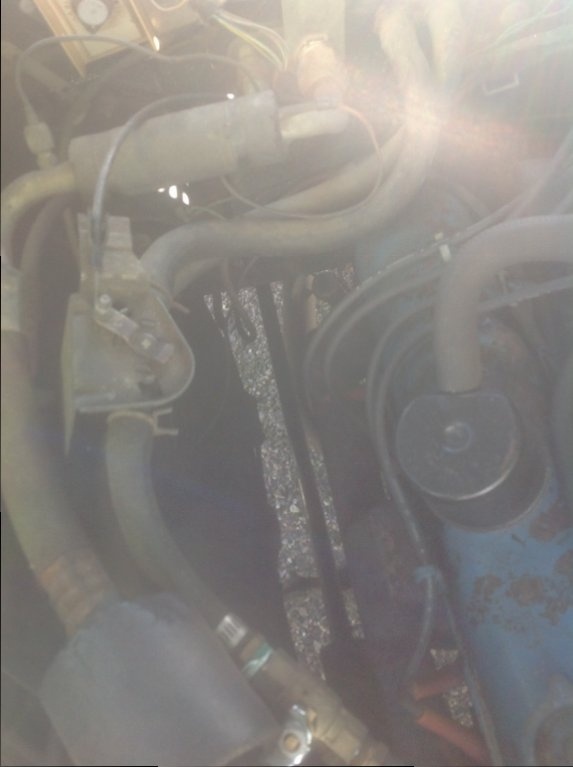

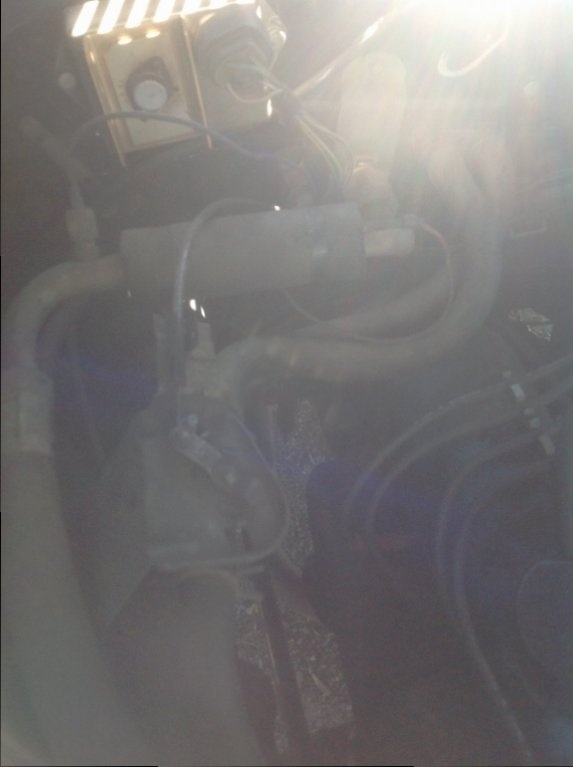

Maybe these will help:



[RT4ever]

I put in a manual shut-off valve on the heater line because the factory valve still let some hot water into the heater in the all-the-way-off position.



[gibber]

Thanks much, they do!



[mopar 3 B]

I put in a manual shut-off valve on the heater line because the factory valve still let some hot water into the heater in the all-the-way-off position.

It needs a certain anount of heat in the box to prevent frost and freeze up of the heater element while using the ac.
