1973 Roadrunner wiring

Dieselholic

Well-Known Member
Local time
12:41 PM
Joined
Jan 30, 2015
Messages
228
Reaction score
118
Location
Marshall, MN
I'm putting the wiring back in the engine bay of my Roadrunner. I bought a new wiring harness for the engine and already installed that. It seems that I am missing one harness yet. This isn't my picture but I'm wondering if anyone can tell me what the correct harness is for the bottom left plug in this picture.

http://s1002.photobucket.com/user/mrhws/media/1974 Dodge Charger 440 Rallye/100_4599.jpg.html

Also, I'm wondering if some one can give me some reference pictures as to where some of the connectors go, such as the brake warning light, and the clutch safety switch that is supposed to go to the starter relay. I'm wondering if the wire for the clutch safety switch is supposed to come from the harness I am missing?

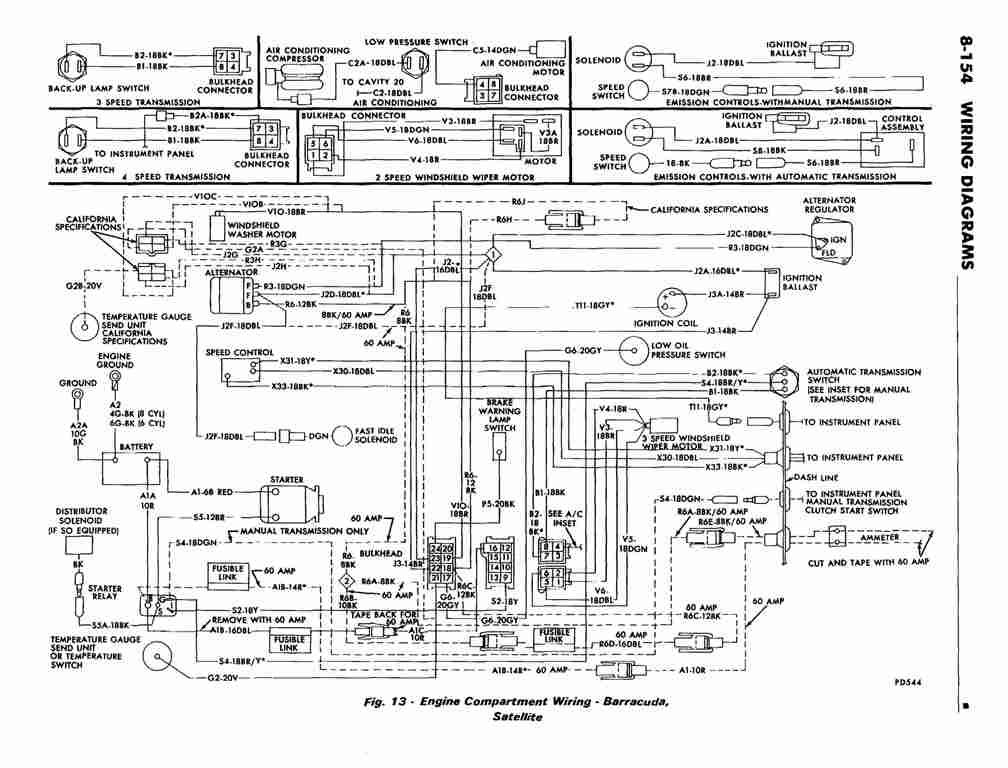

Upper left of this diagram for manual transmissions, back-up light, NSS harness, A/C clutch if equipped. Clutch pedal switch wire had it's own grommet.

Thanks for the replies guys. So does anyone reproduce the back-up light harness for the 73-74 roadrunner? Or is the harness for the 71/4speed plymouths the same? YearOne doesn't have one listed for 73-74 but they have one for a 71.

i believe the backup harness is the same all 4 years
