66 Charger Console wiring

[ragtp66]

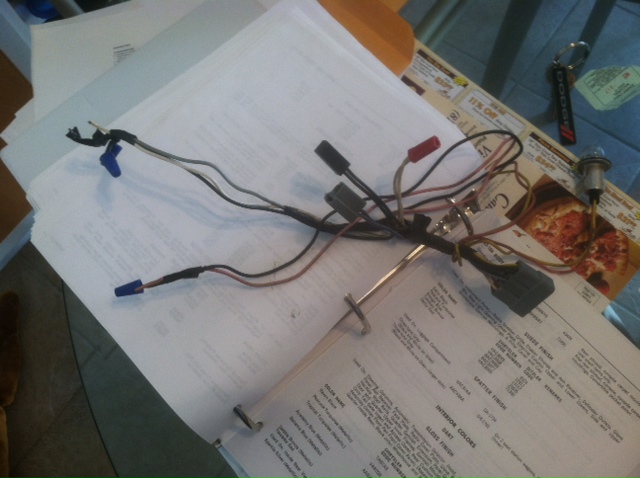

I am working on the console wiring. So far The 2 console side lights are obvious. I assume the purple wires are for the Neutral safety Switch and the two black wires are for the Reverse lights. The other bundle of three wires has a black a white and grey in the picture then goes back and ties in with the pink wires. I assume this goes toward the rear of the hinged lid Is there supposed to be a light fixture inside under the armrest ? I see the plunger switch but there is no light fixture but a hole thats about 1.5-2" there the white wire is throwing me off in the group of three bundle the white with red connector goes to the shift indicator but where does this one go to? The previous owner was a butcher with the electrical.

thanks
Chris



[A383Wing]

white wire is for EL shifter light, the black wires are ground, the bundle of 3 wires that have bullet connectors on them are for the factory clock, the purple wires are for reverse lights, the other 2 are for the light that goes in the rear of the console, you are missing the light, the switch with 2 wires attached, and the triangle switch bracket I bet

I suggest getting a service manual if you are gonna be working on the electrical in these cars, Chargers are not like the other cars, wiring is way different

neutral safety switch is in the transmission, the back up light switch is under the console top plate where all these wire are



[Tim Carlig]

Of the 3 wires for the clock, black...white..gray..which is power and ground?
