68 charger MSD wiring HELP

[Mopartank]

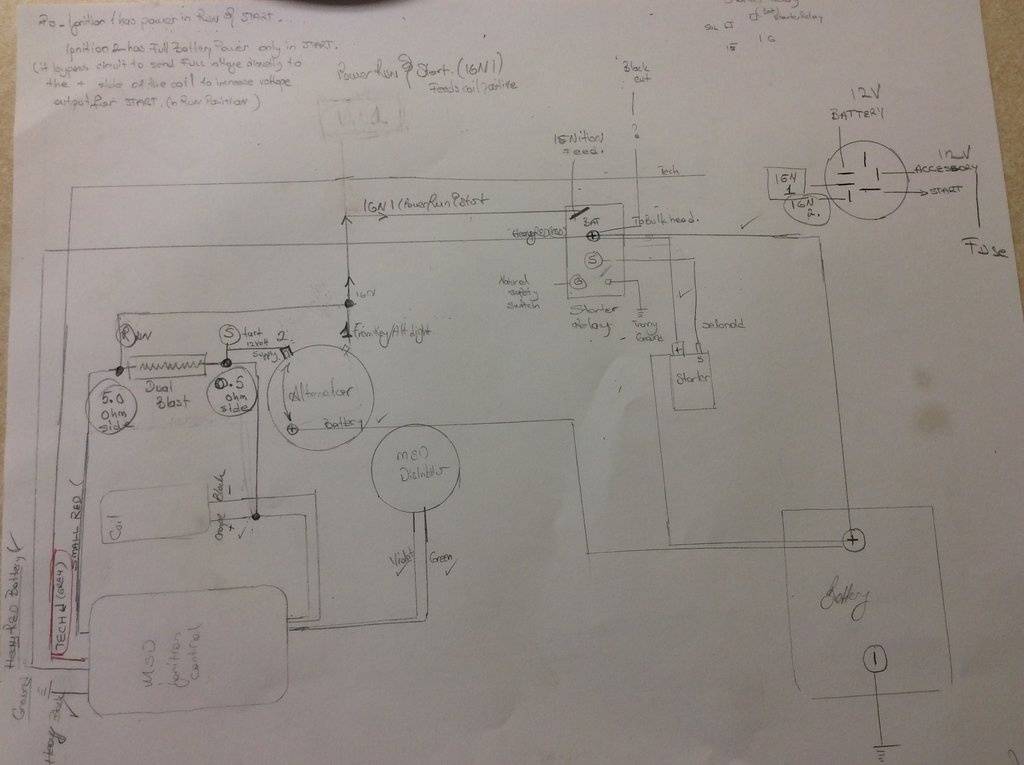

Hi guys please check the picture below, and help me out. Is it correct or any mistakes?



[wsutard]

Hey, did you ever get this installed? Your diagram is not correct. You need to combine the balast wires and then feed those into the red wire running to the MSD box.



[Mopartank]

Hey, did you ever get this installed? Your diagram is not correct. You need to combine the balast wires and then feed those into the red wire running to the MSD box.

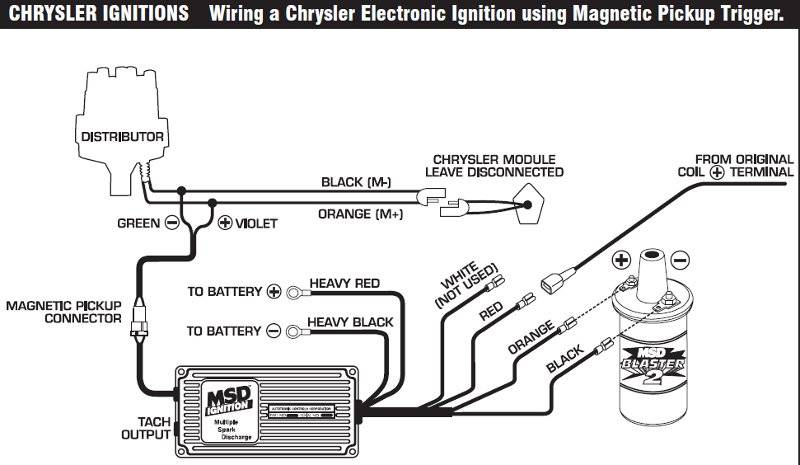

View attachment 437994

Yes I have that diagram



[HT413]

As was stated, MSD 6AL does not need the ballast resistor. Combine the run and start ignition and connect that to the MSD small red.
