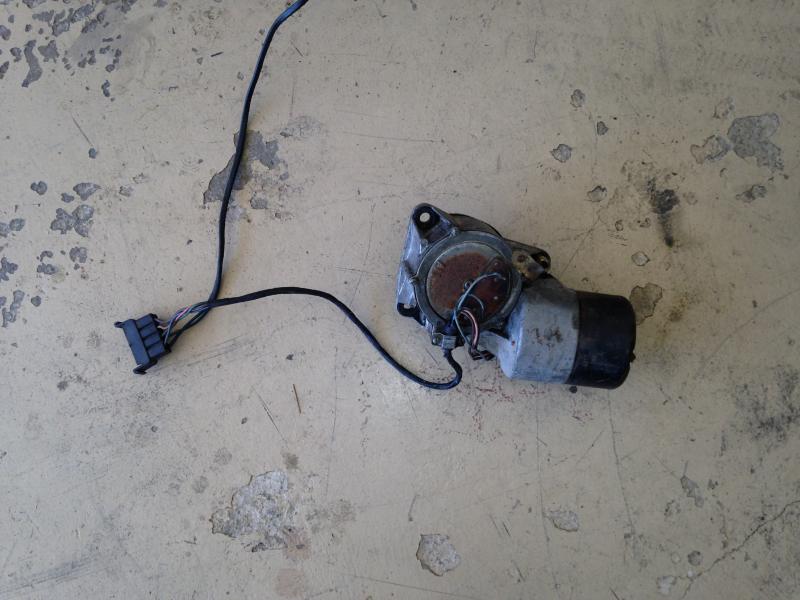

Parting out 1968 Charger I have the untested wiper motor with the complete harness. $ 30.00 plus
freight. I would be glad to test it if someone can tell me how to wire it. 1968 Roadrunner 006.jpg


Attachments

  • 1968 Roadrunner 007.jpg
    1968 Roadrunner 007.jpg
    52.3 KB · Views: 223
Last edited:
Bench testing procedure.


Test #1(Hi speed)


Connect jumper wire from motor case to battery ground.
Connect second jumper wire from battery positive to BROWN lead.
Motor should run hi speed continuously.


Test #2 (Lo speed)


Connect jumper wire from motor case to battery ground.
Connect jumper wire from GREEN wire to battery ground.
Join BROWN and RED wires together and connect a jumper wire from battery positive to them.
Motor should run at slower speed.


Test #3 (Park)


Connect jumper wire from motor case to battery ground.
Connect jumper lead from GREEN to BROWN wire.
Connect jumper wire from red wire to ground.
Connect jumper wire from Blue wire to battery positive.
Motor should reverse and park.


(Depending on where the motor had stopped the park feature may have a full rotation or very short rotation
