'71 RR engine compartment...need specific pictures. ..HELP

[rrTor-Red]

I'm in need of some reference pictures so I can put things back together on my car. '71 RR looking for detail pictures of the engine compartment:

1. Engine wire harness and where the wire looms go that hold the harness.

2. Type of hardware for the washer bottle?

3. Horn. Not sure if I have the right horn or not. I know there was a difference in the bracket for the horn to mount. Currently, mine has the short bracket.

I'll take any and all pictures to help. I can't seem to find all my pictures before I took everything out over the years.

Thanks!



[wahya]

Can't help you on the horn. Hope this Sat helps.



[rrTor-Red]

Yes, it does help. Wasn't sure where all went.

I appreciate it.



[rrTor-Red]

Can someone post a picture of the washer bottle? Is it a stainless sheet metal screw? What secures it to the back side?

Also, the horn. Does the RR horn have a long bracket to attach it to the inner fender as a non RR horn?

Thanks



[71airgrabberRR]

The washer bottle is held in place with sheet metal screws. (I'd use stainless) The horn is mounted exactly where you have yours mounted now. The RR takes a single horn.

- - - Updated - - -



- - - Updated - - -

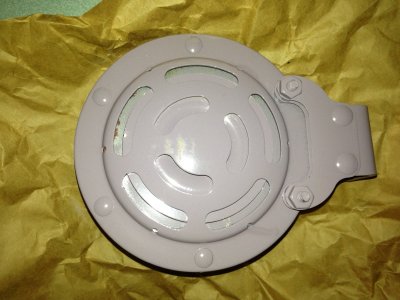

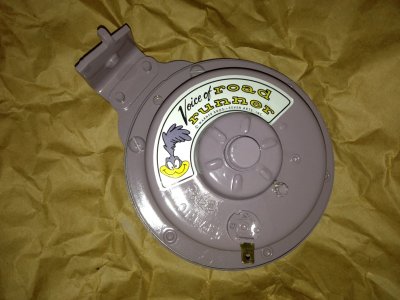

This is a NOS one I scored for my car. The lighting / flash makes the color look weird.

- - - Updated - - -



- - - Updated - - -



- - - Updated - - -

Hope this helps.



[rrTor-Red]

The washer bottle is held in place with sheet metal screws. (I'd use stainless) The horn is mounted exactly where you have yours mounted now. The RR takes a single horn.

- - - Updated - - -

View attachment 212110

- - - Updated - - -

This is a NOS one I scored for my car. The lighting / flash makes the color look weird.

- - - Updated - - -

View attachment 212111

- - - Updated - - -

View attachment 212112

- - - Updated - - -

Hope this helps.

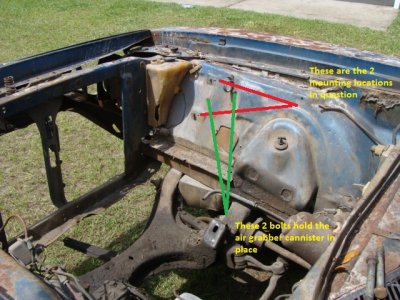

It does help, in a way 71AirgrabberRR. I have a horn like you pictured and I tried to mount it in the top position but the bolt doesn't go into the hole. The hole in the bracket looks like it has a slight angle to it, like it is crocked. And, the bracket on my horn is a short one. I did find my old windshield washer bottle and lord and behold, there were three , looked like, stainless screws in it. It just doesn't seem that sheet metal screws hold the bottle in place.



[butterscotch71]

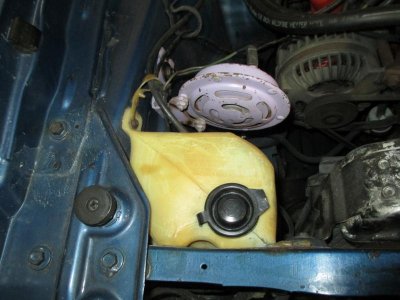

I typically see the long horn bracket on original 71 runners, mine included...later years got the short bracket. This is a photo of my original.



[71airgrabberRR]

That is a good picture of what my NOS horn looks like from the side. It's a long bracket like yours and the color looks better in your picture too.

As far as 3 screws for the washer bottle, that is correct. The 2 pictures above show what a 71 RR washer bottle looked like. They changed design in 72 as mentioned above, to clear the charcoal canister. They still take 3 screws, but in a different place because of the design change.

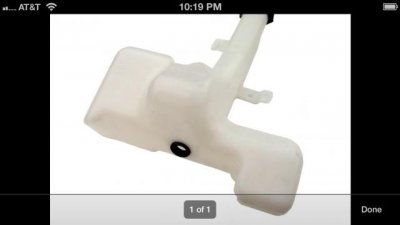

Here is a picture of a washer bottle for a 72. There will be a difference between power / electric washers and a manual foot pump style. The same part is also used on 72 Challenger's and Cuda's

The picture I posted shows a power reservoir while a manual will have a small molded in position plastic nipple.

Hope this helps.

- - - Updated - - -



- - - Updated - - -

I'm pretty sure the horn you have is for a 69-70 Road Runner. The mounting bracket "may" have a slightly different arrangement that will cause the twist you mentioned.

- - - Updated - - -

You can see the difference between the 71 washer bottle by looking at the 2 other pictures posted above this one.
