Air Grabber Question

[1fast72]

Hey so I got the whole air grabber assembly accept for the switch to open and close it (unfortunately it costs about $175 for a switch, but this isn't the place to b*tch about costs). Does anybody have a diagram or a link on how I can hook up the hoses to everything? Thats the only part I'm stuck on.
Thanks!



[1fast72]

Bump, I'm just so close to finishing up, please help!



[Deleted member 214]

I installed my 70 hoses last summer, should have the diagram in the garage someplace. I'll try and get back there Friday I gotta slog through the snow) and send you the info. I imagine it should be the same for a 71.



[1fast72]

Thanks man, I'm pretty sure their the same.



[moparstuart]

i bought my hoses from frank badalson ? spelling he supplied me with a diagram also , is not i'm sure my buddy roger wilson in iowa will have one



[Deleted member 214]

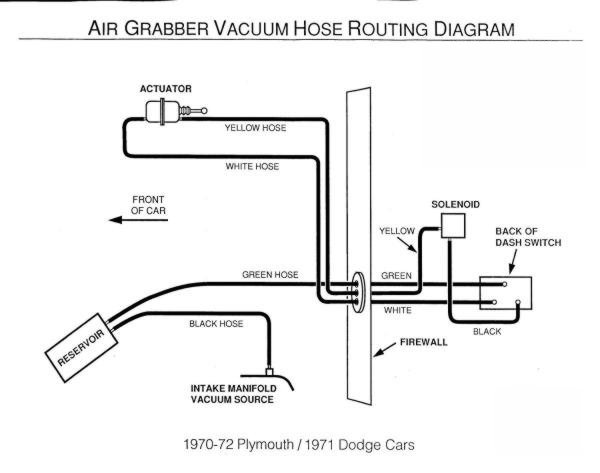

Air grabber diagram

Scanned it, but the file was too large to upload to this site. E-mail me at gsonger70@yahoo.com and I'll send it as an attachment. I will also try PM-ing it to you.



[Deleted member 214]

Sent out two diagrams via e-mail. Hope one was to 1fast72!



[1fast72]

Thanks again



[72RoadrunnerGTX]



[moparstuart]

very nice



[plumbeeper]

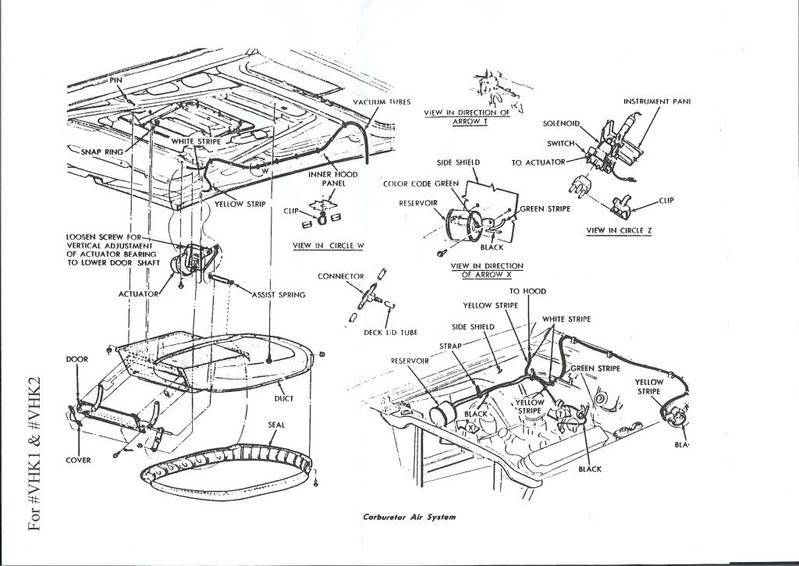

Here's another one...

Dave



[1fast72]

That really helps, thanks!!!



[1fast72]

Actually I have one question, what does the reservoir do and do I really need one?



[moparstuart]

Actually I have one question, what does the reservoir do and do I really need one?

its a vaccuum cannister and yes you need it , but you can use any cannister , but the upper diagram has a better picture of what the original looks like .



[moparstuart]

before i had my correct cannister I got a plastic one off a ford 94 ranger and it worked great



[convx4]

If you find an original switch that has the rear vacuum nubs busted I can repair them with metal inserts. The cost is $55 and shipping. vacuum clip not included [URL=http://img266.imageshack.us/i/airgrabberpicsandvid002ey6.jpg/][/URL]



[moparstuart]

If you find an original switch that has the rear vacuum nubs busted I can repair them with metal inserts. The cost is $55 and shipping. vacuum clip not included [URL=http://img266.imageshack.us/i/airgrabberpicsandvid002ey6.jpg/][/URL]

very cool is this allen ?



[1fast72]

Do you think you can link me to the cheapest canister? Do you know any place that sells the correct reservoir and the ranger reservoir?



[moparstuart]

Do you think you can link me to the cheapest canister? Do you know any place that sells the correct reservoir and the ranger reservoir?

hit a junk yard for any cannister ? if you want the correct one try swap meets ? or allen at wilson in st louis he has alot of air grabber stuff. or Ebay ?



[convx4]

Not Allen from Mo. I am a machinist that is also mopar guy that also lived in Mo.
