Another "what tool is this" ??

[hunt2elk]

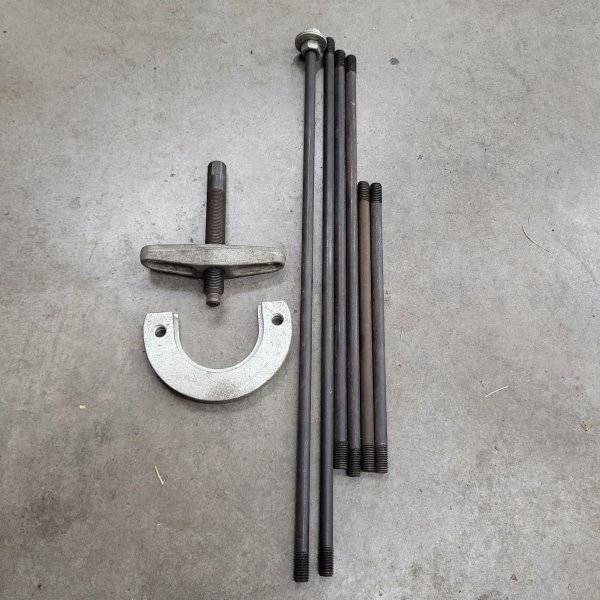

Does anyone know what exactly this Miller C-4335, SP-111, and rod set tool application is?. I find it described as a pinion and main shaft rear bearing remover set. Thanks in advance.



[Vaanth]

Does anyone know what exactly this Miller C-4335, SP-111, and rod set tool application is?. I find it described as a pinion and main shaft rear bearing remover set. Thanks in advance.

View attachment 1898419

View attachment 1898420

View attachment 1898421

Miller C-4335 is the drive pinion and main shaft rear bearing remover for the A-390 three speed manual transmission.

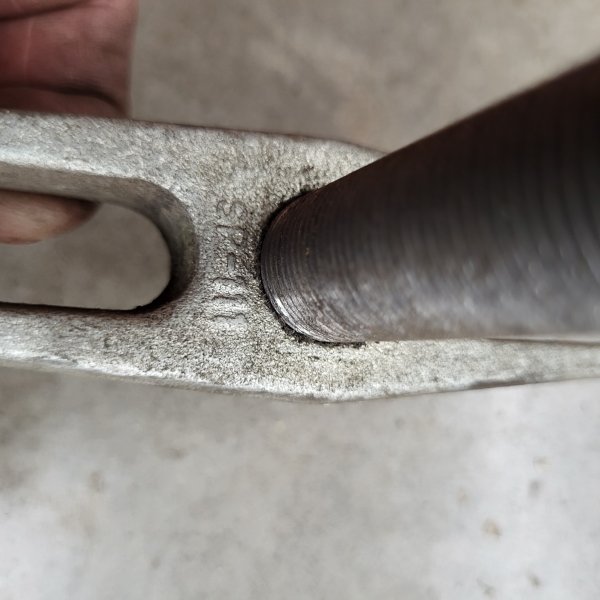

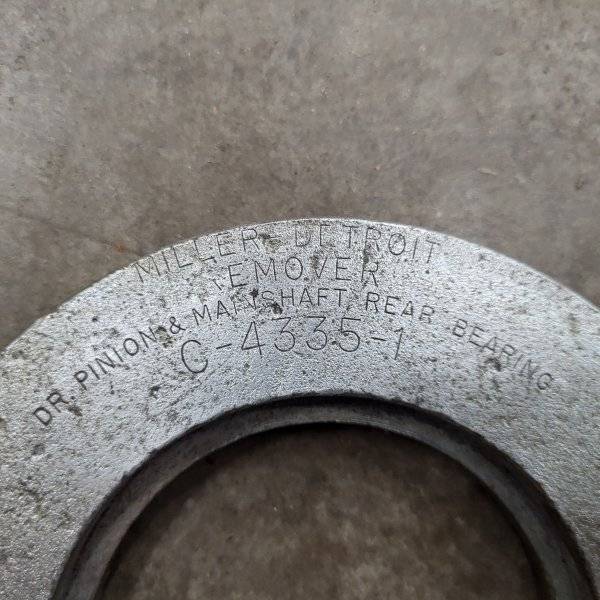

C-4335-1 is the bearing part, SP-111 is the puller part, and the threaded rods are used between the two, with different lengths for different depths.



[hunt2elk]

@Vaanth, you are THE man, thank you for the help. No wonder this one isn't flying off my shelf, lol. How do you know what all these odd ball tools are for?



[Vaanth]

@Vaanth, you are THE man, thank you for the help. No wonder this one isn't flying off my shelf, lol. How do you know what all these odd ball tools are for?

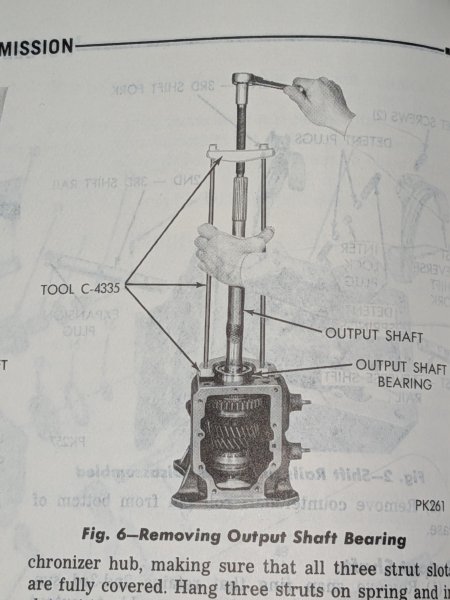

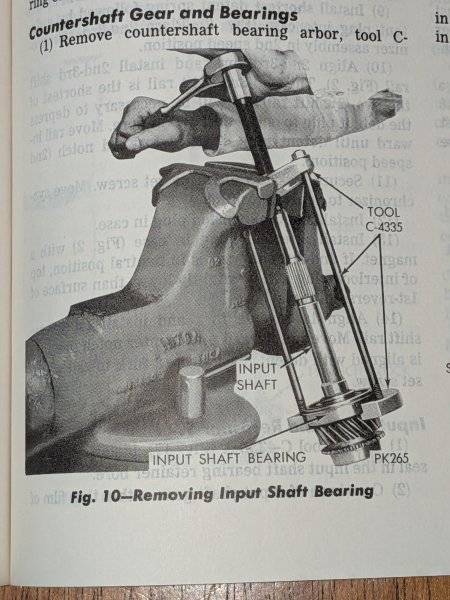

I've seen some in the past, and I've used several (although not this one), I own a few, and I have lots of service manuals. These pictures are from the 1975 service manual, which is also the year the A-390 was introduced.

Like most of the Miller tools, it has a specific use, but it might be handy for other uses too.
