WTB carburetor throttle stud

[Texas charger 73]

in need of a carburetor throttle stud like one pictured.



[ply64post]

Carb stud

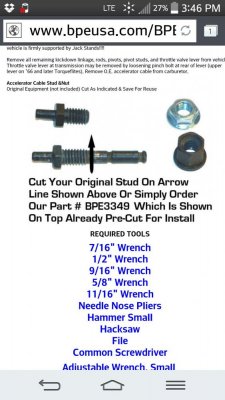

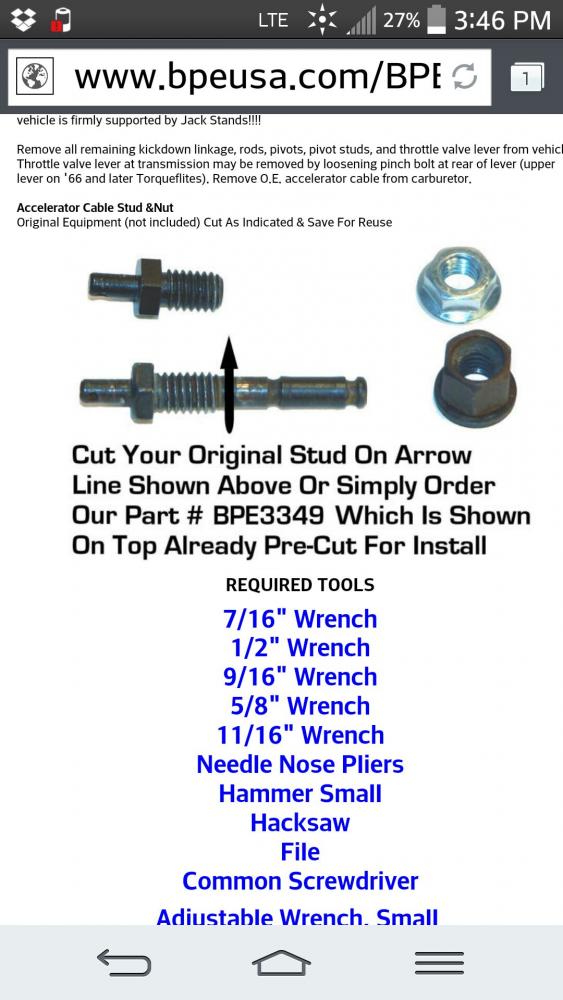

in need of a carburetor throttle stud like one pictured.View attachment 238511

This should help you.

Jeff

Best is that most parts are made in USA.


http://www.hoffmanswinnerscircle.com/14_fuel.htm


"440" - Carburetor Linkage Stud - $15 Each
An excellent reproduction of the carburetor linkage stud used on all 1967 through early 1969 4-barrel 4-speed applications. Cadmium plated as original and includes correct throttle cable retaining pin. Reference Chrysler part number 2806 440.

"441" - Carburetor Linkage Stud - $18 Each
An excellent reproduction of the carburetor linkage stud used on all 1967 through early 1969 4-barrel automatic transmission applications. Cadmium plated as original and includes correct throttle cable retaining pin, cadmium plated washer, and hair pin cotter. Reference Chrysler part number 2806 441.

"743-C" - Carburetor Linkage Stud - $18 Each
An excellent reproduction of the carburetor linkage stud used on 1966-69 426 Hemi and 1966 4-barrel applications. Used for both manual and automatic transmissions. Cadmium plated as original and includes correct throttle cable retaining pin, cadmium plated washer, and hair pin cotter. Most common variant of this part. Also found in zinc phosphate finish as supplied with part #743-PH. Reference Chrysler part number 2468 743.

"743-PH" - Carburetor Linkage Stud - $18 Each
An excellent reproduction of the carburetor linkage stud used on 1966-69 426 Hemi and 1966 4-barrel applications. Used for both manual and automatic transmissions. Zinc phosphate plated as original and includes correct throttle cable retaining pin, cadmium plated washer, and hair pin cotter. Less common variant of this part. Also found in cadmium finish as supplied with part #743-C. Reference Chrysler part number 2468 743.

"485-A12" - Carburetor Linkage Stud - $18 Each
An excellent reproduction of the carburetor linkage stud used on 1969 1/2 "A12" 440 Six Pack applications. Used for both manual and automatic transmissions. Cadmium plated as original and includes correct throttle cable retaining pin, cadmium plated washer, and hair pin cotter. Reference Chrysler part number 2951 485.

"485" - Carburetor Linkage Stud - $18 Each
An excellent reproduction of the carburetor linkage stud used on 1970-71 440 Six Pack and 1971-73 340 4-barrel applications. Used for both manual and automatic transmissions. Zinc phosphate plated as original and includes correct throttle cable retaining pin, cadmium plated washer, and hair pin cotter. Reference Chrysler part number 2951 485.

"899" - Carburetor Linkage Stud - $15 Each
An excellent reproduction of the carburetor linkage stud used on all late 1969-74 4-barrel 4-speed applications EXCEPT 1971-73 340 4-barrel. Zinc phosphate plated as original and includes correct throttle cable retaining pin. Reference Chrysler part number 3418 899.

"900" - Carburetor Linkage Stud - $18 Each
An excellent reproduction of the carburetor linkage stud used on all late 1969-74 4-barrel automatic transmission applications EXCEPT 1971-73 340 4-barrel. Also used on 1970 340 Six Pack applications with both manual and automatic transmissions. Zinc phosphate plated as original and includes correct throttle cable retaining pin, cadmium plated washer, and hair pin cotter. Reference Chrysler part number 3418 900.

"701" - Carburetor Linkage Stud - $22 Each
An excellent reproduction of the carburetor linkage stud used on 1970-71 426 Hemi applications. Used for both manual and automatic transmissions. Cadmium plated as original and includes correct throttle cable retaining pins and cadmium plated washer for automatic applications. Reference Chrysler part number 3462 701.



[Texas charger 73]

Thank you so much Jeff



[moparcuda]

do you need for automatic or manuel



[Texas charger 73]

I need the short one or I can cut down the long one.
