ECM/ voltage regulator combo diagram

[KyleFinlay]

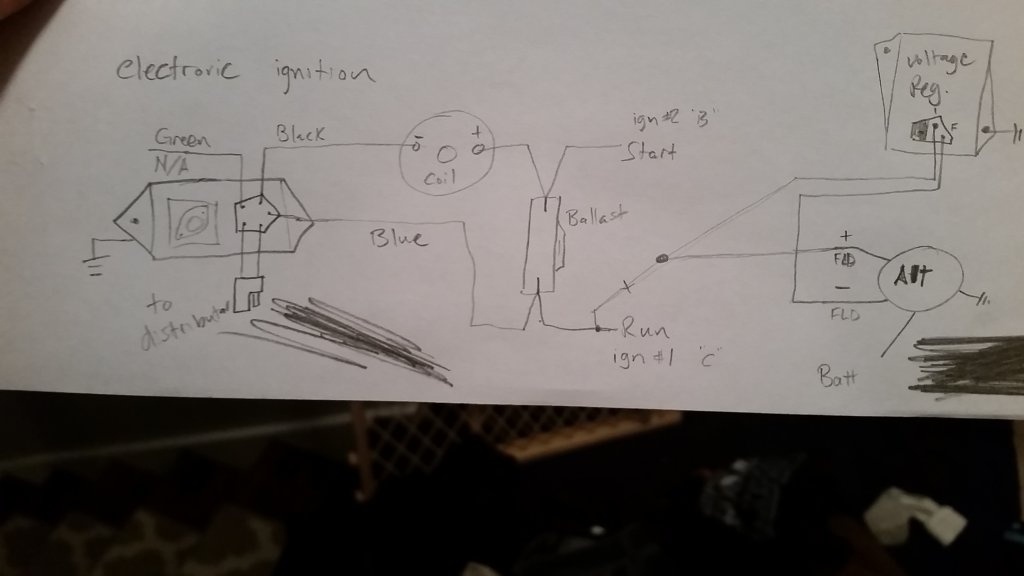

Hey guys, seems like every where I look I have different diagram's for the voltage regulator, and the electronic ignition system, I've drawn up something that looks right. Using ballast resistor, ECM and distributor from proform, stock voltage regulator, and an externally regulated alternator. Any help or issues before I fry my ignition system would be great!



[PurpleBeeper]

I didn't go over it in detail, but that looks right to me.



[KyleFinlay]

I finally found a diagram that looks kinda like this, I've looked it over and it matched one I just found on AllPar.com I was second guessing it because I was only seeing the ECU diagram with the ballast and "run" "start" possition. But a voltage regulator diagram never showed the ECU. Thanks for the second opinion!
