Help identifying sheet metal parts

[EmilFrimodig]

Hi! I got these along with my 1966 Coronet and need help identifying them!



[Dave6T4]

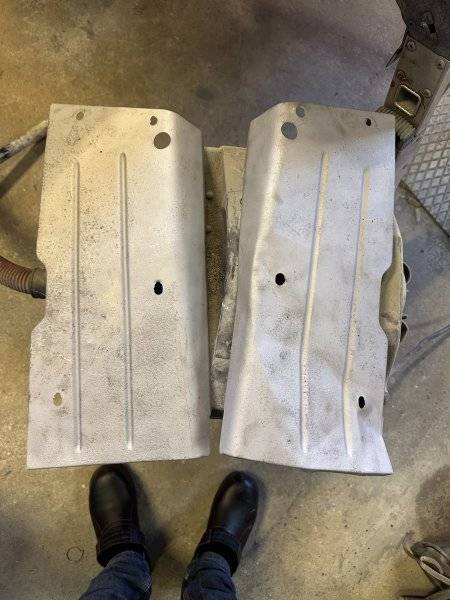

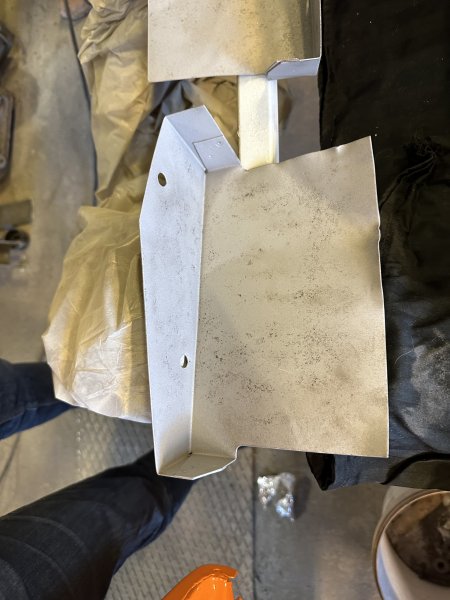

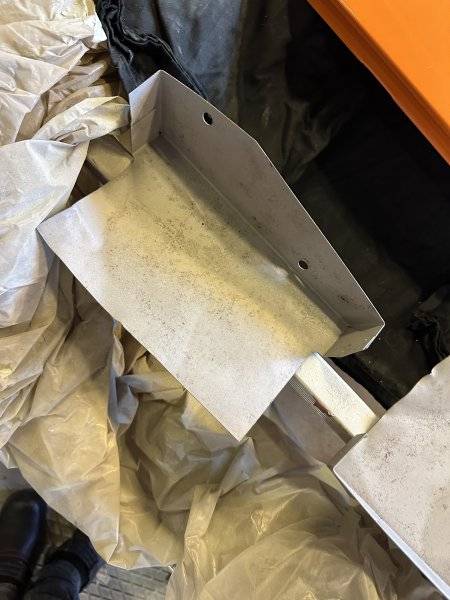

The 2 pieces by your feet are splash/air deflectors, and mount on top of your front bumper braces. For 1967, these changed to plastic. The bottom pictures are of other defectors that mount on the bottom of the front frame rails, near the strut rods. (Dadsbee is reproducing these).I think the top one is a splash shield for the starter, and mounts to frame near it. The cut out is for the tie rod to pass through. This piece is missing on a lot of cars, because it rusts out, or gets tossed at first starter replacement.



[EmilFrimodig]

Thanks! I knew someone would know!



[F4R/T]

#1 is the starter splash shield



[R413]

#1 starter splash shield was not used in 1966 or 1967. You will not find any factory holes drilled in the bottom of the frame rail for it to mount.



[EmilFrimodig]

Oh! Thats strange! I wonder why it came with the car!
