Power Steering pump for 1970 Hemi RR Manual Trans

[Lucky Lar]

Anybody know which power steering pump would have come on a 1970 Hemi RR Manual Trans ?

Also would these cars come with power steering pump cooler ?



[440 PHIXX]

Anybody know which power steering pump would have come on a 1970 Hemi RR Manual Trans ?

Also would these cars come with power steering pump cooler ?

My 1970 440 Six Pack Charger, 4 speed, 3.54 Dana has the Saginaw with a cooler on the return line. The Hemi should be the same. It also has the big three spoke pulley.



[Runcharger]

Federal pump on a Hemi. Cooler for Super Track pak cars.



[440 PHIXX]

Federal pump on a Hemi. Cooler for Super Track pak cars.

I wasn’t sure. But surprised, because the Federal pump is only rated to 5500 RPM. Maybe they were different internally.

I also read somewhere that any axle package that had 3.54 or greater got the cooler. All Dana’s and every 3.55 and up 8 3/4.



[Runcharger]

Larger pulley on the Hemi pumps so they spun a bit slower.



[R413]

Cooler on 3.54 and bigger number Rear gears.
So every hemi and 440 4 speed had a PS cooler.



[Lucky Lar]

Federal pump on a Hemi. Cooler for Super Track pak cars.

Thanks



[Lucky Lar]

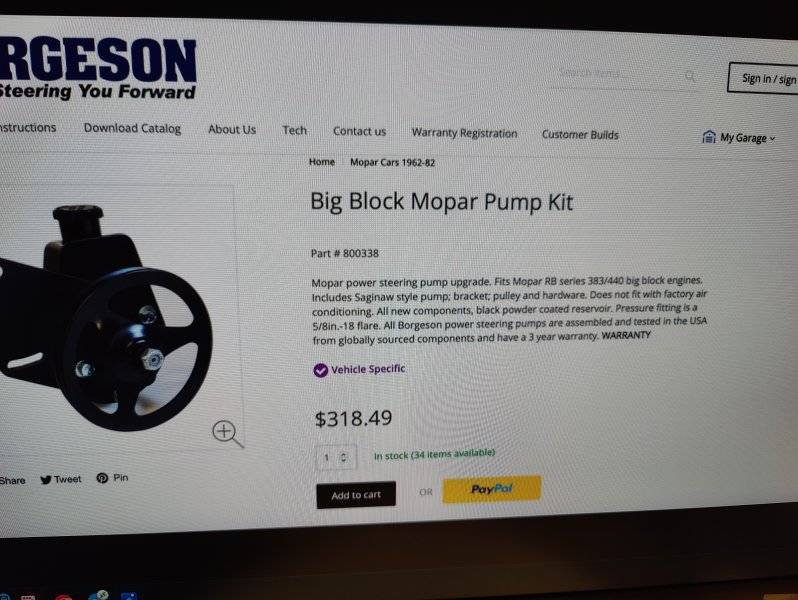

Is this the correct pump



[Lucky Lar]

Anybody know where you can buy a power steering pump cooler ?



[Runcharger]

That photo is a Saginaw pump. I don't have a good photo, these are the best I can do.

Federal Power Steering Pump Bracket

Federal Power Steering Pump Pulley



[RJRENTON]

My 1970 440 Six Pack Charger, 4 speed, 3.54 Dana has the Saginaw with a cooler on the return line. The Hemi should be the same. It also has the big three spoke pulley.

My RS23V0A*******, 4 speed transmission has the Saginaw with the PS cooler on the return line, the A34 Super track pack option (max cooling, torque drive fan clutch assembly, 7 blade fan, front PBD ) including the Dana 60 4.10:1 rear. The PS oil cooler came on vehicle's with 3.54:1 and higher ratio rears.
BOB RENTON



[Lucky Lar]

Anybody know where you can buy a power steering pump cooler ?



[RJRENTON]

Anybody know where you can buy a power steering pump cooler ?

Try GLEN-RAY RADIATOR
Please feel free to contact us by any means below for any questions that you may have regarding our products and services.
We thank you for your interest in Glen-ray Radiators!
Glen-ray Radiators, Inc.
2105 North 6th Street
Wausau, WI 54403
PH: 800.537.3775 or 715.842.3352
Mon-Fri, 7AM-5PM CST
contact@restorationradiators.com
Glen-ray Radiators, Inc. • 2105 North 6th Street • Wausau, WI 54403 • PH: 800.537.3775 or 715.842.3352
Call them....they have other MOPAR parts links that are listed.....try looking them up.....
BOB RENTON



[Lucky Lar]

Try GLEN-RAY RADIATOR
Please feel free to contact us by any means below for any questions that you may have regarding our products and services.
We thank you for your interest in Glen-ray Radiators!
Glen-ray Radiators, Inc.
2105 North 6th Street
Wausau, WI 54403
PH: 800.537.3775 or 715.842.3352
Mon-Fri, 7AM-5PM CST
contact@restorationradiators.com
Glen-ray Radiators, Inc. • 2105 North 6th Street • Wausau, WI 54403 • PH: 800.537.3775 or 715.842.3352
Call them....they have other MOPAR parts links that are listed.....try looking them up.....
BOB RENTON

Thanks Bob



[moes]

Psycho Dad has an ad for a power steering cooler that I check out. Looks like a nice piece.



[Lucky Lar]

Does anybody have pictures of the cooler installed
