Super Stock Leaf Spring Installation

mrbone

Well-Known Member
Local time
3:14 PM
Joined
Nov 8, 2017
Messages
73
Reaction score
25
Location
Minnesota
Hey all! So, I am in the process of replacing the worn out leaf springs on my 68 RR..
Ran into a crazy problem. The leaf springs are too short!!

I have Mopar Performance bracket set PN: P4120105 for the B-body 116" wheel base.
The springs are PN: P3690454 & 455 and bolt right up to the MP hanger bracket.
I am told the super stock spring should be 56" which, unless I am measuring wrong- they appear to be.
And, the MP extended bracket is 2" longer than my factory bracket.

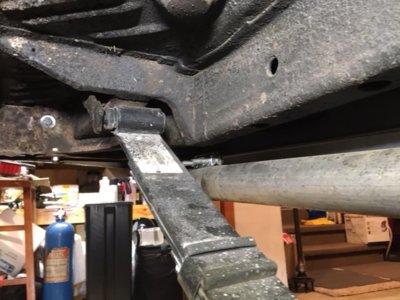

But as the photos show- they are short.
Not sure what to do?? Any advise? What am I missing?

HELP!

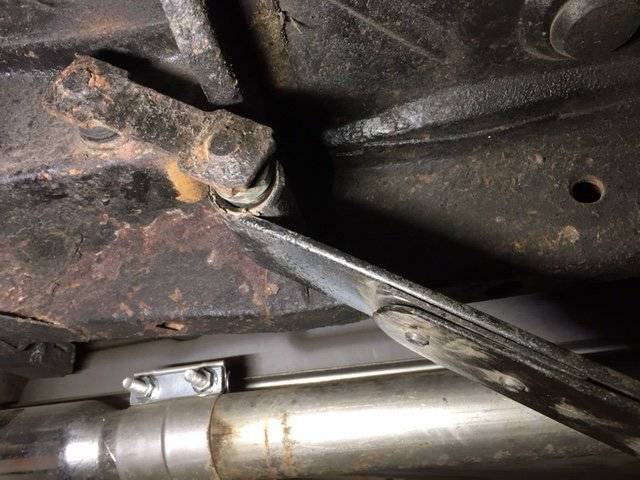

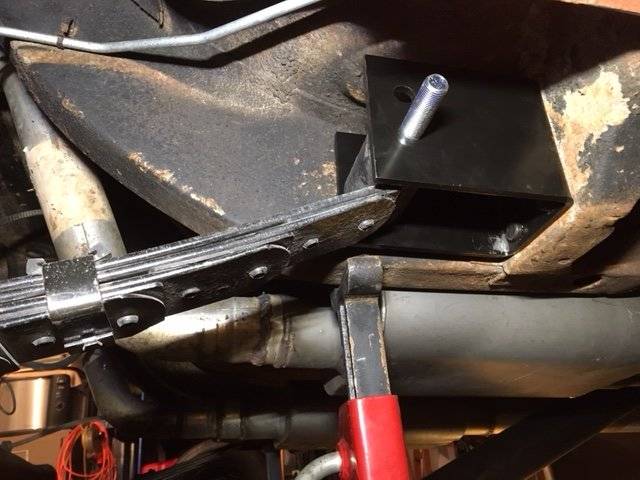

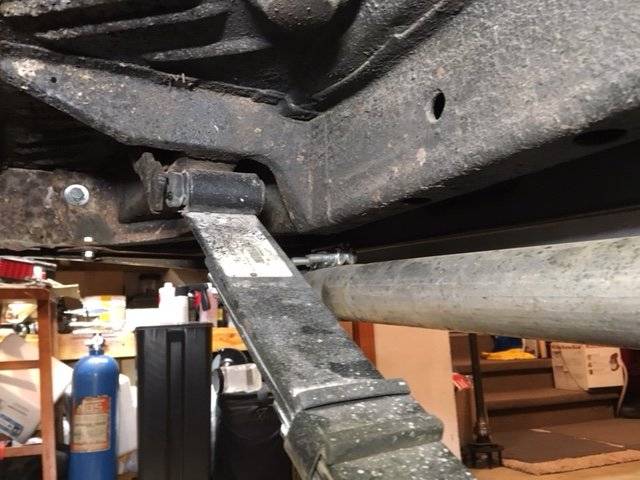

superstock 3.JPG superstock 1.JPG superstock 2.JPG


Lefty71

FBBO Gold Member
FBBO Gold Member
Local time
4:14 PM
Joined
Mar 8, 2018
Messages
2,443
Reaction score
2,646
Location
Ohio
Look up the part number for the springs... I thought that 454 and 455 were for 62-65 Plymouth "B", and maybe plymouth only, so shorter front segment. Look it up tho, dont quote me on it!


mrbone

Well-Known Member
Local time
3:14 PM
Joined
Nov 8, 2017
Messages
73
Reaction score
25
Location
Minnesota
That's what I thought was wrong at first too.
Mopar Performance P3690456 & P3690457 are listed for 1964-65 B-body.
The MP 454 & 455 is for B-body rated at 3800#. So, the springs should fit..


33 IMP

FBBO Gold Member
FBBO Gold Member
Local time
1:14 PM
Joined
Dec 21, 2017
Messages
7,665
Reaction score
10,749
Location
taxifornia,soon 2b Arizona.
Have you put weight on the new springs? With car weight on the springs the arch gets shallower and they effectively become longer.
If that doesn't help, I'd guess you need different hangers.


Daves69

Well-Known Member
Local time
3:14 PM
Joined
Jan 24, 2014
Messages
2,100
Reaction score
1,842
Location
ChiWest
As you lower the weight on to the spring, pry/leverage the shackles rearward till they go past center for you. Maybe that will help.


VANDAN

FBBO Gold Member
FBBO Gold Member
Local time
4:14 PM
Joined
May 27, 2011
Messages
3,408
Reaction score
6,160
Location
Western NY
I had bought MP SS springs for my '65 Coronet, thru Summit Racing, and they were incorrectly tagged, so make sure you have the correct springs before you beat yourself up. Took a bit, but they corrected the error...


andyf

Well-Known Member
Local time
1:14 PM
Joined
Jul 21, 2012
Messages
952
Reaction score
1,543
Location
Oregon
Hey all! So, I am in the process of replacing the worn out leaf springs on my 68 RR..
Ran into a crazy problem. The leaf springs are too short!!

I have Mopar Performance bracket set PN: P4120105 for the B-body 116" wheel base.
The springs are PN: P3690454 & 455 and bolt right up to the MP hanger bracket.
I am told the super stock spring should be 56" which, unless I am measuring wrong- they appear to be.
And, the MP extended bracket is 2" longer than my factory bracket.
But as the photos show- they are short.
Not sure what to do?? Any advise? What am I missing?

HELP!

View attachment 869633 View attachment 869635 View attachment 869636

Compare the rear segment length to the springs you took off. If they are the same length then you are good to go. Also compare the front segment length. The SS springs should be two inches shorter which is why you have a two inch longer hanger. If everything checks out correct then go ahead with the install. If not then you have some problem. Maybe mislabeled springs or some other unknown issue.


mrbone

Well-Known Member
Local time
3:14 PM
Joined
Nov 8, 2017
Messages
73
Reaction score
25
Location
Minnesota
OK, as usual you guys are right on the money.
Sorry it took me a couple days to get back to you, (work & kids).

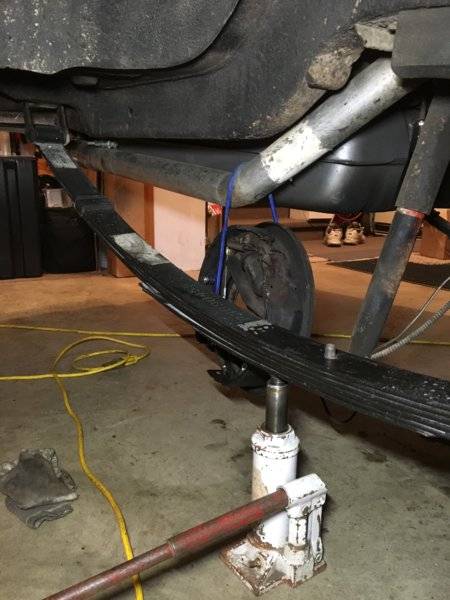

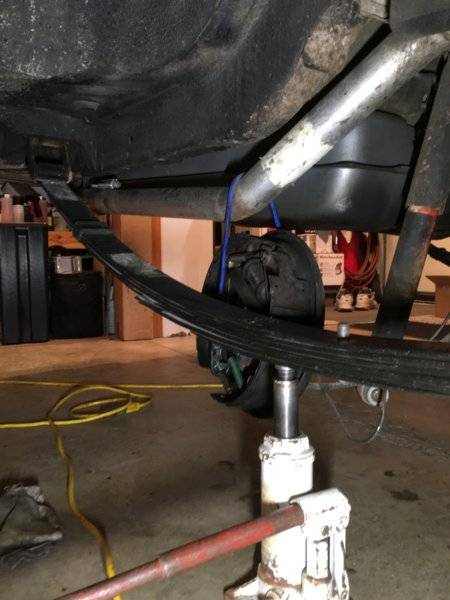

After a lot of measuring, staring and actually setting the old leaf's next for comparison..

I put a jack underneath the Super Stock Spring and started compressing it. Sure enough, the rear shackles went right into position.
It was also clear the new springs have much more ARCH than the old ones. Obviously, they will 'flatten' out after they are 'broke in'.

Thanks for all you're help as always! AJ

26456BA5-84B2-4484-A555-29CEEB5B2AF6.jpeg 48623E2A-0021-453E-86E7-6D043C2E4F17.jpeg


Ceedawg

Well-Known Member
Local time
4:14 PM
Joined
Jul 22, 2018
Messages
1,017
Reaction score
726
Location
Va

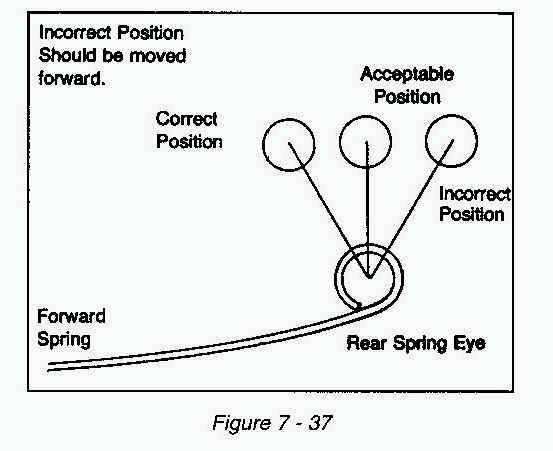

When shocks are installed the hanger will stay back where it’s supposed to be. Too long a shock, then it could lock forward on a hard launch or just jacking up to change tire, a no no. Now, removing shocks is a good way to remove tires that are snug-tight up in the wheel well.


mrbone

Well-Known Member
Local time
3:14 PM
Joined
Nov 8, 2017
Messages
73
Reaction score
25
Location
Minnesota
You are right!! Thanks for the heads up.
33 IMP, where did you get the shims? Did you make them out of aluminum?


33 IMP

FBBO Gold Member
FBBO Gold Member
Local time
1:14 PM
Joined
Dec 21, 2017
Messages
7,665
Reaction score
10,749
Location
taxifornia,soon 2b Arizona.

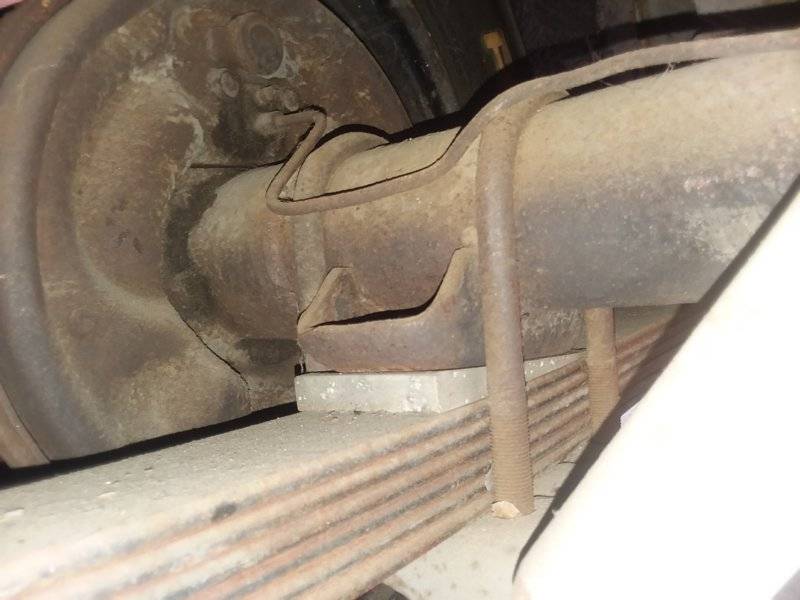

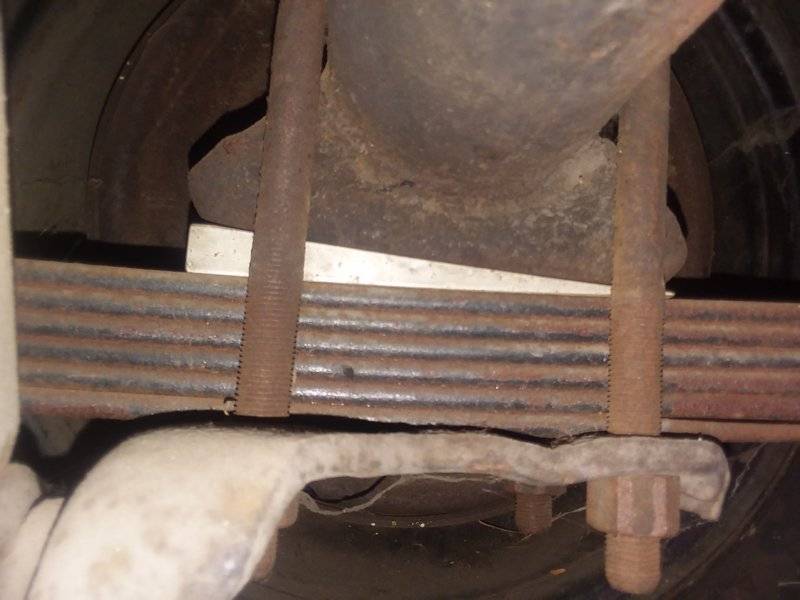

I have made my own spacers, and wedges to alter pinion angle, but I think the ones on my 62 were purchased. Summit and jegs both sell them, I'm sure.


Fran Blacker

FBBO Gold Member
FBBO Gold Member
Local time
4:14 PM
Joined
Sep 23, 2016
Messages
12,230
Reaction score
12,095
Location
Connecticut
Know what shims you need before ordering $30/40 a pair.


bearman

FBBO Gold Member
FBBO Gold Member
Local time
1:14 PM
Joined
Jan 9, 2018
Messages
5,365
Reaction score
5,288
Location
Phoenix
Don't forget to box up the spring perches.


mrbone

Well-Known Member
Local time
3:14 PM
Joined
Nov 8, 2017
Messages
73
Reaction score
25
Location
Minnesota
Don't forget to box up the spring perches.

What is "boxing up the spring perches"?
Never heard of that.. of course I never heard of spring perch shim's either.
Pretty sure I'll need to shim, without measuring, looks like my pinion angle is least 2 degrees higher now.
