Throttle Bracket Help

[1974DodgeCharger]

I have a 1974 charger with a 360. Street Demon 625 cfm Carb with Edelbrock spacer. Ever since I hooked my Demon carburetor, the throttle cable needs a bracket so it can be properly placed. I have tried a makeshift bracket from parts I had laying around and it finally went faulty today and need to get a real bracket. I believe my intake is from around 1989 motor because that is what my gooseneck fit for my thermostat. I would like to know any suggestions or ideas about a throttle bracket and what yall use? Any help would be appreciated.



[Dennis H]

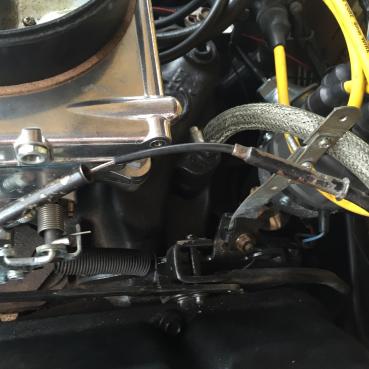

Don't know if this will help.



[benno440]

get a Lokar throttle bracket from summit



[mrsnicks]

get a Lokar throttle bracket from summit

Got a Lokar part # or a picture? There seem to be several Lokar throttle brackets. I may have to do this as well when I put a 4bbl carb and intake on my 318.



[1974DodgeCharger]

Is that a bracket you can buy or one you built yourself? I need one like that. Thanks Kevin

- - - Updated - - -

What is the part number?



[Bb70charger500]

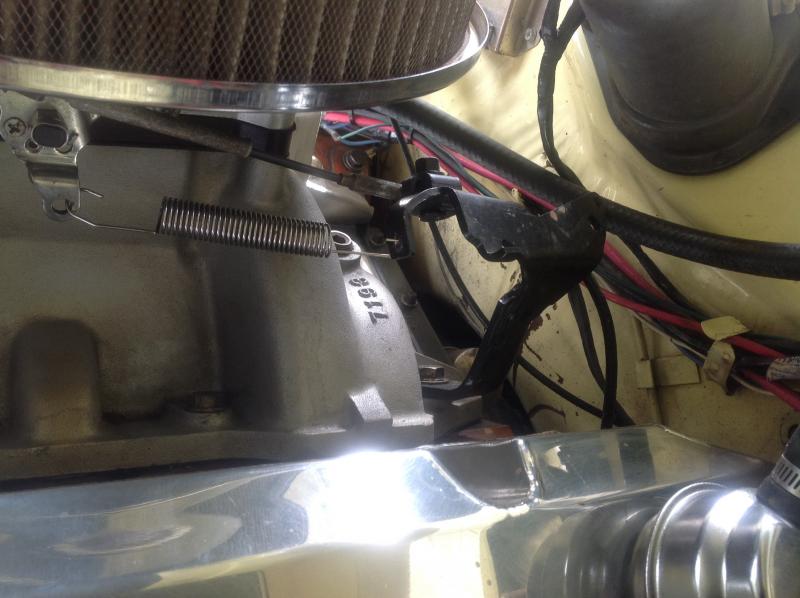

If I'm not mistaken doesn't the kick down linkage share the throttle bracket also. Do you have your kick down hooked up still? I may have a spare org bracket I'll have to look threw my bracket bins . If I do you can have it just pay for the shipping witch will be like 5 bucks p.m. me and remind me to look tomorrow I have a bad memory. I'll take a pic of my 340 for you and 318 for reference pics



[1974DodgeCharger]

I don't know if this will help but i need the throttle bracket to be tall so it won't interfere with the carburetor linkage and moving parts.



[DrewTX]

Any pictures on a solution for the throttle cable and transmission kick down? I'm stuck in the same issue...318 with Demon 625 carb linkage problems.



[mrsnicks]

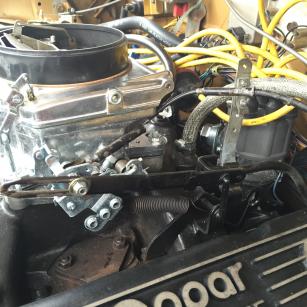

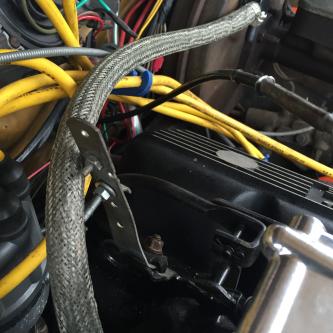

I used the bouchillon kit. http://bouchillonperformance.com/inc/sdetail/589



[ckessel]

Check out arengineering.com. Thats Andy Finkbeiner's company and he has a plethora of mounting brackets. Big time Mopar guy.



[DrewTX]

I used the bouchillon kit. http://bouchillonperformance.com/inc/sdetail/589

Thanks for the quick response. I used the Bouchillon Sanden AC compressor kit. It was good quality, but didn't fit per the poorly hand drawn diagram-instructions. These guys customer service was almost non-existent but decent products. I wish there was a way around spending $200 for a kick-down and accelerator cable. Thanks again.



[Bruzilla]

I took a grinder and sliced the attachment legs off my bracket, then welded two spacers between the bracket and the legs to get it to the right height I needed. I used some 1/8" bar stock from Home Depot for the spacers and a $100 wire welder from Harbor Freight.
