Wiper switch wiring Help please

'69Net

Well-Known Member
Local time
9:57 PM
Joined
Dec 9, 2011
Messages
264
Reaction score
16
Location
Australia
High Guy's I'm still trying to sort My wiper switch wiring...

The Diagrams I have seen from links from this site all seem slightly diferent to the wiring and switch I have???

do I have the correct switch for My 69 Coronet with 3 speed wipers?

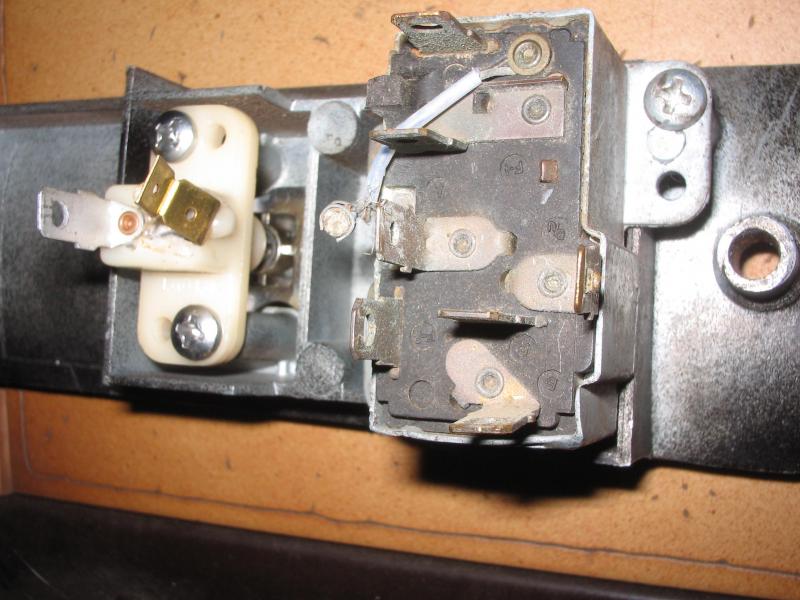

here is a pic..

Any Help please


Attachments

  • IMG_2562.jpg
    69.6 KB · Views: 454
Nope looks wrong Steve, it should have a rectangular resistor attached to the side of it

So can someone show Me a pic of what a 3 speed switch should look like?

This car is starting to piss Me off big time, whoever put this car back together needs something un-pleasent........

Ok...looks like I have a 3 speed switch??? but the resistor is gone and the wire soldered together....

will this still work???

I have a 3 speed switch that I will try and take a picture of tomorrow. If you need one let me know and we can work something out. Jim

I have a 3 speed switch that I will try and take a picture of tomorrow. If you need one let me know and we can work something out. Jim

Thanks Jim...are the strip dash switches the same as rallye dash ones?
Steve.

Glad you chimed in Prop, I couldn't remember who that was that recently replaced that resistor.

Piece O' Cake......Glad it helps someone else out. I know I got about a 3 hour low down on the magical world of 3 speed wiper switch resistors. No reason to thank me though... It's the other great folks that helped me out on this site that deserve the credit. I just followed the road they paved.

Thanks Gents....I was able to buy a nos one on sleazbay last night....We don't have Radio Shack Here.. but I will try to get a resistor from an electronis supplier and keep the old switch as a spare....
