FOR SALE 1968-1970 B body instrument cluster

Status
Not open for further replies.

Tim Nist

Well-Known Member
Feedback: 0 / 0 / 0
Local time
2:23 AM
Joined
Jun 26, 2021
Messages
50
Reaction score
57
Location
Trenton, NJ

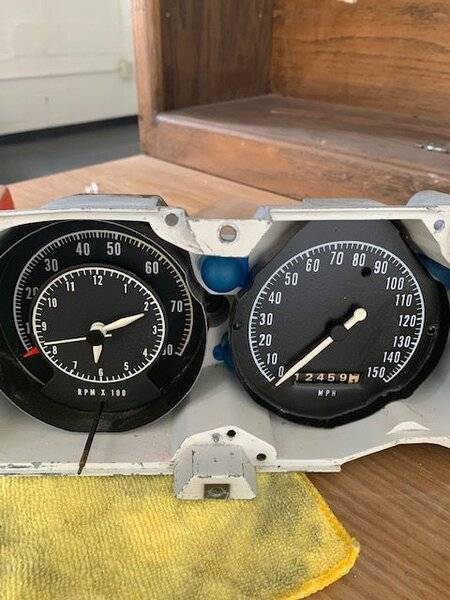

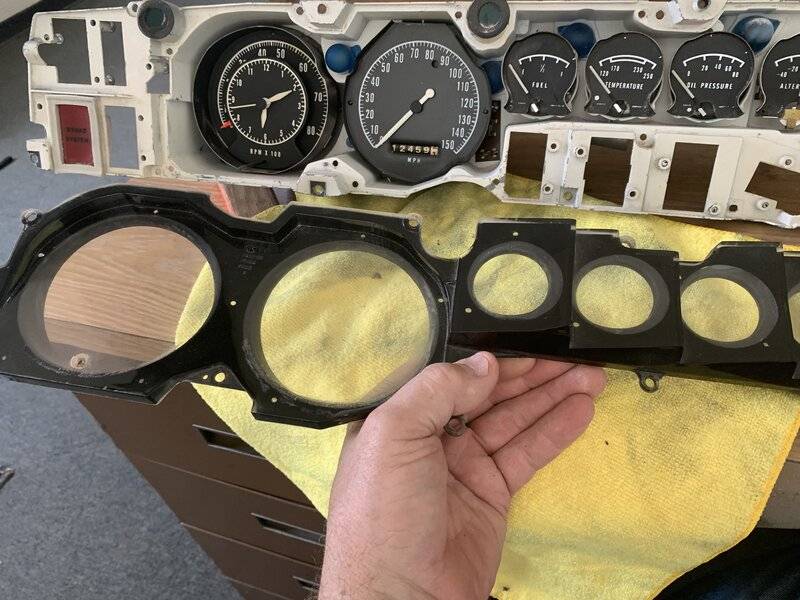

Nice, but not perfect Wood Grain instrument cluster. No switches.$500.00 plus shipping or pick up in NJ.

I should of written this is not for 70

Last edited:

davek

FBBO Gold Member
FBBO Gold Member
Feedback: 25 / 0 / 0
Local time
2:23 AM
Joined
Oct 14, 2017
Messages
6,413
Reaction score
6,211
Location
columbia SC
not a 70,flasher on column


Tim Nist

Well-Known Member
Feedback: 0 / 0 / 0
Local time
2:23 AM
Joined
Jun 26, 2021
Messages
50
Reaction score
57
Location
Trenton, NJ
Yes, I didn't think of that, I stand corrected, and will


1 Wild R/T

FBBO Gold Member
FBBO Gold Member
Feedback: 2 / 0 / 0
Local time
11:23 PM
Joined
Jul 9, 2019
Messages
6,195
Reaction score
15,165
Location
California
Also not a 68... But it does have the Tic Tok Tach & the gauge faces are very clean...


Cranky

Henchman #27
Staff member
FBBO Gold Member
Feedback: 27 / 0 / 0
Local time
1:23 AM
Joined
Dec 4, 2009
Messages
26,926
Reaction score
27,224
Location
Down southeast Taxas
69 only? If so, I'll change the heading......let me know if you want it changed.


Demonic

Well-Known Member
Feedback: 5 / 0 / 0
Local time
2:23 AM
Joined
Jun 5, 2017
Messages
1,623
Reaction score
1,422
Location
Maryland
So it's likely an SE dash if out of a Charger. Pic of the whole back?


steve817

Well-Known Member
Feedback: 0 / 0 / 0
Local time
12:23 AM
Joined
Jan 7, 2011
Messages
326
Reaction score
269
Location
Casper Wyoming

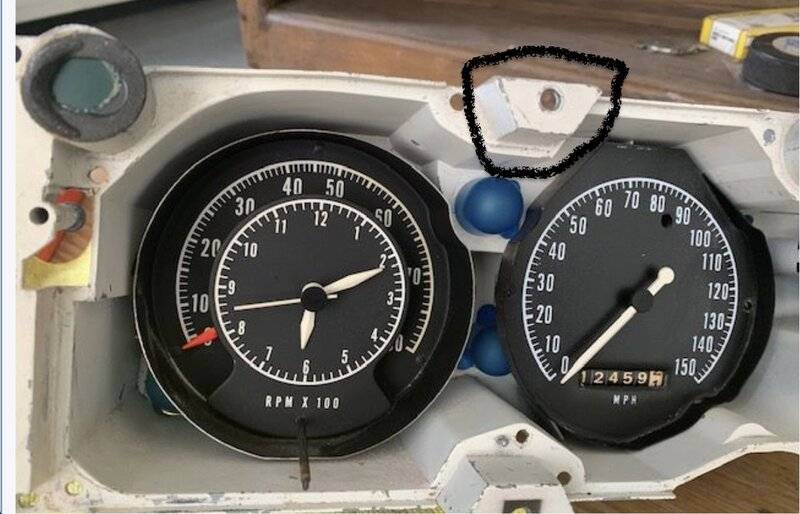

It is a 68 cluster frame that someone did a cosmetic upgrade years ago. The 68 frame can be identified by the circled area in the picture attached. Also, the shade of green on the turn signal lenses are 68. Those gauge face overlays are the oldest ones from years ago. They did not reface the odometer which is so typical with an old restoration of these clusters. They took liberties with the tach pointer(painted it orange/red), someone just added the woodgrain bezel which is incorrect (however, restorable). Cannot tell if they used the quartz clock upgrade and/or new(at the time) tach board. This cluster is a good candidate for complete restoration.



Tim Nist

Well-Known Member
Feedback: 0 / 0 / 0
Local time
2:23 AM
Joined
Jun 26, 2021
Messages
50
Reaction score
57
Location
Trenton, NJ
It is a 68 cluster frame that someone did a cosmetic upgrade years ago. The 68 frame can be identified by the circled area in the picture attached. Also, the shade of green on the turn signal lenses are 68. Those gauge face overlays are the oldest ones from years ago. They did not reface the odometer which is so typical with an old restoration of these clusters. They took liberties with the tach pointer(painted it orange/red), someone just added the woodgrain bezel which is incorrect (however, restorable). Cannot tell if they used the quartz clock upgrade and/or new(at the time) tach board. This cluster is a good candidate for complete restoration.

View attachment 1144339
Thanks for the input, I learned a bunch. I don't think much time was devoted to this cluster from the previous owner. He didn't even know that it wasn't a 70 until we talked about it the other day. Probably bought it this way by the owner before him, or somewhere over the years. How long have they been doing resto's on these?


davek

FBBO Gold Member
FBBO Gold Member
Feedback: 25 / 0 / 0
Local time
2:23 AM
Joined
Oct 14, 2017
Messages
6,413
Reaction score
6,211
Location
columbia SC
any info if gauges clock tach work?


Demonic

Well-Known Member
Feedback: 5 / 0 / 0
Local time
2:23 AM
Joined
Jun 5, 2017
Messages
1,623
Reaction score
1,422
Location
Maryland
The clock is easy to test, just ground the cluster and put 12v to the grey wire for a second. If you hear a click, the electric relay is good. Then it’s just a matter of cleaning up the pivots and shafts.


Tim Nist

Well-Known Member
Feedback: 0 / 0 / 0
Local time
2:23 AM
Joined
Jun 26, 2021
Messages
50
Reaction score
57
Location
Trenton, NJ
The clock is easy to test, just ground the cluster and put 12v to the grey wire for a second. If you hear a click, the electric relay is good. Then it’s just a matter of cleaning up the pivots and shafts.
Sorry, I was away. Put power to it last evening, the clock works. The second hand had a nice quiet sweep


MGKelly

FBBO Gold Member
FBBO Gold Member
Feedback: 4 / 0 / 0
Local time
2:23 AM
Joined
Jun 1, 2013
Messages
418
Reaction score
377
Location
NJ
Do you have an example of a 70 cluster frame or any numbers on the frame to verify?
I have a 70 cluster frame the looks very similar to one posted.

It is a 68 cluster frame that someone did a cosmetic upgrade years ago. The 68 frame can be identified by the circled area in the picture attached. Also, the shade of green on the turn signal lenses are 68. Those gauge face overlays are the oldest ones from years ago. They did not reface the odometer which is so typical with an old restoration of these clusters. They took liberties with the tach pointer(painted it orange/red), someone just added the woodgrain bezel which is incorrect (however, restorable). Cannot tell if they used the quartz clock upgrade and/or new(at the time) tach board. This cluster is a good candidate for complete restoration.

View attachment 1144339
