A while back I bought some original assembly line parts and 1 of the rear wheel cylinders is missing some pieces.
The wheel cylinders are for 1969 1970 B Bodies.

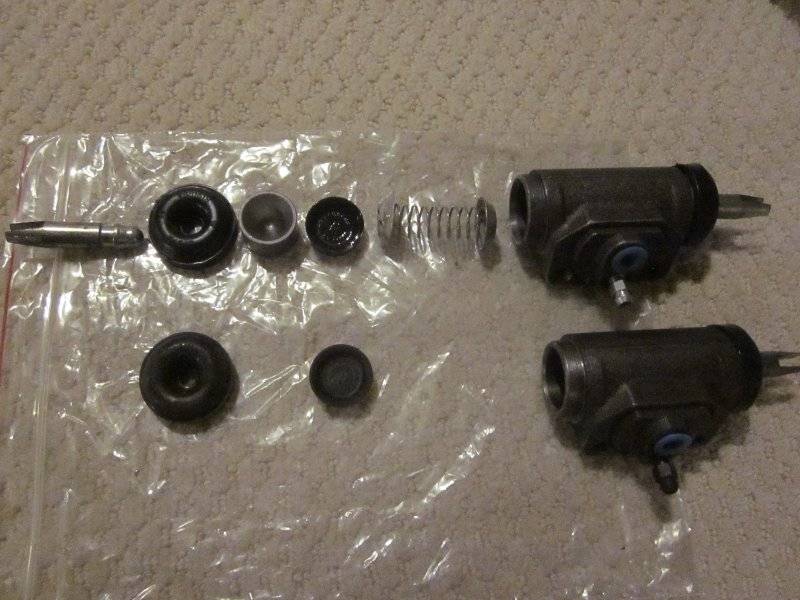

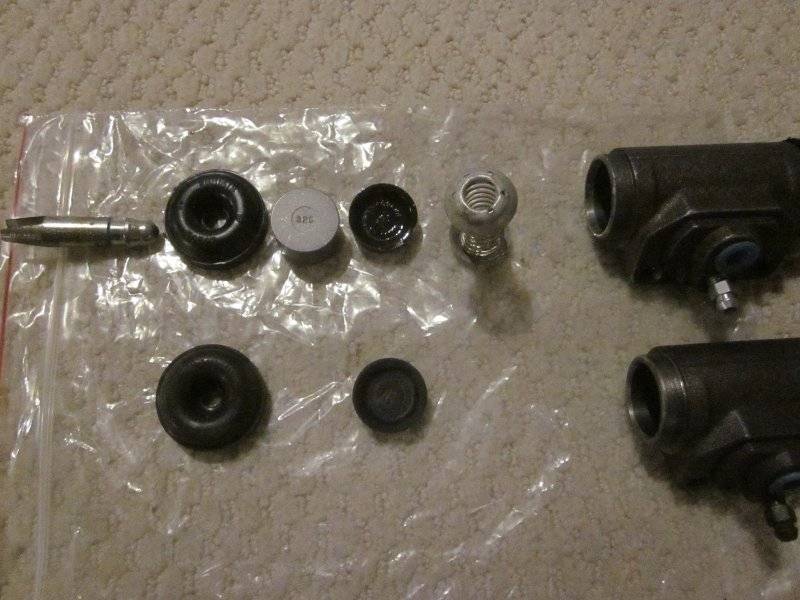

So here is what I need and are left to right in my attached pictures.
item #1 is the pin that goes from the wheel cylinder to the brake shoe.
It is 2" long and has an od of .432

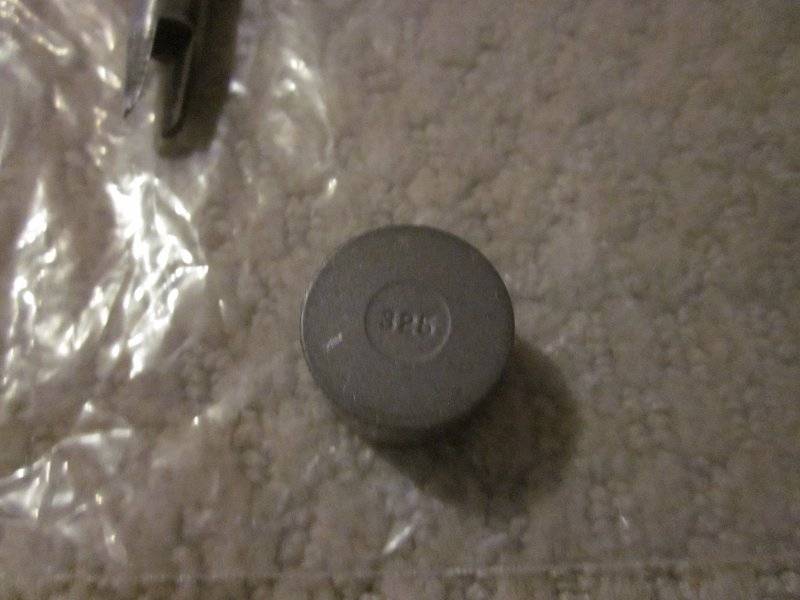

item #2 is the wheel cylinder piston it has an od of .935 and has the number 325 cast into it.
item #3 is the spring with a special washer attached to each end.
It is 2" long and the washers have on od of .887
I am looking for factory NOS parts out of kits or partial kits.
If you can help with 1 item or all 3 that will be great!
Start a conversation here with a description of the parts and a price with shipping to 46391.
Thanks! John
