26" radiator in 22" core support

68sportsatelliteragtop

Well-Known Member
Local time
11:11 PM
Joined
Nov 18, 2010
Messages
1,967
Reaction score
1,254
Location
Southern MD

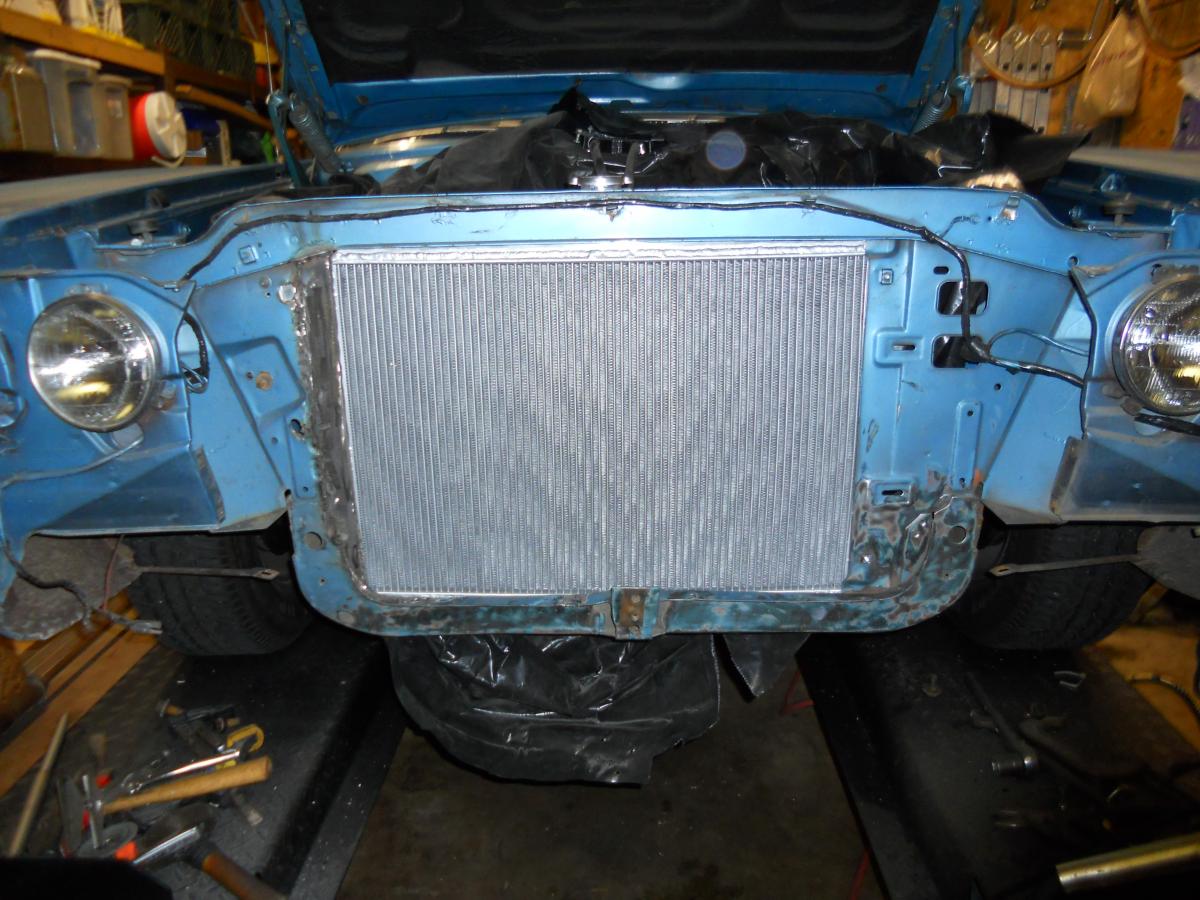

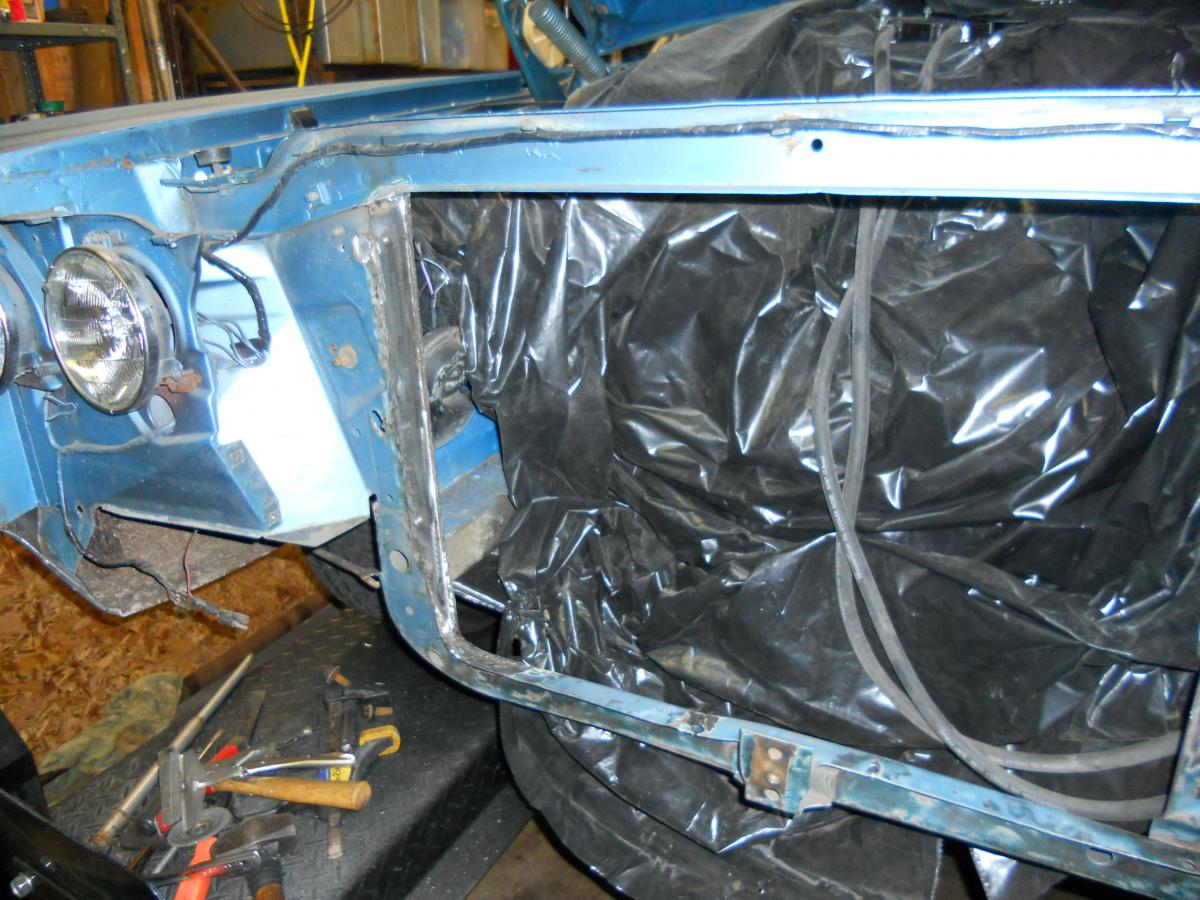

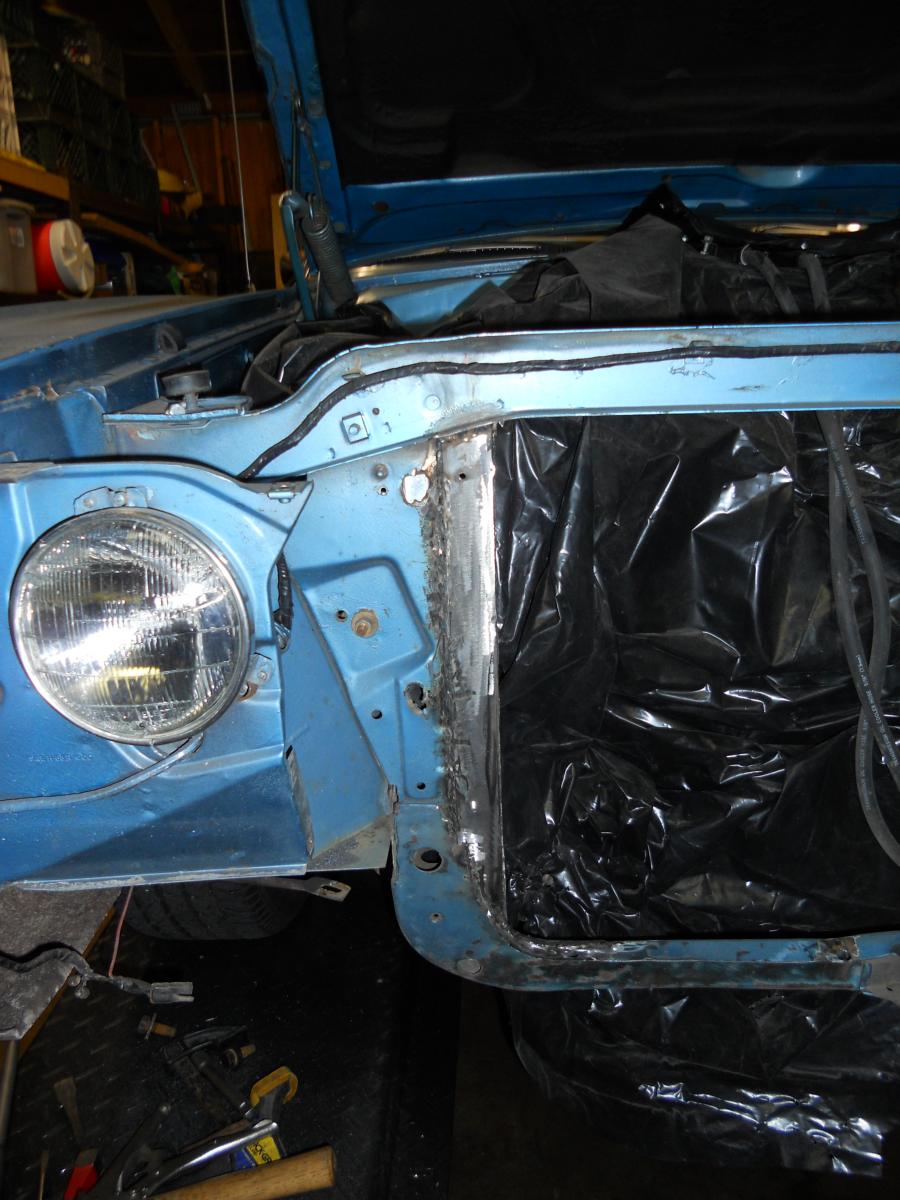

Finally got tired of watching the temp gauge creep over 230 in traffic. Bought the car with a small alum rad that didn't fit right and wouldn't cool the car. I bought a new 26" Champion 3 row unit to install in place of the factory sized 22".Before you purists cringe,remember this car has been modified and altered before I got it and I am not trying to put it back original, just upgrade and make it a nice dependable top down cruiser. That being said, I cut out about 3 1/2" on the passengers side support and took a piece of1/4" x 1 1/2" flat stock and cut a piece to fit in below the top rail and the lower support. I welded the piece to the edge of the new opening and top and bottom supports. The result is stronger than the factory bracket. With a factory shroud and new 180 stat, this should take care of the cooling needs and the addition of A/C in the future.


Attachments

  • DSCN3266.jpg
    159.6 KB · Views: 537
  • DSCN3267.jpg
    131 KB · Views: 462
  • DSCN3263.jpg
    149.1 KB · Views: 654
Interesting approach for all of us 22" big block radiator users. I'm curious to see how the factory shroud lines up with a stock fan blade unless you are planning to use an electric fan.

Interesting approach for all of us 22" big block radiator users. I'm curious to see how the factory shroud lines up with a stock fan blade unless you are planning to use an electric fan.

If it goes as planned the shroud should line up. From what I read the only differance is on the passengers side. I will measure the offset on the shroud tonight, I've got a factory 26" in the 67 Belvedere. If by chance it don't work the radiator came with 2-12" fans, but I would rather just run the driven fan and shroud.
