SOLD 426 hemi Indy legend heads

Mopar Performance Parts For Sale

Thread Status:
Not open for further replies.
  1. killtoy

    killtoy Member

    Messages:
    10
    Likes Received:
    29
    Joined:
    Oct 4, 2020
    Location:
    longmont colorado
    Local Time:
    10:31 PM
    Contact Seller

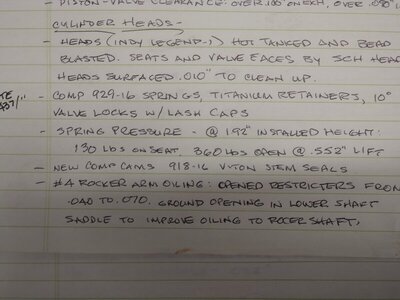

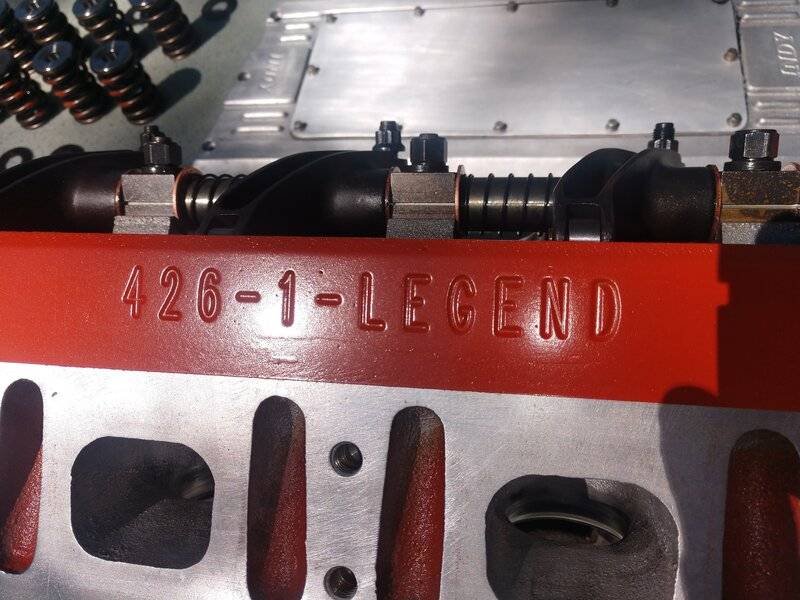

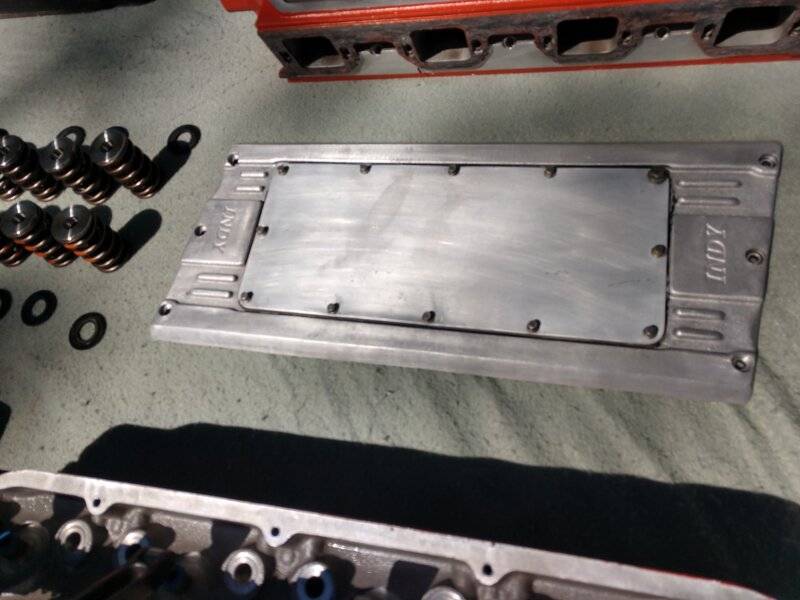

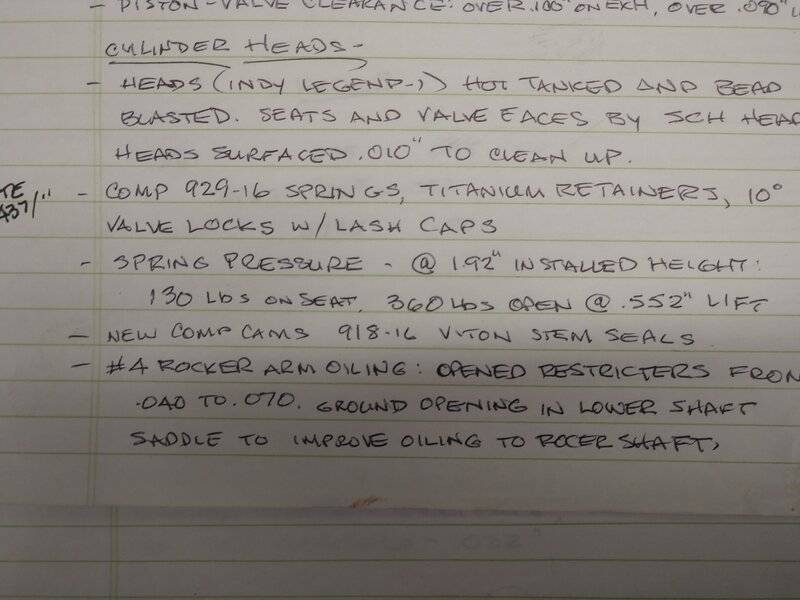

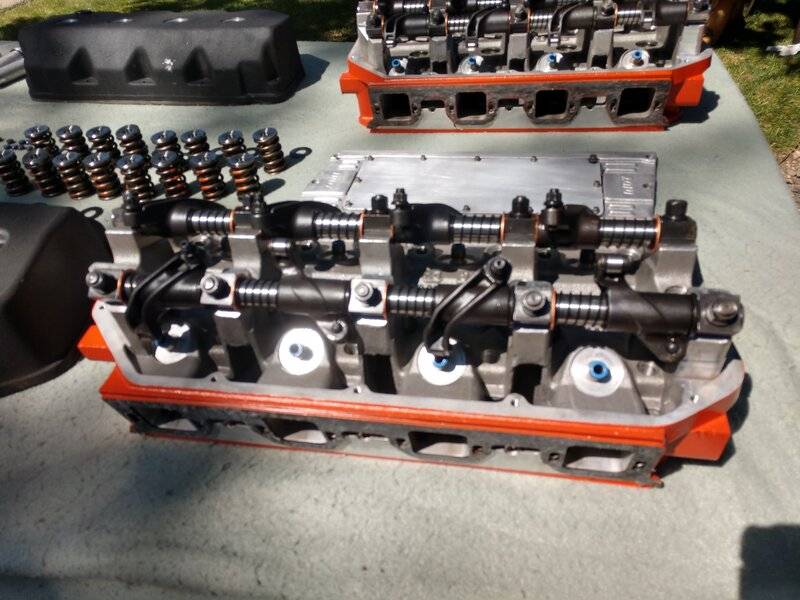

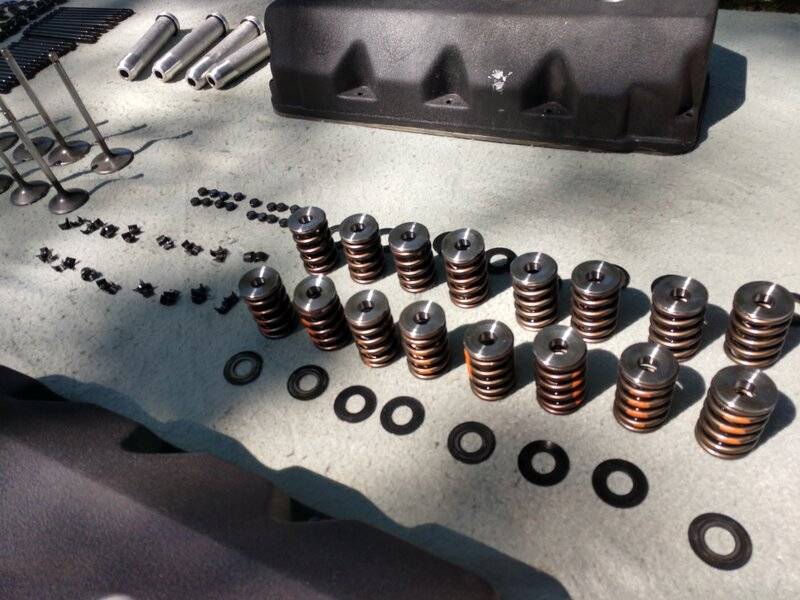

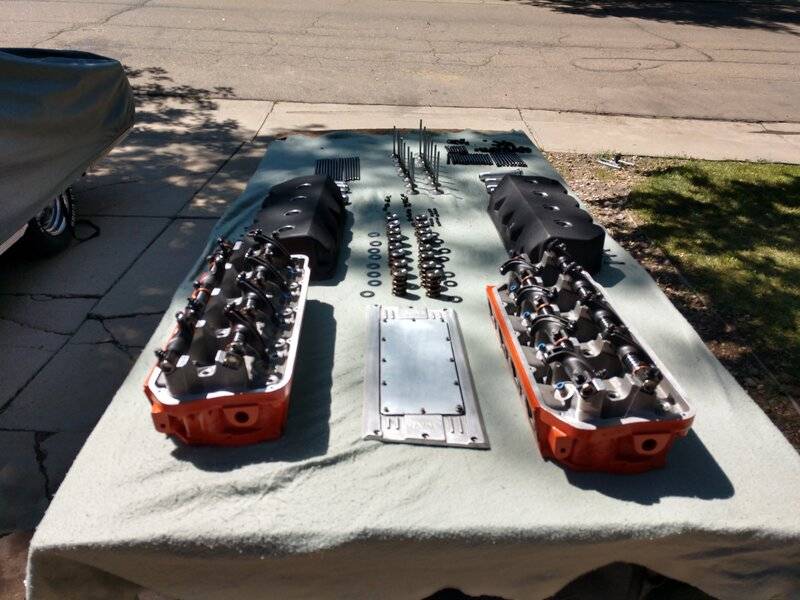

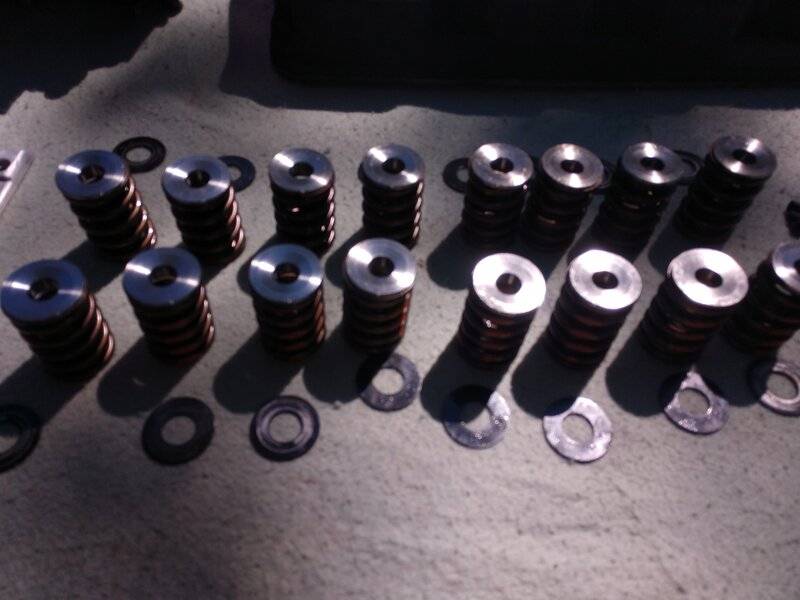

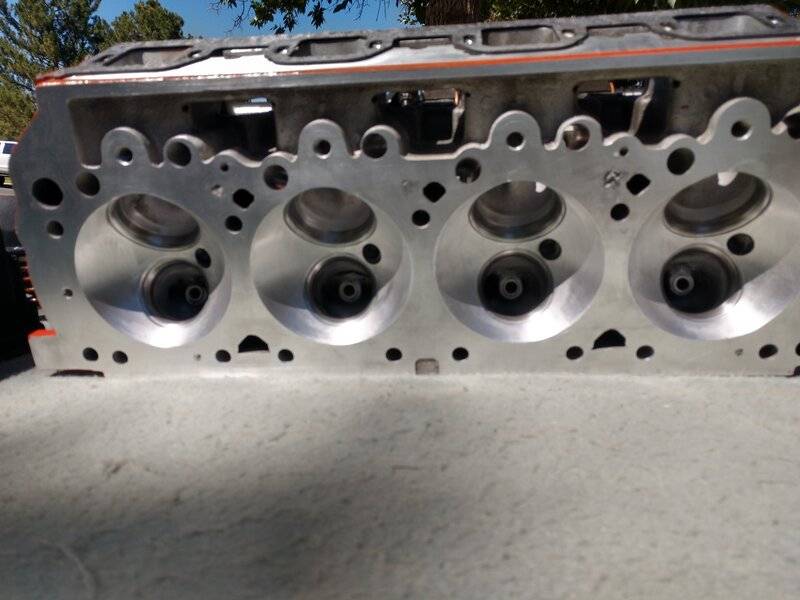

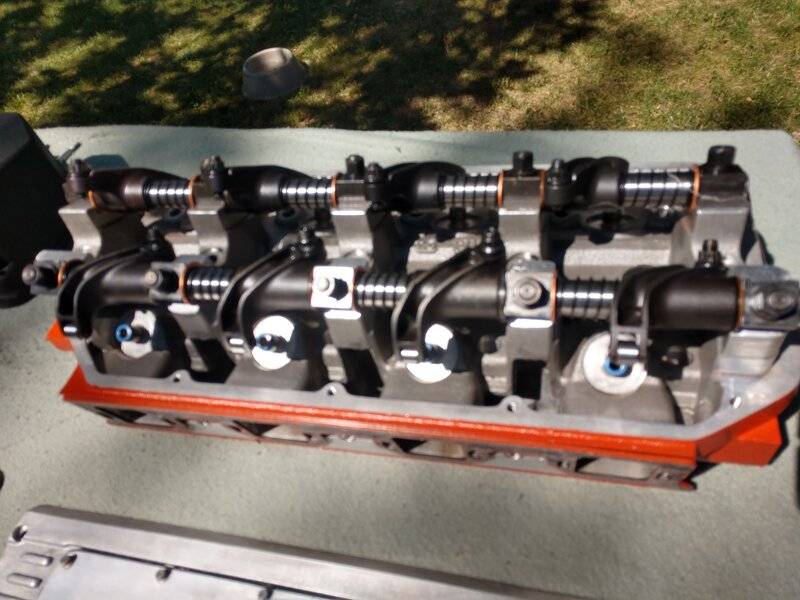

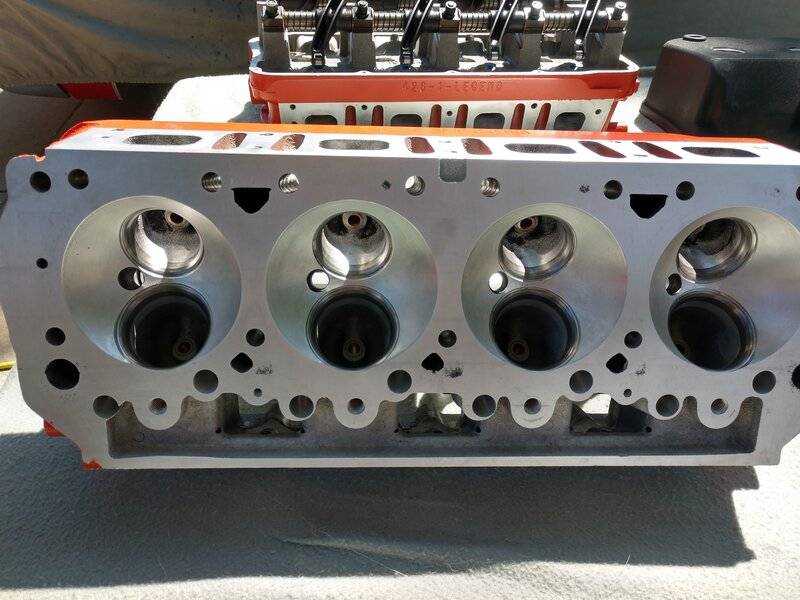

    Recently reconditioned 426 INDY legend-1 HEMI heads ,have less then 400 miles since reconditioning, new comp cams springs, titanium retainers, 10 degree locks ,comp cam viton seals, new spring shims, valve stem caps, includes the following arp head bolts, valley pan ,indy roller tip rockers and shafts, cast valve covers with new gaskets ,valve cover bolts , new indy push rods , spark plug tubes, pretty much every thing you need to bolt these on. These heads have not been ported so they have not been butchered, no cracks or repairs anywhere . Valves are out for your inspection. Because these heads have been shaved you may need a .040 or more head gasket depending on your piston height for clearance . These heads work best on large bore hemis. This kit goes for $7500. new with out bolts , ADDITIONAL INFO IN PHOTOS , located in Longmont colorado 80501 asking $5000. for everything

    IMG_20200901_143500821_HDR.jpg IMG_20200901_143537763_HDR.jpg IMG_20200901_143552917_HDR.jpg IMG_20200901_143525106_HDR.jpg IMG_20200901_143621158_HDR.jpg IMG_20200901_143712147_HDR (1).jpg IMG_20200901_143546105_HDR.jpg IMG_20200901_143911665.jpg IMG_20200901_144615881.jpg IMG_20200818_205721188.jpg

    • Like Like x 2
    • not so famous bob

      not so famous bob Well-Known Member

      Messages:
      1,829
      Likes Received:
      1197
      Joined:
      May 20, 2016
      Location:
      okla. 74021
      Local Time:
      11:31 PM
      what is the chamber cc`s after shaving ??

    • killtoy

      killtoy Member

      Messages:
      10
      Likes Received:
      29
      Joined:
      Oct 4, 2020
      Location:
      longmont colorado
      Local Time:
      10:31 PM
      I am bringing a head to my builder so he can cc it and I will post it later today or tonight , thanks for your question.

    • killtoy

      killtoy Member

      Messages:
      10
      Likes Received:
      29
      Joined:
      Oct 4, 2020
      Location:
      longmont colorado
      Local Time:
      10:31 PM
      ok,this is direct from my builder ,who knows his stuff .NHRA min. head cc's is 167.7. Normal volume on a mopar replacement head is 170.0. The orginial head gasket is .020 thick, it volume is 2.4 ccs. the volume of these indy heads 165.5 cc's. By using a .040 head gasket instead of the .020 gasket the head volume becomes about 167.8 or about the same as the NHRA minimum. the compression ratio of a 4.25x 3.75 with the indy head and a .040 gasket with an 88 cc dome is 11.0:1. Most street hemi aftermarket pistons dont have this much volume as the valve reliefs are cut deeper or large lift cams. I hope this info is helpful .
