440 Intake Help

Law69GTX

Active Member
Local time
6:07 AM
Joined
May 16, 2020
Messages
40
Reaction score
42
Location
Georgia

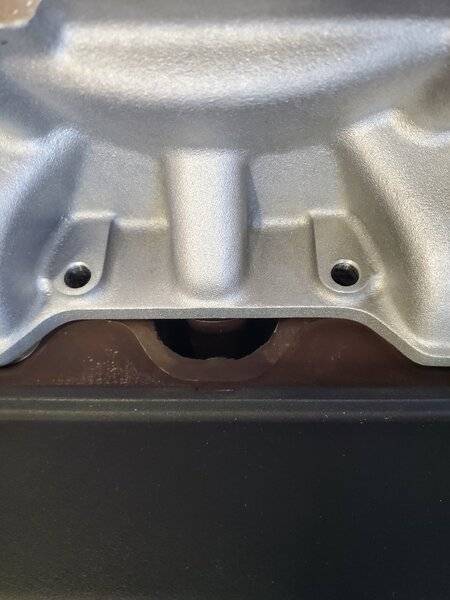

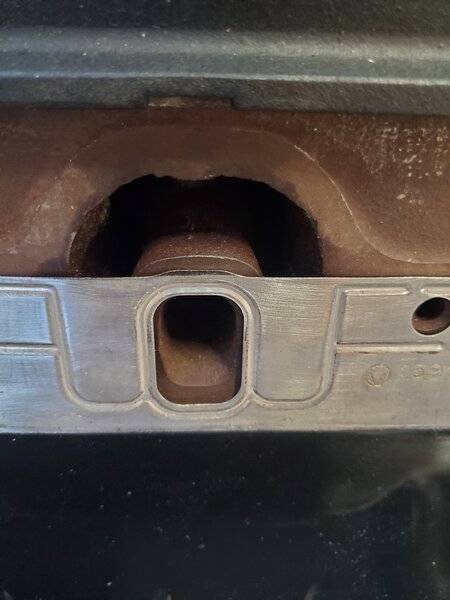

Hi everyone would appreciate any help I could get Novice here trying to restore my GTX, I have my Intake manifold gasket/Pan and not sure about the U shaped holes in center that gasket and my Intake doesn't cover. Thanks

20220326_170250.jpg 20220326_170300.jpg 20220326_170300.jpg 20220326_170250.jpg

Another question Bee if You don't mind
Can I paint all of that not covered I'm using Hemi hi temp orange ? Thanks

Paint isn't going to hurt anything. It's just an air gap in the casting.. just don't throw stainless lock washers under the bolt heads like my painter did..

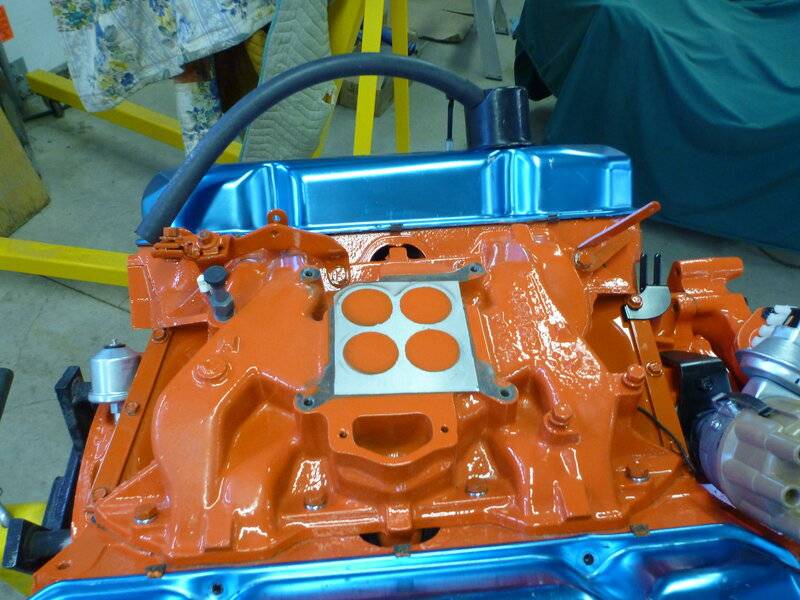

beerestoration2017 004.JPG

Thanks that sure looks awesome I see the hose going to back of Intake from valve cover my block has the nipple there I thought that was for oil pressure gauge if wanted?

As you can see I am learning and reading and watching everything I can find I appreciate it

Thanks that sure looks awesome I see the hose going to back of Intake from valve cover my block has the nipple there I thought that was for oil pressure gauge if wanted?

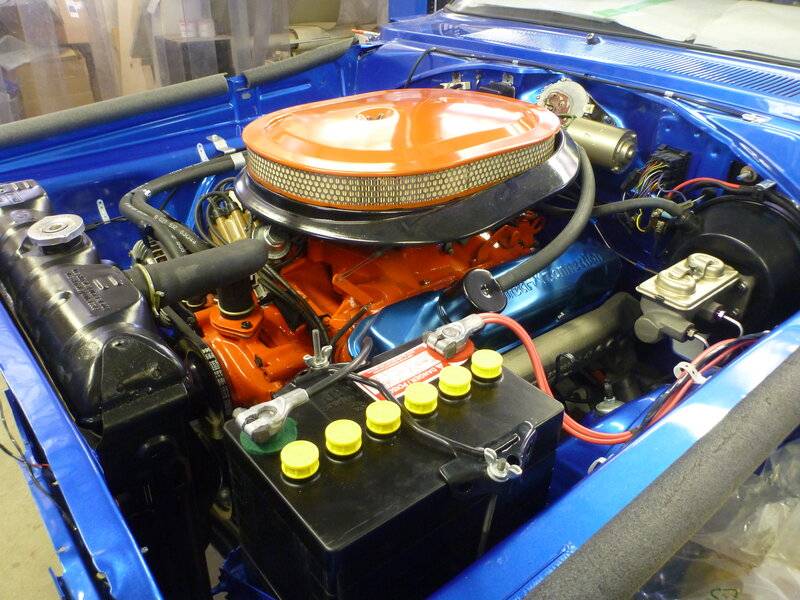

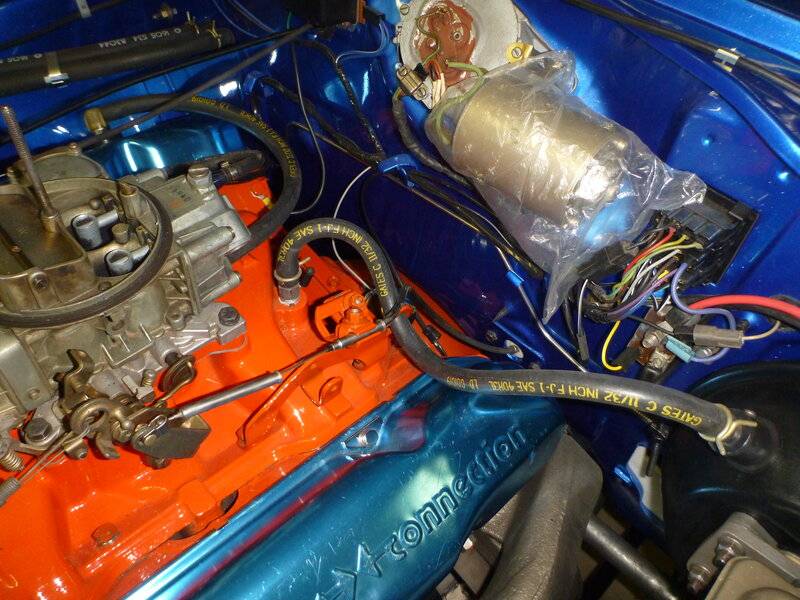

That breather hose is just sitting there, it connects to the air filter assembly. Oil pressure sender is shown at the back of the block for a 0-90PSI rallye dash, yours may just be a smaller "switch" if you have a light only. Nipple on the intake itself is for brake booster vacuum.
beerestoration2018 1251.JPG
beerestoration2018 1511.JPG

Last edited:
Thanks hope I can shoot you a message in the future about things if that's alright you seem to be a wealth of Knowledge Thanks again

Lots of restoration threads to poke through in the members restoration section...with step by step details.

That is the parts bin for stuff that magically disappears when you swear you just had it in your hands. Totally normal.

Thanks guys will definitely be searching all the threads In the future

@Law69GTX

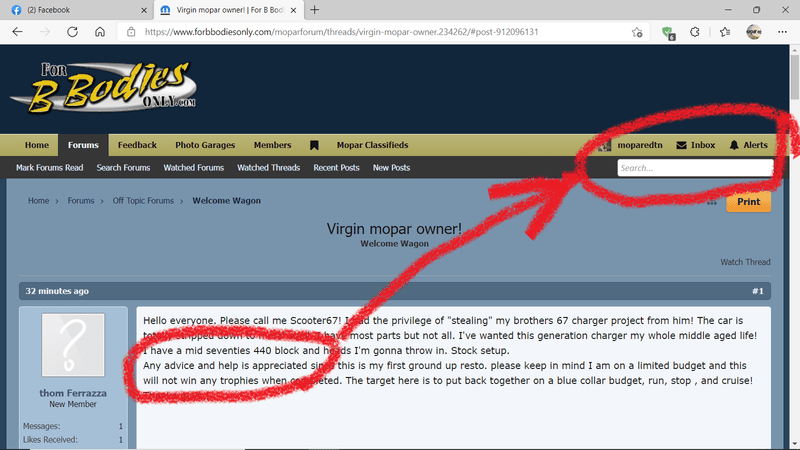

Make liberal use of this site's Search Box, located in the upper right of every page. :thumbsup:
