67 GTX Alternator Wiring

1966 -1967 Mopars

  1. FlagCraig

    FlagCraig Well-Known Member

    Messages:
    526
    Likes Received:
    500
    Joined:
    May 19, 2015
    Location:
    Tennessee
    Local Time:
    12:16 AM
    Can someone provide service manual pictures of wiring schematics.

    Thanks.

  2. BeepBeepRR

    BeepBeepRR FBBO Gold Member FBBO Gold Member

    Messages:
    6,851
    Likes Received:
    9842
    Joined:
    Oct 16, 2016
    Location:
    Atlanta,Ga
    Local Time:
    1:16 AM
    https://www.mymopar.com/charging.htm

    MOPAR CHARGING SYSTEM PRE-1970

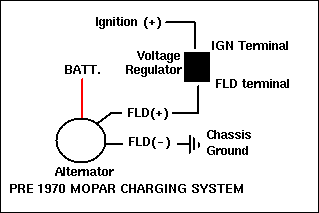

    Diagram #1 shows the basics of the early alternator / voltage regulator design. There are 2 brushes in the alternator, each one has a field terminal, one is labeled "FLD", the other is labeled "GND". The GND brush is grounded with the brush mounting screw. The other brush is the (+) brush (or field) and attached to it is a green wire that routes over to the voltage regulator (which is behind or near the brake master cylinder). This green wire is connected at the voltage regulator at the "FLD" connection (with a screw). The other connection on the voltage regulator is a blue wire with a female plug end. This is the "IGN" Ignition side.

    Basically, the Voltage Regulator completes the charging circuit and allows the alternator to charge the system. When a certain voltage is obtained, the regulator "opens" (or turns off) the circuit until the electrical system's voltage drops, then it completes the circuit again. The old voltage regulators are repairable and rebuild able. The 1969 Dodge Shop manual (available from a number of vendors) details how to do this. If you think your regulator is failing, open it up and clean the "points" with some emory paper (sometimes these points get corroded).

    NOTE: in diagram #1, the FLD is generally green, and the IGN wire is Dark blue on stock wiring harnesses.




    • Like Like x 1
    • Thanks! Thanks! x 1
    • slimt

      slimt Well-Known Member

      Messages:
      3,783
      Likes Received:
      4388
      Joined:
      Apr 17, 2017
      Location:
      Alberta
      Local Time:
      11:16 PM
      0F2B4E1C-D614-4C51-A4C6-1015527A4BCA.jpeg I have a diagram for a 66 Coronet. Should be the same I would think

      • Agree Agree x 1
      • Fran Blacker

        Fran Blacker FBBO Gold Member FBBO Gold Member

        Messages:
        10,440
        Likes Received:
        10220
        Joined:
        Sep 23, 2016
        Location:
        Connecticut
        Local Time:
        1:16 AM
        Go to mymopar and download a complete service manual. Look at Tools and reference then find your car. Having a SM is invaluable.

      • BeepBeepRR

        BeepBeepRR FBBO Gold Member FBBO Gold Member

        Messages:
        6,851
        Likes Received:
        9842
        Joined:
        Oct 16, 2016
        Location:
        Atlanta,Ga
        Local Time:
        1:16 AM

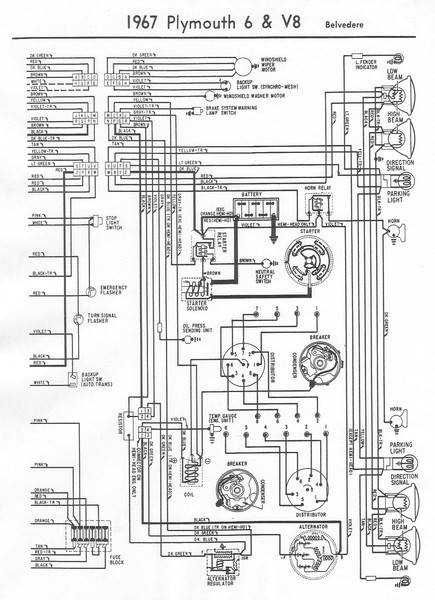

      • Ratbastard

        Ratbastard Well-Known Member

        Messages:
        56
        Likes Received:
        124
        Joined:
        Apr 21, 2019
        Location:
        Sun city ca.
        Local Time:
        10:16 PM
        It would benefit you to at least take a look at madelectrical.com and read his rewire of 67 dodge electrical systems. Unless your going for concourse restore, his design changed everything electrical in my 67 coronet for the better.
