69 Belve minitub and some unique? chassis work

[HT413]

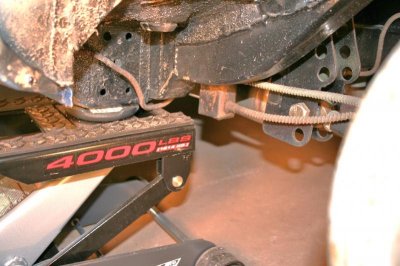

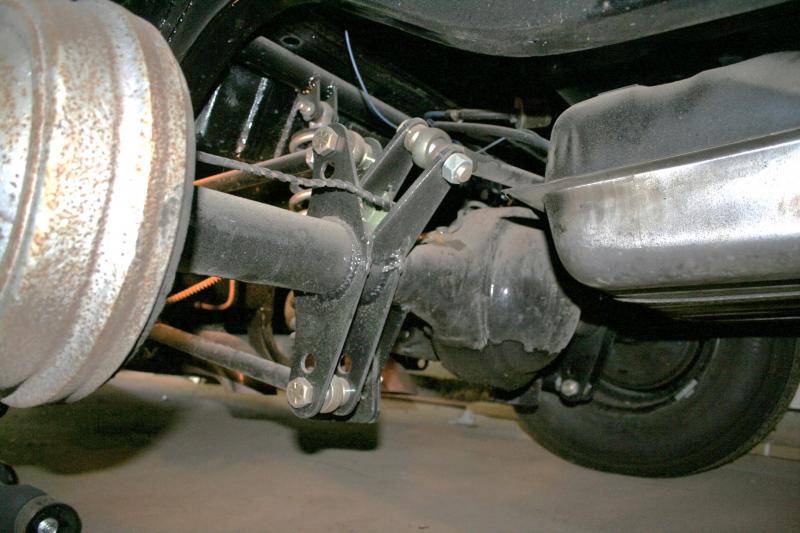

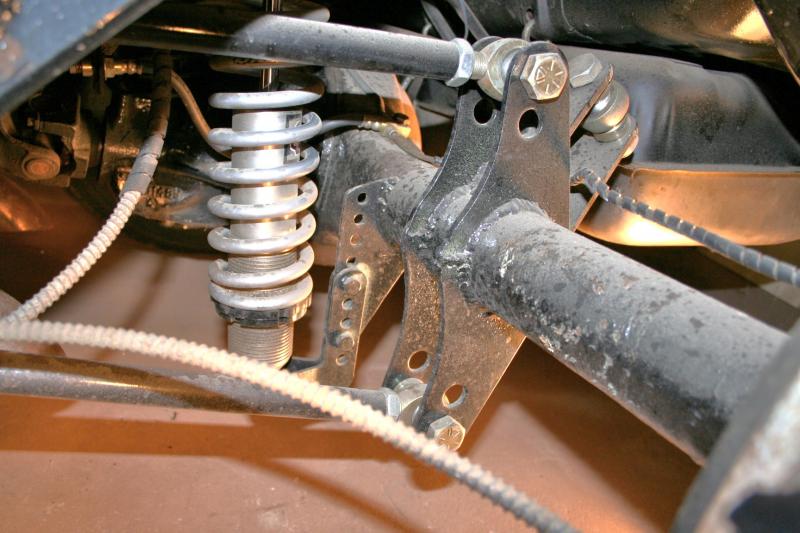

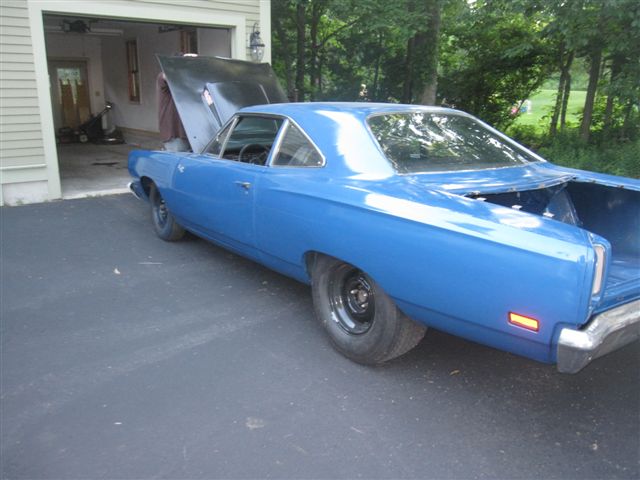

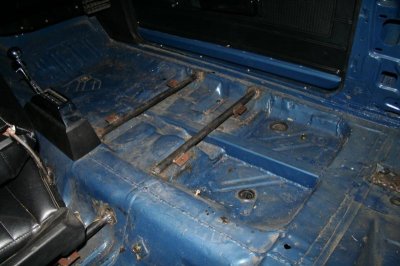

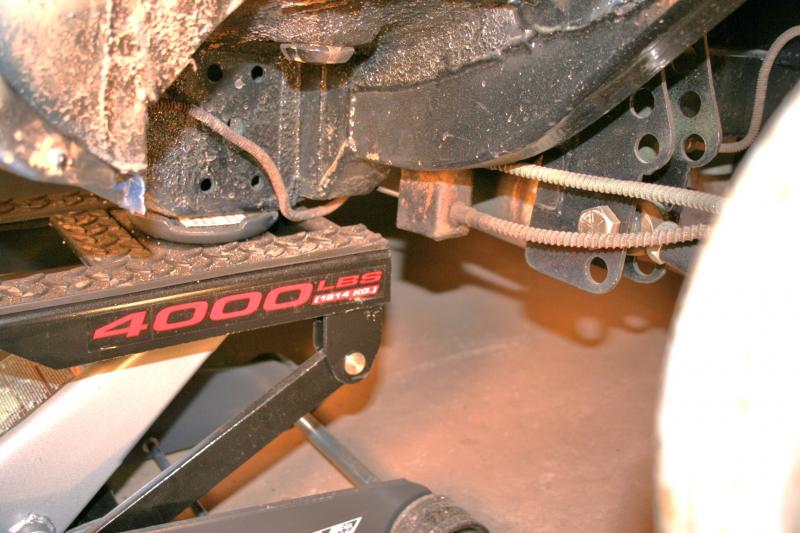

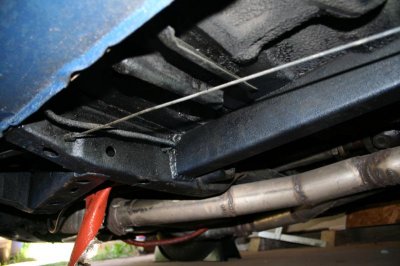

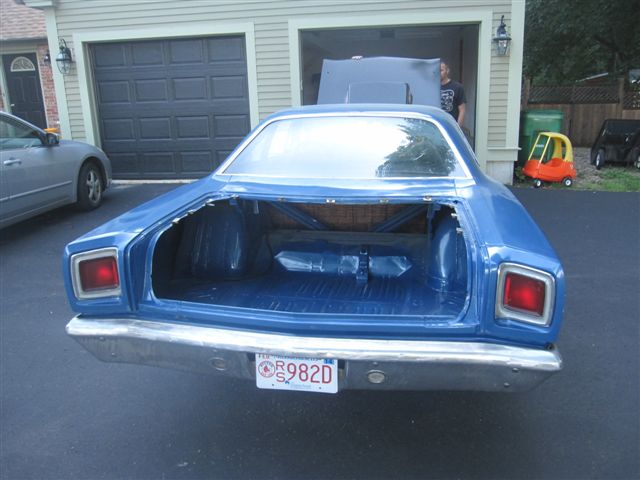

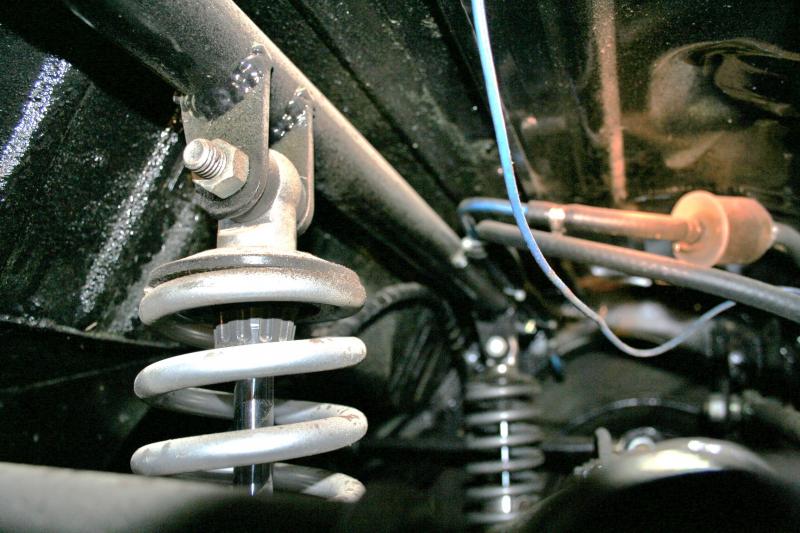

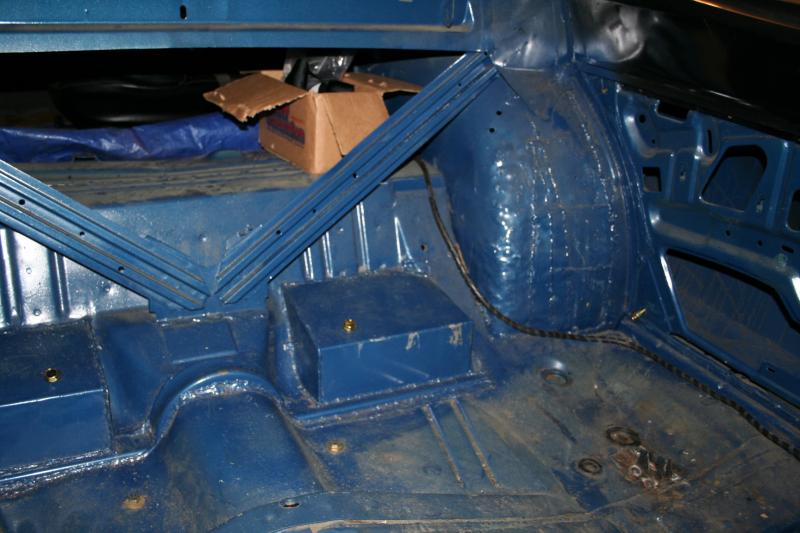

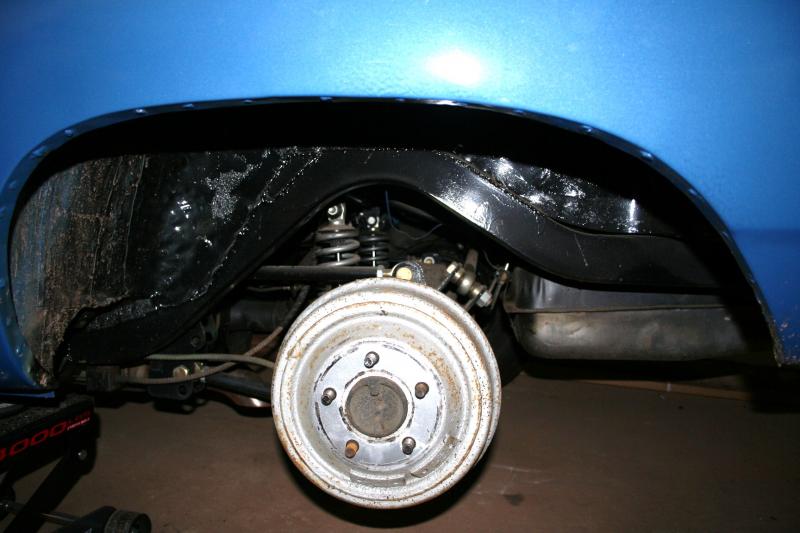

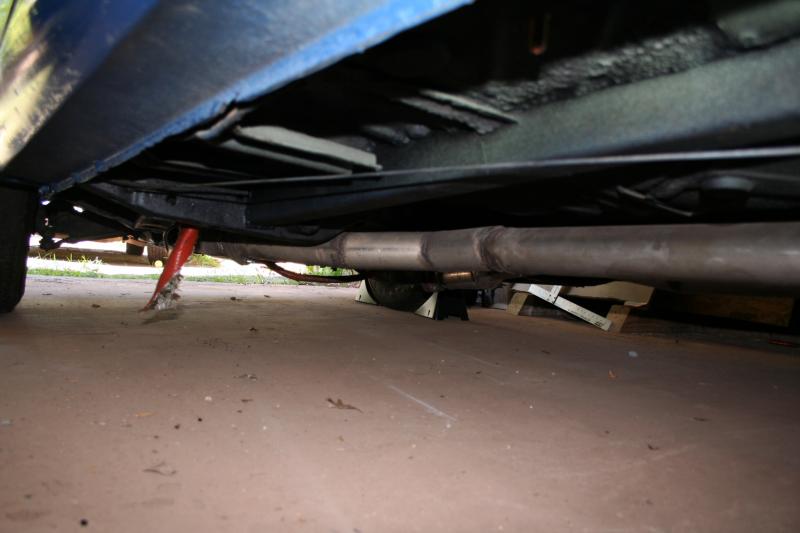

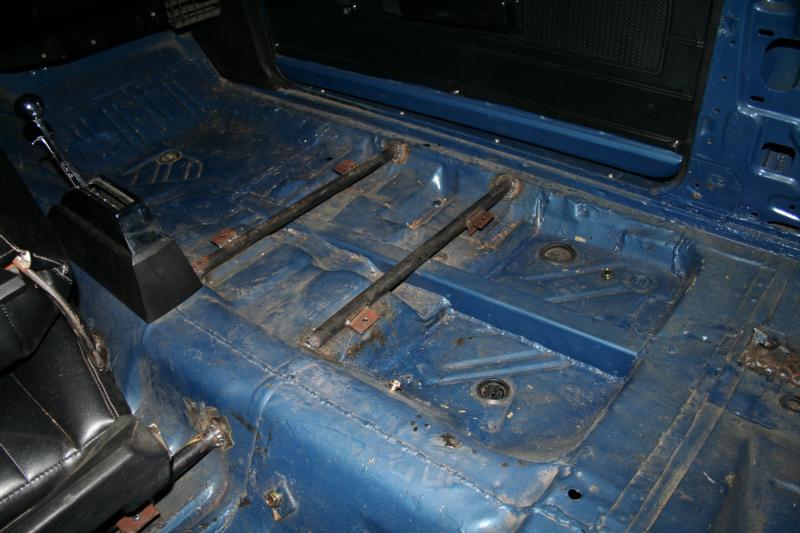

Evenin fellas. I thought you might get a kick out of the chassis work done to a car I just picked up a couple a months ago. '69 Belvedere that's been minitub'd w/ a 4 link. Coil overs are by QA1, but not sure who made the 4-link set up. It's kind of a back half car - but they did it with factory floor / trunk. I've never seen a setup like this before. What do you guys think, is this a great idea or a disaster waiting to happen? Check out how they cut the new frame rails and the cross member right into the floor pan.



[Budnicks]

Some of the welds aren't the "pertiest" things, but the overall system looks functional, what size are the heim/spherical joint ends ??, hopefully they are 5/8" or larger, does it have a track locater or Watts linkage, cant tell by the pitchers.... I would suggest you put 1/8"-3/16" plate & maybe also some gussets, welded between &/or on the sides of all the suspension brackets on the rear axle, if you plan on putting any major power to the ground...



[moparpoor]

I build 4links like this all the time correctly!Don't get me wrong.In no shape or form is that done correctly.The brkts are chris alston truck brkts.They are setup for a 2x3 crossmember.The rear shocks are a 12" shock with 5.6" travel usually.I build these for lets just say outlaw guys.They can still retain the back seat with full interior.They look like a caltrac setup to the common foke.I have this setup on my personal ride.What you have their is a bad copy of.If you want to keep this setup shoot me a pm.I can give you part numbers and build specs.Maybe a couple of pics of things done correctly!



[moparpoor]

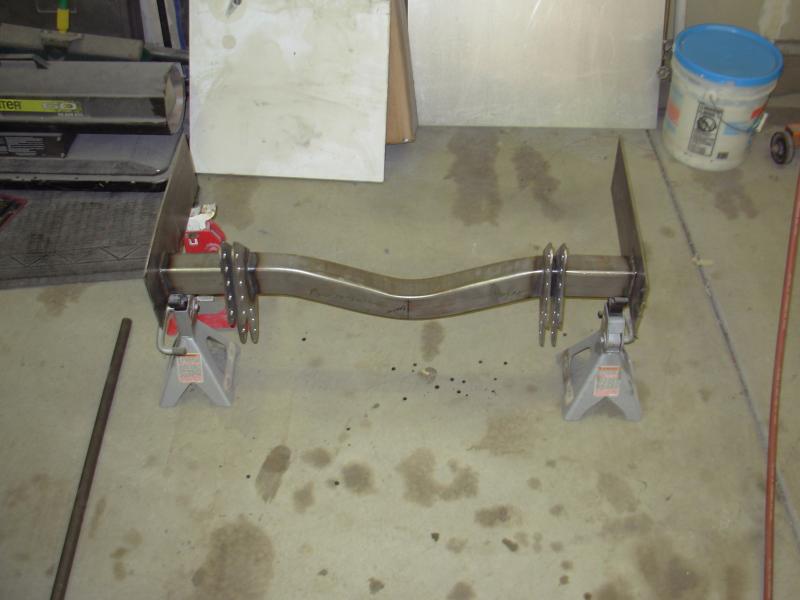

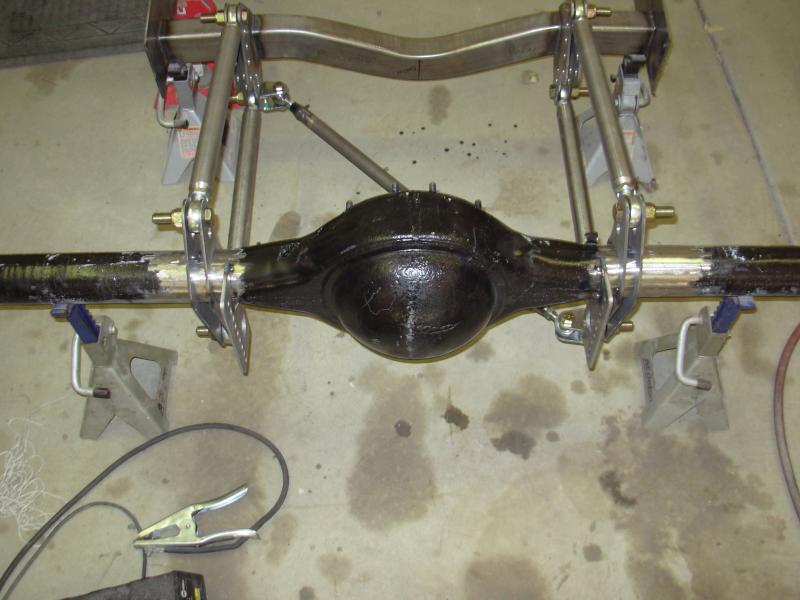

Here is what they are suppose to look like!



[Ron 73]

Mopar Poor yours look much more neater, and secure! I weld here myself but with things such as this, I always would get my brother in law to do it for me if i used these, i don't trust my skills in welding to much. Ive welded panels such as 17 and 20 gauge metal for trunks and body panels, but im a little timid with things like this.. I did weld a bracket plate on a Chevelle frame that is still there and secure but it looks about as bad as could be imagined as far as neatness..



[HT413]

I'm def not a welder by any means, so thanks a lot for the tips. Truthfully, my original concern was that most 4 links I've seen are back half cars and are supported by a 10pt roll cage while this relies on the unibody.

Bud - Now that you mention the need for gussets, I see what you mean. It has a panhard rod that ties into the axle on the driver's side behind the 4 link (you can see the rod end in the pix) and into a bracket on the frame on the pass side. I'm not putting crazy power to the ground at all - I'd guess she has in the neighborhood of 500hp-550hp. With that kinda power, stock wells and suspension would've been fine but maybe he was building for the future. It's a 1972 413 block that the guy claimed was a stroker but had no paperwork as he'd only had it a few months and the prior owner did the work. By my admittedly novice standards, it has a pretty aggressive cam and is kind of a monster but I haven't confirmed what's in it yet.

Mopar - I appreciate any advice you could give on how you would've done it. Honestly, the car will only see limited track time - about once or twice a year tops and even then I doubt I'll beat on her too bad. That being said, it's gotta be done right.
