72 roadrunner a/c brackets ?????

[2vette2camaro]

I'm putting my 72 roadrunner back together, however I can't seem to find a picture, let alone the correct rv2 compressor brackets for this model. Please no sanden brackets. Any help would be greatly appreciated !!
1972 rr, 400ci



[Sedanman]

should be the same set up as any A body,truck or van. I'll see if I can locate a pic



[Sedanman]

https://www.forabodiesonly.com/mopar/threads/1970-76-a-c-compressor-with-brackets.404618/



[2vette2camaro]

Thanks for the reply, however small block will not fit my 400. I am looking for 1972 400 ci



[Sedanman]

Damn, I missed the 400 part,. Sorry



[moparmarks]

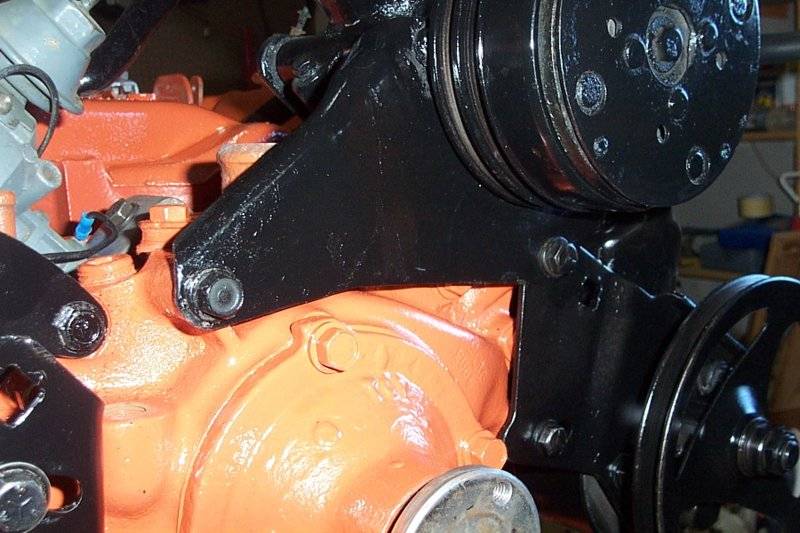

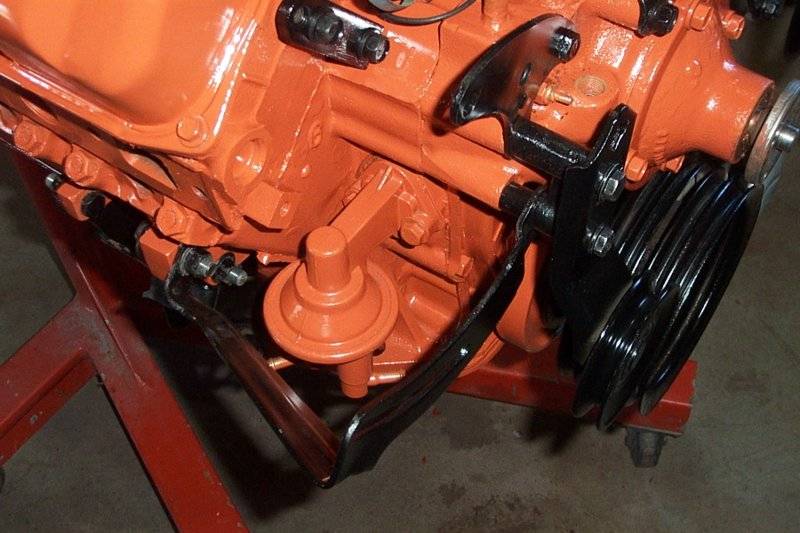

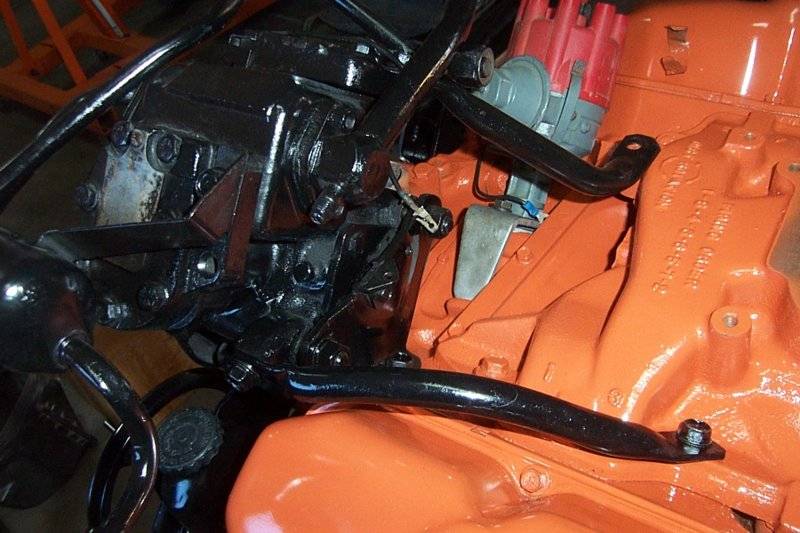

This is a 71 383 but is the same as 72 400.
Truck and van are different.



[2vette2camaro]

Thank you moparmarks ! This is exactly what i am looking for. Now I need to find this setup for sale. I have the idler and alt. brackets now to find the other pieces.



[moparmarks]

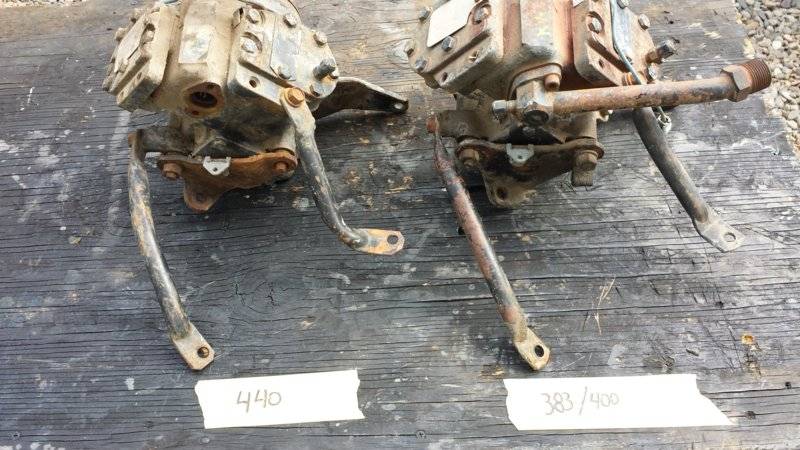

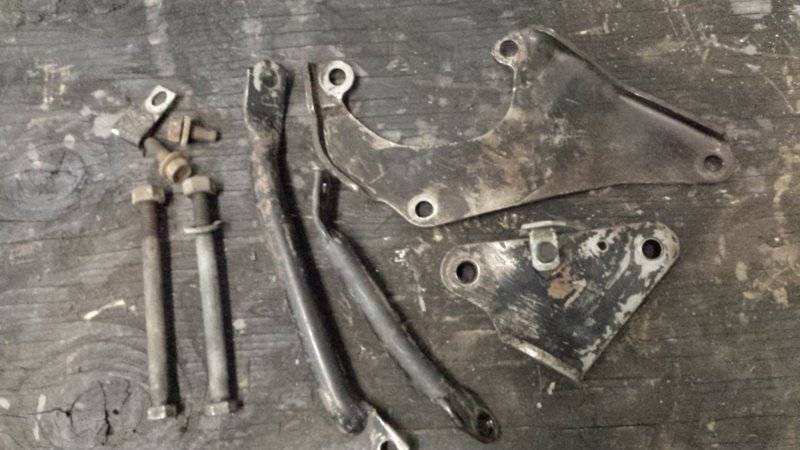

Here are the mounts that I came up with for you.
Also 440 mounts for people to compare with.
These fit 69-73. Think 68 is the same.
The front plate is the same for 383/400 and 440. The rear plate and two bars are different.
74 has a completely different mount and pulley setup.



[2vette2camaro]

Found ! Thanks Moparmarks
