A/C Firewall insulation pads

[RT SE 440]

Hello all just wondering if someone has a picture of the a/c firewall pads fitted as i can't find a picture of how they are positioned on the firewall can only find non ac car photo's thanks ahead



[1968rt]

What car are we talking about> AC or non AC



[RT SE 440]

What car are we talking about> AC or non AC

1969 charger with air con



[Richard Cranium]

Here you go ......

MB1464 - 1966-70 Mopar B-Body With AC Firewall Insulation Pad

This reproduction firewall insulation pad installs on the inside firewall area of the cabin to insulate from engine noise and heat. Manufactured from thick jute padding and bonded to heavy cardboard for durability. Die cut to factory specifi cations and features perforated knock-outs where...

www.classicindustries.com



[69ChargerR/TSE]

I have a tool I used for the push pins.



[RT SE 440]

Here you go ......

http://[URL]https://www.classicindu...L7z7PC3wskA9g2wS1aAaAonLEALw_wcB&gclsrc=aw.ds

[/URL]

Thanks but i already have the kit my question was can someone provide a picture of the ac pads installed on the firewall



[RT SE 440]

surely someone has put a ac firewall car together with the original style pads in place can't find not one picture on the web it's incredible



[Richard Cranium]



[RT SE 440]

View attachment 1365392

Sorry DICK



[RT SE 440]

anybody ?



[themechanic]

Email Loretta Filmore at Detroit Muscle Technologies and ask her for instructions and a photo.



[RT SE 440]

Email Loretta Filmore at Detroit Muscle Technologies and ask her for instructions and a photo.

Tried them with no luck they have no idea how they fit they just make them apparently



[themechanic]

Tried them with no luck they have no idea how they fit they just make them apparently

Well, it's pretty obvious from the instructions.



[1968rt]

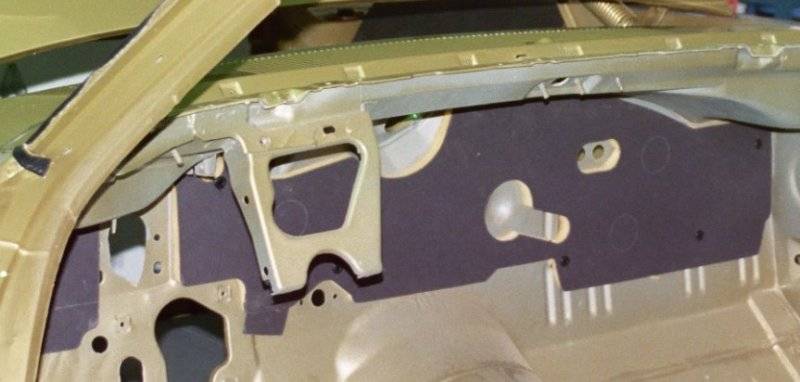

Here's a picture without AC. Yours should be similar except for the passenger side



[themechanic]

Use the plastic pins that secure the insulation to the firewall to align.



[440 4 speed]

Like 1968RT’s picture, just position your pad to the firewall and knock out the appropriate plugs/holes and install. Take care in installing the pins, they can easily bend.
