Does anyone have a definitive "Routing" pic for a 1970 (most likely 68-70) B-Body "Positive battery cable to starter, firewall and the auto Trans" ?
1. Does the "Heavy Gage and small wire to Starter" go on the inside of the steering column?
2. Does same wire go along side fender well and then DOWN underneath Brake Booster?
3. How does the same wire go to the starter, behind Headers/exhaust manifold?
4. How does auto trans wires to solenoid feed or get routed back to trans?
A pic or two will help
I will need to purchase the wiring retainers (plastic wire loom holders)
Thank you for any help
"super-bee_ski"


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
9:19 PM
Joined
Jun 12, 2012
Messages
26,890
Reaction score
59,395
Location
NZ - just short of the South Pole
Offer some help I can Mark...






The transmission loom would go from the solenoid down to the Reverse switch on top of the bellhousing & gearbox - retained by two clips on the gearbox side cover.

Edit...Auto trans. I think the same applies.
Alternately, it could be attached with cable ties along the length of the speedometer cable.


Beekeeper

It’s a disease without a cure!
FBBO Gold Member
Local time
4:19 AM
Joined
Jul 4, 2012
Messages
4,270
Reaction score
4,229
Location
Rogersville,TN.

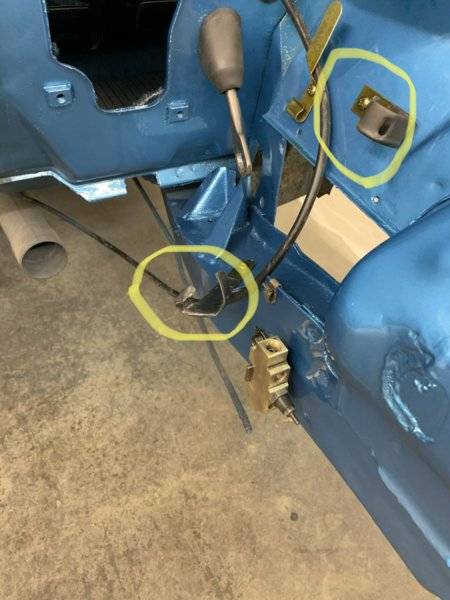

If it’s any help the cables to the starter go in the brackets circled


super-bee_ski

FBBO Gold Member
FBBO Gold Member
Local time
2:19 AM
Joined
Nov 22, 2010
Messages
17,073
Reaction score
17,054
Location
Muroc Dry Lake Bed
Offer some help I can Mark...

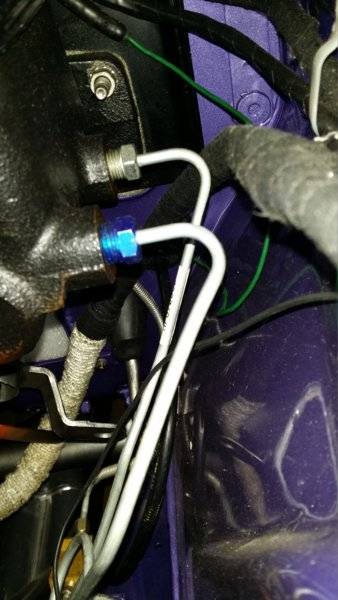

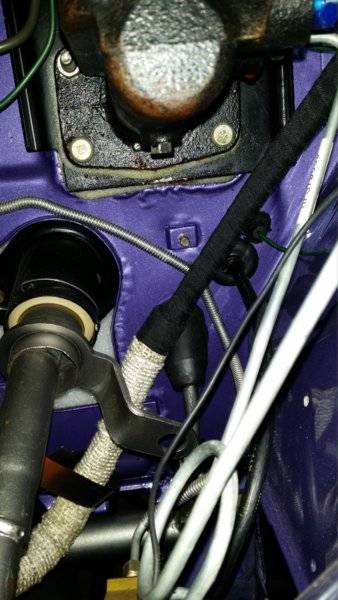

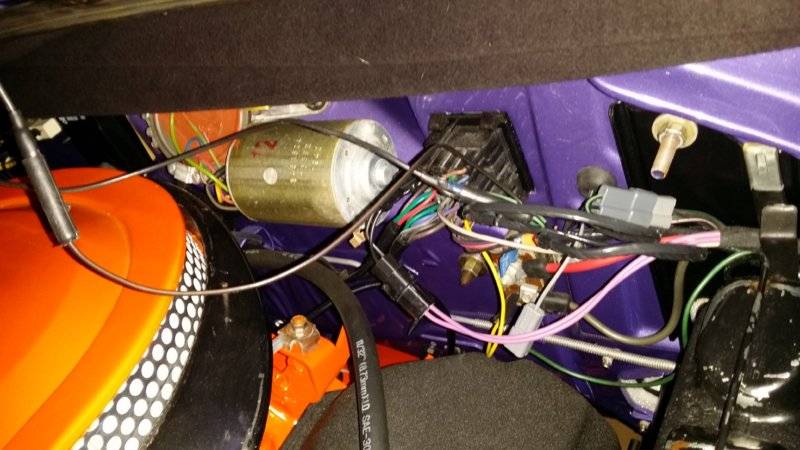

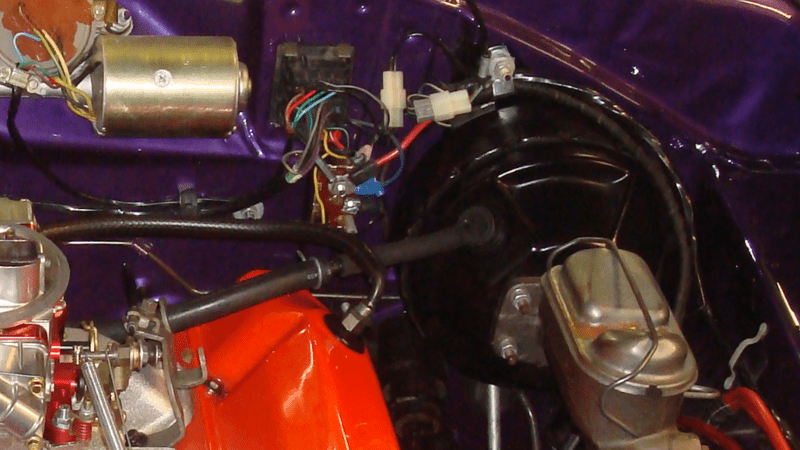

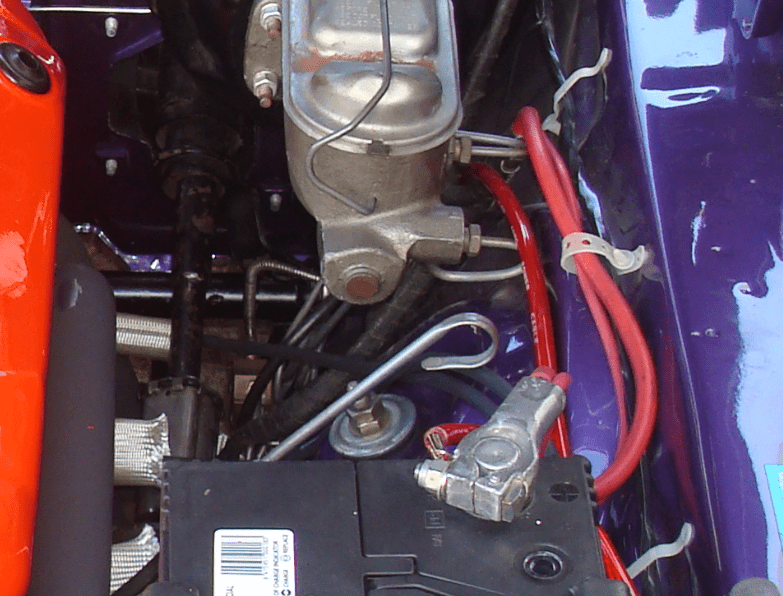

View attachment 901835

View attachment 901837

View attachment 901838

The transmission loom would go from the solenoid down to the Reverse switch on top of the bellhousing & gearbox - retained by two clips on the gearbox side cover.

Edit...Auto trans. I think the same applies.
Alternately, it could be attached with cable ties along the length of the speedometer cable.
If it’s any help the cables to the starter go in the brackets circled
View attachment 901872


Excellent !!
Thank you all so very much!
Perfect pics!
Thank you!


:thankyou::usflag:


tonysrt

Well-Known Member
Local time
5:19 AM
Joined
Dec 6, 2017
Messages
613
Reaction score
576
Location
Northport, NY
I converted from a 440 to a Gen 2 Hemi and the B starter wire didn't work. I had to buy the Hemi wiring that was about $200 17 years ago. There is also a bracket bolted at the very rear of the cylinder head near the top of it which helps in getting cable in a safer position. I believe I bought from Year One.
