B body 4 speed reverse light wire

Electrical & Ignition

  1. dodge68charger

    dodge68charger Well-Known Member

    Messages:
    785
    Likes Received:
    29
    Joined:
    Feb 6, 2012
    Location:
    Washington
    Local Time:
    10:26 PM
    Just wondering where the black wire connects to from the reverse light under the dash on my 68 b body charger. Thanks

  2. bigmanjbmopar

    bigmanjbmopar Newb with a view

    Messages:
    5,258
    Likes Received:
    1801
    Joined:
    May 12, 2011
    Local Time:
    10:26 PM
  3. dodge68charger

    dodge68charger Well-Known Member

    Messages:
    785
    Likes Received:
    29
    Joined:
    Feb 6, 2012
    Location:
    Washington
    Local Time:
    10:26 PM
    The black wire on this one image.jpg

  4. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    1,719
    Likes Received:
    1232
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    11:26 PM
    There is a black wire from the reverse light switch on the trans that goes to the bulkhead connector. It will be the bottom connector, and the bottom right wire on that connector (z). Inside, the black wire from the light will go to that bulkhead connector.

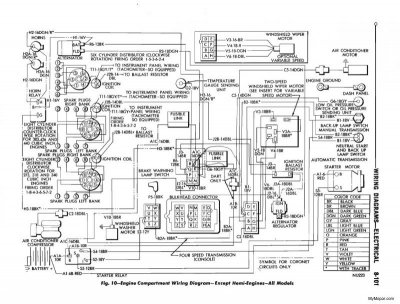

    This first pic shows the engine compartment side:

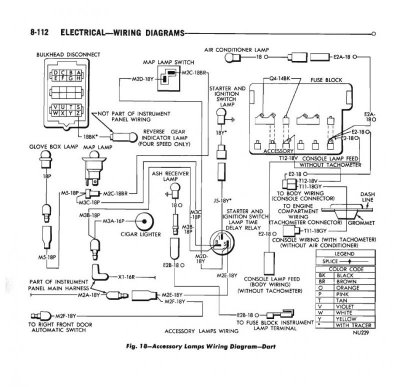

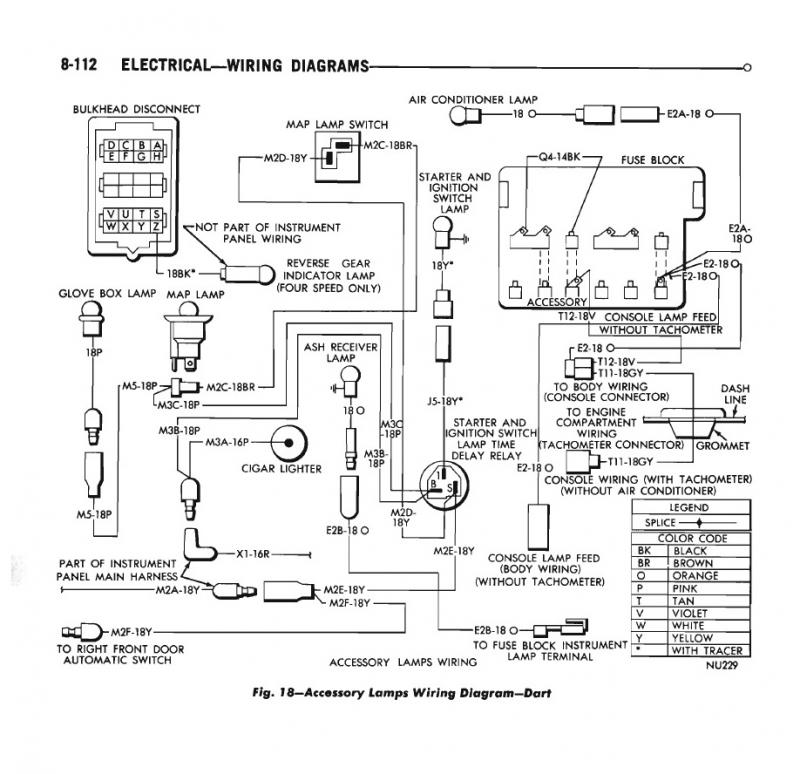

    This next pic shows the accessory light for a dart, but it would basically be the same:


    Just follow the wires, eazy peazy, lemon squeezy...

    Merry Christmas.

    • Like Like x 1
    • bigmanjbmopar

      bigmanjbmopar Newb with a view

      Messages:
      5,258
      Likes Received:
      1801
      Joined:
      May 12, 2011
      Local Time:
      10:26 PM
      simple as pie then, follow the 2nd detail to bulk head connector, is your wiring all new? or original? you may already have it hanging there or cut back short.

    • paladin06

      paladin06 Well-Known Member

      Messages:
      815
      Likes Received:
      462
      Joined:
      Jun 4, 2012
      Location:
      East Valley AZ
      Local Time:
      11:26 PM
      I had the same problem with my 69 road runner. Some had disconnected the wire at the bulk head connector. I believe it came from the light to Z on the bulk head and then out from C to switch on the transmission. I have my color diagram at home that shows it very clear. Please check my post and you may find the answer there.

      - - - Updated - - -

      Here is my thread. http://www.forbbodiesonly.com/moparforum/showthread.php?58462-Under-dash-reverse-light-for-4-speed

    • dodge68charger

      dodge68charger Well-Known Member

      Messages:
      785
      Likes Received:
      29
      Joined:
      Feb 6, 2012
      Location:
      Washington
      Local Time:
      10:26 PM
      Thanks guys. Gonna head to the shop n take a look

    • dodge68charger

      dodge68charger Well-Known Member

      Messages:
      785
      Likes Received:
      29
      Joined:
      Feb 6, 2012
      Location:
      Washington
      Local Time:
      10:26 PM
      Is their a diagram for a 68 charger. I cant find one in my service manual. Also what do i do with the purple n white wires that are on the bulkhead connector. Thanks

      - - - Updated - - -

      Not sure how it goes to the Z terminal. Mine already has a wire in that terminal

    • dodge68charger

      dodge68charger Well-Known Member

      Messages:
      785
      Likes Received:
      29
      Joined:
      Feb 6, 2012
      Location:
      Washington
      Local Time:
      10:26 PM
      Figured out what the violet n white were for, auto trans backup switch.

    • bigmanjbmopar

      bigmanjbmopar Newb with a view

      Messages:
      5,258
      Likes Received:
      1801
      Joined:
      May 12, 2011
      Local Time:
      10:26 PM
      The wire in the z terminal is cut? is it black?

    • dodge68charger

      dodge68charger Well-Known Member

      Messages:
      785
      Likes Received:
      29
      Joined:
      Feb 6, 2012
      Location:
      Washington
      Local Time:
      10:26 PM
      I ll double check when i go to the shop. If it goes in the Z terminal does it go in on the firewall side? I post some pics

    • John L

      John L Active Member

      Messages:
      41
      Likes Received:
      19
      Joined:
      Jul 20, 2013
      Location:
      MI
      Local Time:
      12:26 AM
      On my 70 Charger the black wire from the reverse light goes to cavity Z on the passenger compartment side of the bulkhead connector. In the engine compartment the black wire coming from the pigtail on the wiper harness plugs into cavity Z completing the circuit. All of this is in the FSM wiring diagrams but can be a bit difficult to sort out in the pictures. Took me a while to figure out all of the back up lights and the reverse light were tied into the wiper harness, plus I was missing a few pieces. When I got all of the missing stuff it made more sense.

    • dodge68charger

      dodge68charger Well-Known Member

      Messages:
      785
      Likes Received:
      29
      Joined:
      Feb 6, 2012
      Location:
      Washington
      Local Time:
      10:26 PM

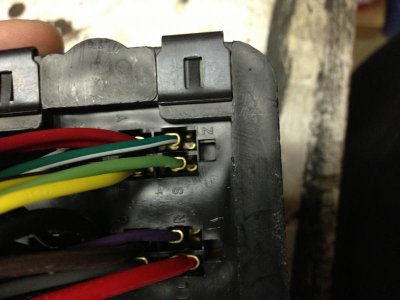

      Z terminal. Im confused image.jpg

    • dodge68charger

      dodge68charger Well-Known Member

      Messages:
      785
      Likes Received:
      29
      Joined:
      Feb 6, 2012
      Location:
      Washington
      Local Time:
      10:26 PM
      Green with a white tracer in the Z terminal

    • 69Bee

      69Bee FBBO Gold Member FBBO Gold Member

      Messages:
      1,719
      Likes Received:
      1232
      Joined:
      Nov 17, 2009
      Location:
      Whetstone, AZ
      Local Time:
      11:26 PM
      The pics and info we are posting are informational only, they don't necessarily pertain to your car exactly (mine were for a 69). Please re-look at Bigmanjbmopar's post where he gives you the links for a 1968 Charger. If you look at the Z position, you will see the wire is a darkgreen with trace wire in it like yours. The wires for your year car backup circuit is C & D engine compartment, and C (Violet) & D (white) inside.

      The white wire goes to the radio plug for power for the circuit, and the violet wire goes to a connector (socket 4) for the rear light wiring harness, and also to a "console connector" (socket 2). Look for a connection point along the circuit for the violet wire. This is the switched source for all of the back-up lights.

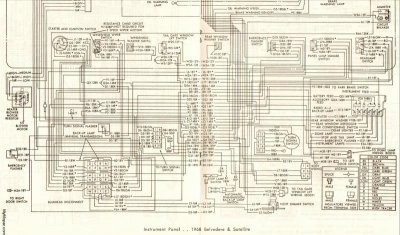

      The best I can find is a diagram for a 68 Plymouth showing the bulkhead C & D in the lower left corner. It calls out the back-up light circuit.



      Good luck, and Merry Christmas.
      Dave

      • Like Like x 1
      • dodge68charger

        dodge68charger Well-Known Member

        Messages:
        785
        Likes Received:
        29
        Joined:
        Feb 6, 2012
        Location:
        Washington
        Local Time:
        10:26 PM
        Does anyone have any pics of their setup. Thanks

      • dodge68charger

        dodge68charger Well-Known Member

        Messages:
        785
        Likes Received:
        29
        Joined:
        Feb 6, 2012
        Location:
        Washington
        Local Time:
        10:26 PM
        Does the black wire from the reverse light replace the white wire on the passenger compartment side of the bulkhead connector in terminal 'D'..The violet wires are common to the 'C' terminal on the passenger compartment and engine compartment side connectors but not sure what i do with the white wire cus the black wire from the switch has to go somewhere. I heard the 'Z' terminal but that already has a wire in it

        - - - Updated - - -

        Its the last wire i gotta put in n my dash assembley can go in
