Battery tray install on 1969 Road Runner

[wild bill]

Thank you in advance for helping me with this problem. I appreciate all you help. I am looking to install my battery tray on my 1969 Road Runner. I have a new tray and the two S supports. I cannot figure out how things fit to together. Does anyone have a picture of how the tray fits on the inner fender? I am particularly interested in seeing how the S support braces fit. Thank you again. Go MOPAR!!!!



[1969 Hemi RTs]

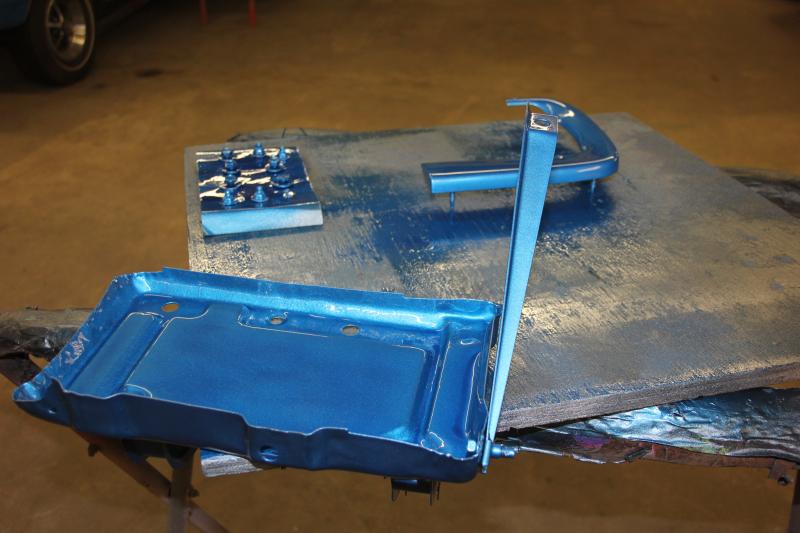

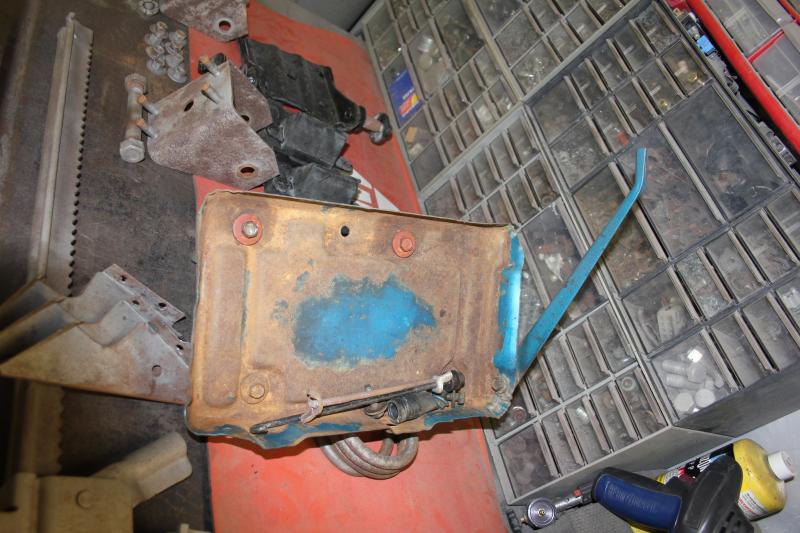

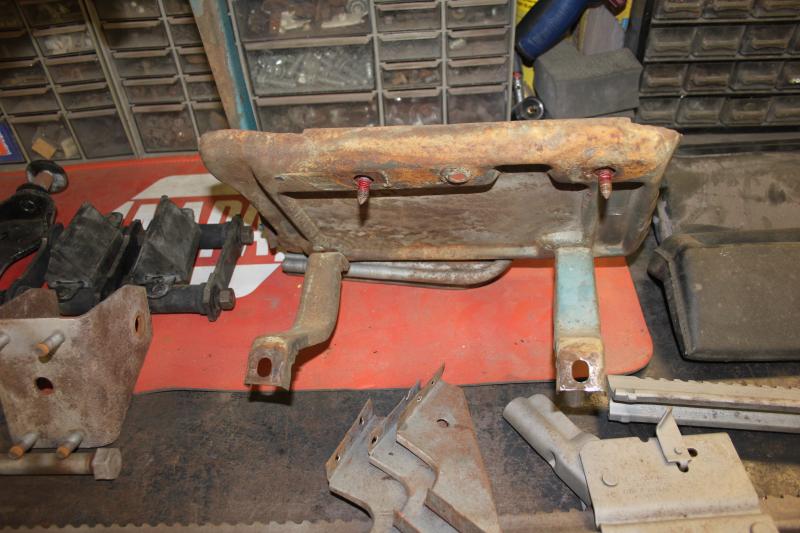

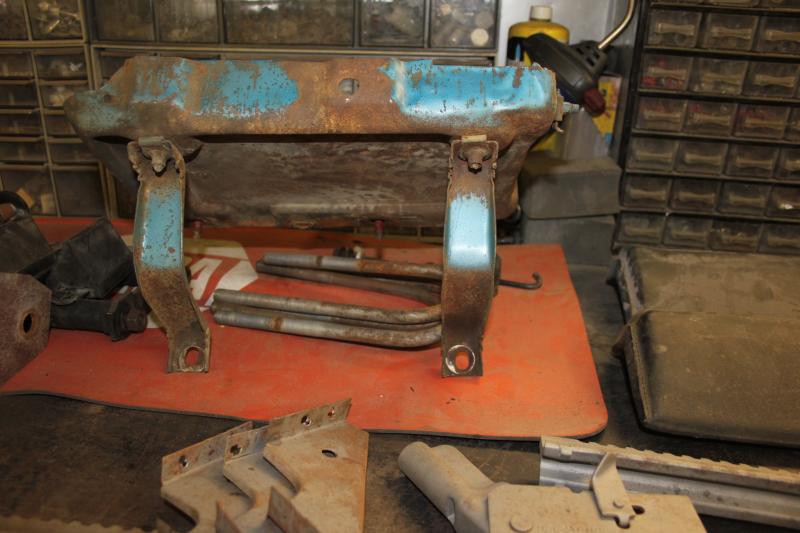

here is an origonal one. 1969 Coronet R/T



[69Runner]

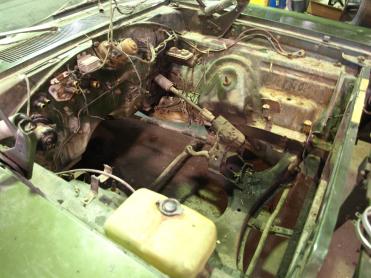

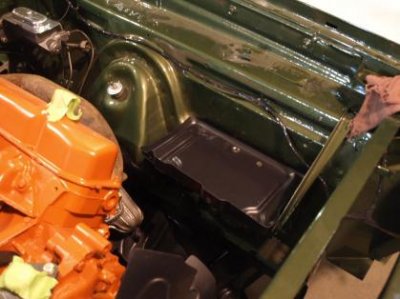

The two s brackets under the tray will bolt to the inner fender, the top brace should bolt to the top of the driver inner fender.



[wild bill]

Hemi RTS thank you so much for your pictures. they are excellent! and they will help me to install my battery tray. they are exactly what I needed too. thank you so much!

- - - Updated - - -

thank you 69runner. Your pictures will help me to install my battery tray. thank you again.
