Brake pedal play

dickdale

Well-Known Member
Local time
10:38 PM
Joined
Oct 29, 2010
Messages
429
Reaction score
108
Location
Europe

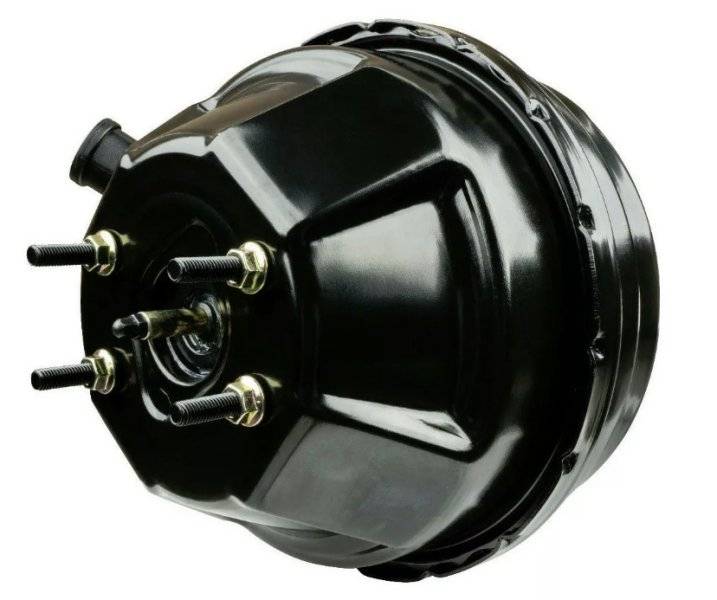

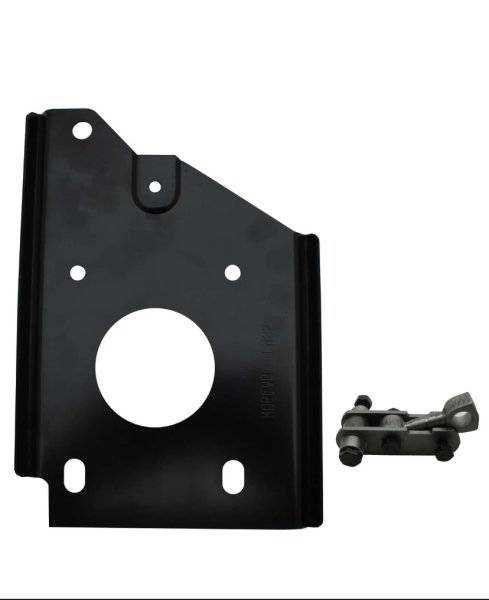

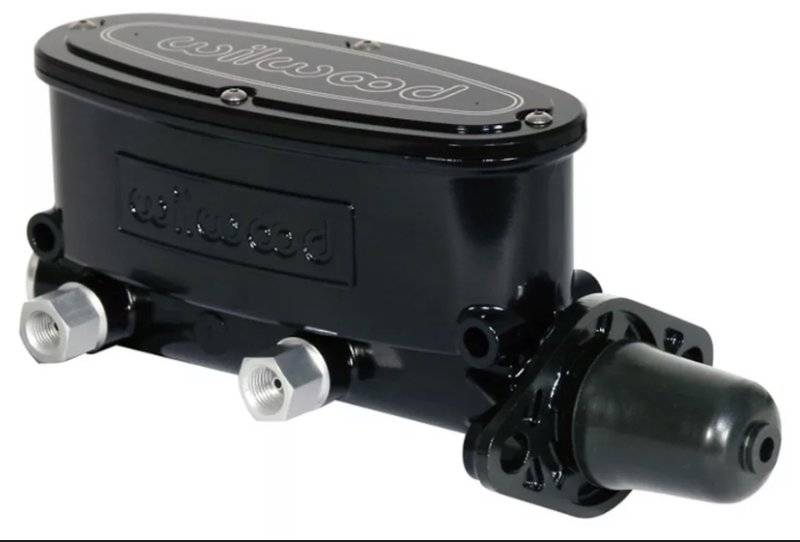

I’ve converted my manual brake 70’s Satellite to Power brakes using a Wilwood master brake cylinder (7/8” bore size), Bendix style booster with linkage and stock manual pedal.

The brakes have been tested and they work excellent.

The only thing is that the first 1/4 of an inch the pedal doesn’t come back at the start position. The car doesn’t brake when not pressing the brake but the pedal wouldn’t come all the way up.

How can this be solved?







RemCharger

Well-Known Member
Local time
10:38 PM
Joined
Apr 5, 2014
Messages
3,495
Reaction score
3,143
Location
Sask
Not sure on a 70 with the bendix.. but I would wonder about using the manual pedal with PB..
The hole should be in a different spot, definitely could lead to what you're experiencing


steve340

Well-Known Member
Local time
5:38 PM
Joined
Jul 7, 2018
Messages
1,101
Reaction score
871
Location
New Zealand
I believe the power brake cars had a lower pedal height. I am sure I read or saw a diagram someplace.
My GTX was a factory power disc brake car and the pedal was scarily low. I always felt like the pedal was going to go to the floor before I could stop the car.
Is that what you mean?


Gus chiggins

Well-Known Member
Local time
11:38 PM
Joined
Jan 14, 2021
Messages
631
Reaction score
630
Location
Florida
I believe the power brake cars had a lower pedal height. I am sure I read or saw a diagram someplace.
My GTX was a factory power disc brake car and the pedal was scarily low. I always felt like the pedal was going to go to the floor before I could stop the car.
Is that what you mean?
Brake pedal is lower, i swapped to PB's, and had to change the position of the brake light switch bracket ( PITA)


Ron H

FBBO Gold Member
FBBO Gold Member
Local time
10:38 PM
Joined
Feb 29, 2016
Messages
7,520
Reaction score
8,360
Location
WI
Yeah had a series of hassles with my brake conversion. One thing to verify adding a booster, is the gap btw the booster rod to MC piston. Tolerances vary btw cars; my gap tolerance was around 10 thou. Another issue is making sure there's a little free play at the pedal home position, not locked up or binding against the BL switch. This can cause pre-loading the booster resulting in pedal sink.
