Max Wedge Starter Relay Harness

1962 - 1965 Mopars

  1. VANDAN

    VANDAN FBBO Gold Member FBBO Gold Member

    Messages:
    1,865
    Likes Received:
    3255
    Joined:
    May 27, 2011
    Location:
    Western NY
    Local Time:
    5:17 PM
    I'm looking for specs, diagram, info for a harness on my '63. Can't get any venders to fill an order, so may need to make one up. Any pics of an actual Factory set-up would also help. I did post an ad in the Perf Parts WTB section, Thanks

  2. moparsquid

    moparsquid FBBO Gold Member FBBO Gold Member

    Messages:
    342
    Likes Received:
    138
    Joined:
    Sep 9, 2010
    Location:
    spring valley ,ca.
    Local Time:
    2:17 PM
    i think i got mine from kramers wires to the aternator and coil go along pass side fender relay is under the cowl vent look up photos of lajit maxies

    • Thanks! Thanks! x 1
    • EARLY B

      EARLY B Well-Known Member

      Messages:
      214
      Likes Received:
      113
      Joined:
      Oct 7, 2014
      Location:
      ALLENTOWN,PA
      Local Time:
      5:17 PM

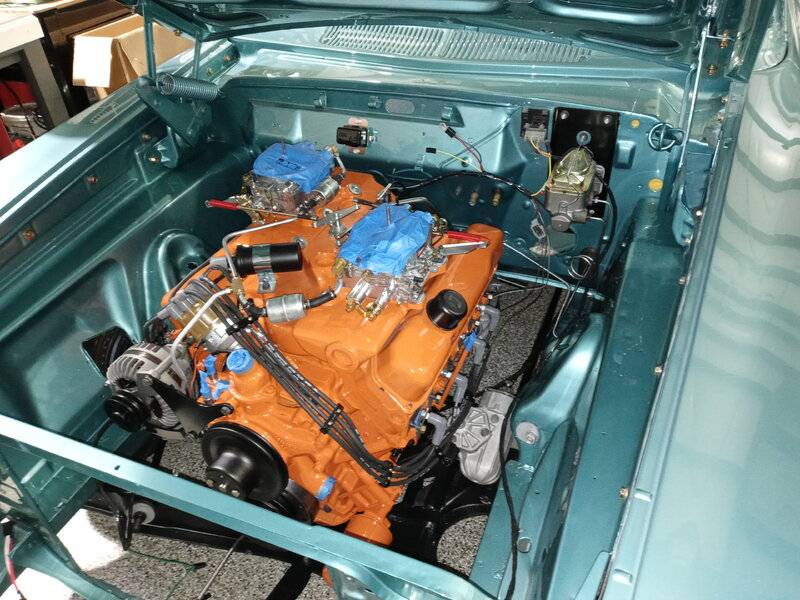

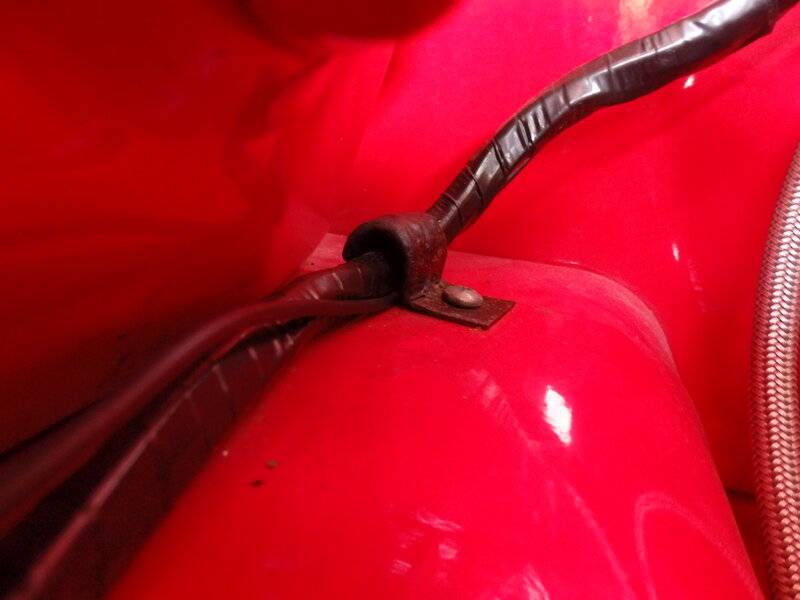

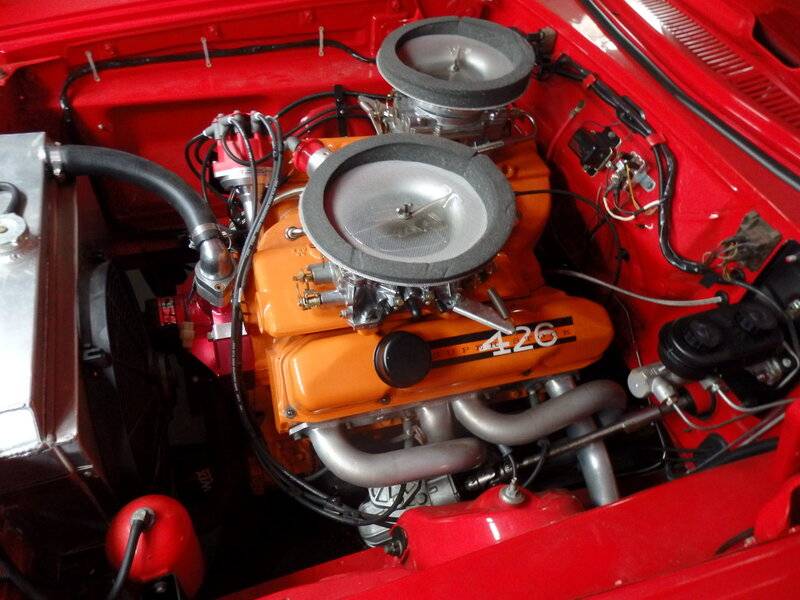

      P1010538.JPG P1010540.JPG

      • Thanks! Thanks! x 1
      • chooch

        chooch Well-Known Member

        Messages:
        834
        Likes Received:
        1071
        Joined:
        Jul 15, 2010
        Location:
        pixburgh,pa
        Local Time:
        4:17 PM
        If you are going to use max wedge style air cleaners the voltage regulator is going to be an issue plus you will need to drill some extra holes in the inner fender along with the cowl not to mention find the correct screw in clips.

        • Thanks! Thanks! x 1
        • VANDAN

          VANDAN FBBO Gold Member FBBO Gold Member

          Messages:
          1,865
          Likes Received:
          3255
          Joined:
          May 27, 2011
          Location:
          Western NY
          Local Time:
          5:17 PM
          Yes, there is some work under there yet. I've had these items on order from Jim, but can't get a reply back lately ? Looking for a choke cable set also...

        • EARLY B

          EARLY B Well-Known Member

          Messages:
          214
          Likes Received:
          113
          Joined:
          Oct 7, 2014
          Location:
          ALLENTOWN,PA
          Local Time:
          5:17 PM
          The clips for the wiring on the pass side by the hinge may be different Dodge vs Plymouth. Also early cars vs later. I will look to see if I have some. AS I remember the wiring harness is about 48" longer on the alt horn end. Try Brewers and Joe Suchy for the harness and maybe the clips.

          Last edited: Jan 16, 2021
        • chooch

          chooch Well-Known Member

          Messages:
          834
          Likes Received:
          1071
          Joined:
          Jul 15, 2010
          Location:
          pixburgh,pa
          Local Time:
          4:17 PM
          You try calling him? I was just talking to him 5 min ago. The metal screw on clips are not reproduced but aren't hard to make & sometimes a close enough match can be found on early C-bodies

          • Agree Agree x 1
          • VANDAN

            VANDAN FBBO Gold Member FBBO Gold Member

            Messages:
            1,865
            Likes Received:
            3255
            Joined:
            May 27, 2011
            Location:
            Western NY
            Local Time:
            5:17 PM
            I've called the shop line, and left messages, along with emails, about the orders ? Try again next week...

          • EARLY B

            EARLY B Well-Known Member

            Messages:
            214
            Likes Received:
            113
            Joined:
            Oct 7, 2014
            Location:
            ALLENTOWN,PA
            Local Time:
            5:17 PM

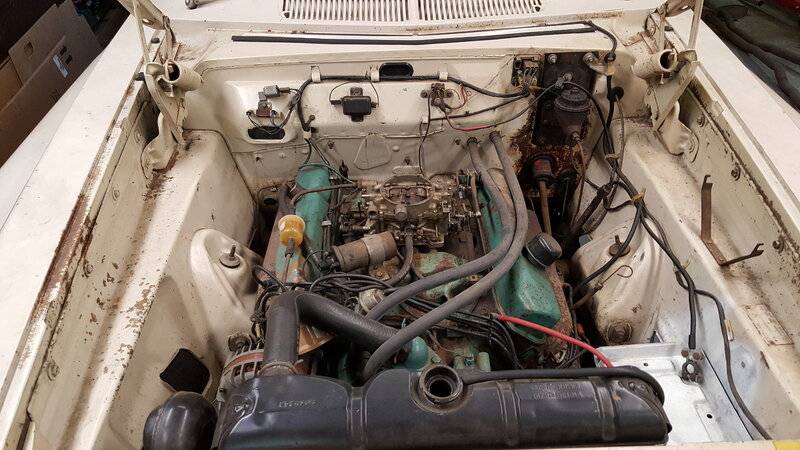

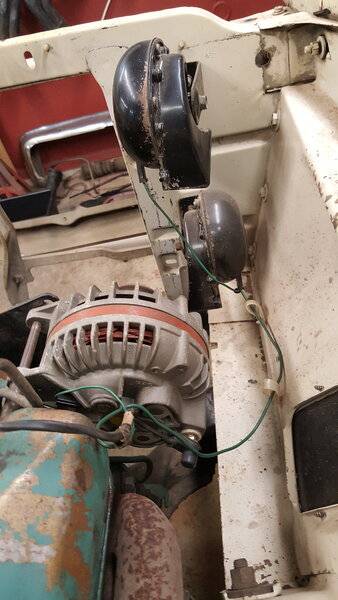

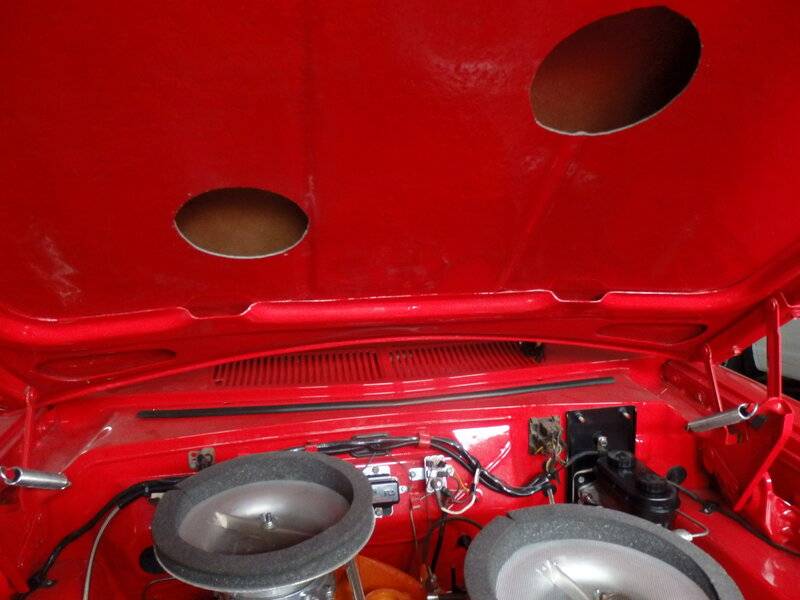

            P1010549.JPG P1010547.JPG P1010547.JPG

            • Thanks! Thanks! x 1
            • maxwedgechar

              maxwedgechar Well-Known Member

              Messages:
              128
              Likes Received:
              60
              Joined:
              Oct 18, 2015
              Location:
              Mt Laurel, NJ
              Local Time:
              5:17 PM
              I have one on backorder from Kramer's. Seems the supplier is/was shut down for the COVID. I ended up running 10 gauge and 8 gauge wires. I was having starter and wiring issues. I finally had the original starter rebuilt and MAX is happy now.

              • Thanks! Thanks! x 1
              • VANDAN

                VANDAN FBBO Gold Member FBBO Gold Member

                Messages:
                1,865
                Likes Received:
                3255
                Joined:
                May 27, 2011
                Location:
                Western NY
                Local Time:
                5:17 PM
                Still looking & waiting...

              • Thunderlugs

                Thunderlugs Well-Known Member

                Messages:
                698
                Likes Received:
                989
                Joined:
                Sep 21, 2016
                Location:
                Burlington, WI
                Local Time:
                4:17 PM
                Give Brian at Crossram Connection in Waukesha Wisconsin a call. He, if anyone would know where you could find what you are looking for.

                • Thanks! Thanks! x 1
                • JPrusinows

                  JPrusinows Well-Known Member

                  Messages:
                  248
                  Likes Received:
                  345
                  Joined:
                  Jun 23, 2014
                  Location:
                  Biloxi, MS
                  Local Time:
                  4:17 PM

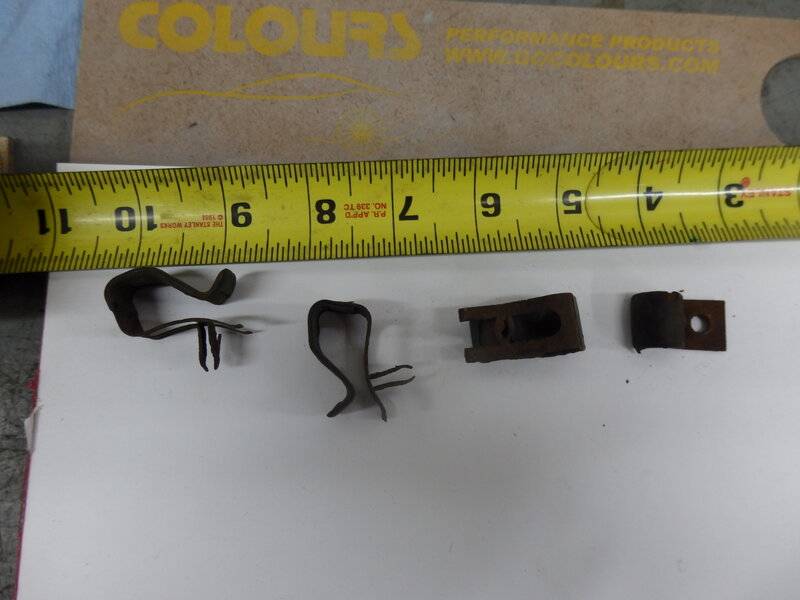

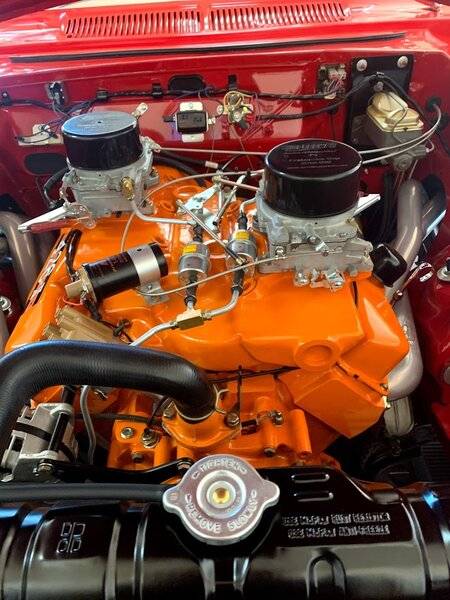

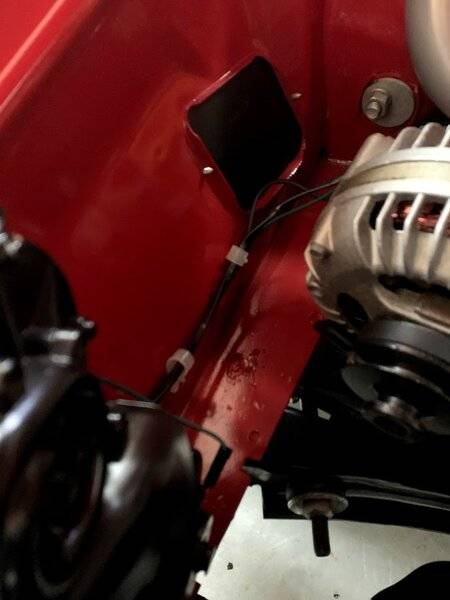

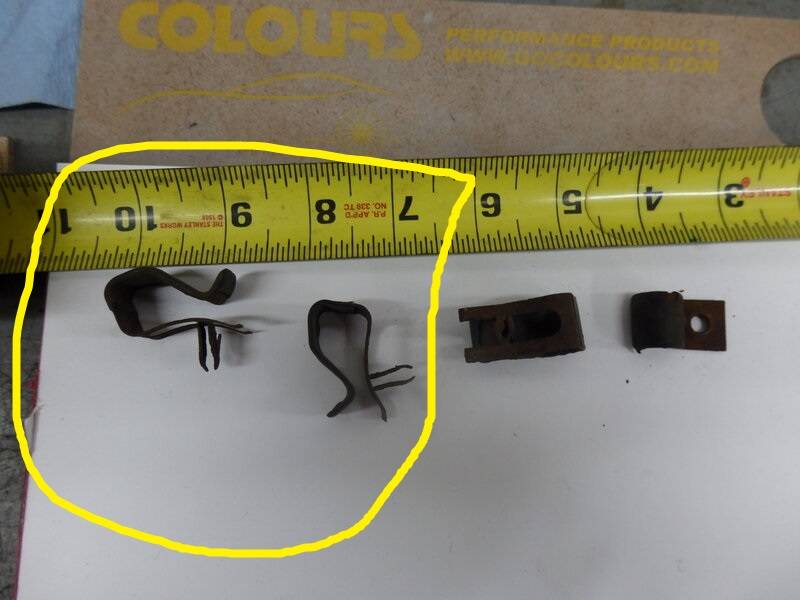

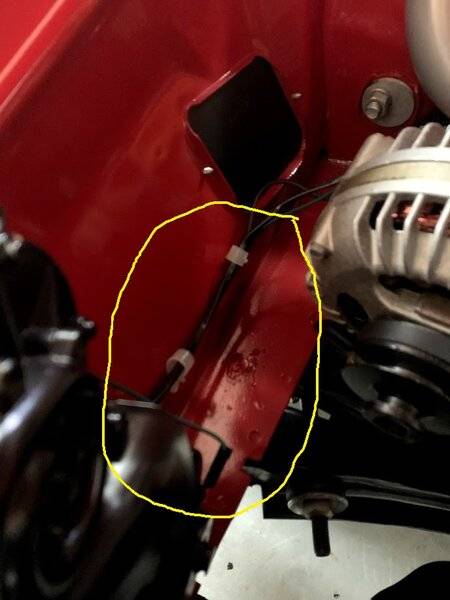

                  Call Brian he's the man. Kramer great as well, but Brian's the man. Here's a few photos from my 63. Image 0977 shows the incorrect white wire holders (inside passenger fender engine bay), they were replaced with the correct clips (two on far left) in P1010547. Hope this helps!

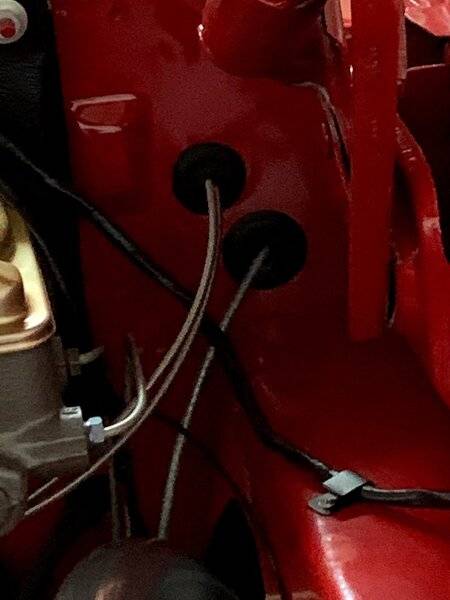

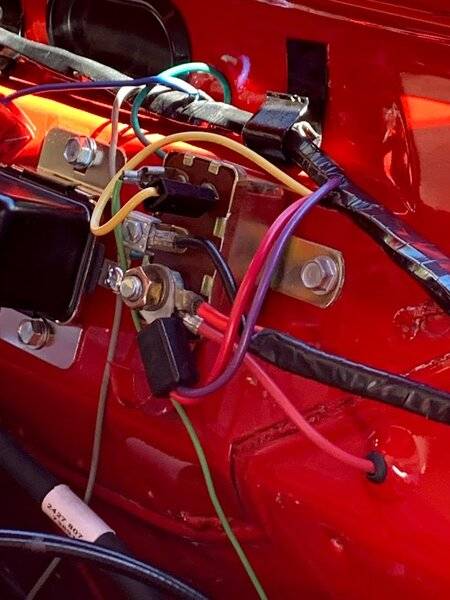

                  IMG_1106.jpg IMG_1112.jpg IMG_1543.jpg P1010547.JPG IMG_0977.jpg

                  • Thanks! Thanks! x 1
                  • JPrusinows

                    JPrusinows Well-Known Member

                    Messages:
                    248
                    Likes Received:
                    345
                    Joined:
                    Jun 23, 2014
                    Location:
                    Biloxi, MS
                    Local Time:
                    4:17 PM
                    More detail.

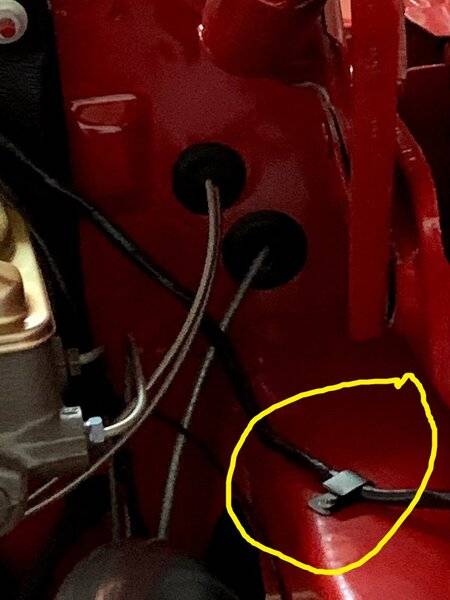

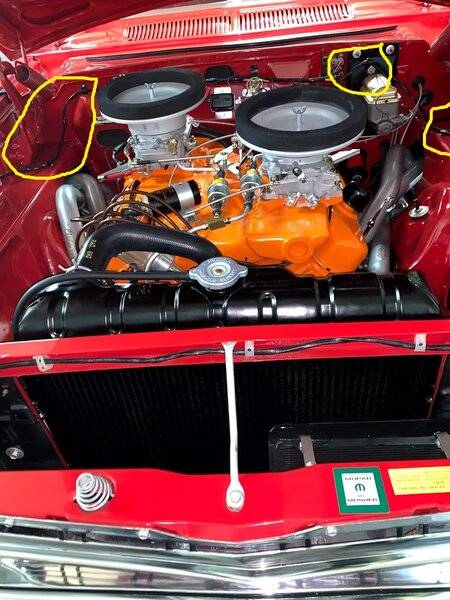

                    IMG_0977.jpg IMG_1106.jpg IMG_1301.jpg P1010547.JPG

                    • Thanks! Thanks! x 1
                    • JPrusinows

                      JPrusinows Well-Known Member

                      Messages:
                      248
                      Likes Received:
                      345
                      Joined:
                      Jun 23, 2014
                      Location:
                      Biloxi, MS
                      Local Time:
                      4:17 PM
                      Hers is another picture with correct clips installed.

                      Jeff

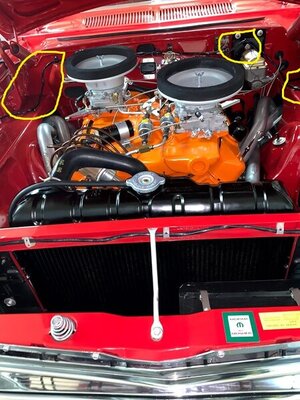

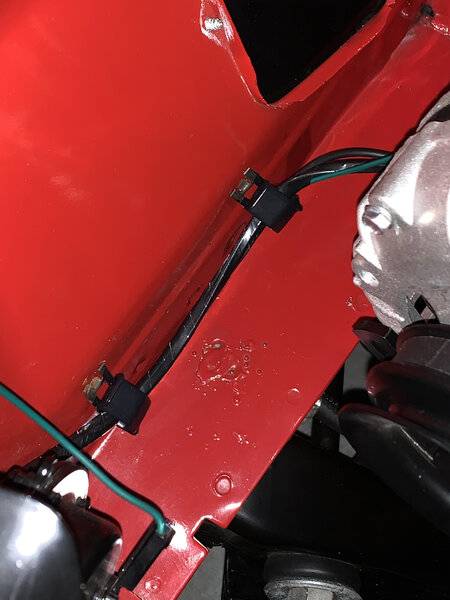

                      wire clips.jpg

                      • Thanks! Thanks! x 1
                      • khryslerkid

                        khryslerkid Well-Known Member

                        Messages:
                        24,056
                        Likes Received:
                        37421
                        Joined:
                        Mar 10, 2010
                        Location:
                        Hanover, Pennslyvania
                        Local Time:
                        5:17 PM
                        Never saw the metal clips before. My '62 used the plastic. Not a Maxi but all original wiring.


                        • Thanks! Thanks! x 1
                        • maxwedgechar

                          maxwedgechar Well-Known Member

                          Messages:
                          128
                          Likes Received:
                          60
                          Joined:
                          Oct 18, 2015
                          Location:
                          Mt Laurel, NJ
                          Local Time:
                          5:17 PM
                          A friend of mine had 2 identical '64 Savoy 6 cylinder 2 door sedans. But they weren't. One was built in Belvedere and the other one was built in St. Louis. Different clips and routing and I guess it depended on who was working the line at the time but some of the parts were in different positions.

                          • Agree Agree x 1
