Need Photos Of 70 Roarunner A/C Lines Under The Hood

Heating, Cooling & AC

  1. soundhd

    soundhd Well-Known Member

    Messages:
    652
    Likes Received:
    135
    Joined:
    Oct 7, 2012
    Location:
    Ann Arbor Michigan
    Local Time:
    10:07 PM
    Trying to get the factory A/C working again on my 70 Roadrunner. My compressor and condenser are in place but need photos of how all the lines are run in the engine bay. No correct replacements can be found anywhere so need to have them custom made. The shop manual has one diagram showing how they run but detailed photos would be the best way to get them correctly made as close as possible. Have not been able to find any photos doing a internet search showing the lines run as the shop manual shows. Have found some showing them run incorrectly like they are run on a 70 Charger (assume they ran into the same problem I am now and just went with the different way). Please PM me for my e-mail address to send the photos to unless your can post them as a reply to this post.

    Any help would be appreciated.

    • Like Like x 1
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      10,338
      Likes Received:
      20200
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      7:07 PM
      Have you checked with Classic Auto Air or Vintage Air ?

    • soundhd

      soundhd Well-Known Member

      Messages:
      652
      Likes Received:
      135
      Joined:
      Oct 7, 2012
      Location:
      Ann Arbor Michigan
      Local Time:
      10:07 PM
      Have checked out both web sites and do not see any factory replacement under hood A/C lines on either site. have found a place that will "restore" existing lines but since my Roadrunner did not have any of those lines when I bought the car that will not do me nay good.

      Thanks



    • BeepBeepRR

      BeepBeepRR Well-Known Member

      Messages:
      2,294
      Likes Received:
      2148
      Joined:
      Oct 16, 2016
      Location:
      Atlanta,Ga
      Local Time:
      10:07 PM

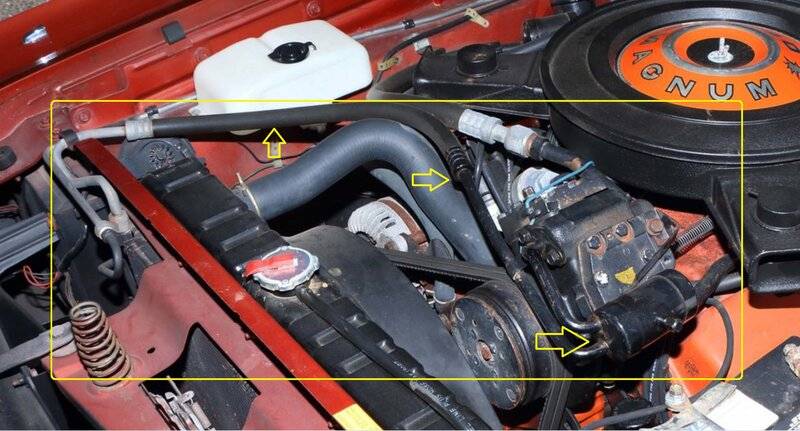

      [​IMG]

    • snakeyes

      snakeyes FBBO Gold Member FBBO Gold Member

      Messages:
      23,262
      Likes Received:
      18550
      Joined:
      May 5, 2011
      Location:
      ohio
      Local Time:
      10:07 PM

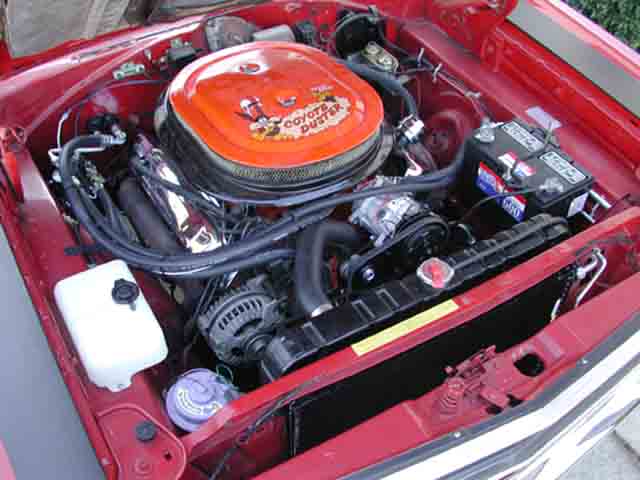

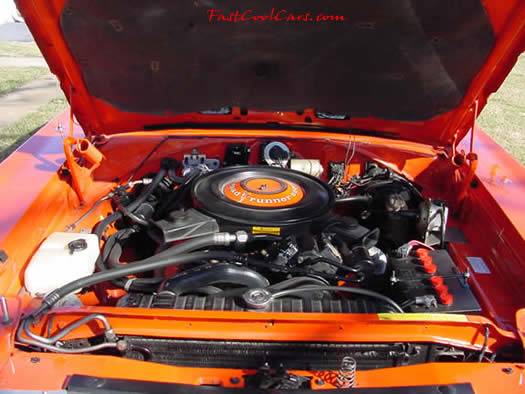

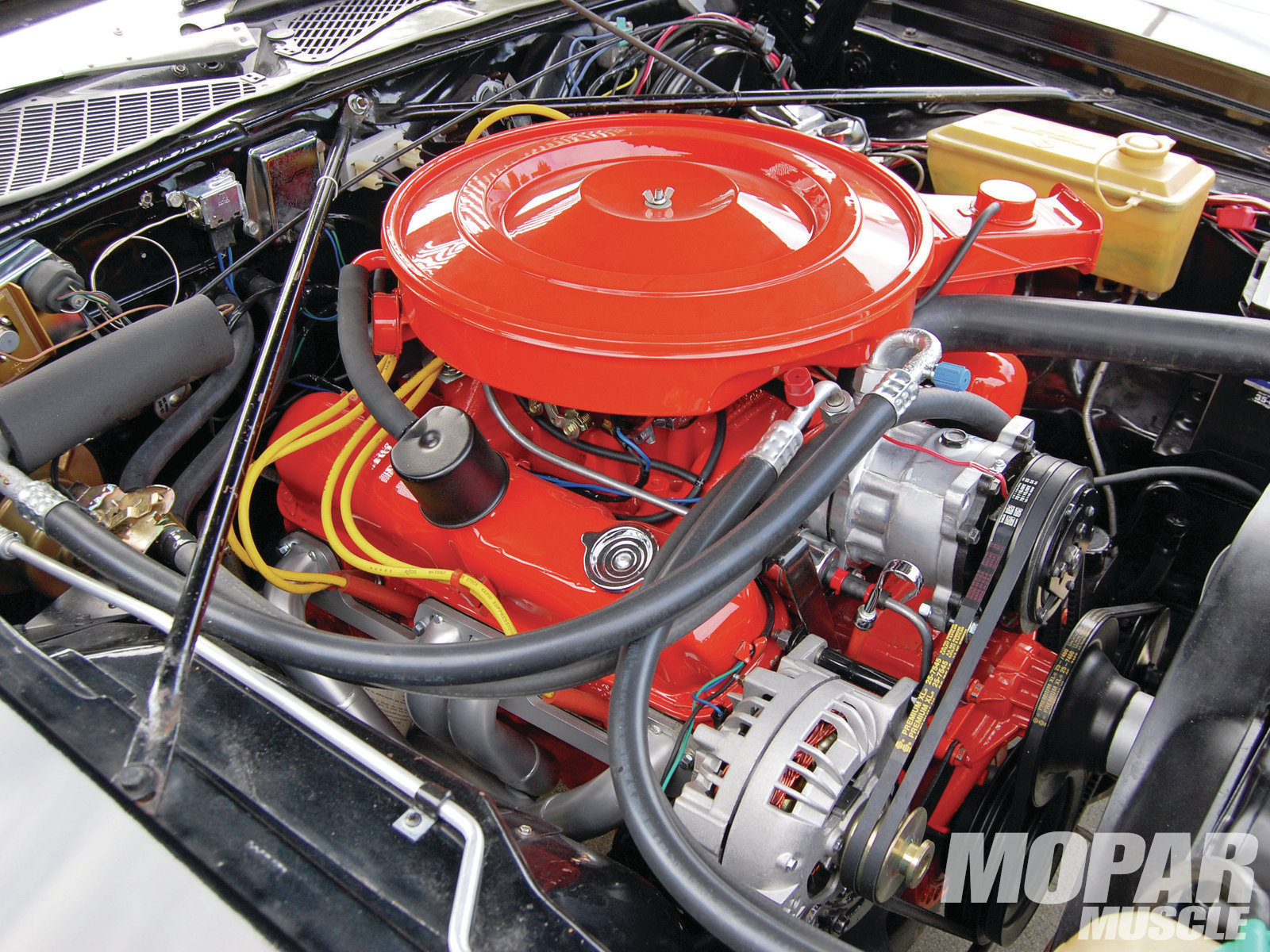

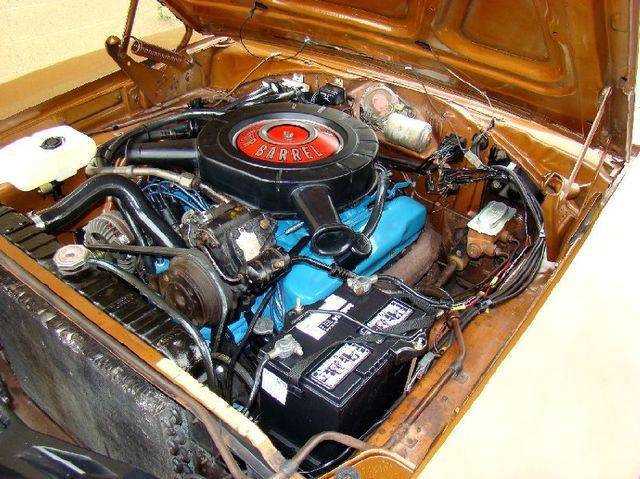

      1970-PLYMOUTH-ROADRUNNER-ENGINE-BAY.jpg [​IMG] mopp_612z-AC_system_restore_part_1-.jpg

    • soundhd

      soundhd Well-Known Member

      Messages:
      652
      Likes Received:
      135
      Joined:
      Oct 7, 2012
      Location:
      Ann Arbor Michigan
      Local Time:
      10:07 PM
      Thanks so much for the photos but none of them show the discharge line from the compressor going over the driver's side inner fender.... All show the discharge line going back over the front of the motor to the condenser, not like the "figure" from the shop manual shows.
      Question: Was it done two ways depending on what plant the 70 Plymouth was built?
      Sorry for all the questions...just trying to understand it all. Have seen other cases where different plants did the assemblies in different ways.

      thanks

    • appaking

      appaking Member

      Messages:
      7
      Likes Received:
      3
      Joined:
      May 27, 2013
      Location:
      Frostburg, Maryland
      Local Time:
      10:07 PM

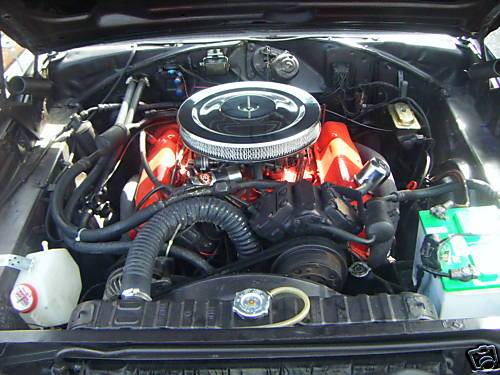

      I found this in my file. It's most likely a '69. I never noticed the metal tube crossing in front of the Rad. support before. RoadRunner_AirCond_comp.jpg

    • appaking

      appaking Member

      Messages:
      7
      Likes Received:
      3
      Joined:
      May 27, 2013
      Location:
      Frostburg, Maryland
      Local Time:
      10:07 PM
      Another one. Again, I don't know the year/model. I don't think this one is a b-body, but the style is the same. One good reason for not doing it this way is they're ugly! LOL! RoadRunner_AirCond_comp3.jpg

    • soundhd

      soundhd Well-Known Member

      Messages:
      652
      Likes Received:
      135
      Joined:
      Oct 7, 2012
      Location:
      Ann Arbor Michigan
      Local Time:
      10:07 PM
      That is the "correct" way the discharge line is run for a 70 Plymouth B Body (according to the shop manual). I think is a "cleaner" looking way then having a discharge "hose" going over the front of the engine. Anyway thanks.


    • Kilrbee

      Kilrbee Member

      Messages:
      15
      Likes Received:
      8
      Joined:
      May 12, 2014
      Location:
      Wisconsin
      Local Time:
      9:07 PM
      The only correct pic posted here of the A/C lines is the first one with both lines going to the passenger side for a 1970 B body big block...

    • soundhd

      soundhd Well-Known Member

      Messages:
      652
      Likes Received:
      135
      Joined:
      Oct 7, 2012
      Location:
      Ann Arbor Michigan
      Local Time:
      10:07 PM
      I guess I will disagree. The discharge line on a 70 Plymouth Big Block 383, 440 & 426 hemi (according to the shop manual section 24 fig #15: Note: I am not aware of or heard of of any Hemi's built with A/C) is routed from the compressor over to the driver's side inner fender then goes along the upper front of the radiator support then connects to the condenser.
      On a 70 Dodge Big block (now I am going by the "original A/C parts I got from a Mopar buddy who took the system off a 70 Charger....I do not have access to a 70 Dodge shop manual to check on this) the discharge line is routed over the front of the motor then over to the condenser. Note: On a 70 Plymouth B Body with the 318 and the "6" (according to the 70 Plymouth shop manual) the discharge line is routed the same as a 70 Charger BB. So the "second" photo (gold colored Plymouth B Body) is "correct".
      The only thing that I can think of (and from my "limited" experiences with the Mopar "B: body cars) is "MAYBE" (and I have seen this before with other years of "B: body Mopars) different assembly plants did some things differently. As for this issue (the A/C discharge line routing over the front of the motor) no one has confirmed that this is the case.

      Hope this helps




    • Kilrbee

      Kilrbee Member

      Messages:
      15
      Likes Received:
      8
      Joined:
      May 12, 2014
      Location:
      Wisconsin
      Local Time:
      9:07 PM
      Nope...a 70 big block b body is definitely the same as the first pic..70 is different than 69 68 etc. And big block is different than small block lines in each year also...

    • soundhd

      soundhd Well-Known Member

      Messages:
      652
      Likes Received:
      135
      Joined:
      Oct 7, 2012
      Location:
      Ann Arbor Michigan
      Local Time:
      10:07 PM
      So why does the 70 Plymouth Shop manual show the discharge line going over to the driver's side inner fender?


    • Kilrbee

      Kilrbee Member

      Messages:
      15
      Likes Received:
      8
      Joined:
      May 12, 2014
      Location:
      Wisconsin
      Local Time:
      9:07 PM
      I have never seen a 1970 big block b body with the line to the drivers side, my assumption is the manual wasn't updated to the 70 lines as the previous years (66 to 69) big block b body lines do run to the drivers side inner fender..

    • soundhd

      soundhd Well-Known Member

      Messages:
      652
      Likes Received:
      135
      Joined:
      Oct 7, 2012
      Location:
      Ann Arbor Michigan
      Local Time:
      10:07 PM
      I am assuming the photo of the "gold" car is a 70 Plymouth?

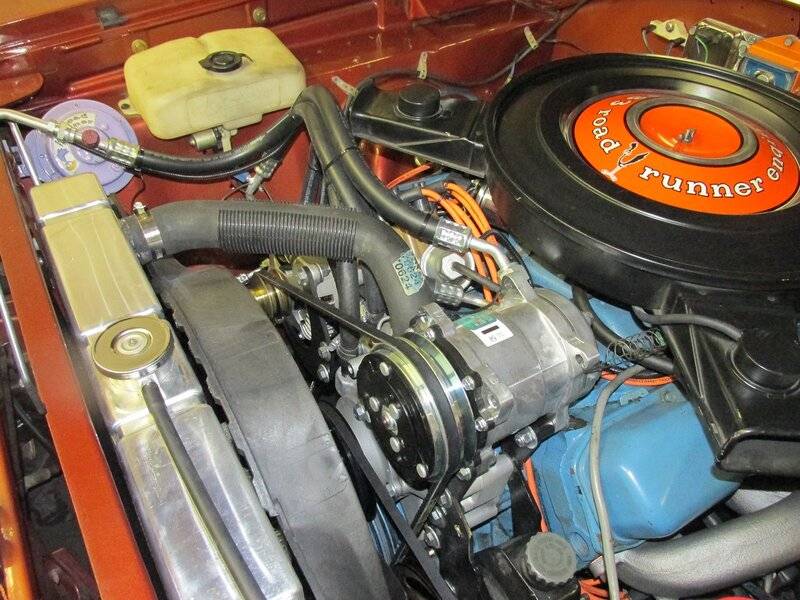

      looks like mine (without the A/C lines in place......) but I am not an "expert".....have never seen another 70 Plymouth B Body BIg Block car with factory A/C. Added a photo of it. 1970 PLYMOUTH ROADRUNNER 2018 28.jpg
