Needing help with my 1972 Dodge Charger Rallye resto-mod (Eletrical)

Kittencat2000

New Member
Local time
1:42 AM
Joined
Oct 9, 2021
Messages
2
Reaction score
0
Location
Louisiana
Just about finished everything already, just putting the final two things I need to make it road legal again which would be my reverse lights (which i don't have an issue with just yet, haven't gotten to it) rather I've been dealing with an issue in regards to my wiper switch, its a brand new/refurbished 3 speed switch with a brand new refurbished 3 speed motor. It has the park/stop mode and everything etc etc. However when you place it in park (stop) the prong that's sending in power builds up heat really quickly, like hot hot. I HAVE to turn it off. The wires a hot pink larger gauge, its bigger then the rest of the wires that are connected on the switch. I'm kind of in a rut now since its stopping me from doing anything else.

To add more detail even holding the switch's body will set your nerves off as it has electricity running thru it as well. Yes a voltmeter was put to it as well, it read 12V's or whatever the battery was putting out. Yes the wires are not in contact with one another, in fact I took them out of the housing thinking it was the issue, they've all been crimped separately and between them are a gap.

Automatic signs of a bad ground but if anyone can give me more of a lead then just that it'd be really appreciated.

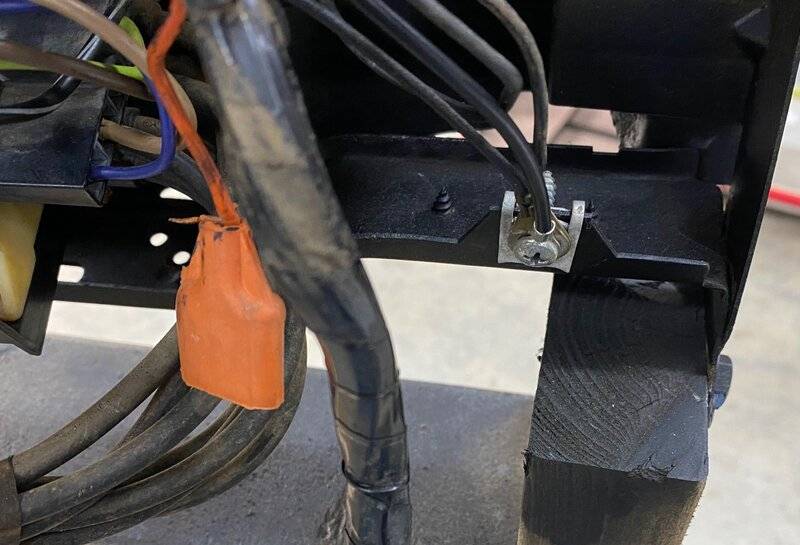

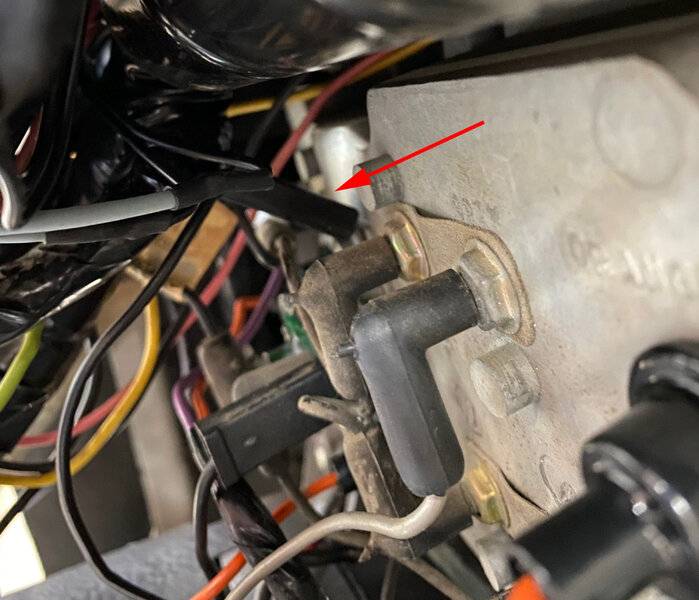

Check the cluster ground. There is a black wire with a white tracer connected to a spade on the top of the voltage limiter, see arrow. That is grounded to the frame on the bottom under the switches. 2nd pic.


Put a multimeter to each wire while they are disconnected from the switch w ignition on and ignition off and test for power and continuity and possible ground. Also put the multimeter to each of the terminals on the switch while you have it out and check to see if you have continuity between each, and between them and body of switch.

Check the cluster ground. There is a black wire with a white tracer connected to a spade on the top of the voltage limiter, see arrow. That is grounded to the frame on the bottom under the switches. 2nd pic.

View attachment 1177347 View attachment 1177348


Not sure what the voltage limiter looks like, only thing I recognize is the back of the gauge cluster panel.

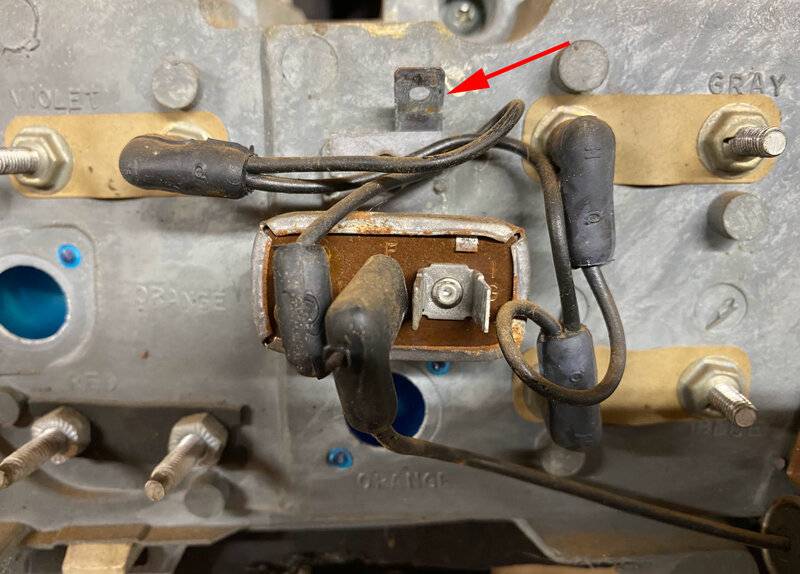

Here is what it looks like. Arrow shows ground connection. Lower left you can see the Ammeter connections to reference location.
