New hurst shifter problem

Engine, Trans & Driveline

  1. moparfanUSA

    moparfanUSA Well-Known Member

    Messages:
    588
    Likes Received:
    117
    Joined:
    Apr 24, 2010
    Location:
    nj
    Local Time:
    4:47 AM
    Installed the new Hurst shifter and once in found out when put into first or 3rd the handle hits the dash, so something is wrong. On Hurst's website it says it says it fits 69 console cars. I didn't expect the new handle to be exactly like the old one, but its not the same. You can see in the picture what the new one looks like.


  2. moparnation74

    moparnation74 Well-Known Member

    Messages:
    10,506
    Likes Received:
    18016
    Joined:
    Mar 27, 2014
    Location:
    OHIO
    Local Time:
    3:47 AM
    You have the WRONG handle


    • Agree Agree x 2
    • Ranger16

      Ranger16 Well-Known Member

      Messages:
      4,152
      Likes Received:
      5166
      Joined:
      Jun 27, 2016
      Location:
      Woodstock Ill.
      Local Time:
      3:47 AM
      I agree. I have a console and have no such problem.


    • Daves69

      Daves69 Well-Known Member

      Messages:
      1,974
      Likes Received:
      1755
      Joined:
      Jan 24, 2014
      Location:
      ChiWest
      Local Time:
      3:47 AM
      Wow, looks like the passenger would have to shift for ya' with that handle.

      BTW, the two pictures posted (#2 & #3) above are the same handle I got from a '69 RR stick car to do my change over in my '68 RR auto car w/o console. Nobody could ever forget using this handle without a console for how it looks. Lol, I couldn't find another handle fast enough.

      Last edited: Feb 21, 2018
    • iraqivet01

      iraqivet01 Well-Known Member

      Messages:
      1,303
      Likes Received:
      199
      Joined:
      Oct 10, 2009
      Location:
      Sapulpa, OK
      Local Time:
      3:47 AM
      Looks like you put it on backwards.

      • Agree Agree x 1
      • moparfanUSA

        moparfanUSA Well-Known Member

        Messages:
        588
        Likes Received:
        117
        Joined:
        Apr 24, 2010
        Location:
        nj
        Local Time:
        4:47 AM
        no, not in backwards, we put the console in and if fits right in the center. The problem is Hurst says this handle fits a 69 console.

      • moparnation74

        moparnation74 Well-Known Member

        Messages:
        10,506
        Likes Received:
        18016
        Joined:
        Mar 27, 2014
        Location:
        OHIO
        Local Time:
        3:47 AM
        it is not backwards....it is the wrong handle

        • Agree Agree x 1
        • PP1RT

          PP1RT Well-Known Member

          Messages:
          2,383
          Likes Received:
          3063
          Joined:
          Jun 26, 2015
          Location:
          IA
          Local Time:
          3:47 AM
          Somebody put the wrong part in the wrong package or something. You got the wrong handle!

        • PurpleBeeper

          PurpleBeeper Well-Known Member

          Messages:
          4,732
          Likes Received:
          3473
          Joined:
          Mar 20, 2011
          Location:
          Chicago
          Local Time:
          3:47 AM
          I have to say that on my 70 pistol grip/console (what it looks like you have), I have banged my knuckles on the dash MANY times....it's really, really close. And yes, these guys are correct about your handle, 69 got the Hurst linkage, but the pistol grip didn't come out until 1970

        • kiwigtx

          kiwigtx Henchman #4 Staff Member FBBO Gold Member

          Messages:
          23,281
          Likes Received:
          48260
          Joined:
          Jun 12, 2012
          Location:
          NZ - the newest 3rd World Country
          Local Time:
          8:47 PM
          The idea that the wrong handle has been used sounds most plausible.:thumbsup:

          Something else to consider is that there are different mounting blocks for the shift mechanism. If this is a new conversion, make sure the correct block has been used.

        • moparnation74

          moparnation74 Well-Known Member

          Messages:
          10,506
          Likes Received:
          18016
          Joined:
          Mar 27, 2014
          Location:
          OHIO
          Local Time:
          3:47 AM
          Lets be clear and only talk about the year make and model in question and stop convoluted things....

          At 1st and 3rd I have about 4" in between the dash and ball during engagement....At rest in 1st and 3rd it is about 6-7 inches....

          The handle is 100% wrong for an early, mid, late 69 console B body

          • Thanks! Thanks! x 1
          • PP1RT

            PP1RT Well-Known Member

            Messages:
            2,383
            Likes Received:
            3063
            Joined:
            Jun 26, 2015
            Location:
            IA
            Local Time:
            3:47 AM
            Send it back and call brewers to get the right one for your car.

            • Agree Agree x 1
            • coloradodave

              coloradodave Well-Known Member

              Messages:
              3,663
              Likes Received:
              3033
              Joined:
              Jun 1, 2011
              Location:
              Lincoln, CA
              Local Time:
              1:47 AM
            • Daves69

              Daves69 Well-Known Member

              Messages:
              1,974
              Likes Received:
              1755
              Joined:
              Jan 24, 2014
              Location:
              ChiWest
              Local Time:
              3:47 AM

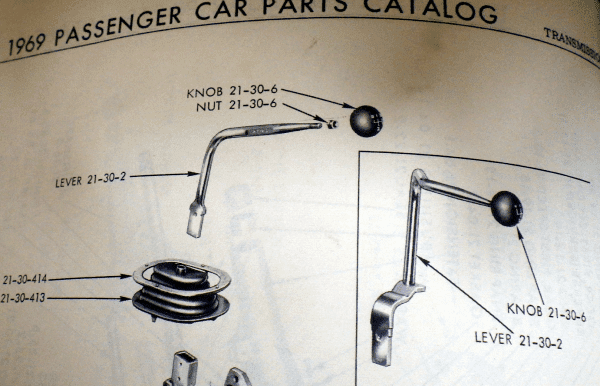

              FWIW, My '69 book is showing only 1 w/console for Belvedere and Coronet (pn 2950 057).
              Picture shows a "no console" and a "with console" (similar to pictures above).

            • moparnation74

              moparnation74 Well-Known Member

              Messages:
              10,506
              Likes Received:
              18016
              Joined:
              Mar 27, 2014
              Location:
              OHIO
              Local Time:
              3:47 AM
              • Agree Agree x 1
              • Daves69

                Daves69 Well-Known Member

                Messages:
                1,974
                Likes Received:
                1755
                Joined:
                Jan 24, 2014
                Location:
                ChiWest
                Local Time:
                3:47 AM
                Lol, Check your agree list in post #2. Did you read post #4? I might have slipped something by ya'.:D

              • moparnation74

                moparnation74 Well-Known Member

                Messages:
                10,506
                Likes Received:
                18016
                Joined:
                Mar 27, 2014
                Location:
                OHIO
                Local Time:
                3:47 AM
                .....I have 50 million things going on...lol.....overlooked that one, sorry.....

              • moparfanUSA

                moparfanUSA Well-Known Member

                Messages:
                588
                Likes Received:
                117
                Joined:
                Apr 24, 2010
                Location:
                nj
                Local Time:
                4:47 AM
                Spoke to Brewers and Dan said he sells the handle I have for the 69. While it is not the correct looking handle, he said it should work fine in a console car. Kiwi could be correct, it could be the plate. Dan was at a loss as to why the one I have would not work.

              • Daves69

                Daves69 Well-Known Member

                Messages:
                1,974
                Likes Received:
                1755
                Joined:
                Jan 24, 2014
                Location:
                ChiWest
                Local Time:
                3:47 AM
                Verify your engine/trans is positioned properly along with the bellcrank.
                Make sure the adapter is correct (Kiwigtx post). For example, an abody adapter will cant the shifter a lot further forward at the top. BTW, The picture you provided appears to show it's not an abody adapter.
                Verify neutral in the linkage/trans adjustments.
                Investigate any possibility of repositioning the handle at the base and shimming it so it can't move back forward.

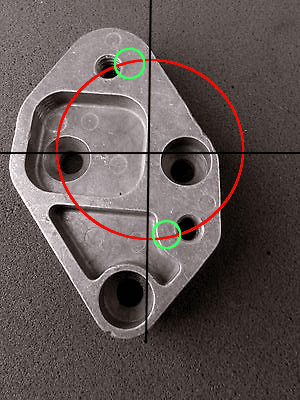

                If the above is correct, just an idea to consider. YMMV with this......You might try moving one of the mount holes in the adapter a bit.
                A little here would go a long way out at the end of a log handle. The top hole would be my choice in the adapter below.
                Verify you'll still have enough threads on the linkage rods for the hole you move.
                Or........make your own adapter.

              • moparfanUSA

                moparfanUSA Well-Known Member

                Messages:
                588
                Likes Received:
                117
                Joined:
                Apr 24, 2010
                Location:
                nj
                Local Time:
                4:47 AM
                Thanks Dave
