    I've had good results with Meguiars as well, both the scratch remover and the polish.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • Wietse

      Wietse Well-Known Member

      Messages:
      1,337
      Likes Received:
      498
      Joined:
      Apr 16, 2017
      Location:
      Netherlands
      Local Time:
      5:03 PM
      Good results...i took the easy way and got myself a repo kit.
      Does look as original but a waste of money seeing you guys busy.

      Maybe a tip for some:
      After all the restoration work, incl. painting you could improve on grounding.
      Normally this goes through the mounting screws, the aluminium body of the instrument cluster is the ground for all components.
      Run a separate ground wire from the back of the tachometer/clock to the chassis on the left side of the dash.
      I hooked it up on one the ground stud of the tachometer.
      Near the park brake lever is a bolt behind the trim which could be used to connect to make sure you always have good ground for the cluster.

      • Like Like x 1
      • Thanks! Thanks! x 1
      • Cary McCune

        Cary McCune Well-Known Member

        Messages:
        64
        Likes Received:
        54
        Joined:
        Sep 11, 2017
        Location:
        Arroyo Grande
        Local Time:
        8:03 AM
        Mike-

        Would you mind commenting on the difficulty of installing the quartz kit:https://clocks4cars.auctivacommerce.com/Product.aspx?ProductId=4108022.

        FYI- I have a 69 Charger that has an original dash and many of the gauges are NOT working and I am planning the job through this thread and your experience!

        Thank you!

      • Mike Szadaj

        Mike Szadaj Well-Known Member

        Messages:
        456
        Likes Received:
        619
        Joined:
        Jan 17, 2019
        Location:
        St. Clair Shores, Mi
        Local Time:
        10:03 AM
        It looks as though you have a tic-toc-tach. Is that correct? The replacement I did was on a tic-toc-tach, which isn't much different than doing a clock with no tach. I also installed one on my friends 1967 Vette. In both cases the jobs went smoothly, and if memory serves me the jobs (not including removing and replacing the clocks from the cars) took less than two hours. The instructions were well written. If your gas gage is not working, there is a grounding strap that bypasses the rubber tubing between the the gas tank pickup/sending unit and the metal gas supply line that often goes bad. I also refaced all the gages in my rally dash myself, and I am satisfied with that job also.

      • Cary McCune

        Cary McCune Well-Known Member

        Messages:
        64
        Likes Received:
        54
        Joined:
        Sep 11, 2017
        Location:
        Arroyo Grande
        Local Time:
        8:03 AM
        You are correct mine is a tic-toc-tach. Thanks for the encouragement!

      • 44070dart

        44070dart Well-Known Member

        Messages:
        1,864
        Likes Received:
        2143
        Joined:
        Jul 7, 2009
        Location:
        right behind you
        Local Time:
        11:03 AM
      • 44070dart

        44070dart Well-Known Member

        Messages:
        1,864
        Likes Received:
        2143
        Joined:
        Jul 7, 2009
        Location:
        right behind you
        Local Time:
        11:03 AM

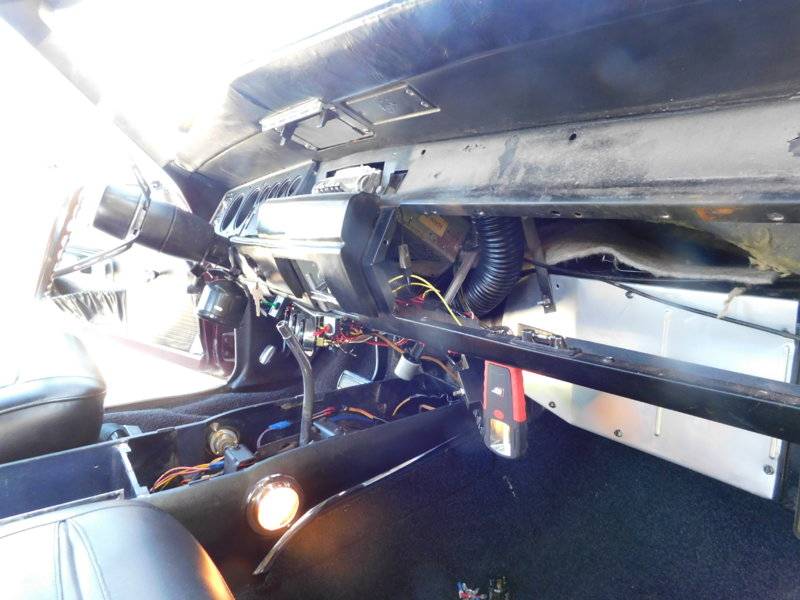

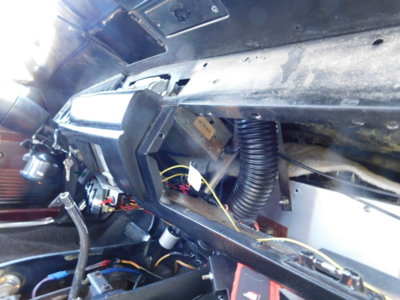

        Here I go ... man I'm hoping this goes well. Pulling gauges before the car goes into storage, be ready for the spring. Don't know about getting that pad out.

        DSCN3216.JPG DSCN3219.JPG

        • Like Like x 1
        • Cary McCune

          Cary McCune Well-Known Member

          Messages:
          64
          Likes Received:
          54
          Joined:
          Sep 11, 2017
          Location:
          Arroyo Grande
          Local Time:
          8:03 AM
          Thanks for posting pictures, I'm not brave enough to pull it yet, plus been having too much fun just driving it! I'd love to keep in touch with your progress through this forum or direct!

          • Disagree Disagree x 1
          • 44070dart

            44070dart Well-Known Member

            Messages:
            1,864
            Likes Received:
            2143
            Joined:
            Jul 7, 2009
            Location:
            right behind you
            Local Time:
            11:03 AM
            Sure , I'm nervous myself. Some great info about removing and rebuilding at that link above, when your ready. Winter coming here so I have months to get it done, once I have it out. I'll get back to you off forum.

          • 44070dart

            44070dart Well-Known Member

            Messages:
            1,864
            Likes Received:
            2143
            Joined:
            Jul 7, 2009
            Location:
            right behind you
            Local Time:
            11:03 AM

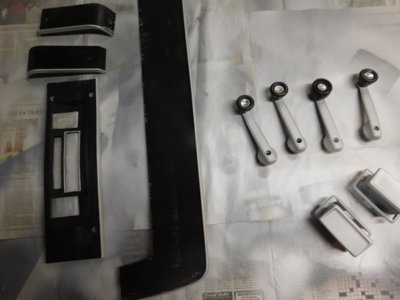

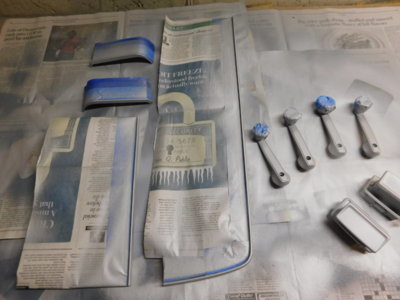

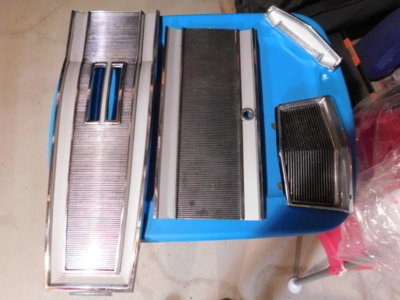

            Used a scribe to run through each line of dash pieces to get old paint someone sprayed on it. Washed it really good and then painted with the SEM landau black as suggested. Turned out pretty good as did the console. Should have closer pictures. Painted the chrome center section on console black then quickly wiped off the top chrome, so just the lower ribs remained black. Then painted the dash trim the argent I used on handles and dash trim. Know it's suppose to be chrome but I like the silver. Will be doing speedo and gauges bezel the same, once it's out.

            Like to know what you use to paint the letters ( lights, wiper, etc.). I've tried a couple of paint pens and they made a mess. I even tried to paint it while the piece was upside down, no good.

            778333-856e70fe2a5be03e25405a748a6fbd51.jpg DSCN3276.JPG 778331-0f8f39de6ed8a220fe732cef3c512469.jpg

            • Like Like x 1
            • Mike Szadaj

              Mike Szadaj Well-Known Member

              Messages:
              456
              Likes Received:
              619
              Joined:
              Jan 17, 2019
              Location:
              St. Clair Shores, Mi
              Local Time:
              10:03 AM

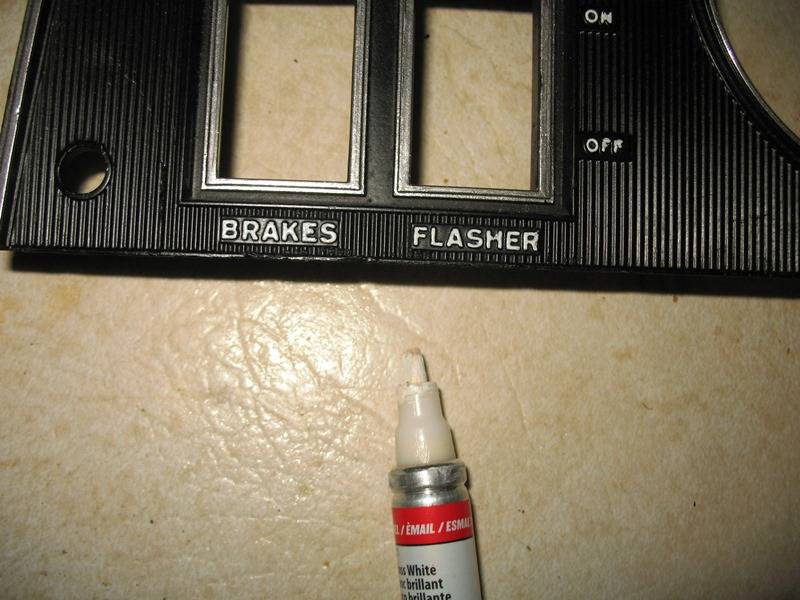

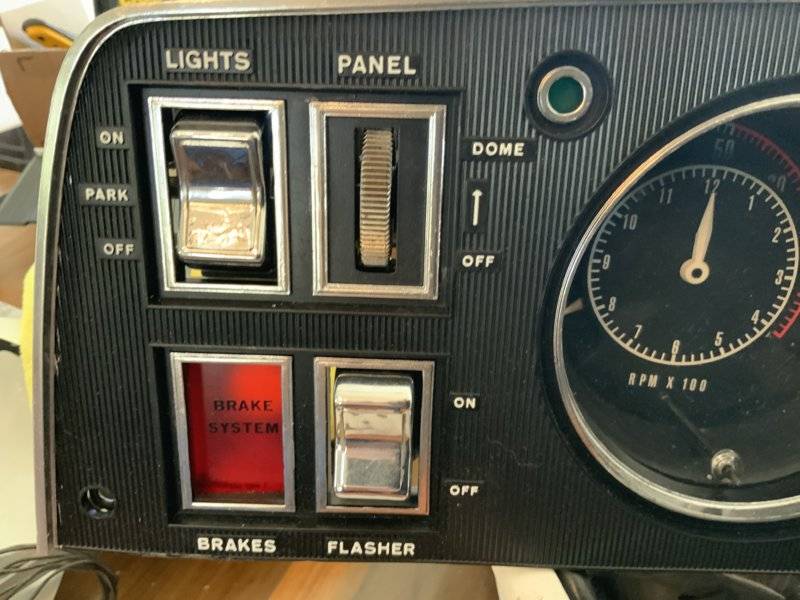

              I use a white paint pen with a CHISEL TIP. When you push in the tip to open the valve and let paint flow, there is too much paint in /on the tip. I dab the tip on a napkin or paper towel to remove the excess. Dab the letters lightly and repeat if necessary. I do not paint the entire letter with one dab. Usually 2 or 3 are required for each letter. Brand new pens have the best tips, but if the tip becomes a little "fuzzy" you can trim it with a razor blade or Exacto knife. The pen I used was made by Testors. I am not saying they are better than others, just letting you know. Also sometimes I use one of those round lamp and magnifying glass lights.

              Last edited: Nov 1, 2019
              • Like Like x 2
              • Thanks! Thanks! x 1
              • Agree Agree x 1
              • GetX'd

                GetX'd Making Life Great Again!

                Messages:
                9,803
                Likes Received:
                8904
                Joined:
                Jul 20, 2014
                Location:
                Laguna Beach, CA
                Local Time:
                8:03 AM
                Wow you really did some fine work on your dash and gauges.. Very nice

                • Agree Agree x 1
                • funknut

                  funknut Well-Known Member

                  Messages:
                  1,028
                  Likes Received:
                  1172
                  Joined:
                  Jul 29, 2015
                  Location:
                  Cincinnati, OH
                  Local Time:
                  10:03 AM
                  • Like Like x 5
                  • coronet68mx

                    coronet68mx FBBO Gold Member FBBO Gold Member

                    Messages:
                    3,122
                    Likes Received:
                    5674
                    Joined:
                    Sep 18, 2014
                    Location:
                    Uruapan, Michoacán, México
                    Local Time:
                    10:03 AM
                    :thumbsup: or you're getting old:lol:

                    • Agree Agree x 1
                    • funknut

                      funknut Well-Known Member

                      Messages:
                      1,028
                      Likes Received:
                      1172
                      Joined:
                      Jul 29, 2015
                      Location:
                      Cincinnati, OH
                      Local Time:
                      10:03 AM
                      No doubt about that! :rofl:

                      • Like Like x 1
                      • siroadrnr

                        siroadrnr Active Member

                        Messages:
                        25
                        Likes Received:
                        9
                        Joined:
                        Aug 14, 2014
                        Location:
                        Staten Island New York
                        Local Time:
                        10:03 AM
                        Ive followed this thread, and it encouraged me to do the plastic work myself, and it looks great!! thanks for the info guys,...now, i did try to tackle the switches, and the headlight switch popped open, and the parts went all over...who has a diagram or picture of how it goes back together??

                      • 44070dart

                        44070dart Well-Known Member

                        Messages:
                        1,864
                        Likes Received:
                        2143
                        Joined:
                        Jul 7, 2009
                        Location:
                        right behind you
                        Local Time:
                        11:03 AM
                        Lets see it, I just began mine. I need a little reassurance.

                      • Hemirunner

                        Hemirunner Well-Known Member

                        Messages:
                        4,528
                        Likes Received:
                        5146
                        Joined:
                        Jul 12, 2011
                        Location:
                        Down South
                        Local Time:
                        10:03 AM

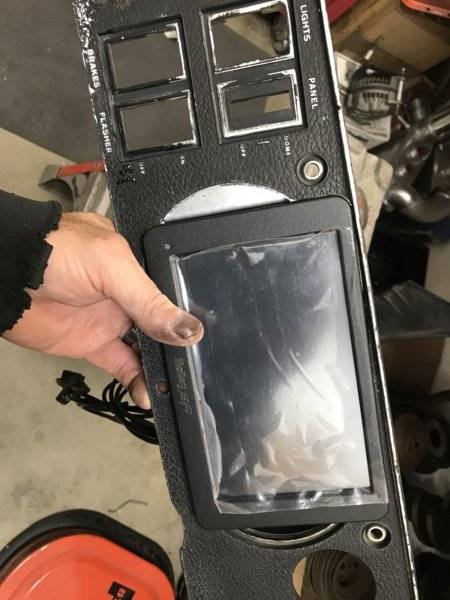

                        Great thread! Glad I found it. I’m thinking this one is beyond restoring. but I’m looking at using a lot of the tips in here to at least make it look presentable.


                        • Like Like x 1
                        • Agree Agree x 1
                        • Mike Szadaj

                          Mike Szadaj Well-Known Member

                          Messages:
                          456
                          Likes Received:
                          619
                          Joined:
                          Jan 17, 2019
                          Location:
                          St. Clair Shores, Mi
                          Local Time:
                          10:03 AM
                          Hemirunner, I am confused as to what I am looking at. What is the rectangular thing under your thumb? A bezel for gauges? Is the original bezel cut out behind it?

                          Either being an optimist or an idiot, I saw a new type of "chrome" spray paint at the hardware store, and bought one. I tried it out on a pebble finish hockey stock that needed refinishing, with the thought that if the spray paint didn't work out well, I could always repaint the trim with the Molotow paint stick.

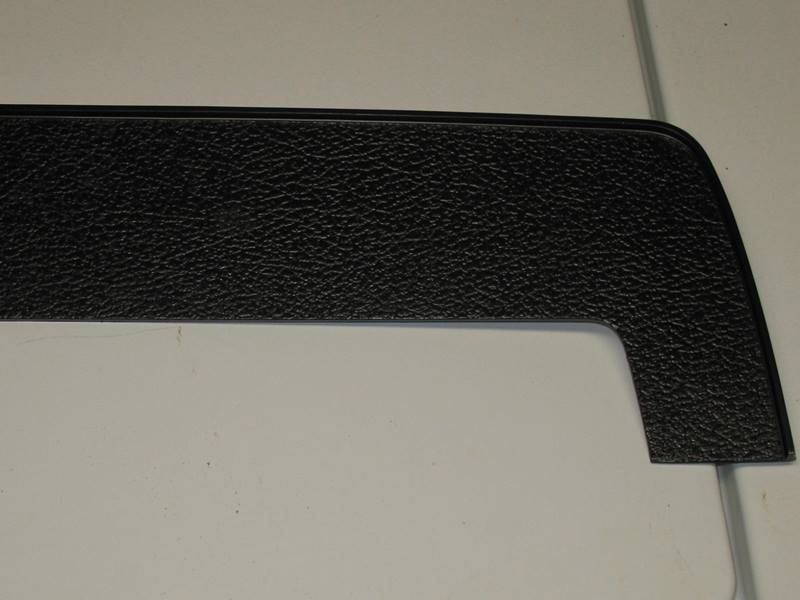

                          First photo - The test piece.
                          Second - As I always do, I sprayed the entire piece with SEM Landau Black.

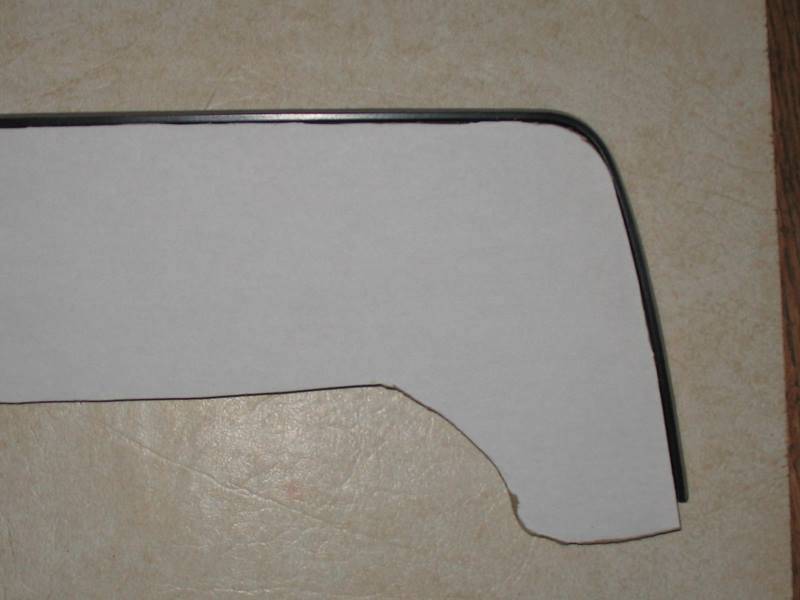

                          Third - I cut a mask out of thin poster board, using the outer edge of the test piece as a pattern.
                          Fourth - The mask on the piece.
                          Fifth - There was some bleeding around the mask. I took a small paint brush, sprayed Landau Black on a paper plate, and dabbing the brush in the paint, painted over the bleed through.
                          Sixth - After paint brush fix up.

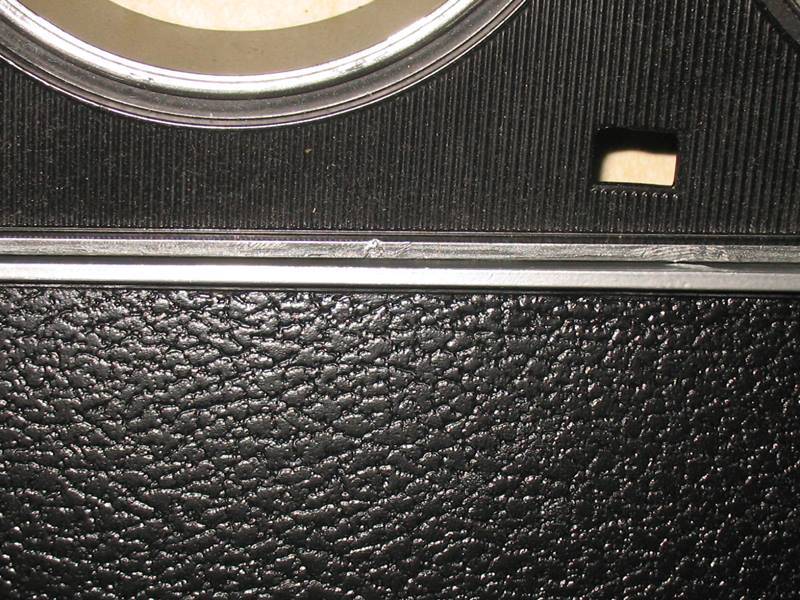

                          Seventh and Eighth - Comparison with Molotow Chrome on a refurbished bezel.
                          Ninth - The paint.

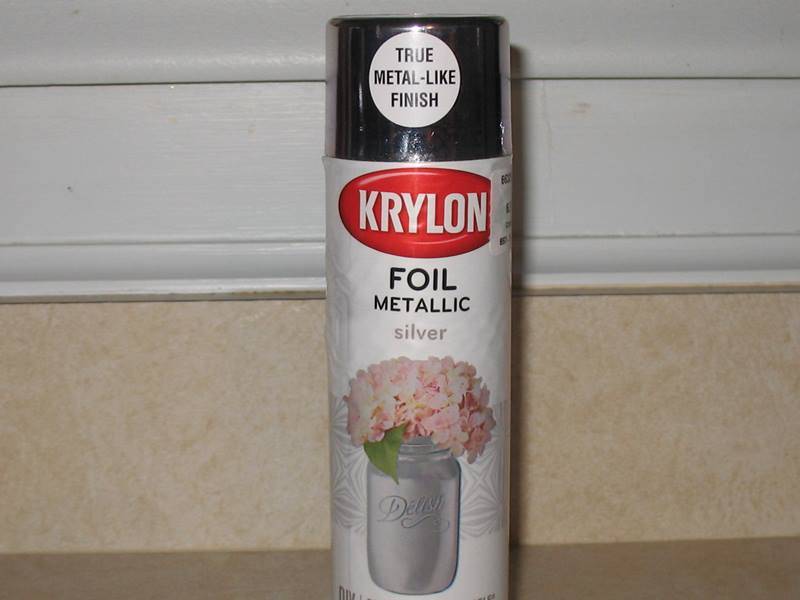

                          In conclusion, in my eye the spray paint, while not as shiny as the Molotow, is the best "chrome" spray paint I have seen. It is not as flat as other "chrome" spray paints I have tested. It has a bit of reflectivity, as shown in photo five, where you can see the pebble finish reflected if you look at the corner of the piece in the upper right. There are some jobs where this spray might work well. You can't cover a large, flat area with the Molotow pen because the strokes made while using it will show. Obviously you all know that spray is smooth.
                          I welcome your comments and questions. hs1.jpg hs2.jpg hs3.jpg hs4.jpg hs5.jpg hs6.jpg hs7.jpg hs8.jpg hs9.jpg

                          Last edited: Dec 11, 2019
                          • Like Like x 1
                          • Agree Agree x 1
                          • siroadrnr

                            siroadrnr Active Member

                            Messages:
                            25
                            Likes Received:
                            9
                            Joined:
                            Aug 14, 2014
                            Location:
                            Staten Island New York
                            Local Time:
                            10:03 AM
                            That actually looks very good, I may pick some up and test it myself. Thanks for sharing!!
