Removing failed 727 from 440 engine mounted in car

Local time
12:33 AM
Joined
Nov 29, 2019
Messages
24
Reaction score
4
Location
Apex, NC
Hello,

My 727 and/or torque converter apparently has failed on my '69 Charger with 440 engine with TTI Headers/Exhaust .... left a trail of fluid on return trip to house, and is leaking from torque converter access plate. Must have broke pump seal or cracked the housing ? Dang ! It only has 200 miles on a rebuild......

So my question is what is the best way to remove the transmission and torque converter only with the engine still mounted in the car ? Will it clear the TTI headers ?

I have a 2 post lift, so should I get a floor-jack style transmission jack to support the trans during separation & removal from the engine ?

Do I also need to support the rear of the 440 engine with a brace underneath, perhaps attached to the torsion bars ?

Any help/hints or previous article references appreciated... Thanks, Jack. :)


Outsider

Well-Known Member
Local time
9:33 PM
Joined
Feb 28, 2020
Messages
218
Reaction score
224
Location
Northwest
After I drain the pan, pull the driveshaft and install a rear trans plug, remove the starter and I pull the inspection cover and remove the convertor bolts and push the convertor back into the trans a bit. I slightly jack the rear of the trans to take a load off the cross member and get the cross member out. I put a bottle jack on the cast iron flat edge back of the block near the oil pan corner and remove the rear jack. Then I remove the linkage, dipstick, lines, all but one case to block bolt on each side and put the trans jack under the pan. Then the last two bolts and the trans pretty much falls out as the trans jack is lowered.

I have Pro Parts headers with full exhaust in my Dart and I can pull the trans out without touching the exhaust. I can't speak to your TTIs, must be plenty of others with first hand knowledge.


Wietse

Well-Known Member
Local time
6:33 AM
Joined
Apr 16, 2017
Messages
2,039
Reaction score
927
Location
Netherlands
With TTI headers you will need to rotate the trans to come out the bottom.
Yep, Once separated from the engine i had to flip the trans on its side to get it down.

As for engine support, i placed a wooden 4x4" across the engine bay near the fire wall.
Then used a strap to support any weight of the engine, it's only partial weight as it still sits on the engine mounts so doesn't have to be anything heavy duty.
Another thing, before you start unbolting the trans/engine flange and with the cross member removed, lower the transmission tail an inch or 2, then support the engine to hold that angle.
It will be easier and more accesible when you are going to reinstall it.

I used a transmission jack to support the trans, makes it much easier to have a free hand.
Be careful of the converter, it could fall out once the transmission is pulled, i place one of those F-shaped clamps on the lower part of the bell housing which prevented the converter from slipping out.

Oh yeah, don't forget that dip stick...i had to pull it with the trans already loose....not nice.

And have a good look what had failed and what is the root cause, those seals supposed to last a decent time.
Assuming your converter is new, an old converter might have a groove worn in the nose at the seal position.
The 2 locator pins are still in place on the mounting flange? very important for proper centering of the 2.


Big Bad Dad

FBBO Gold Member
FBBO Gold Member
Local time
12:33 AM
Joined
Jun 11, 2011
Messages
4,178
Reaction score
8,388
Location
Fincastle, Va.
I have a bar with 2 J hooks that we made years ago to support the engine with a trans out. It hooks to the torsion bars, and the threads allow adjusting the angle of the engine a bit when removing and installing a trans. You should be able to easily fab one with unistrut like used in building construction. (Lowe's probably has everything needed.)


Don Frelier

FBBO Gold Member
FBBO Gold Member
Local time
12:33 AM
Joined
Oct 11, 2016
Messages
6,574
Reaction score
8,957
Location
Ionia, NY
I just set a block of wood on the centerlink under the pan.
It doesn't have to hold much maybe 80-100 lbs if that.
You might just want to remove the passenger header that's the easy one.
Unfortunately you'll need to drain the coolant to do it.

Local time
12:33 AM
Joined
Nov 29, 2019
Messages
24
Reaction score
4
Location
Apex, NC
With TTI headers you will need to rotate the trans to come out the bottom.

Ok, thanks.. so how do you do that ? as there is not much room ..... Does it have to be turned 90 degrees, with tail shaft pointing down, then rotated out ? can I still use a floor trans jack, or should I get one I can use with a car lift ?


Darter6

FBBO Gold Member
FBBO Gold Member
Local time
11:33 PM
Joined
Dec 29, 2009
Messages
6,321
Reaction score
7,464
Location
Nevada
Do I also need to support the rear of the 440 engine with a brace underneath, perhaps attached to the torsion bars ?

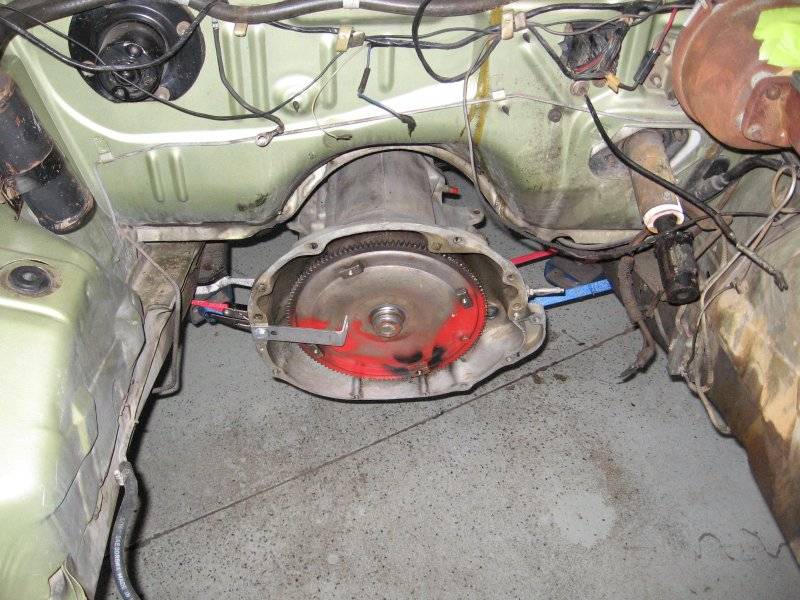

Even tho the photo shows the engine removed instead of the transmission, you will get the idea.
Run a ratchet strap from T bar to T bar or frame hole to frame hole placing it at the rear of the oil pan close to the crank area.
Harbor Freight lift type transmission jack is budget friendly and works great. I never expected much from it but have been using it for over 20 years now even loaning it out to friends.



451Mopar

Well-Known Member
Local time
10:33 PM
Joined
Oct 25, 2011
Messages
3,294
Reaction score
2,637
Location
Aurora, CO
You have a lift, so a transmission jack makes the job pretty easy.
RTJ-3000

A under hoist saftey stand could be used to support the engine under the oil pan.
These HF ones are OK, the design makes them take up more space than the straight pole stands, but only $90
2 Ton Capacity Underhoist Safety Stand

I have used these to support the rear axle off my 4-post lift, and also support exhaust systems when installing them.
If you have a "H" or "X" pipe exhaust, I think you will need to remove the pipes from the headers to the mufflers.

It sounds like the trans might come out without having to loosen the headers from the block?
With my old 2" hooker super comp headers, I need to loosen them to get the trans out. I don't know how much room there is with the TTI headers and 727 trans.
The only big block car I have with TTI headers is the manual 5-speed LGT-700 transmission in the convertible.


HEMI-ITIS

STREETER on LI
Local time
12:33 AM
Joined
Dec 14, 2008
Messages
12,687
Reaction score
16,412
Location
Long Island,New York
Ok, thanks.. so how do you do that ? as there is not much room ..... Does it have to be turned 90 degrees, with tail shaft pointing down, then rotated out ? can I still use a floor trans jack, or should I get one I can use with a car lift ?
You can keep the trans horizontal.It's just a little too wide to drop right out so a little rotation drops the trans through the tight spot.

thumbnail (2).jpg

Local time
12:33 AM
Joined
Nov 29, 2019
Messages
24
Reaction score
4
Location
Apex, NC
Thanks for the help... I'll let you know what I find out as the failure, after I drop the trans


Don Frelier

FBBO Gold Member
FBBO Gold Member
Local time
12:33 AM
Joined
Oct 11, 2016
Messages
6,574
Reaction score
8,957
Location
Ionia, NY
Another tip:
A wine bottle cork fits nicely in the hole for the fill tube.


dvw

FBBO Gold Member
FBBO Gold Member
Local time
12:33 AM
Joined
Feb 16, 2010
Messages
6,829
Reaction score
10,735
Location
waterford mi
If the headers are close, a rachet strap can pull them outward pretty far. Makes some jobs a lot easier. I put a pice of rollbar foam on the drag link and let the motor tilt down
It can only go so far.
Doug

Local time
12:33 AM
Joined
Nov 29, 2019
Messages
24
Reaction score
4
Location
Apex, NC
Thanks for the help... I'll let you know what I find out as the failure, after I drop the trans
Well, got the old 727 out... not sure what the failure was. Appears that it might have been the front pump & seal, since it dumped alot of fluid on the ground before I shut it off.

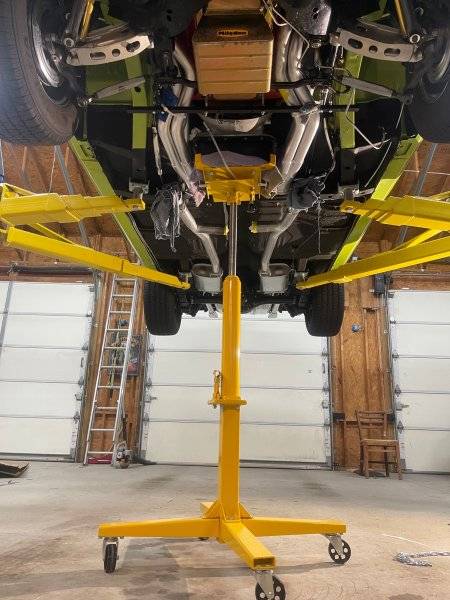

Used a Jegs 79010 transmission jack for my lift, worked fairly well... but I needed to use my engine hoist to move the trans to the lift and back off the lift since it is tall. Was alot of effort to remove and install bolts though with the TTI headers installed.... could barely reach the long one by the starter.

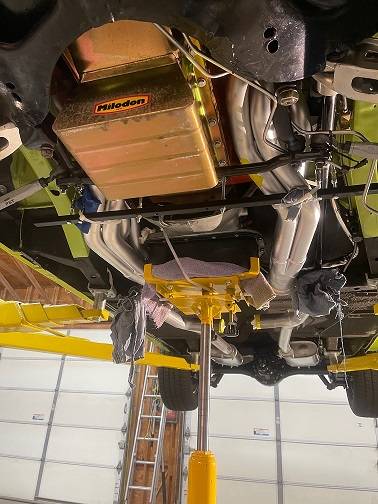

For supporting the back of the engine during removal, I used a square tube bar with U-clamps attached to the torsion bars and upside down carriage bolts at oil pan-engine location. Worked well, engine did not move.

Went with the TCI Super Streetfighter 111005 727 transmission and TCI Breakaway 141200 torque converter.... also swapped out the pan for a TCI 128000 die-cast. It had a Derale deep pan before on old trans (you can see it on photo), but it was too close to the ground & afraid of catching something with it.

Hoping to drive it this weekend to see how it is working, if it's not too cold...
