Rockers hit baffles in valve cover

Frustration

Well-Known Member
Local time
12:58 PM
Joined
Dec 8, 2014
Messages
507
Reaction score
696
Location
PA
Hello. I purchased a pair of AMD stamped steel valve covers for my RB build. had them professionally painted, then found out the baffles under the oil fill hole and PCV valve hole hit my adjustable rockers. They've been sitting in storage since. I have about $280 into them, and want to use them on my car. The other day I grinded out the spot welds on the baffles. They now fit. Question is....can I run them without the baffles? What problems will I run into? Is it worth it to modify the baffles and re-weld them in a place that works for my set-up? Thanks in advance.


moparnation74

Well-Known Member
Local time
11:58 AM
Joined
Mar 27, 2014
Messages
10,505
Reaction score
17,726
Location
OHIO
Even with a properly functioning PCV system your breather will get loaded with oil. An alternative fix would be a baffled breather grommet.


4406brl

Well-Known Member
Local time
12:58 PM
Joined
Aug 7, 2010
Messages
72
Reaction score
14
Location
Connecticut
Not good to hear...What rockers and cam are you running with the AMD covers?

Last edited:

64 Post

Well-Known Member
Local time
10:58 AM
Joined
Feb 5, 2010
Messages
481
Reaction score
213
Location
Baltimore / Denver
I recall seeing a thicker, higher quality gasket (not cork) from one of the vendors. I just can't remember who it was...


PRND21

FBBO Gold Member
FBBO Gold Member
Local time
12:58 PM
Joined
Aug 16, 2016
Messages
3,904
Reaction score
6,552
Location
Central Indiana
I'm using comp adjustable rockers with a comp cam with .500+ lift with stock big block valve covers, I have no interference. I'd try to weld the original back in a little higher even if you have to trim them slightly or fab some new ones. The Moroso universal baffles aren't big enough to work right.


GTXperience

Well-Known Member
Local time
9:58 AM
Joined
Jul 18, 2008
Messages
1,815
Reaction score
562
Location
Sacramento Area, CA

62MAX

Well-Known Member
Local time
12:58 PM
Joined
Jul 21, 2008
Messages
1,573
Reaction score
1,108
Location
PA

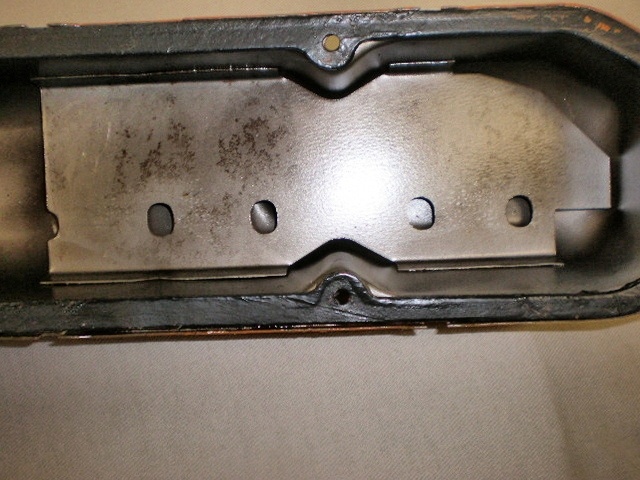

Easy fix !

Picture 1055.JPG


62MAX

Well-Known Member
Local time
12:58 PM
Joined
Jul 21, 2008
Messages
1,573
Reaction score
1,108
Location
PA
Not sure what was done here to fix. Can you explain? Did you re-weld the baffle, higher in the top of the valve cover? Thanks to all for the responses.

Didn't remove baffles,just cut clearance for adjusters.


Rick Carson

Well-Known Member
Local time
12:58 PM
Joined
Jul 30, 2016
Messages
1,045
Reaction score
461
Location
port perry on. canada
Must have bought those covers a while back, we had the same problem. called and bitched to Alan at AMD and the next batch they made were fine. they stand behind their stuff pretty good.


Frustration

Well-Known Member
Local time
12:58 PM
Joined
Dec 8, 2014
Messages
507
Reaction score
696
Location
PA
Must have bought those covers a while back, we had the same problem. called and bitched to Alan at AMD and the next batch they made were fine. they stand behind their stuff pretty good.
I spoke to someone at AMD a while ago. Sent photos and explained the situation. They never did anything about it. I gave up and figured I'd use other manufacturers when possible.


62MAX

Well-Known Member
Local time
12:58 PM
Joined
Jul 21, 2008
Messages
1,573
Reaction score
1,108
Location
PA
I spoke to someone at AMD a while ago. Sent photos and explained the situation. They never did anything about it. I gave up and figured I'd use other manufacturers when possible.

If they made the covers to original specs,I doubt they would change them.


miller

Well-Known Member
Local time
11:58 AM
Joined
Jan 5, 2014
Messages
4,081
Reaction score
2,009
Location
Tom Bean,Texas
I bought a pair of those rocker covers. Not a happy camper, when I noted one of the baffles was spotted at an angle. Cut the baffle out, and re-welded it in right.


Rick Carson

Well-Known Member
Local time
12:58 PM
Joined
Jul 30, 2016
Messages
1,045
Reaction score
461
Location
port perry on. canada
Just sold a set of amd covers today actually, they seemed to fit perfectly,the ones I sold a year ago didn't
