Simple (almost stupid simple) DIY camber gauge

Brakes, Steering & Suspension

  1. YY1

    YY1 Well-Known Member

    Messages:
    15,039
    Likes Received:
    7188
    Joined:
    Jun 26, 2010
    Location:
    FL
    Local Time:
    5:59 AM
    So I was working on building a camber gauge to adjust out what's been wearing my front tires.

    I was working off the general principals of the angle iron gauge youtube model.

    I had 5/16 and 7/16 bar stock laying around and got 80% done, drilled and tapped holes, made a slot to adjust, found 1/4-20 bolts the right length, factoring how to make it work on 14 15 and maybe even 16 inch wheels and then it occurred to me-

    What this thing needs is a spring loaded sliding adjustment...

    ...maybe like a woodworking bar clamp.

    I have several in different styles so I hunted some down to see if the mechanism could be adapted.

    Most have a rounded edge and are not suitable without welding or bolting a tray on to support an angle gauge.

    Then I spotted a cheap HF clamp. The bar had a completely rectangular cross section. Small but big enough for the magnetic base on the angle gauge to adhere to.

    Then I examined the ends. I found that the fixed end could be removed and placed backwards on the other end, changing the gripping surfaces from internal to external.

    Boom. Done! less than 5 minutes.

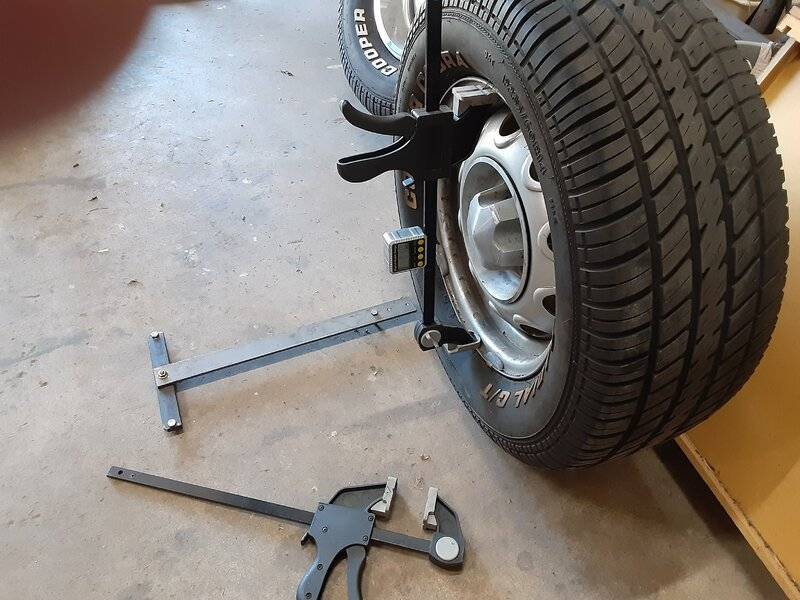

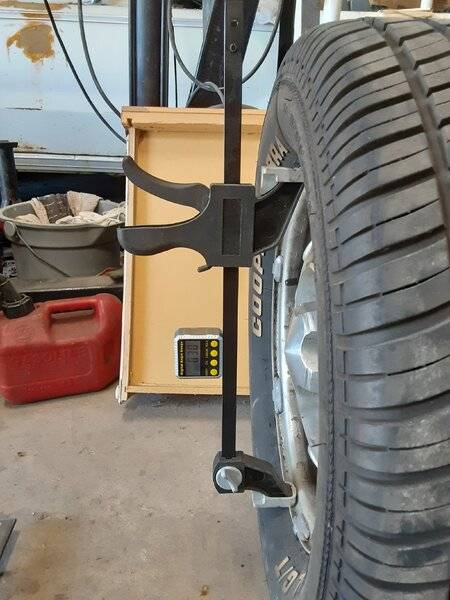

    20200502_132100.jpg 20200502_132126.jpg

    • Like Like x 5
    • YY1

      YY1 Well-Known Member

      Messages:
      15,039
      Likes Received:
      7188
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      5:59 AM
      Also long enough and spaced out enough for larger wheels.

    • wahya

      wahya Well-Known Member

      Messages:
      687
      Likes Received:
      451
      Joined:
      Dec 1, 2011
      Location:
      Florida
      Local Time:
      5:59 AM
      Like it, but if it's on the car and you had negative camber, wouldn't the bar mess up the fender.

    • YY1

      YY1 Well-Known Member

      Messages:
      15,039
      Likes Received:
      7188
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      5:59 AM
      Good observation.

      Might need to trim it down.

    • WP29440SE

      WP29440SE Well-Known Member

      Messages:
      3,867
      Likes Received:
      2805
      Joined:
      Dec 7, 2011
      Location:
      Englewood CO
      Local Time:
      3:59 AM
      ingenuity at it's finest. you have enough adjustability to wack 6" off the bar

    • charger360

      charger360 Well-Known Member

      Messages:
      556
      Likes Received:
      103
      Joined:
      Jan 7, 2012
      Location:
      kingston
      Local Time:
      4:59 AM
      That is awesome! good share!

    • 8formulas

      8formulas Well-Known Member

      Messages:
      53
      Likes Received:
      5
      Joined:
      Feb 15, 2016
      Location:
      Connecticut
      Local Time:
      5:59 AM
      That's a great idea. Next time I go to Home Depot I will look into those clamps. Got any tips for caster?

    • mopar 3 B

      mopar 3 B Well-Known Member

      Messages:
      9,073
      Likes Received:
      6412
      Joined:
      Aug 25, 2014
      Location:
      Kingsville, MO
      Local Time:
      4:59 AM
      Another magnetic base and angle gauge. Mount it at hub level on the back side of the clamp. It will take both to properly set caster and camber.

    • myk r sanchez

      myk r sanchez FBBO Gold Member FBBO Gold Member

      Messages:
      670
      Likes Received:
      1002
      Joined:
      Apr 29, 2018
      Location:
      Sun diego
      Local Time:
      2:59 AM
      That's a great idea. I need to dial back my -1* of camber...

    • YY1

      YY1 Well-Known Member

      Messages:
      15,039
      Likes Received:
      7188
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      5:59 AM
      I thought you measured camber at set degrees of turn before and after center and calculated caster with a formula.

    • YY1

      YY1 Well-Known Member

      Messages:
      15,039
      Likes Received:
      7188
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      5:59 AM

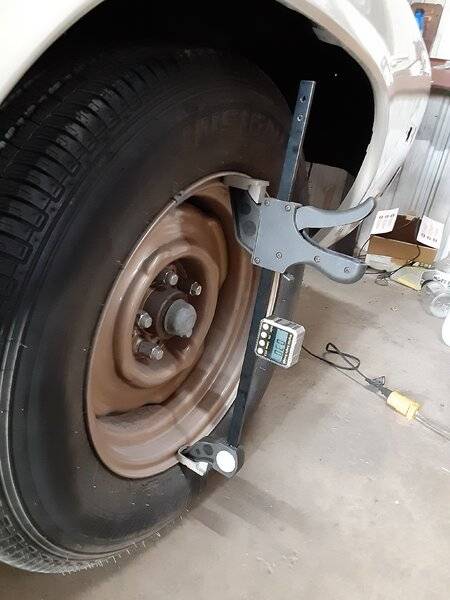

      Turns out (see what I did there, alignment humor) they are not too tall.


      That's a 15" wheel.

      • Thanks! Thanks! x 1
      • YY1

        YY1 Well-Known Member

        Messages:
        15,039
        Likes Received:
        7188
        Joined:
        Jun 26, 2010
        Location:
        FL
        Local Time:
        5:59 AM
        ...but now that I think about it, might be more of an issue with a 14.
