Speedometer pinion adapter seal & clip help

Engine, Trans & Driveline

  1. 70Bronco

    70Bronco Well-Known Member

    Messages:
    182
    Likes Received:
    51
    Joined:
    Aug 27, 2015
    Location:
    Indiana
    Local Time:
    6:01 PM
    Any tips how to get that little C clip inside that seal and inside this adapter?

    It’s off a 66 Belvedere big block with 727.


  2. steve340

    steve340 Well-Known Member

    Messages:
    754
    Likes Received:
    614
    Joined:
    Jul 7, 2018
    Location:
    New Zealand
    Local Time:
    11:01 AM
    Brewers have a little tool for that job. If you can operate a lathe it would be easy to make.
    The seal is directional - the lip goes toward were the oil will be.

  3. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    2,909
    Likes Received:
    2565
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    4:01 PM
    The seal goes in with the lip facing the inside of the trans, and then the clip goes in resting against the seal. The clip does not go inside of the seal. Push the clip into the hole, split side down, until it is below the surface, then using a deep socket that will fit inside the hole, rotate it and push it down into position. So again, push the clip into the hole vertically, then once it is below the surface, rotate it until it is perpendicular to the hole. A socket that just fits into the hole works best to get it rotated, and pushed into place. I do this all the time with piston pin clips.

    • Thanks! Thanks! x 1
    • aeon280

      aeon280 Well-Known Member

      Messages:
      624
      Likes Received:
      525
      Joined:
      Dec 9, 2015
      Location:
      Dfw
      Local Time:
      6:01 PM
      I did this last weekend. I just used a 3/8,s extension and pushed it in till it seated.

      • Like Like x 1
      • 70Bronco

        70Bronco Well-Known Member

        Messages:
        182
        Likes Received:
        51
        Joined:
        Aug 27, 2015
        Location:
        Indiana
        Local Time:
        6:01 PM
        I was starting to think no way that clip went inside that seal. My job just got simpler. Thanks:)

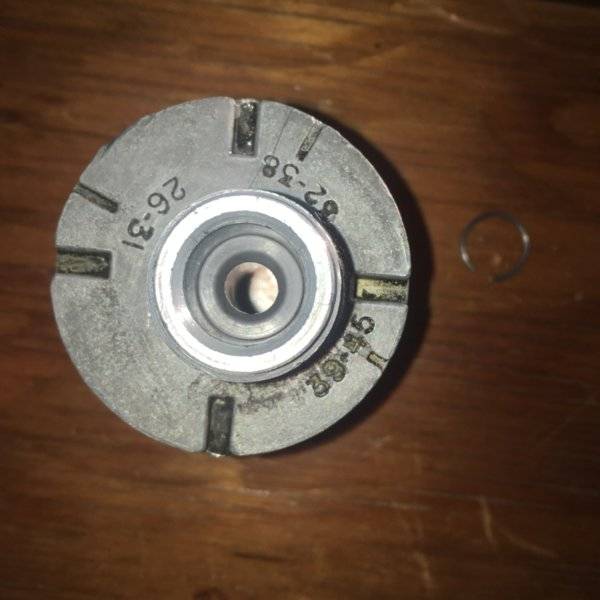

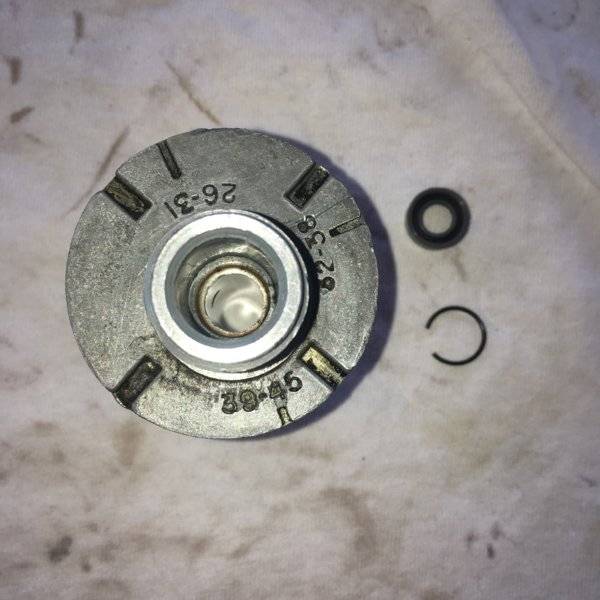

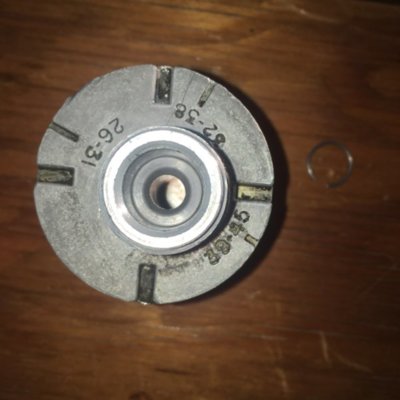

        I’ve got a photo—now I just have to slide the clip in and I’m done, yes?

        E22082B4-059A-4BC6-9C96-9E8D07E53CB9.jpeg 20CEC1D9-4201-4139-95DB-4F80ADCE7FE2.jpeg

      • aeon280

        aeon280 Well-Known Member

        Messages:
        624
        Likes Received:
        525
        Joined:
        Dec 9, 2015
        Location:
        Dfw
        Local Time:
        6:01 PM
        Yes

        • Like Like x 1
        • Bee1971

          Bee1971 Well-Known Member

          Messages:
          1,105
          Likes Received:
          1092
          Joined:
          Jun 22, 2017
          Location:
          Sobieski
          Local Time:
          6:01 PM
          I could never get those black seals to seal proper - No pun intended

          I then took my speedo assembly to my local automatic transmission shop and he set me up with an orange GM speedo seal with internal garter spring for free

          Problem solved

          • Like Like x 1
          • Dipstick

            Dipstick Well-Known Member

            Messages:
            958
            Likes Received:
            934
            Joined:
            Oct 26, 2018
            Location:
            Out West
            Local Time:
            4:01 PM
            Place the wire clip in the hole sideways, then roll it into place and seat it against the seal with a socket that fits the hole.
