    Hey there. Any chance you can post up a description and clear photographs or diagrams showing which way the strut rod bushings face, on either side of the K frame hole, the steel tube that goes inside them, and the direction the steel cups go on them? There are many different answers out there and the FSM does not really say and the picture is so small. I want to get it right on my 1967 Coronet. Thank you! Ghost.

  2. Lionized

    Lionized Well-Known Member

    Messages:
    1,774
    Likes Received:
    1325
    Joined:
    Mar 23, 2014
    Location:
    Vancouver Canada
    Local Time:
    9:42 AM
    One thing is for certain, the bolt goes in from the bottom.

    • Like Like x 1
    • Ghostrider 67

      Ghostrider 67 FBBO Gold Member FBBO Gold Member

      Messages:
      16,943
      Likes Received:
      28502
      Joined:
      Oct 16, 2014
      Location:
      Salisbury, Vermont
      Local Time:
      12:42 PM
      Yeah, I got that much.....:rofl:

    • 1967coronet440

      1967coronet440 Well-Known Member

      Messages:
      6,828
      Likes Received:
      9386
      Joined:
      Oct 26, 2016
      Location:
      Indiana
      Local Time:
      11:42 AM
      They don’t sit in there how you’d think. I was stuck on it for a while when I didn’t mine


    • 1967coronet440

      1967coronet440 Well-Known Member

      Messages:
      6,828
      Likes Received:
      9386
      Joined:
      Oct 26, 2016
      Location:
      Indiana
      Local Time:
      11:42 AM
      I believe that diagram is for the Moog bushing

    • Cranky

      Cranky Banned Staff Member FBBO Gold Member

      Messages:
      18,828
      Likes Received:
      14364
      Joined:
      Dec 4, 2009
      Location:
      Pasa-getdown-dena Texas
      Local Time:
      11:42 AM
      Don't remember what brand these are.....moog I think.

      MVC-038S.JPG MVC-039S.JPG MVC-040S.JPG

      • Agree Agree x 1
      • Ghostrider 67

        Ghostrider 67 FBBO Gold Member FBBO Gold Member

        Messages:
        16,943
        Likes Received:
        28502
        Joined:
        Oct 16, 2014
        Location:
        Salisbury, Vermont
        Local Time:
        12:42 PM

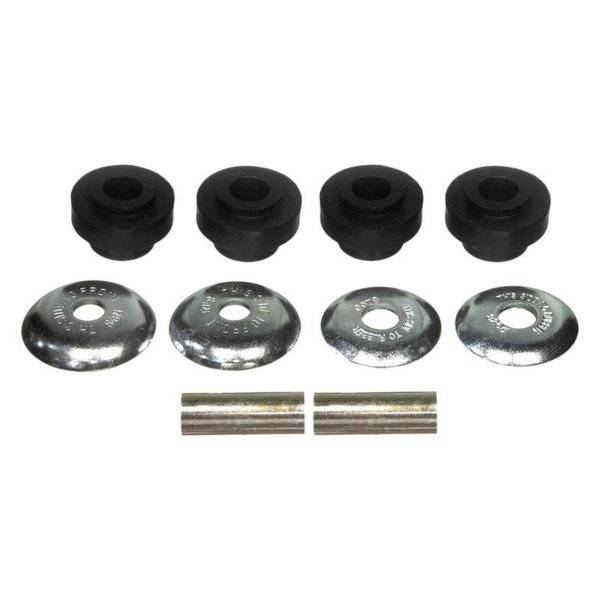

        These are what I have. So according to the picture, the wide ends go towards each other with the frame between them, the sleeve inside them, the cups are positioned with the outer one cupping the bushing and the inner one with the curved outside surface of the cup facing the bushing. Right? And why don't my struts have a cotter pin hole in them? The sleeves went on but I had to hammer them into place.

      • 69b3rt

        69b3rt Well-Known Member

        Messages:
        370
        Likes Received:
        282
        Joined:
        Oct 28, 2015
        Location:
        Fargo, ND
        Local Time:
        11:42 AM
        All the curved washers go convex toward the bushings.

        • Thanks! Thanks! x 1
        • Agree Agree x 1
        • Ghostrider 67

          Ghostrider 67 FBBO Gold Member FBBO Gold Member

          Messages:
          16,943
          Likes Received:
          28502
          Joined:
          Oct 16, 2014
          Location:
          Salisbury, Vermont
          Local Time:
          12:42 PM
          That seems counterintuitive....
