Tti max wedge stock exhaust

[PMux]

Does anybody have any experience with tti stock max wedge exhaust system?



[Big Bad Dad]

Not the max wedge system, but I was very satisfied with the 2-1/2" system I hooked up to the hi rise HP stock manifolds in my 64 Fury. All fit well.



[super-bee_ski]

I have the TTIs on my 440 built as a Maxie


What do you need to know?



[Budnicks]

I had the iron Max Wedge {repop} manifold from Mancini Racing {$700 then Now $950 IIRC}
& the TTI 3" head-pipes with the 4 bolt flanges, with cutouts & crossover etc. from them
{I was lazy, didn't want to have to fab/make them}
they worked/fit great, it was like $1300, a bit pricey but fit perfect,
I fabed the rest using Flowmaster stuff

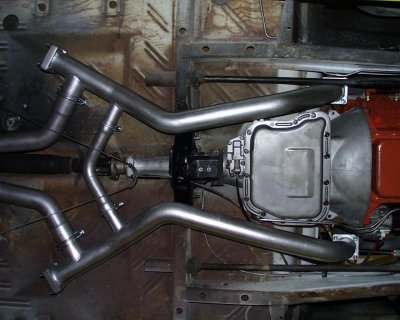

IIRC photo is of a different car, I don't remember where I got it



[Richard Cranium]

Nice floorpans!!!!!



[super-bee_ski]

Nice set-up
Yup, as soon as my 63 is out of the paint barn, I'll be doing something like that
BUT: My TTIs are already purchased and "WE" did a engine run (Break in) Dale Reed..
I would LOVE to have Fender Well headers on that car!



[Histoy]

I installed the complete TTI system on my '64 Belvedere when I switched from a street wedge to a Max Wedge engine. My system looked like the one in the picture except that my car had a 4 speed. The emergency brake cables ran under the pipes, as shown. The cables slightly cut into the pipes, because I'm in the habit of using the emergency brakes when I park my cars. The real Maxie cars had a second cable guide in front of the normal guides. When using these, the cables go over the top of the pipes. Installing the system was pretty easy except for getting at a couple of the bolts that mount the header pipe to the exhaust manifold.



[383man]

I use 2" TTI headers and the 3" TTI X-pipe exh system since I race capped up and I wanted a good flowing exh. The factory Max Wedge system is very restrictive capped up. Ron



[PMux]

Thanks for the help. I'm going to use the TTI exhaust on a 1963 Max Wedge recreation. Will use the H pipe and the cut outs. Let you know how it works out. Thanks again.



[62MAX]

Here's mine.
