Windshield wiper switch

[Brent]

Upon removing my wiper switch on my 1966 Coronet I noticed two violet wires one with a tracer that is not connected to anything, where does it go?



[GetX'd]

Welcome to FBBO - Post your question in one of the forums designed for it. They’ll be more eyes on it. This is the welcome wagon forum. Post some pics of your ride to we love car ****.



[gdrill]

Download the manual here for your car. I have a manual but no access to it right now. Or I would tell you what the wires do.

http://www.mymopar.com/index.php?pid=109



[Brent]

Thank you !!



[Budnicks]

Hey Brent, been a member for a while I see...
welcome to FBBO from warm & sunny NorCal Sierra's



[Budnicks]

I went to the link above on MyMopar.com
I don't see any Violet wires from the Wiper Motor
or a violet wire with a tracer

manual on Elect. page sec. 8 page 97
I did see V-3 brown, v-4 red, v-5 dark green, v-6 dark blue marked
diagram for the wiper motor 66 Coronet
shows it goes to the bulkhead connectors
v-3 brown to A on the bottom terminal,
v-4 red to C 2nd from the top terminal,
v-5 dk grn to D top terminal,
v-6 dk blu to B 2nd from the bottom terminal

----------------------------------------------------------

but;
I did see 2 different sets of 18 ga violet wires
go to back up light to J {slot} in one bulkhead terminal
& H {slot} terminals in the same bulkhead plug
opposite of the brown wire that goes to A terminal {as noted above}

I also see another set of 18 ga violet wires to the
A/C only equipped on a B/engines temp gauge sending unit
if you don't have A/C that could account for the violet wire
that goes nowhere

------------------------------------------------------------

sorry it wouldn't let me copy/save the page
or that above would be understood much better

not sure any of that helps any at all

good luck



[gdrill]

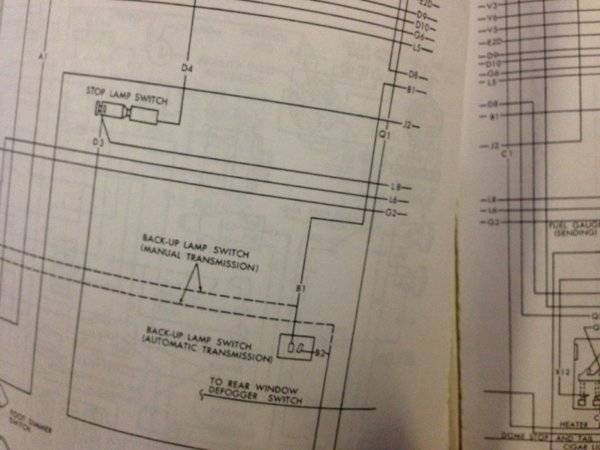

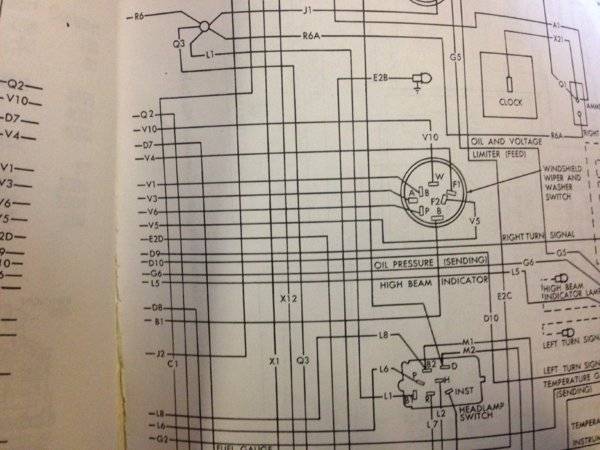

Got it. The violet with tracer ( shown as "B1" in the diagram ) runs over to the back up light switch on the steering column. This is for column shift auto cars. I should have remembered this as I converted to floor shift and ran my wiring through this. This particular lead comes from the battery terminal on the wiper switch. I believe this to be the 3 speed switch as another single speed switch is shown at the side of the diagram.
