1966 67 Belvedere wheel lip / lower quarter patch panels

I found these on line and was wondering if any one has first hand experience with the fit and overall accuracy.
http://www.jegs.com/i/Sherman-Parts/455/186-86R/10002/-1?parentProductId=1942861

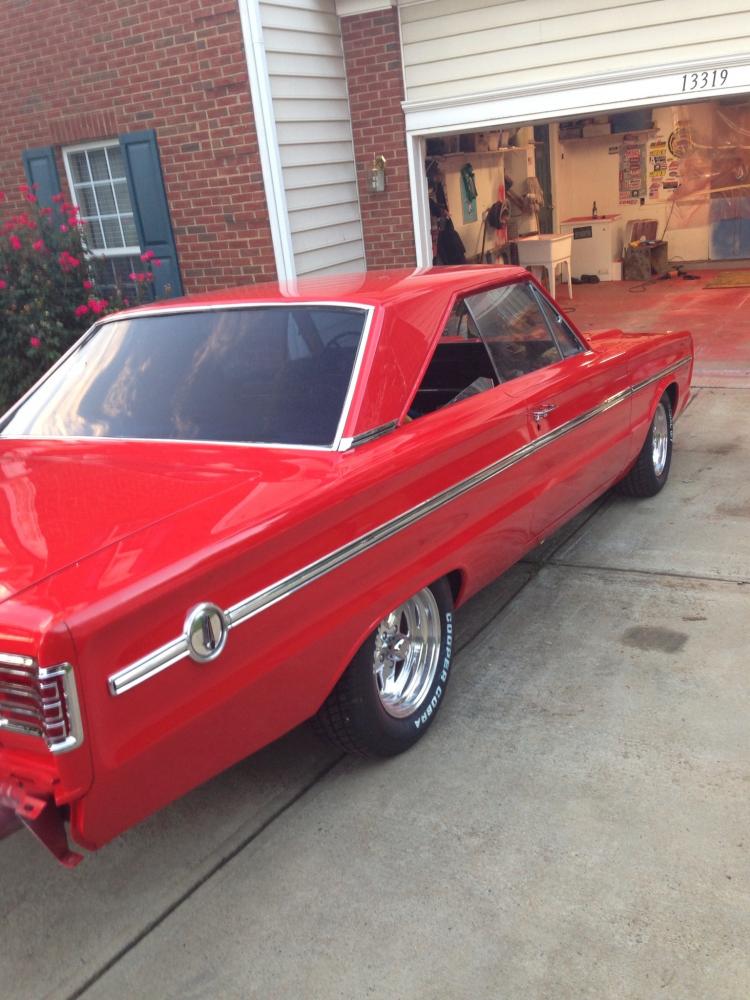

Not very accurate but they are the best you are going to find in the aftermarket. Unfortunately no one makes them for the 66-67 B but these guys. I used them on both quarters on my 66 and they were a bear to get right. They wheel lip is not even close to the factory but since mine were completely gone and I couldn't find any off a donor I used them. image.jpg

That red car above looks great! I thought I saw in the pic of the actual part that the lip feature might have looked off so that's why I asked.

Thanks for the tip on pricing! I'm not ready to do anything yet so maybe I'll get lucky on a set off a donor car.

I did see some 4 dr quarters for sale on here and was wondering id those would work. Thoughts on that?

I got Sherman panels (frightening shipping cost to the UK!!) and I can confirm the quality is p155-poor :icon_confused:

I'm using my 4.5" grinder to carve a dolly out of a chunk of solid 2"x2". I'm going to use this to reshape the lip before I weld it on. Fingers crossed I don't make it worse!

I got Sherman panels (frightening shipping cost to the UK!!) and I can confirm the quality is p155-poor :icon_confused:

I'm using my 4.5" grinder to carve a dolly out of a chunk of solid 2"x2". I'm going to use this to reshape the lip before I weld it on. Fingers crossed I don't make it worse!

Good luck! Let us know how it turns out.

I found these on line and was wondering if any one has first hand experience with the fit and overall accuracy.
http://www.jegs.com/i/Sherman-Parts/455/186-86R/10002/-1?parentProductId=1942861

I used these on both sides with good results. The passenger side fit perfect for me but the drivers side needed lots of massaging to fit, luckily I didn't need the whole patch on that side so I could partially just discard the area of problem.

http://www.forbbodiesonly.com/mopar...t-Deluxe&p=909752478&viewfull=1#post909752478

Start there and my patching goes for a few posts but you will get the idea. That first pic on post #90 is the whole panel as I received it.

BTW, buy them from Rockauto, cheaper and you can use the discount codes for 5% off...1649651813692103

Oh and I think the one you listed was unavailable when I did this.

Good luck! Let us know how it turns out.

I'm pleased with my dolly, it needs a little more work though- I have to curve the bottom face in pic 2 to match the outer curve of the wheel arch lip.


Attachments

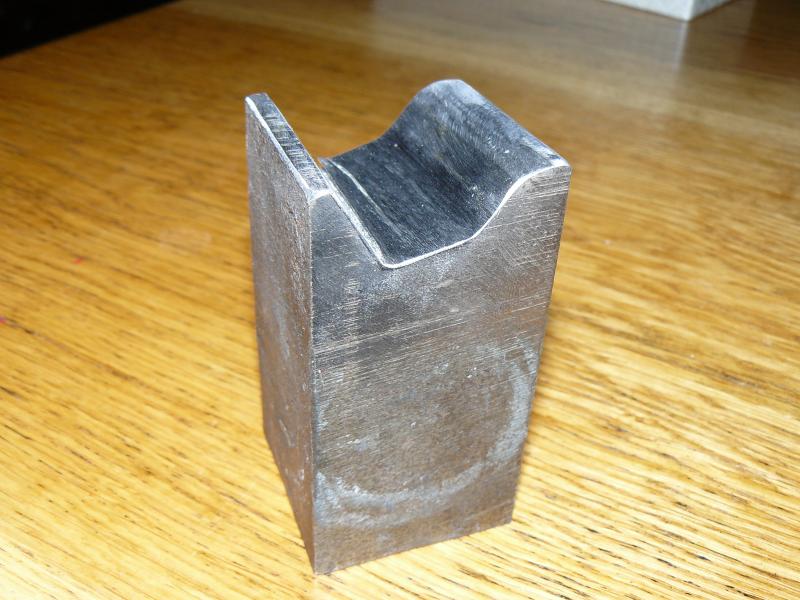

  • Wheel arch edge dolly 01.jpg
    Wheel arch edge dolly 01.jpg
    70.3 KB · Views: 320

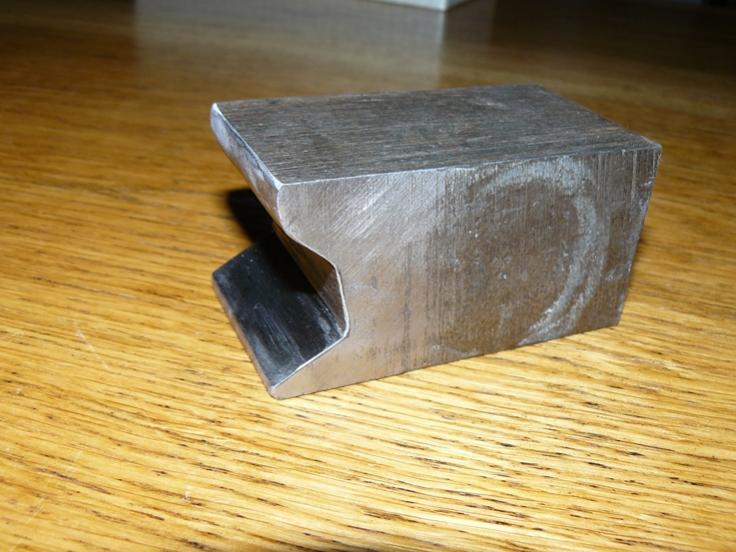

  • Wheel arch edge dolly 02.jpg
    Wheel arch edge dolly 02.jpg
    60.2 KB · Views: 327
I'm pleased with my dolly, it needs a little more work though- I have to curve the bottom face in pic 2 to match the outer curve of the wheel arch lip.

Looks good! Have you tried it yet?

IIRC two are made- one is terrible, one is fair.

Measure the area you need and then measure the 4D metal.

My bro used patches cut from a 4D and they came out great.

Drainage is differnt in 4D cars and they don't hardly rust at all.

As a bonus, unless yours have gotten really bad, the usual 2D rust is covered by the 4D metal.

bought mine from year one, perfect fit on both sides. I tried the jc whitney ones, don't waste your money not even close!!!!!!!!!!!

I had a try-out with my dolly- I made a repair section from scratch for the wheel well and it worked great!

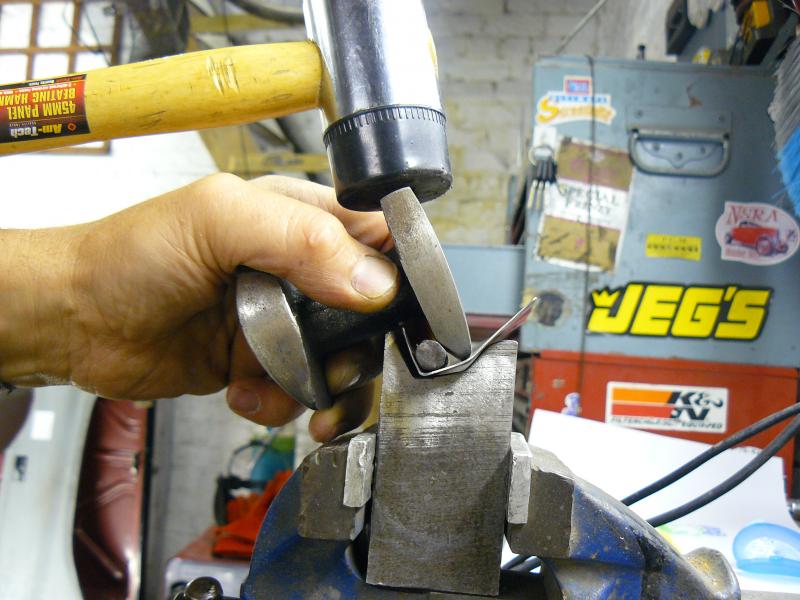

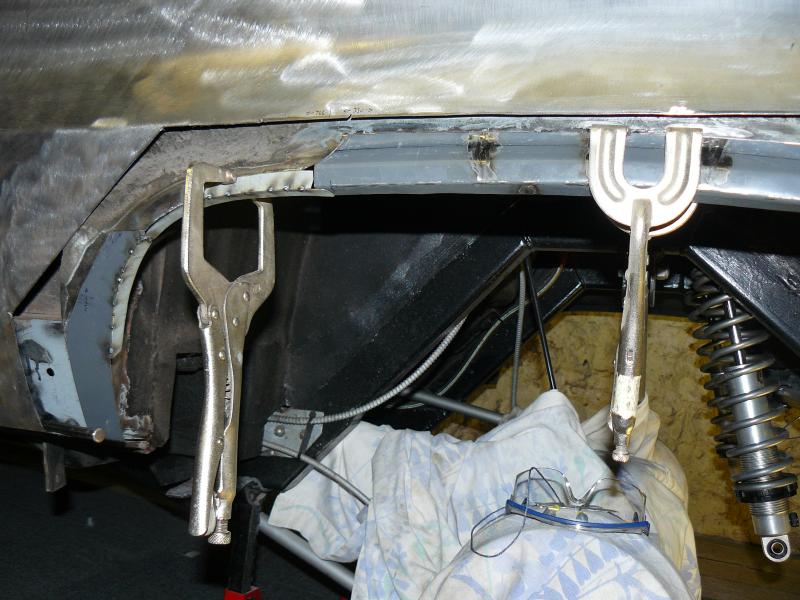

Driver side arch, middle bit shaping up.jpgDriver side arch, middle bit test fit.jpg
