1970 Charger Power Window Issue: Pass Front

Electrical & Ignition

  1. bad88ttop

    bad88ttop Well-Known Member

    Messages:
    123
    Likes Received:
    111
    Joined:
    Dec 10, 2018
    Location:
    Pittsburgh, PA
    Local Time:
    7:52 PM
    Hi guys, I'm in the final stages of my 1970 Charger R/T restoration and I'm experiencing an issue with the front Pass window working. I've jumped the window using a batter box and the motor works fine. All 3 of the other windows work as expected except the front passenger. I have power to the center pin of the 5 eyelet switch connector but nothing when pushing the switch. I tried another rear switch and same thing, but both switches work fine on the rear windows. That eliminates the switch being the issue.
    I have power into the window motor harness but no ground. If I add a ground, to the harness thru the 2 wire plug (to the motor), it works. I know it's something silly but I'm not the best at wiring so I figured I'd ask. There's only 1 ground on the power window harness and the other 3 windows are working fine, so I'm baffled. I'm open to suggestions on what to try, I really appreciate any feedback. Possibly someone has a schematic of this circuit and they'd be willing to help me with what and where to test w/ the test light. Thanks in advance.

    -Thanks Bill

    • Agree Agree x 1
    • 5wndwcpe

      5wndwcpe Huge Member FBBO Gold Member

      Messages:
      4,496
      Likes Received:
      2046
      Joined:
      Jul 17, 2008
      Location:
      Southeastern, PA
      Local Time:
      7:52 PM
      The passenger side switch receives it's ground from the master switch, so I'd check there to start.

      • Agree Agree x 3
      • Rockland71GTX

        Rockland71GTX Well-Known Member

        Messages:
        414
        Likes Received:
        801
        Joined:
        Apr 29, 2016
        Location:
        South Florida
        Local Time:
        7:52 PM
        • Agree Agree x 1
        • Jerry Hall

          Jerry Hall FBBO Gold Member FBBO Gold Member

          Messages:
          7,746
          Likes Received:
          13206
          Joined:
          Mar 26, 2018
          Location:
          Alabama
          Local Time:
          6:52 PM
          The master switch on the driver's door can cause a multitude of problems. Does that window work from the master switch? There is a member on the forum that will rebuild any defective switches you have.

        • 451Mopar

          451Mopar Well-Known Member

          Messages:
          3,051
          Likes Received:
          2343
          Joined:
          Oct 25, 2011
          Location:
          Aurora, CO
          Local Time:
          5:52 PM
          could be a bad switch connection at the master, drivers switch, or some disconnect in the harness.
          easy solution is just use two spdp relays to operate the motor.

        • bad88ttop

          bad88ttop Well-Known Member

          Messages:
          123
          Likes Received:
          111
          Joined:
          Dec 10, 2018
          Location:
          Pittsburgh, PA
          Local Time:
          7:52 PM
          No. It does not work from the master switch either. I’ll have to try another master switch and we’ll see what happens. Stay tuned.

          • Like Like x 1
          • Jerry Hall

            Jerry Hall FBBO Gold Member FBBO Gold Member

            Messages:
            7,746
            Likes Received:
            13206
            Joined:
            Mar 26, 2018
            Location:
            Alabama
            Local Time:
            6:52 PM
            @devinism Contact him for switch repair. He rebuilt a full set, plus others for me.

            • Agree Agree x 1
            • YY1

              YY1 Well-Known Member

              Messages:
              20,431
              Likes Received:
              13247
              Joined:
              Jun 26, 2010
              Location:
              FL
              Local Time:
              7:52 PM
              Sounds like the ground from the master to the PS motor might be bad, if it's indeed wired that way.

            • Rockland71GTX

              Rockland71GTX Well-Known Member

              Messages:
              414
              Likes Received:
              801
              Joined:
              Apr 29, 2016
              Location:
              South Florida
              Local Time:
              7:52 PM

              It's not too clear here, but I believe that both legs at the motor should show ground until the switch is moved to the up or down position. The ground is provided through the master switch and then feeds through the remote switches. Check for ground at the motor on both legs and trace back to the master switch until you find the break.

              • Agree Agree x 1
              • Rockland71GTX

                Rockland71GTX Well-Known Member

                Messages:
                414
                Likes Received:
                801
                Joined:
                Apr 29, 2016
                Location:
                South Florida
                Local Time:
                7:52 PM
                On the master switch diagram the 'right rear' shows the ground to the bottom left and upper right of the 5 pins on the switch. All the other switches are wired the same. Check the plug at the door with the switch installed and you should have a ground at all 4 corners and 12 volts at the center.

                • Agree Agree x 1
                • 5wndwcpe

                  5wndwcpe Huge Member FBBO Gold Member

                  Messages:
                  4,496
                  Likes Received:
                  2046
                  Joined:
                  Jul 17, 2008
                  Location:
                  Southeastern, PA
                  Local Time:
                  7:52 PM
                  And be careful when prying the wiring harness off of the back of the switches. The contacts can be brittle DAMHIK.

                • 451Mopar

                  451Mopar Well-Known Member

                  Messages:
                  3,051
                  Likes Received:
                  2343
                  Joined:
                  Oct 25, 2011
                  Location:
                  Aurora, CO
                  Local Time:
                  5:52 PM
                  The relay solution only uses the power side of the switches. the grounding is done at each window/relay location. I used it on my car with a master switch with a broken ground

                • bad88ttop

                  bad88ttop Well-Known Member

                  Messages:
                  123
                  Likes Received:
                  111
                  Joined:
                  Dec 10, 2018
                  Location:
                  Pittsburgh, PA
                  Local Time:
                  7:52 PM
                  OK So I pulled a master switch from one of my other 70 CHargers and the window still didn't work. That eliminates the switches anyhow. With that being said, where's a good starting point with this. I'm not the best electronic diagnostic person, but I can use a test light. lol
                  If anyone can walk me thru my testing procedure I'd be forever grateful. Thanks, Bill

                • Jerry Hall

                  Jerry Hall FBBO Gold Member FBBO Gold Member

                  Messages:
                  7,746
                  Likes Received:
                  13206
                  Joined:
                  Mar 26, 2018
                  Location:
                  Alabama
                  Local Time:
                  6:52 PM
                  @devinism may be able to help you. He was a great help to me and rebuilt all my window switches, and some other switches lately.

                  • Thanks! Thanks! x 1
                  • devinism

                    devinism FBBO Gold Member FBBO Gold Member

                    Messages:
                    77
                    Likes Received:
                    46
                    Joined:
                    Mar 13, 2013
                    Location:
                    Wagoner, OK
                    Local Time:
                    4:52 PM
                    This is correct. On your RF connector you should have a ground signal at all 4 corners.
                    With your test light connect one lead to a 12v positive source, and on the switch plug you SHOULD see a ground at the 4 cornel terminals. Your master switch needs to be plugged in for the circuit to be complete. IF no ground then check for continuity between each of those 4 corners to the back of the master switch plug, on the corresponding switch (1 of the 4 buttons). If it appears there are any splices somewhere in the wiring don't assume they were done correctly, and don't assume colors will match.
                    Are all the PW components original to the car?

                    • Like Like x 1
                    • bad88ttop

                      bad88ttop Well-Known Member

                      Messages:
                      123
                      Likes Received:
                      111
                      Joined:
                      Dec 10, 2018
                      Location:
                      Pittsburgh, PA
                      Local Time:
                      7:52 PM
                      This is great information, thank you so much. Yes, The wiring harness and regulators are original to the car (1970 Charger). The window motors are new from Rock Auto and all work well using a booster pack directly to the motor. All of the other windows are working as expected except Pass side front. I purchased reproduction window switches from OER (which I have done with a few of my other cars) and they seem to work fine. I did switch it out with one of my other cars (that works) without any success. I'll do some testing once I get this car back on the ground and I'll circle back with you. It's guys like you that make this hobby so enjoyable. Thanks again. Bill W

                      • Thanks! Thanks! x 1
                      • bad88ttop

                        bad88ttop Well-Known Member

                        Messages:
                        123
                        Likes Received:
                        111
                        Joined:
                        Dec 10, 2018
                        Location:
                        Pittsburgh, PA
                        Local Time:
                        7:52 PM

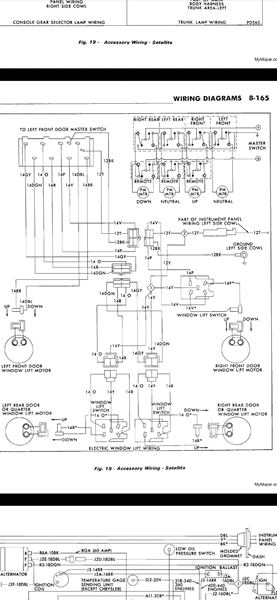

                        Special thanks to everyone that responded. The issue was 2 wires crossed on the switch. I used the Manuel’s wiring schematic and had to look twice at first. Thanks everyone. This board is great in more ways then one.

                        • Like Like x 2
                        • bad88ttop

                          bad88ttop Well-Known Member

                          Messages:
                          123
                          Likes Received:
                          111
                          Joined:
                          Dec 10, 2018
                          Location:
                          Pittsburgh, PA
                          Local Time:
                          7:52 PM
                          Here’s some pics for all those interested. All numbers 70 RT. E87, D21, M99 power sunroof with power windows, radio delete and Canadian Export. Turned out great.
