22" vs 26" radiator ....

65-440

Well-Known Member
Local time
3:02 PM
Joined
Dec 2, 2009
Messages
3,374
Reaction score
2,989
Location
virginia beach, va
I knew it was only a matter of time before I needed to address my radiator, the factory 1968 small block 22" radiator isn't up to par with my .030 over 383..... I've been looking at the ecp 2 1"tube units. I'm torn between the 22" or the 26" ... I do have future plans for a/c install. The front support opening is only 22.5"wide, with a 26" radiator that would leave 1.25" on each side of the radiator covered. Would that honestly make that big of a difference ? I do Have a factory 26" shroud and will be running a 7 blade fan with HD clutch. The 22" would be a direct drop in but I don't have a shroud and would that be enough for a warmed up big block with a/c ??


65hemi

Well-Known Member
Local time
12:02 PM
Joined
May 21, 2011
Messages
1,027
Reaction score
2,190
Location
Winnipeg, Manitoba
I have a 22" rad from GlenRay in my 65 Belvedere. Uses a 2 piece original shroud and a 7 blade fan but no room for a clutch. So far the hemi has not exceeded 180.
The GlenRay stuff is not cheap but it looks factory original.


PurpleBeeper

Well-Known Member
Local time
12:02 PM
Joined
Mar 20, 2011
Messages
4,896
Reaction score
3,629
Location
Chicago
GlenRay is a favorite here, but I've not run one myself. In general, your idea of the 2-row 1"+ tube style should cool very well. A/C cars came 26" wide I believe & I went 26" wide myself. If you have a 22" core support, the 26" radiator will bolt up & will be an improvement, but you're right, roughly 4" of the radiator will be blocked from direct air flow from the front. In my opinion, your options in order best-to-less good are:
1. Replace radiator core support with a 26" wide one
2. Cut your 22" core support for a 26" wide hole (what I did)
3. Run the 26" radiator in the 22" wide hole
4. Run a really good 22" wide radiator... your 2 x 1" tube idea might work.
5. GlenRay 22"

I know, I know... everybody likes GlenRay and I used to personally sell him heavy duty radiator cores. It's a great shop & probably #1 in all of the Chrysler world for OEM looking radiators. I just have had sooooo many overheating problems in my own cars, so maybe I "overbuild" cooling systems.


451Mopar

Well-Known Member
Local time
11:02 AM
Joined
Oct 25, 2011
Messages
3,113
Reaction score
2,388
Location
Aurora, CO
If you are going to install A/C, I would get the 26" radiator. Even 318 cars with A/C came with the 26" radiator.
I never used the ECP radiator, but they look really nice for the price.
If you want a stock appearing radiator, I can attest that Glen-Ray makes a great radiator, but they are expensive.
If using a mechanical fan, get the fan shroud. A stock type clutch fan seems to work better than most flex fans.
If you are thinking of using electric fans, it is more involved and expensive than you might think.


65-440

Well-Known Member
Local time
3:02 PM
Joined
Dec 2, 2009
Messages
3,374
Reaction score
2,989
Location
virginia beach, va
I have no doubts that Glenn Ray stuff is top notch, but I don't need a thousand dollar radiator in this car ! I could care less about correct numbers, it's already a small block car converted to big block. I just don't want to overheat ! I was leaning towards the 26", but questioned the support opening. I have zero desire to replace it, wonder is this few inches on the end being covered up will make a noticeable difference ?


65hemi

Well-Known Member
Local time
12:02 PM
Joined
May 21, 2011
Messages
1,027
Reaction score
2,190
Location
Winnipeg, Manitoba
I put a 26" rad in the 22" opening in my big block Cuda. It is originally a 383 car and I now have 500 in it. I did not open up the stock 22" support opening. In my experience, my car cools fine.


JimKueneman

FBBO Gold Member
FBBO Gold Member
Local time
10:02 AM
Joined
Mar 25, 2016
Messages
3,165
Reaction score
3,574
Location
Sonoita, Az
If you are going to install A/C, I would get the 26" radiator. Even 318 cars with A/C came with the 26" radiator.
I never used the ECP radiator, but they look really nice for the price.
If you want a stock appearing radiator, I can attest that Glen-Ray makes a great radiator, but they are expensive.
If using a mechanical fan, get the fan shroud. A stock type clutch fan seems to work better than most flex fans.
If you are thinking of using electric fans, it is more involved and expensive than you might think.

And a 318 with a 26" with AC can still not be enough for Arizona. Glen-ray did not put the "extra duty" core in the one I bought from him and I can't drive it in town when over 100F. Bob told me to send it back and he will but the core with 2x the tubes in it, I spent a lot of money for the radiator and heater core so I would not have to worry about cooling and he wants to make it right. His comment he has seen every once in a while a block that the casting must just be out of kilter enough in flow restrictions to need a bit more radiator and of course mine is the once in the while exception.... He has lots of 318 radiators running around Arizona with the core I have and they work just fine.


Dibbons

Well-Known Member
Local time
11:02 AM
Joined
Nov 29, 2014
Messages
4,334
Reaction score
4,545
Location
La Paz, B.C.S., Mexico
Do you have an automatic transmission? Replacing and plugging the oil cooler with an auxiliary tranny cooler may help take the load off the radiator, don't know how much.


mlktst

Well-Known Member
Local time
12:02 PM
Joined
Mar 27, 2016
Messages
79
Reaction score
53
Location
Hockley Tx
I had a 22" radiator replaced with a champion 26" radiator. Driver side hole lined up drilled 2 holes for passenger side very easy I run a mechanical fan no clutch stock plastic mopar shroud. South Texas hot as hell twice the humidity my 383 runs @ 160 degrees 170-175 in traffic. This was inexpensive i was willing to spend $$$$ on cooling but a 200$ radiator and a 30$ fan was the best fix for me


threewood

Well-Known Member
Local time
10:02 AM
Joined
May 30, 2014
Messages
5,280
Reaction score
7,008
Location
Yuma, AZ
I would get the 26". Member 69GTX has brackets so it will mount up to the 22" radiator support. Give him a shout. But.....modding the 22" pass yoke to 26" is straight forward if you go that route. Only the pass side gets swapped out but I believe you can mod a 22" support to work.

26" support is spot welded in...


Larrywre

Active Member
Local time
12:02 PM
Joined
Apr 3, 2017
Messages
38
Reaction score
45
Location
Texas Hill Country
I had a 22" radiator replaced with a champion 26" radiator. Driver side hole lined up drilled 2 holes for passenger side very easy I run a mechanical fan no clutch stock plastic mopar shroud. South Texas hot as hell twice the humidity my 383 runs @ 160 degrees 170-175 in traffic. This was inexpensive i was willing to spend $$$$ on cooling but a 200$ radiator and a 30$ fan was the best fix for me

What model did you order, thinking of doing the same on my 383.


oldbee

FBBO Gold Member
FBBO Gold Member
Local time
1:02 PM
Joined
Oct 15, 2011
Messages
10,114
Reaction score
10,194
Location
NE Ohio
IMO- do what 'purple' says & cut the support bigger. That's what I did, you don't have to go clear to the maximum edges; mine probably has 1/2-1" of sheetmetal still covering the core.


mlktst

Well-Known Member
Local time
12:02 PM
Joined
Mar 27, 2016
Messages
79
Reaction score
53
Location
Hockley Tx
Don't remember model # Champion 3 core 26" Give them a call they will send right one. I tried a 22" champion ran about 190 degrees called Champion said i would like something "cooler" They shipped 26" replacement NO EXTRA CHARGE I returned 22" can you believe that. Good people easy to work with and honest


mlktst

Well-Known Member
Local time
12:02 PM
Joined
Mar 27, 2016
Messages
79
Reaction score
53
Location
Hockley Tx
I would get the 26". Member 69GTX has brackets so it will mount up to the 22" radiator support. Give him a shout. But.....modding the 22" pass yoke to 26" is straight forward if you go that route. Only the pass side gets swapped out but I believe you can mod a 22" support to work.

26" support is spot welded in...

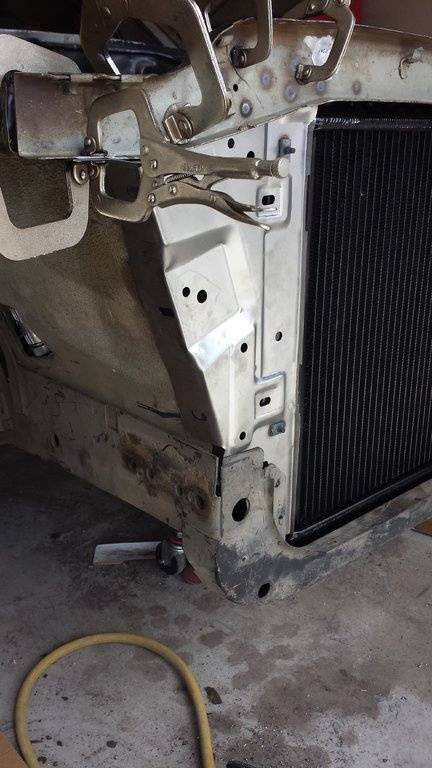

View attachment 444640
Hello Mr. threewood the brackets 69GTX builds are they bolt on or weld on. I would like to his setup Mine was way too simple I need something to do haha


threewood

Well-Known Member
Local time
10:02 AM
Joined
May 30, 2014
Messages
5,280
Reaction score
7,008
Location
Yuma, AZ
Hello Mr. threewood the brackets 69GTX builds are they bolt on or weld on. I would like to his setup Mine was way too simple I need something to do haha

They were brackets that bolted up, no welding.


khryslerkid

Well-Known Member
Local time
1:02 PM
Joined
Mar 10, 2010
Messages
26,037
Reaction score
41,635
Location
Hanover, Pennslyvania
I knew it was only a matter of time before I needed to address my radiator, the factory 1968 small block 22" radiator isn't up to par with my .030 over 383..... I've been looking at the ecp 2 1"tube units. I'm torn between the 22" or the 26" ... I do have future plans for a/c install. The front support opening is only 22.5"wide, with a 26" radiator that would leave 1.25" on each side of the radiator covered. Would that honestly make that big of a difference ? I do Have a factory 26" shroud and will be running a 7 blade fan with HD clutch. The 22" would be a direct drop in but I don't have a shroud and would that be enough for a warmed up big block with a/c ??

You might have already pulled the trigger on this but the ECP 22" is what I went with for my '62 with a mild 440.

Back when I ordered it they sent me two! I told the UPS driver to send one back. Notified them that they sent two and I'm sending one back and the guy didn't even say thanks...

The way that they box them up could be better. I had some fins to straighten out. The right side bracket is short but the bottom hole on that side does line up with an existing slotted hole in the support.

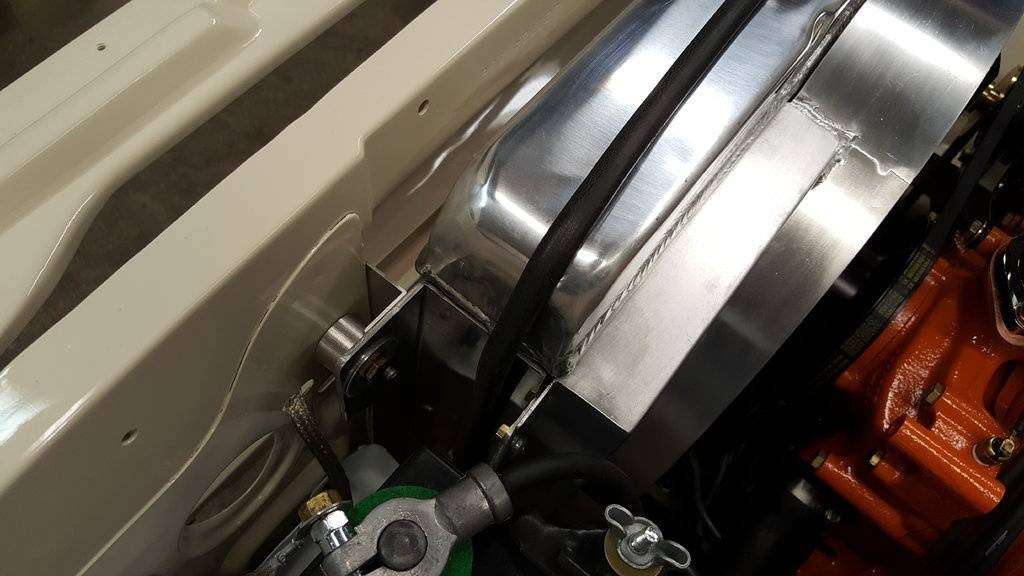

I bought a 17" steel fan blade and had a fabrication shop make me a fan shroud to my specs. I'm useing a stock 8 blade water pump. I also spaced the top of the radiator in towards the engine about 1". That helped with the top hose fitment and it is more true with the fan blade/shroud placement.

Did the "break-in" last week, 20 plus min. @ 2,000 rpm and the temp never went over 180*. That's what thermostat I installed. I also added a bottle of "Kool it" additive.

Two days later I fired it up again to set the timing and tune the carbs. It seemed to take forever to get it up to 180* but eventually it did and again it never went over 180*. I'm also useing non ethanol, 91 octane.

This radiator seems to be doing its job and it's priced right...






65-440

Well-Known Member
Local time
3:02 PM
Joined
Dec 2, 2009
Messages
3,374
Reaction score
2,989
Location
virginia beach, va
looks like I've missed some replies, thanks to all ! The car is an automatic trans. I debated replacing the core with the right one, cutting the hole bigger, or just leaving it be. If I did anything I might cut the hole bigger and attempt to mirror the factory bend on the edge. Honestly not in the mood to to any metal replacing ! I have not pulled the trigger yet but it's gonna be the ECP one and I'll paint it black to it's not super obvious. Again thanks to all for replying, I hope to order this week and get back on the road !


khryslerkid

Well-Known Member
Local time
1:02 PM
Joined
Mar 10, 2010
Messages
26,037
Reaction score
41,635
Location
Hanover, Pennslyvania
To Kryslerkid, than fan shroud looks pretty damn slick ! I like !
Thanks 65!
I would have made it myself if I still worked where I used to. I just drew up a sketch and had a local shop do it for me. It cost me about what the reproduction two piece ones are going for. I was tired of trying to find something that worked.



I found it pretty tight between the pump and radiator for a clutch assembly so I went with this blade. It really moves some air and you can't beat the price. Well made too.
https://m.summitracing.com/parts/der-17317


JimKueneman

FBBO Gold Member
FBBO Gold Member
Local time
10:02 AM
Joined
Mar 25, 2016
Messages
3,165
Reaction score
3,574
Location
Sonoita, Az
Thanks 65!

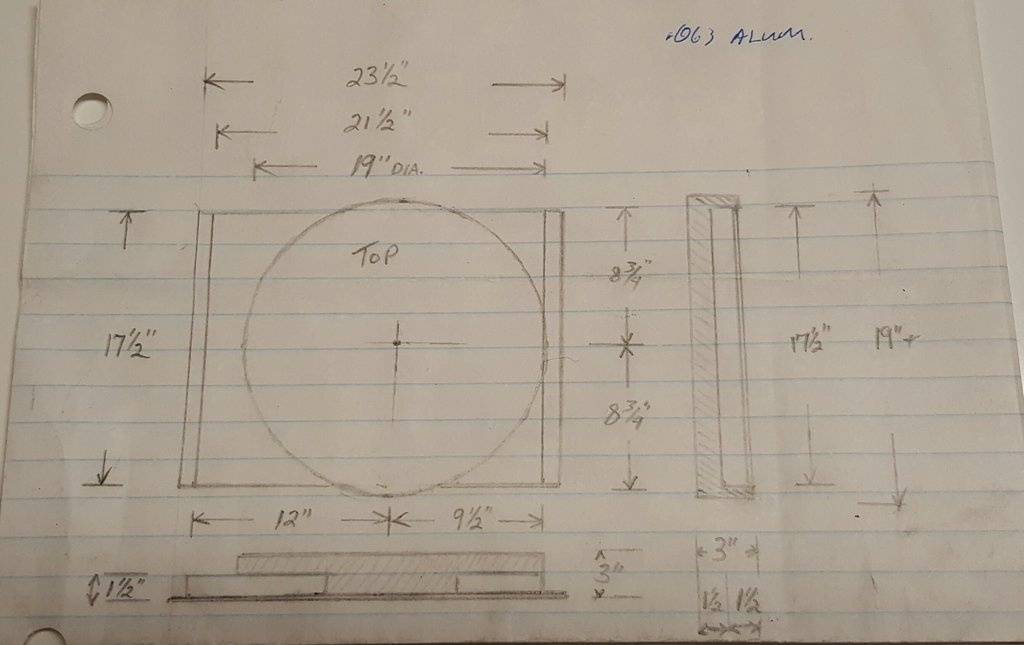

I would have made it myself if I still worked where I used to. I just drew up a sketch and had a local shop do it for me. It cost me about what the reproduction two piece ones are going for. I was tired of trying to find something that worked.

View attachment 444863

I found it pretty tight between the pump and radiator for a clutch assembly so I went with this blade. It really moves some air and you can't beat the price. Well made too.
https://m.summitracing.com/parts/der-17317

Show us how you keep that nice setup so nice and clean kid..... or maybe not.....
