440 Spacer on Power Steering Pulley?

General Mopar Tech Discussions

  1. CoronetRR

    CoronetRR Member

    Messages:
    6
    Likes Received:
    6
    Joined:
    Apr 7, 2017
    Location:
    Southeast PA
    Local Time:
    8:49 PM

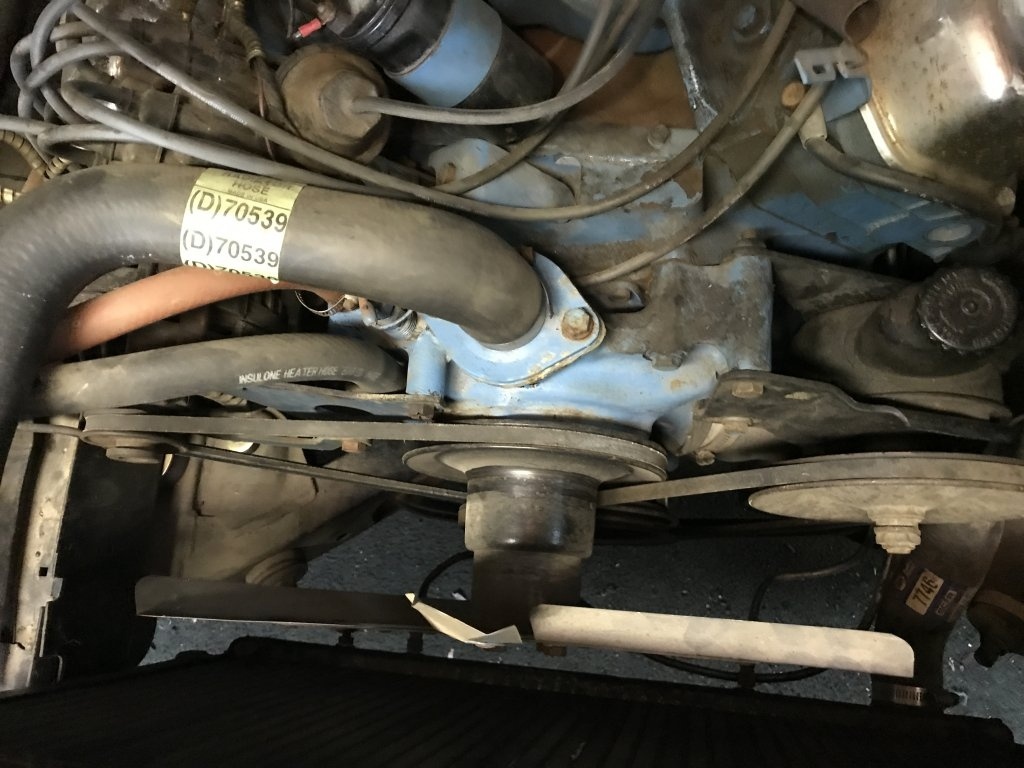

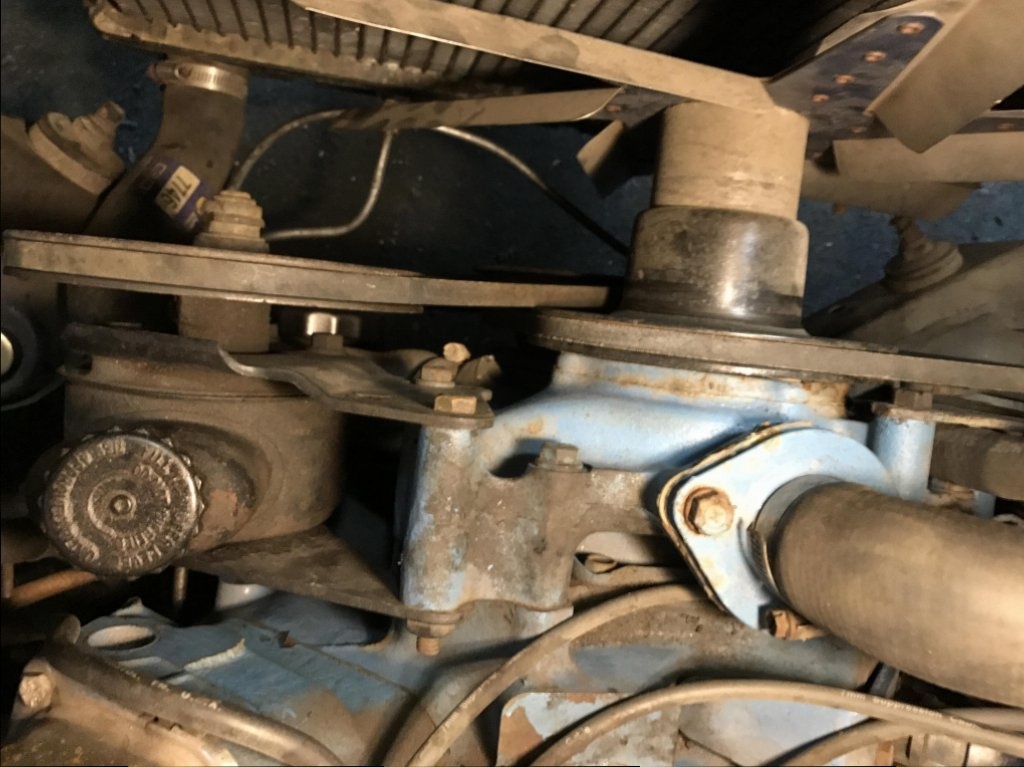

    Hello all the Power steering hookup on my 440 in my 73 RR doesn't look right the belt only has about 1/16 clearance from the fan pulley. Is there a spacer that goes behind the power steering pulley or is it just pressed on too far? .

    Thanks

    RR1IMG_0680.JPG RR2IMG_0681.JPG

    Last edited: Apr 22, 2017
  2. Pops1967GTX

    Pops1967GTX FBBO Gold Member FBBO Gold Member

    Messages:
    22,809
    Likes Received:
    67901
    Joined:
    Oct 25, 2010
    Location:
    Monroe, New York
    Local Time:
    8:49 PM
    TAKE some measurements & look at it from more than one angle to see differences.. Make sure you have the right brackets & pulleys..

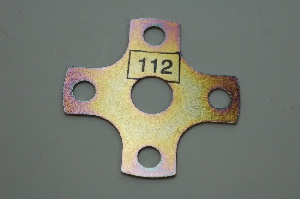

    Ever heard of a spacer for the P/S pump but there's one for the water pump.& use washers to shim up the brackets.


    Check out this web site ...they have pic's & sizes of the pulleys.....check out their pulley specification fit section....
    5250 alternator brackets - Bouchillon Performance Engineering


    [​IMG]

    [​IMG]

    [​IMG]

    • Like Like x 1
    • 69L48Z27

      69L48Z27 Well-Known Member

      Messages:
      2,808
      Likes Received:
      2897
      Joined:
      Nov 19, 2015
      Location:
      York, Pa
      Local Time:
      8:49 PM
      Looks like the wrong setup for sure. Also looks like that pulley has a nut retaining it and it's not pressed on. The straight edge will tell you real quick if your out of alignment like Pops said.

    • CoronetRR

      CoronetRR Member

      Messages:
      6
      Likes Received:
      6
      Joined:
      Apr 7, 2017
      Location:
      Southeast PA
      Local Time:
      8:49 PM
      Great thanks for the link, I'll take some measurements. The alternator lines up good. It seems like if the power steering pulley only needs to move forward a little maybe a shim will work .

    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      Messages:
      20,873
      Likes Received:
      30619
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      8:49 PM
      Might try removing the pully and flipping it over? If it can be done? I thought they were all pressed on.

      Must be the wrong brackets or the pump itself.

      • Like Like x 1
      • Pops1967GTX

        Pops1967GTX FBBO Gold Member FBBO Gold Member

        Messages:
        22,809
        Likes Received:
        67901
        Joined:
        Oct 25, 2010
        Location:
        Monroe, New York
        Local Time:
        8:49 PM
        Make sure the power steering bracket is correctly attached .

        • Like Like x 1
        • eldubb440

          eldubb440 FBBO Gold Member FBBO Gold Member

          Messages:
          5,103
          Likes Received:
          10194
          Joined:
          Jul 17, 2008
          Location:
          South Jersey USA
          Local Time:
          8:49 PM

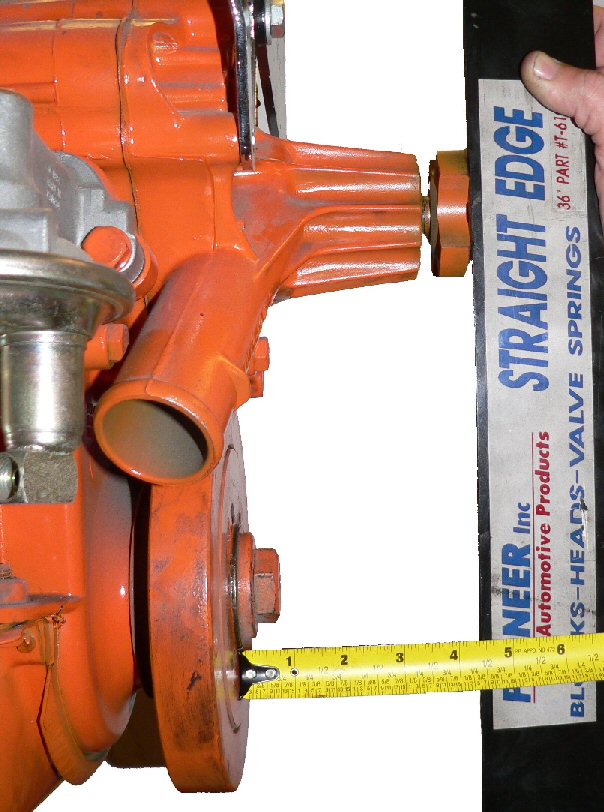

          looks set back at least 1/4 inch in this pic

          [​IMG]

          • Like Like x 1
          • Yatzee

            Yatzee Well-Known Member

            Messages:
            999
            Likes Received:
            844
            Joined:
            Jun 20, 2015
            Location:
            London
            Local Time:
            8:49 PM
            Put spacer washers between the back of the pump reservoir and the rear bracket ( looks like 1/8 inch) and put the same thickness of spacer washers between the water pump housing mounting boss hole and the backside of the front bracket. This will space the pump and pulley forwards. Run a straight edge from the back (inside) edge of the PS pump pulley across to the front (outside) edge water pump pulley to get the exact thickness of the spacers you'll need. Always run your straight edge across the larger of the pulleys, it will be more accurate that way. There should be a difference of 1/16 inch maximum to allow for belt quiver and waiver when the belt stretches or you'll rub on the nose of the water pump pulley. Do not piss around with the pulley or try to space the pulley out, where it sits is where it belongs. It's hard to tell but if that's a Saginaw pump it's very easy to move the pump forward.

            Last edited: Apr 22, 2017
            • Like Like x 1
            • CoronetRR

              CoronetRR Member

              Messages:
              6
              Likes Received:
              6
              Joined:
              Apr 7, 2017
              Location:
              Southeast PA
              Local Time:
              8:49 PM

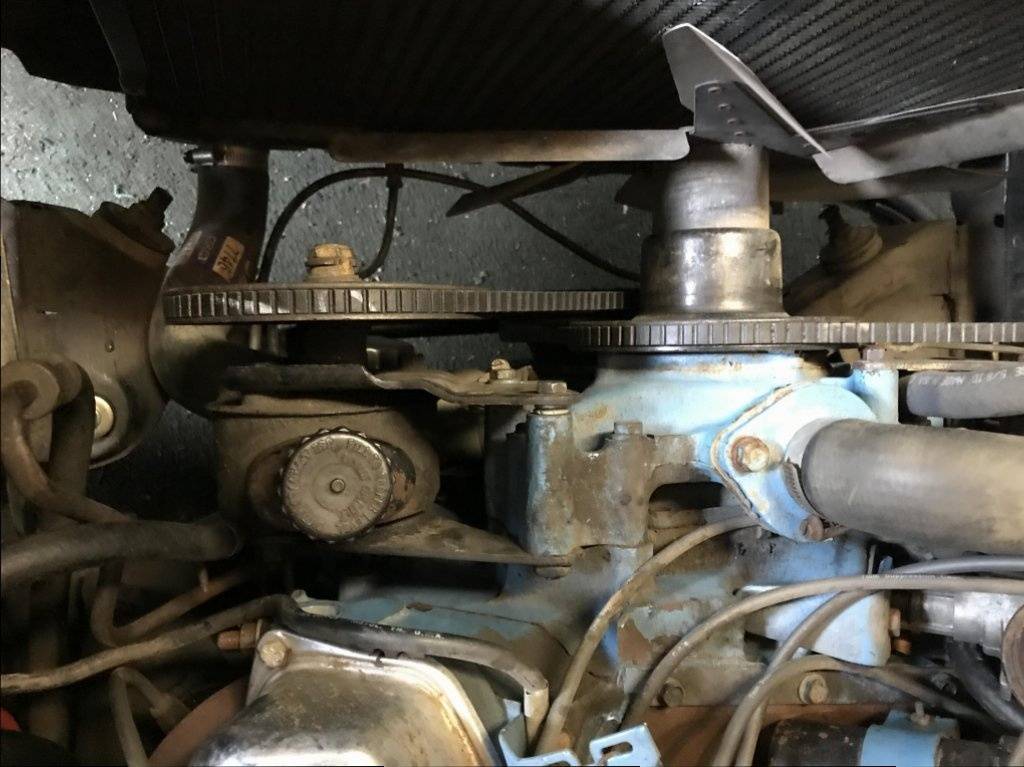

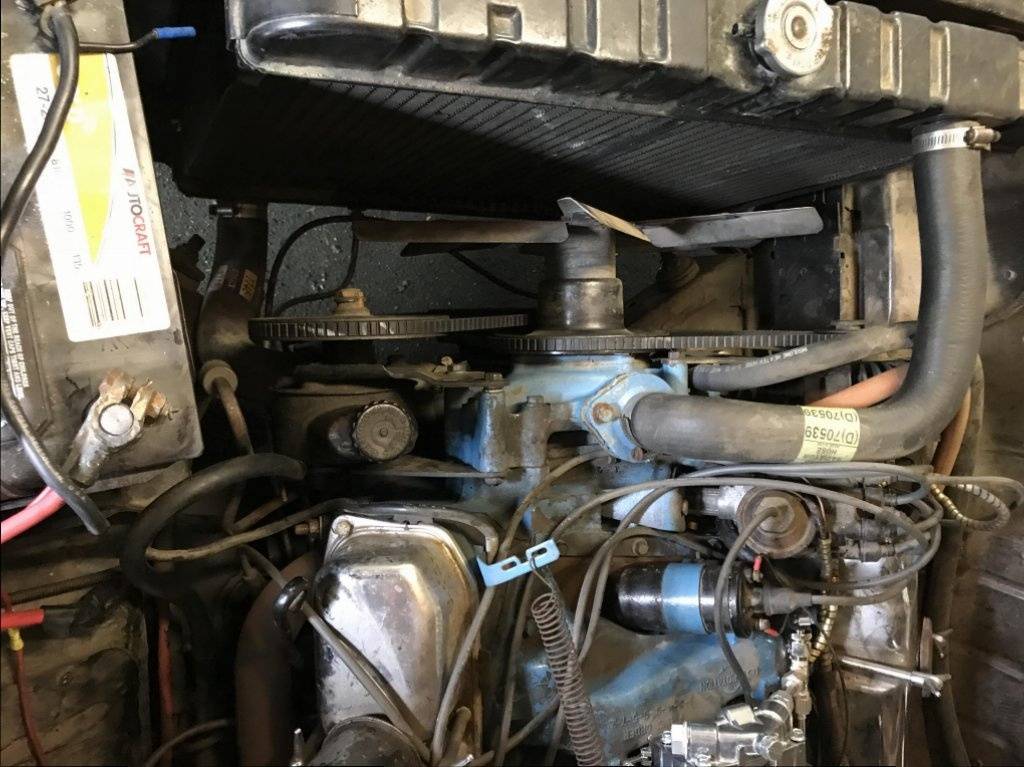

              Thanks for the replies, a couple shims did the trick

              IMG_0772.JPG IMG_0773.JPG
