69-70 Charger Tail Lamp Cover Screws

1968-1970 Dodge Charger Forum

  1. Centofanti

    Centofanti Active Member

    Messages:
    36
    Likes Received:
    25
    Joined:
    Dec 20, 2010
    Location:
    Arizona
    Local Time:
    3:39 AM
    What is the general consensus on the correct screw type, size, length, OD washer for the tail lamp cover?

  2. pnora

    pnora FBBO Gold Member FBBO Gold Member

    Messages:
    517
    Likes Received:
    441
    Joined:
    Apr 21, 2020
    Location:
    Ishpeming, Mi.
    Local Time:
    6:39 AM
    I was just thinking the same thing.

  3. 70sixpkrt

    70sixpkrt Well-Known Member

    Messages:
    227
    Likes Received:
    102
    Joined:
    Jul 18, 2008
    Location:
    S. San francisco, Ca
    Local Time:
    5:39 AM
    :popcorn2:

  4. DeltaV

    DeltaV Beam us up! FBBO Gold Member

    Messages:
    10,198
    Likes Received:
    27066
    Joined:
    Jul 11, 2015
    Location:
    Savannah River
    Local Time:
    6:39 AM
    From my XP29N0G:

    CLOSE-UPS:
    Not a separate washer, just a wide head.
    Looks like a sheet metal screw thread.


    All measurements rounded to 2 decimal points:

    OD (across threads):

    OD of head: 0.43"

    Thread length (grip): 0.49"
    I'm thinking we'll just call it half an inch:rolleyes:
    I used this end to measure the 0.49" grip:

    OVERALL LENGTH: 0.61"

    "WASHER" THICKNESS: 0.06"

    Last edited: Apr 8, 2021 at 8:12 PM
    • Like Like x 1
    • Agree Agree x 1
    • 70sixpkrt

      70sixpkrt Well-Known Member

      Messages:
      227
      Likes Received:
      102
      Joined:
      Jul 18, 2008
      Location:
      S. San francisco, Ca
      Local Time:
      5:39 AM

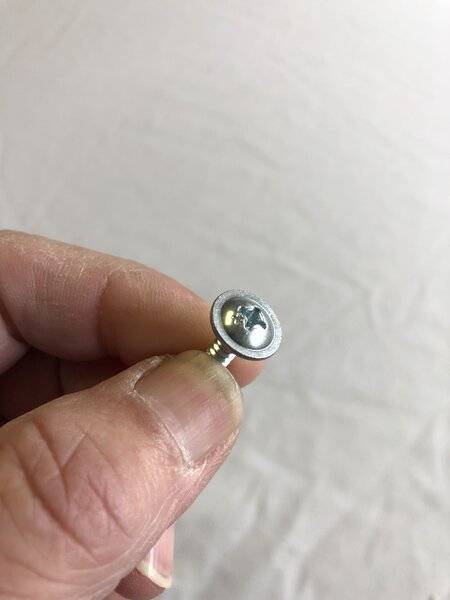

      I ended up using a sheet metal screw and painted it black.


    • 70sixpkrt

      70sixpkrt Well-Known Member

      Messages:
      227
      Likes Received:
      102
      Joined:
      Jul 18, 2008
      Location:
      S. San francisco, Ca
      Local Time:
      5:39 AM

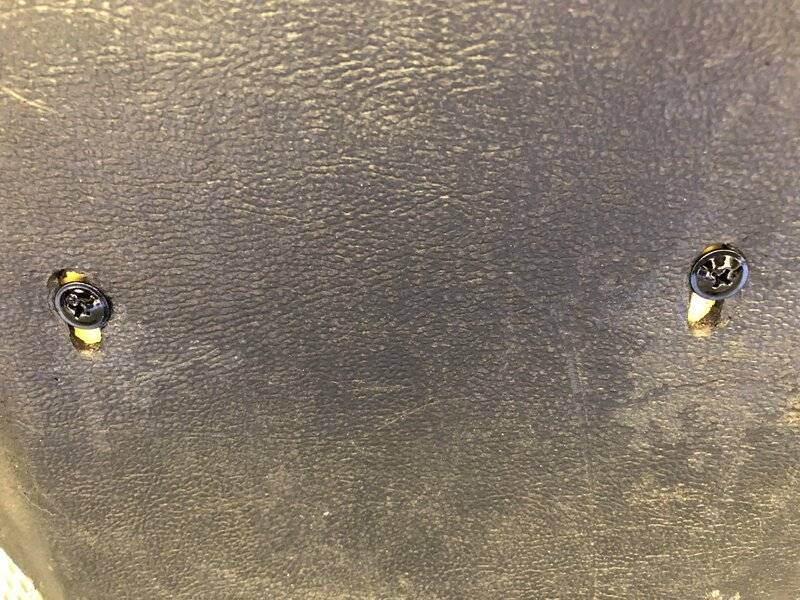

      After

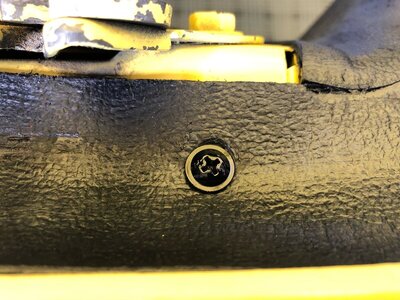

      67E08B9D-D703-4E03-9E63-43F33A96851A.jpeg A172FD03-D34F-4D22-979B-C288DCAC5D25.jpeg
