70 B body Rallye Gauge Cluster

Interior

  1. steve817

    steve817 Well-Known Member

    Messages:
    219
    Likes Received:
    164
    Joined:
    Jan 7, 2011
    Location:
    Casper Wyoming
    Local Time:
    2:36 PM

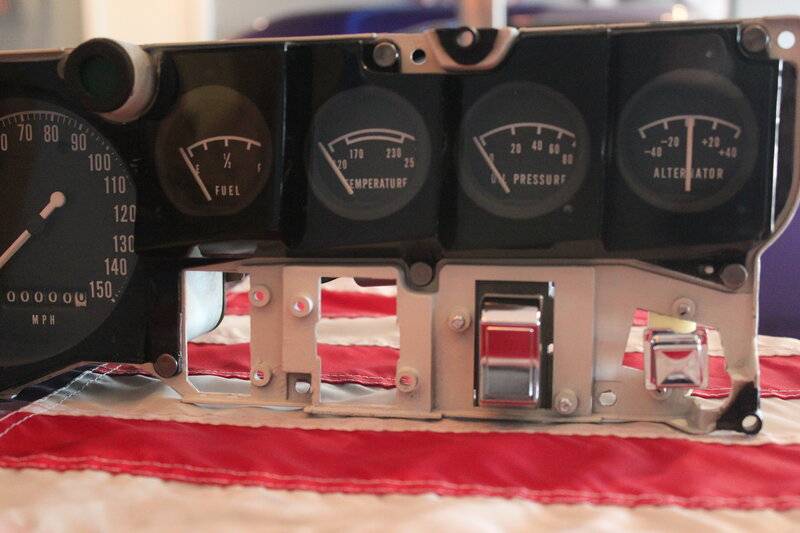

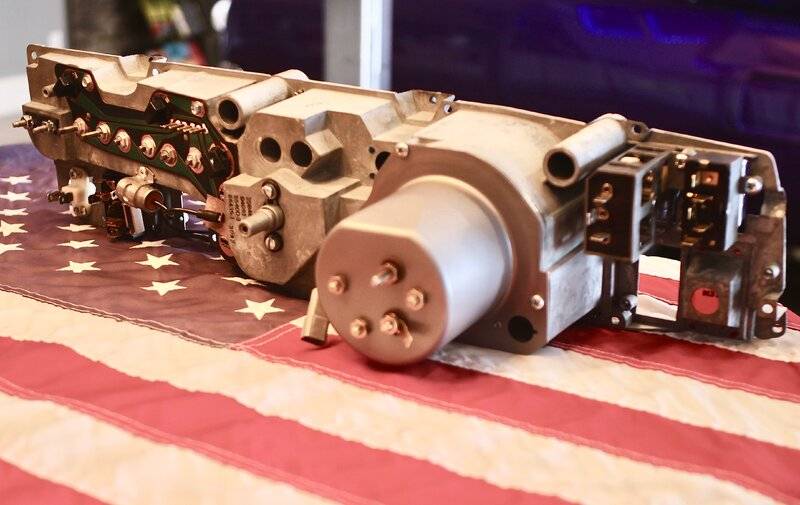

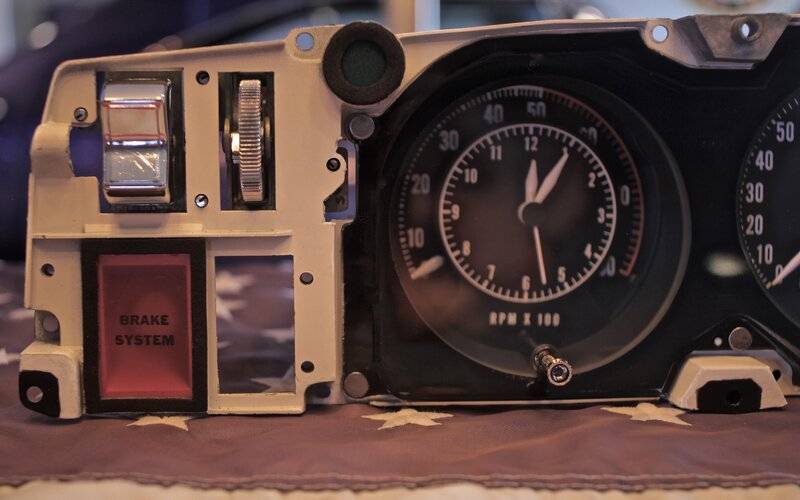

    Just finished another 70 rallye cluster for an B body member! All OEM parts with tach and clock conversions. This one turned out awesome! Show and go:)

    fullsizeoutput_1c7.jpeg fullsizeoutput_1cb.jpeg IMG_9063.JPG

    • Like Like x 5
    • 70chall440

      70chall440 FBBO Gold Member FBBO Gold Member

      Messages:
      1,855
      Likes Received:
      2637
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      1:36 PM
      Very nice!

    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      16,439
      Likes Received:
      38118
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      1:36 PM
      Is there a way to slip a voltmeter behind the face of the Ammeter ?

    • Demonic

      Demonic Well-Known Member

      Messages:
      1,265
      Likes Received:
      1102
      Joined:
      Jun 5, 2017
      Location:
      Maryland
      Local Time:
      4:36 PM
      Did you redo the gauge faces yourself? Looks great!

    • steve817

      steve817 Well-Known Member

      Messages:
      219
      Likes Received:
      164
      Joined:
      Jan 7, 2011
      Location:
      Casper Wyoming
      Local Time:
      2:36 PM

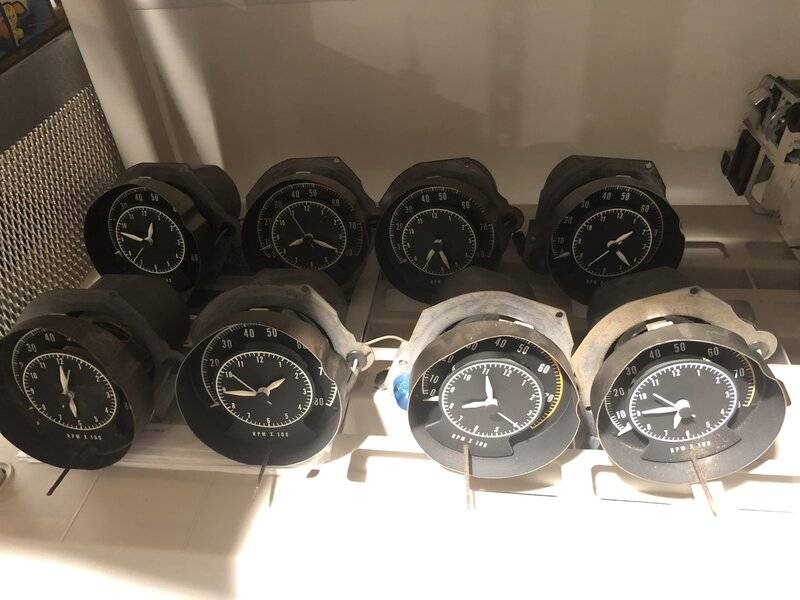

      IMG_3692.jpg Thanks 70chall440! Kern Dog, I have not found a good match to make the amp to volt conversion work yet. I know others have sent their Amp gauge to I.S., A.I., Redline, etc for the conversion. Mopars I restore get the MAD electrical treatment http://www.madelectrical.com/electricaltech/amp-gauges.shtml. Anyone have a solution to converting amp to volt gauge? Thanks Demonic! I've built many 1st place winning Mopars over the years and early on, was skeptical using vinyl overlays. Now, with perfect computer generated #er/letter detail, excellent contrast, crisp lines, accurate cuts and UV protection, these gauge faces are STUNNING! Thanks again everyone!

      • Like Like x 1
      • steve817

        steve817 Well-Known Member

        Messages:
        219
        Likes Received:
        164
        Joined:
        Jan 7, 2011
        Location:
        Casper Wyoming
        Local Time:
        2:36 PM
        Quarantine:)

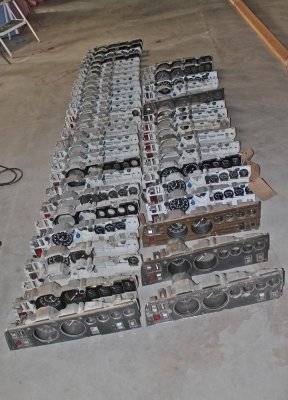

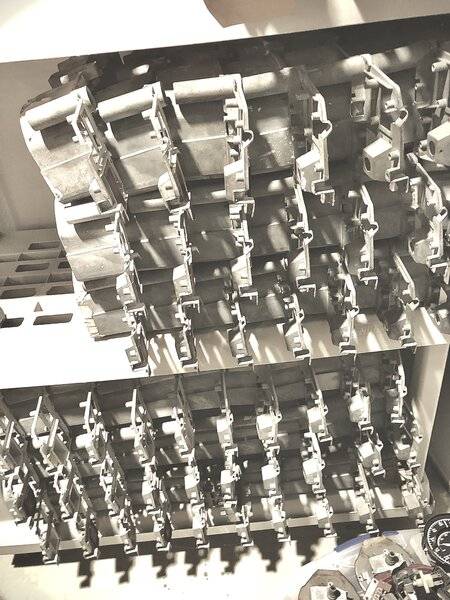

        Time for some 68-70 B body Rallye Gauge Cluster restorations! I have been collecting Mopar parts for 40 years and have thousands of gauge cluster pieces. Organization and cleanliness is my moto! Better get off
        here and get to work! fullsizeoutput_f.jpeg fullsizeoutput_1d0.jpeg

        • Like Like x 2
        • 70chall440

          70chall440 FBBO Gold Member FBBO Gold Member

          Messages:
          1,855
          Likes Received:
          2637
          Joined:
          Feb 11, 2018
          Location:
          Yelm, Washington
          Local Time:
          1:36 PM
          Again, very nice work. I am building a 70 Roadrunner which is a bit of a hot mess, has a tilt front end, snout bars, etc. I am pretty convinced this was a parts car that someone had big dreams for and they eventually had a 68 Charger parts car because I have a 68 Charger (probably an RT) instrument cluster (with Tic Toc Tach) and steering column. I don't intend to use the cluster and am trying to decide whether I want to make a custom cluster or use something more stock appearing. If I make a cluster, I will do it in such a way that it appears pretty stock at first glance, I don't like just stuffing gauges into a bezel, I will build a substructure and mount the gauges behind the bezel, angle the smaller gauges like the original, etc. I did this with my 73 Cuda using Speedhut gauges and am very happy with the results.


          • Like Like x 1
          • steve817

            steve817 Well-Known Member

            Messages:
            219
            Likes Received:
            164
            Joined:
            Jan 7, 2011
            Location:
            Casper Wyoming
            Local Time:
            2:36 PM
            Hello 70chall440, Great work on your converted 73 dash! I actually just sent a cluster housing to "hemirunner" who is converting a B body dash over to new gauges. He was able to cut up a "not perfect" cluster housing to do the conversion. Like you he didn't want to cut up a good restorable cluster. How much for your restorable gauge cluster? Thanks, Steve

          • 70chall440

            70chall440 FBBO Gold Member FBBO Gold Member

            Messages:
            1,855
            Likes Received:
            2637
            Joined:
            Feb 11, 2018
            Location:
            Yelm, Washington
            Local Time:
            1:36 PM
            Steve - thanks for reaching out and your kind words. I haven't given a lot of thought to what the cluster is worth to be honest, I have so much to do before I get to that point. Since you are in this business, perhaps you could give me an idea? I am not trying to retire off of it but I also think it has some value, I can post some pictures to give you a better idea which I am sure would be helpful. I have no idea what works or doesn't work so there is that, nothing was hooked up when I got the car not to mention the car had no drive train or was really anywhere near operational.

            Like I said, my intent is to do one of 2 things; either put together a stock cluster (least likely) or build a custom cluster (most likely), the unknown for me is if the gauges will sit well behind the bezel and be visible. I have some Autometer 2 1/6 ultra lights left over from another project that I am thinking of using, but I have not measured the bezel holes to see how they would align. The intent is to make it look relatively stock from the outside.

          • 66383

            66383 Well-Known Member

            Messages:
            2,094
            Likes Received:
            1529
            Joined:
            Jan 19, 2018
            Location:
            calvert city, ky
            Local Time:
            3:36 PM
            Beautiful. :thumbsup::thumbsup::thumbsup:

          • 70chall440

            70chall440 FBBO Gold Member FBBO Gold Member

            Messages:
            1,855
            Likes Received:
            2637
            Joined:
            Feb 11, 2018
            Location:
            Yelm, Washington
            Local Time:
            1:36 PM

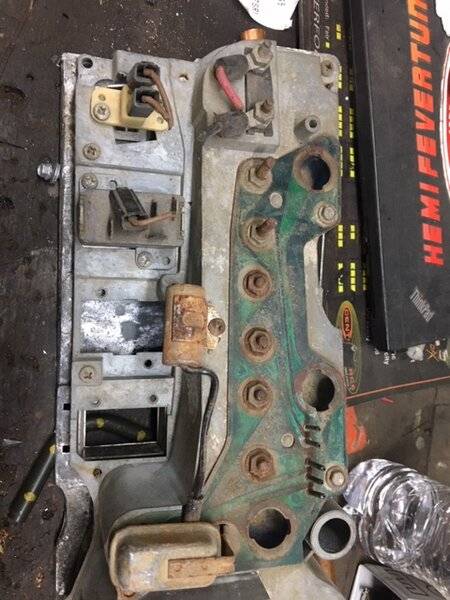

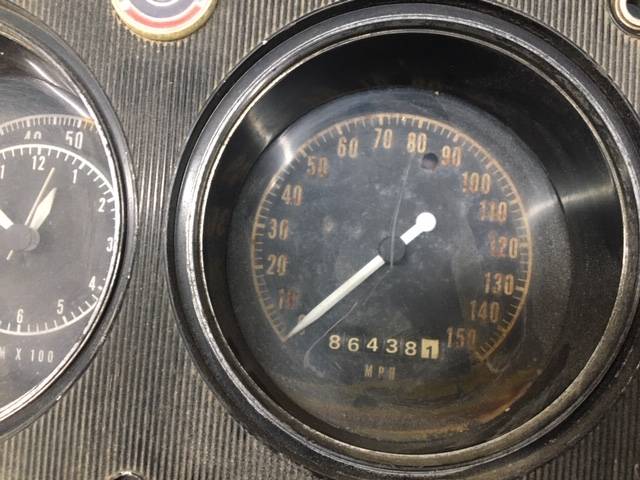

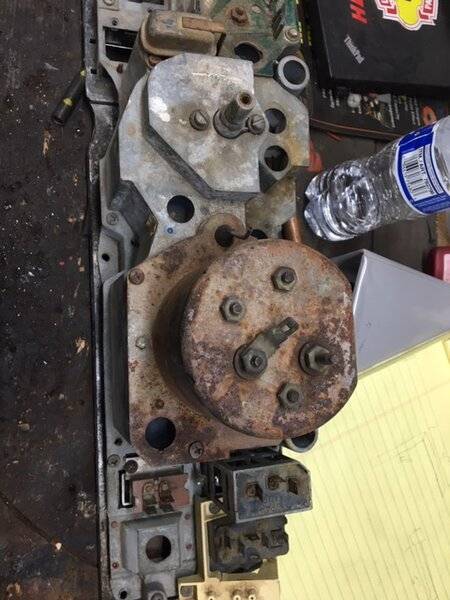

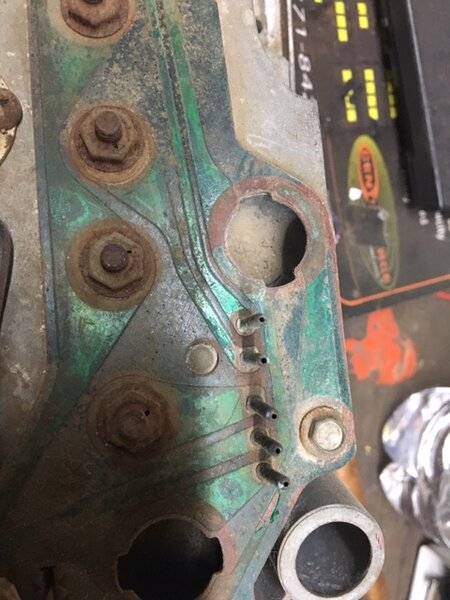

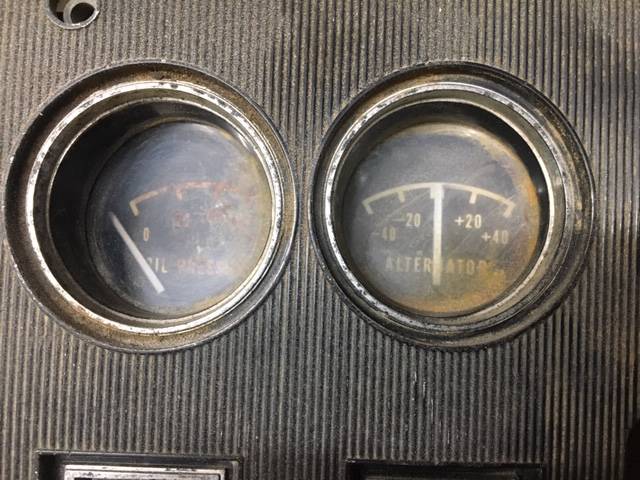

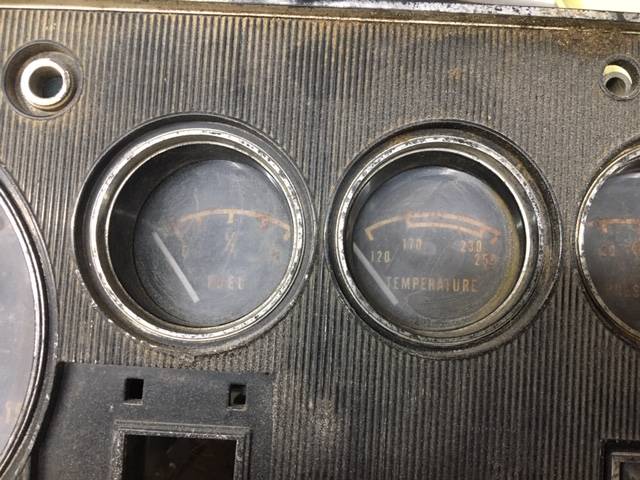

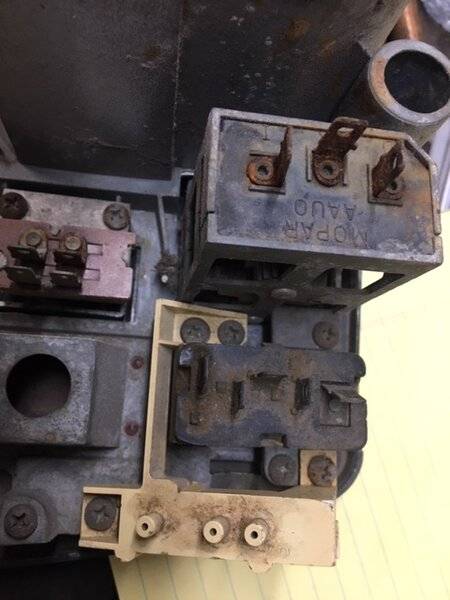

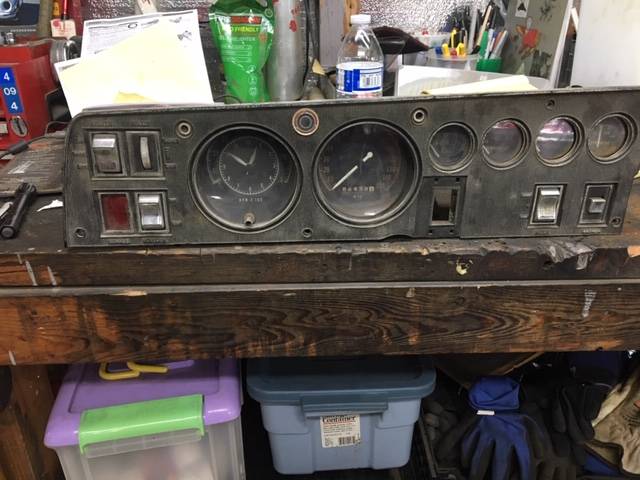

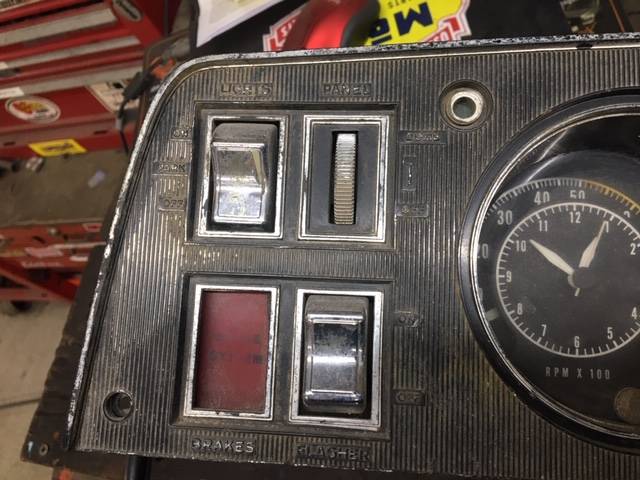

            So here are the pictures, it is what it is.

            IMG_1625.JPG IMG_1624.JPG IMG_1623.JPG IMG_1622.JPG IMG_1621.JPG IMG_1620.JPG IMG_1618.JPG IMG_1626.JPG IMG_1619.JPG IMG_1629.JPG

          • steve817

            steve817 Well-Known Member

            Messages:
            219
            Likes Received:
            164
            Joined:
            Jan 7, 2011
            Location:
            Casper Wyoming
            Local Time:
            2:36 PM

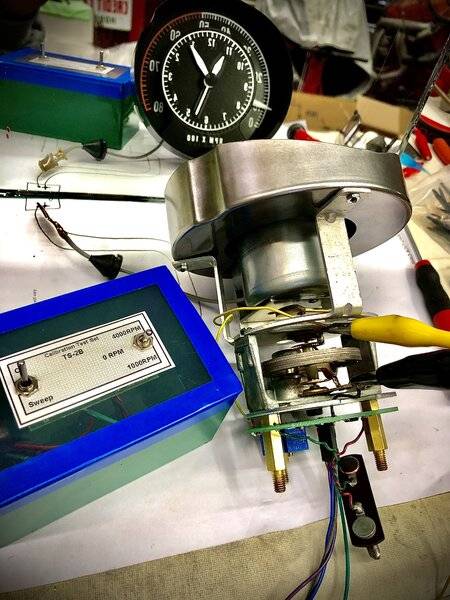

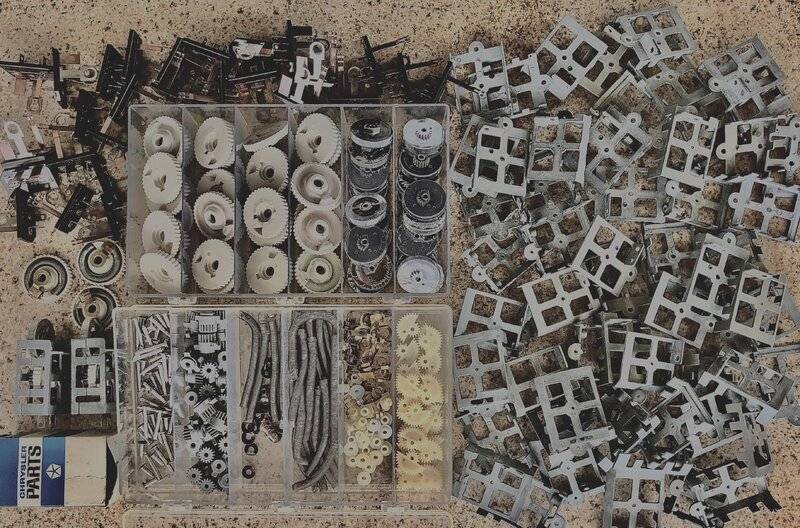

            Hey 66383, Thanks. I really like restoring these clusters. I just got a message from my last purchaser who received that very cluster today. He said in a text "Well...This cluster looks amazing! It really looks better than I had imagined it would" Also he texts "I was hoping to just shove cluster in to check that everything worked, but I see no reason to believe anything isn't perfect". Positive feedback is the BEST! I just finished with more switches and calibrating another tic toc tach.

            fullsizeoutput_1d4.jpeg fullsizeoutput_1d6.jpeg IMG_3872.jpg

            • Like Like x 1
            • 70chall440

              70chall440 FBBO Gold Member FBBO Gold Member

              Messages:
              1,855
              Likes Received:
              2637
              Joined:
              Feb 11, 2018
              Location:
              Yelm, Washington
              Local Time:
              1:36 PM
              Seems you have found your niche, very nice work.

            • steve817

              steve817 Well-Known Member

              Messages:
              219
              Likes Received:
              164
              Joined:
              Jan 7, 2011
              Location:
              Casper Wyoming
              Local Time:
              2:36 PM

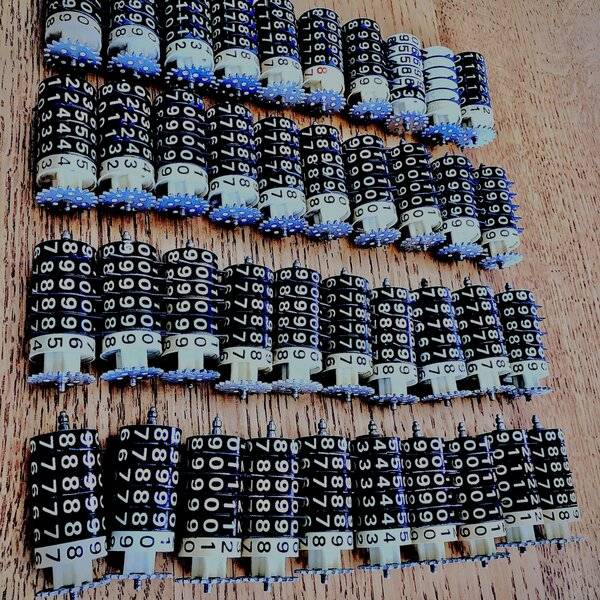

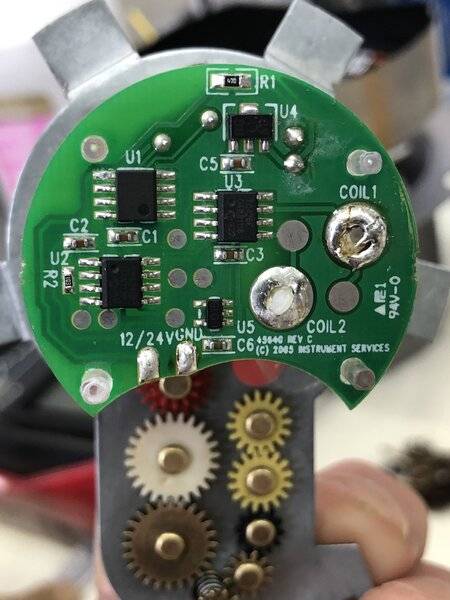

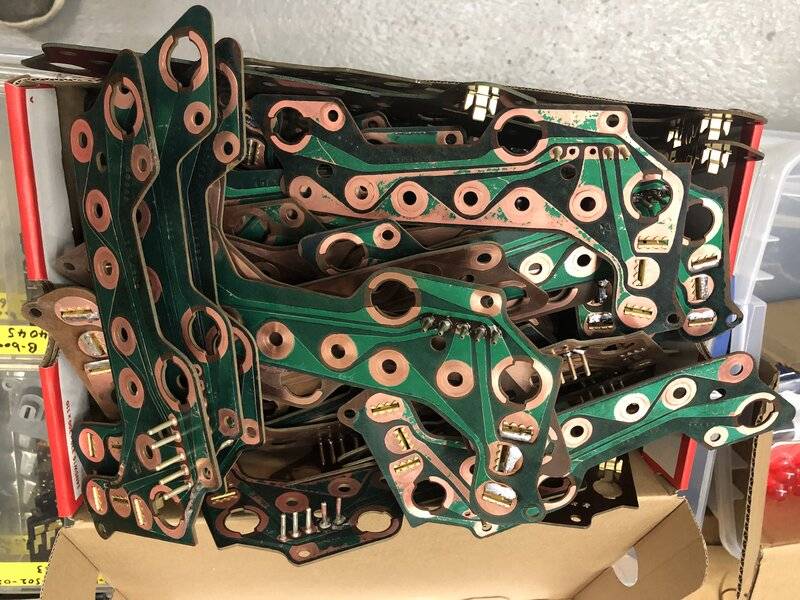

              ODO and circuit board day! I re-number each odometer with the bright, high contrast, high quality and UV protected vinyl overlays. Setting the ODO to any number can be done(of course between 0 and 100K. The circuit boards always have some issue that needs to be addressed like the pin setting and torn or rubbed off copper connections. I always reset pins, solder front AND back as well as solder the 3 connectors where the voltage limiter connects to. That way the continuity is always good.

              fullsizeoutput_1d7.jpeg fullsizeoutput_1d5.jpeg IMG_3675.jpg IMG_3742.jpg

              • Like Like x 2
              • 70chall440

                70chall440 FBBO Gold Member FBBO Gold Member

                Messages:
                1,855
                Likes Received:
                2637
                Joined:
                Feb 11, 2018
                Location:
                Yelm, Washington
                Local Time:
                1:36 PM
                Very clean!

              • steve817

                steve817 Well-Known Member

                Messages:
                219
                Likes Received:
                164
                Joined:
                Jan 7, 2011
                Location:
                Casper Wyoming
                Local Time:
                2:36 PM
                Hey 70chall440, My niche is definitely B body and E body restorations. I enjoy restoring all subassemblies of cars including engine compartment, trunk, window regulators, vents, power window motors/switches, wire harnesses, heater boxes, complete dash assemblies, steering columns, etc. I send out radios for upgrades, seat upholstery and headliners. This is just a hobby and have been into Mopars since the early 80's. My first car was a 68 Charger R/T and I still own it today. 193603-848488514c0ce349949c913234dd2203.jpg

                • Like Like x 3
                • steve817

                  steve817 Well-Known Member

                  Messages:
                  219
                  Likes Received:
                  164
                  Joined:
                  Jan 7, 2011
                  Location:
                  Casper Wyoming
                  Local Time:
                  2:36 PM

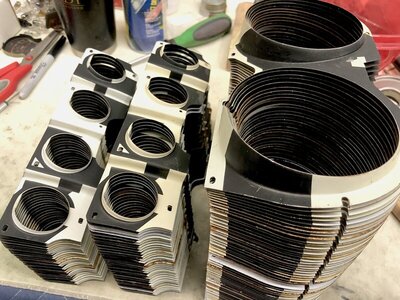

                  Another bulk shipment of original hardware off to the Platers. These are mostly Gauge cluster pieces.


                  • Like Like x 2
                  • steve817

                    steve817 Well-Known Member

                    Messages:
                    219
                    Likes Received:
                    164
                    Joined:
                    Jan 7, 2011
                    Location:
                    Casper Wyoming
                    Local Time:
                    2:36 PM

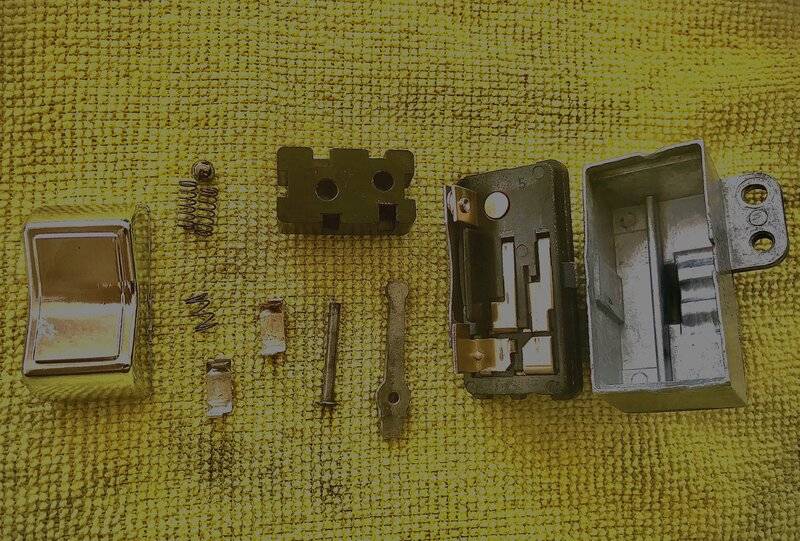

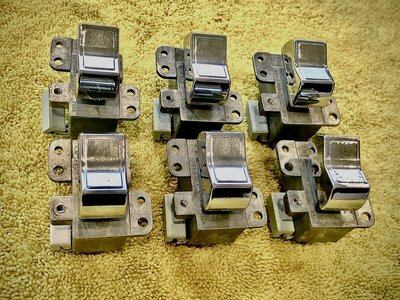

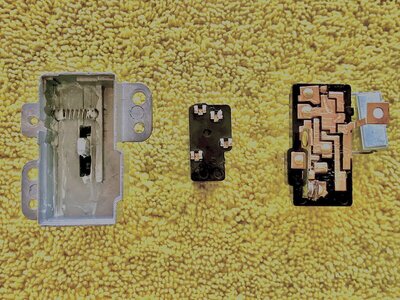

                    Another group of 3 speed wiper motor switches complete. Each one disassembled, inspected, cleaned, polished, fixed, assembled and tested. It is always recommended to connect a ground wire from the wiper switch to a known good ground such as the steering column support bracket bolt. A non-grounded (intermittent) wiper switch will cause unwanted problems.

                    fullsizeoutput_1de.jpeg fullsizeoutput_1df.jpeg


                  • 70chall440

                    70chall440 FBBO Gold Member FBBO Gold Member

                    Messages:
                    1,855
                    Likes Received:
                    2637
                    Joined:
                    Feb 11, 2018
                    Location:
                    Yelm, Washington
                    Local Time:
                    1:36 PM
                    Steve - aren't those switches crimped together? How do you recrimp them?

                  • MGKelly

                    MGKelly Well-Known Member

                    Messages:
                    243
                    Likes Received:
                    85
                    Joined:
                    Jun 1, 2013
                    Location:
                    NJ
                    Local Time:
                    4:36 PM
                    Steve817 do you have a website or can you send prices?
                    Thanks Joe
