70 Charger 440 w/ Air

[jmattson]

I am looking for a diagram for the pully assembly, for a 1970 Charger for Air conditioning.It originally had a 383.Now is getting a 440.Nothing was on the engine when I got it .(Pully's ,brackets ect.)Can someone tell me where I can find this exploded view .?



[Ironbuilt]

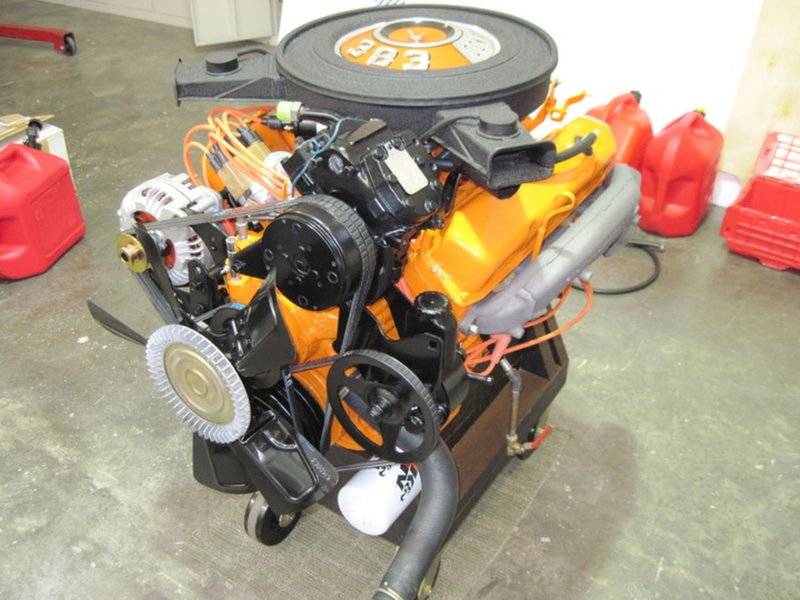

Here is a 383 picture. I will look for a 440, but the accessory drives are the same.



[jmattson]

Here is a 383 picture. I will look for a 440, but the accessory drives are the same.

View attachment 756897

Thank you Ironbuilt.I'll keep looking too.



[70runner]

69 RT w AC, all original, lotsa pix...

https://board.moparts.org/ubbthread.../my-daughters-69-charger-r-t.html#Post2560031



[jmattson]

Thank you for the link .I am sure this is going to help.Great story and resto.



[70runner]

You're welcome
