727, Rear Clutch - Correct Thrust Washer

[rklewis1005]

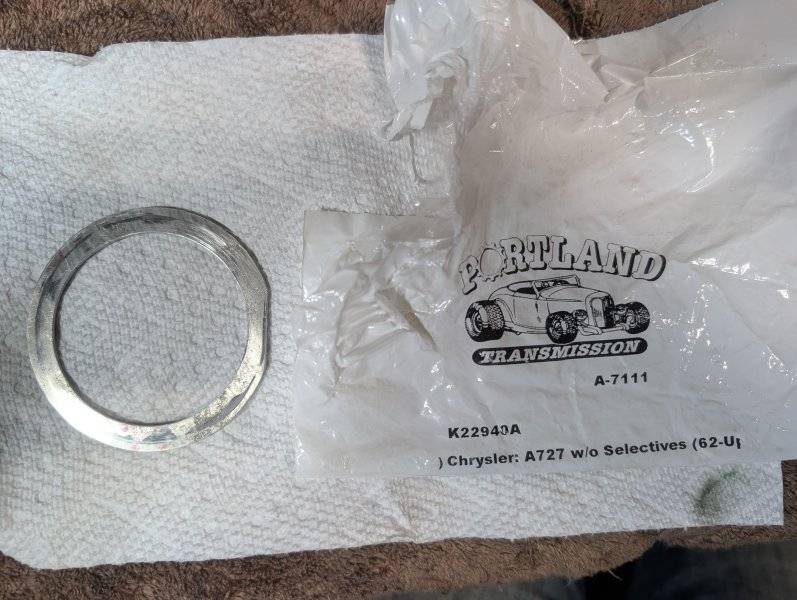

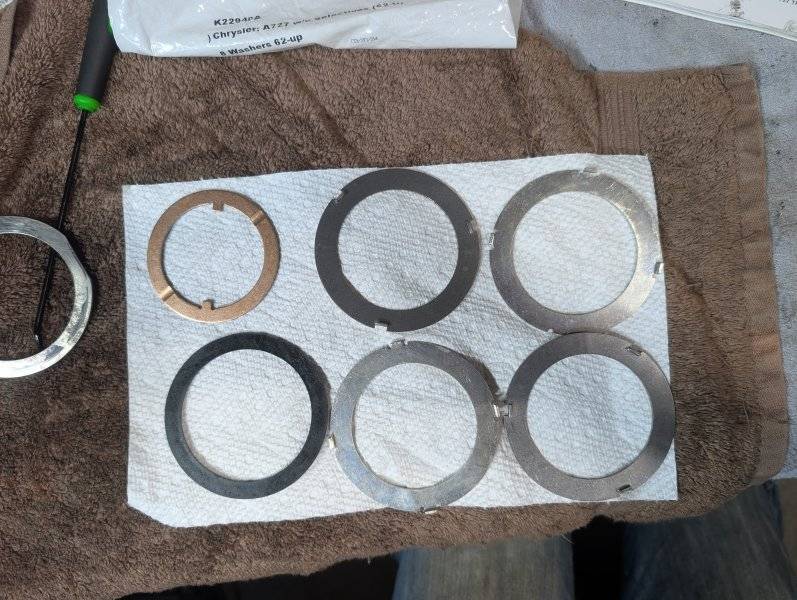

For the rear clutch subassembly, I think this thrust washer should be replaced. I don't match any in the thrust washer kit - all the similar sized ones have tabs on them

Should I just clean up the original?

Thanks for any advice or hints on where to buy / part number for the correct replacement.



[493 Mike]

Where in the rear clutch did you find the pictured washer? It is not something I am familiar with.
Mike



[T Brashears]

That looks like a TH350 pump bearing shim.



[rklewis1005]

On top of that area - maybe it's not a thrust washer?



[rklewis1005]

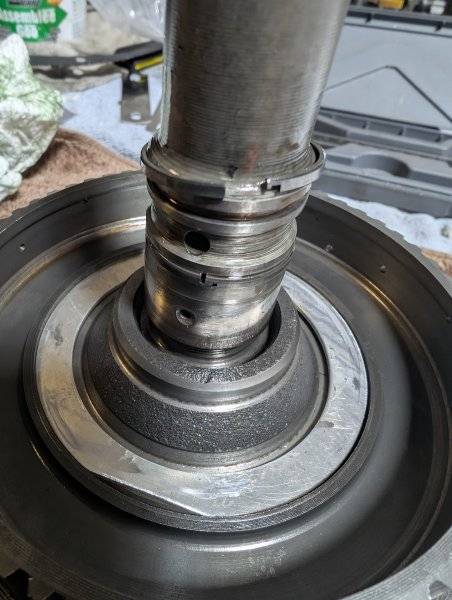

Before disassembly



[R413]

That's not original. A fiber washer goes there, dark brown in color. Selective thickness.

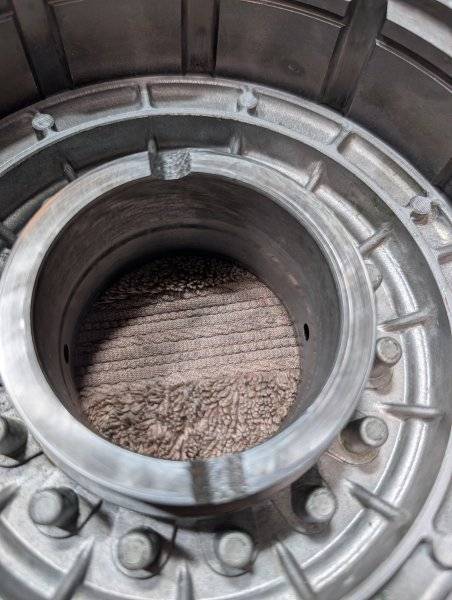

How does the mating surface on the front drum look?
