ALTERNATOR- Electronic Ign. 2 Flield Wire

RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
If you had a single green field wire, as you should on a '69, then the one lug grounded out would work just fine WITH THE GREEN ATTACHED TO THE OTHER INSULATED FIELD LUG and nothing on the lug that is grounded out. Since you're using a two field wire harness for unknown reasons then that second field lug shouldn't be grounded out, it should be insulated just like the other one. You're cooking the blue wire as it's positive and you have a dead short to ground off that field lug.

Holy crap, go figure!
I assumed (Yeah I know the rule with assumptions) since Year One's wiring harness had a Blue & Green field wire I HAD to be using both..
Even WITH electronic Ignition? Dunno why M&H does that. Now to find the CORRECT alternator, and hope it's rebuilt correctly!

Thanks a bunch!!
How it had been running for a long while, yet DID melt the black 10Ga wire thru bulkhead I have no idea.


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
Maybe the difference is the 72 alternator wiring could be different with electronics voltage regulator

Yeah, seems as if Year One's wiring harnesses are made with 1 too many field wires..
No clue why


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
I DO have electronic ignition, this apparently explains WHY the mess of wiring existed on the firewall BEFORE I changed harnesses..
Like to see how you guys have yours wired.. "Points type" harness with the Electronic addition harness?
(Wahtta mess!)

Very much appreciated though!


Vinny

Well-Known Member
Local time
9:18 AM
Joined
Mar 12, 2011
Messages
97
Reaction score
49
Location
Bergen County, NJ
I am curious why are you using a dual pulley alternator on an A12 Super Bee anyway?


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
Plus I thought 69 was a "round back" alt?

Yes, supposed to be. But car has had Square Back, 3 wire Alt. on it for 40/45 years. When installing a New Electronic Ignition harness, and Alternator, it becomes a nightmare trying to figure out where to begin. Back to "Points" at this stage..

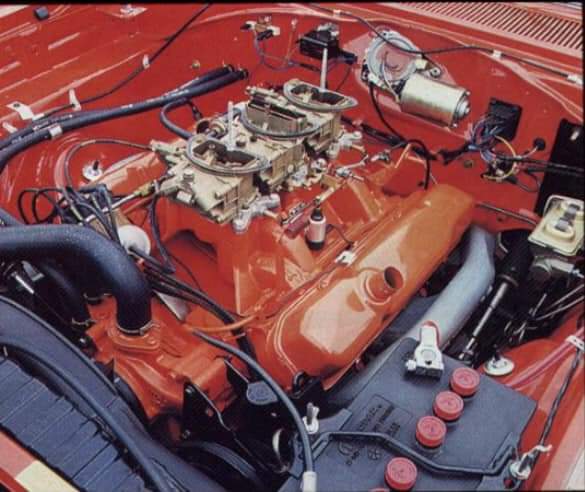

(Pics here, are from a STOCK A12 photo). Year One's harnesses don't even have the YELLOW wire from Starter Switch, to Ignition switch in dash! But, a harness for a NON 6 PACK car DOES!) My car hasn't had this YELLOW wire for a long time, probably doesn't need it.
Jeesus...


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
I am curious why are you using a dual pulley alternator on an A12 Super Bee anyway?
I think, because the one I removed was a dual pulley, and I cant find the correct bushings..


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
Year One's harnesses for 6 Pack cars have 2 field wires.
I think best option, start over with the NON 6 Pack 383/440 harness that has THE YELLOW wire from "I" on starter switch to Ign switch? Patch in the Elect.Ign. harness? Every 6 pack picture Ive seen has this wire. M&H's 6 Pack 440 harness? Does NOT. omfg!

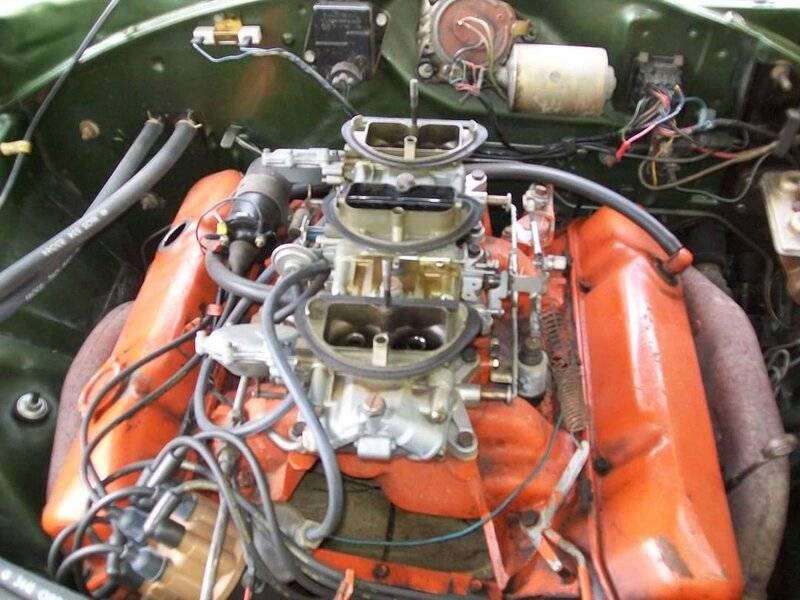

(Pics Here are from other cars) with FACTORY 6 Pack/6 Barrel Lynch Road builds!

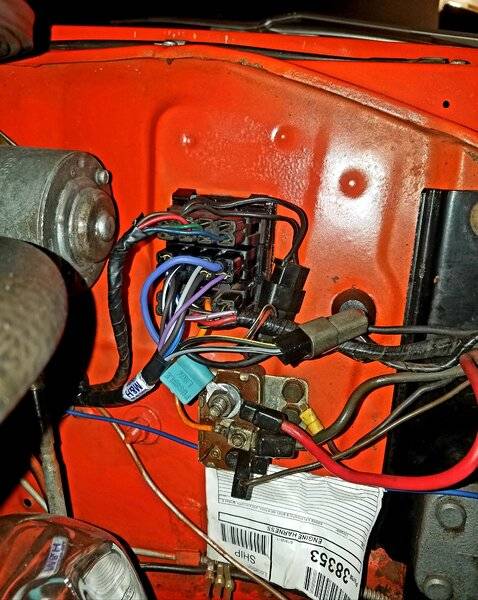

Year One's 440 Six Pack harness, on MY CAR below.


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
If you had a single green field wire, as you should on a '69, then the one lug grounded out would work just fine WITH THE GREEN ATTACHED TO THE OTHER INSULATED FIELD LUG and nothing on the lug that is grounded out. Since you're using a two field wire harness for unknown reasons then that second field lug shouldn't be grounded out, it should be insulated just like the other one. You're cooking the blue wire as it's positive and you have a dead short to ground off that field lug.
If you had a single green field wire, as you should on a '69, then the one lug grounded out would work just fine WITH THE GREEN ATTACHED TO THE OTHER INSULATED FIELD LUG and nothing on the lug that is grounded out. Since you're using a two field wire harness for unknown reasons then that second field lug shouldn't be grounded out, it should be insulated just like the other one. You're cooking the blue wire as it's positive and you have a dead short to ground off that field lug.

The harness I got from Year One (M&H) for 440 Six/Electronic Ign, has the 2 field wires. Understandably since using electronic Ign.
Once plugged in, and car starts, the melt begins. Im having some paint work done, so be best time to fix this.
As Yr One says, using a "Points Style" harness is best way to go. (HU199) I beleive.
IF I stay with Elec. Ign which I kinda have to, for now. How would YOU deal with this extra BLUE wire? And that "Should Be Grounded" tab on square back alternator? I also notice, once installed, there is a long BLUE lead coming from harness, that I can basically wrap around master cylinder!
I do know with A12 cars, the old schematics were for Points. So the diagrams Ive had to use say Dash Harness, more closely resemble a 69 Dart!

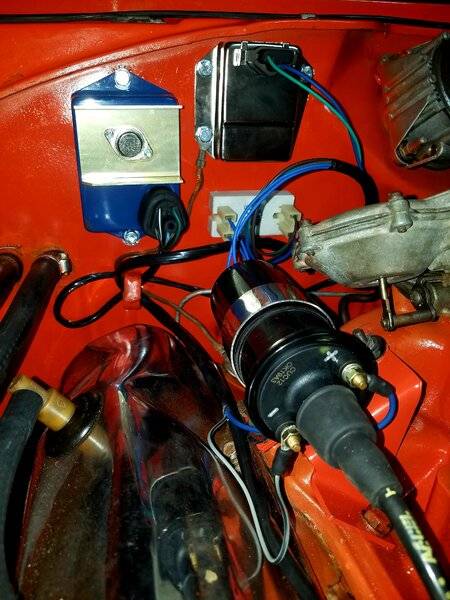

Blue wire can be seen with the tag still on it. (I know, I need clean up that firewall too) as far as clutter and placements
Thank You!!!


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
9:18 AM
Joined
Jan 29, 2018
Messages
15,786
Reaction score
45,734
Location
Midland Ontario, Canada
Even you yourself proved to yourself that one of the field connection tabs was grounded to the alternator case. If you are stuck on using the dual field alternator and it's "system" then fix the field connection and get it isolated from the case. You have a dead short, blue wire 12v+ straight to ground of the alternator case.


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
If you had a single green field wire, as you should on a '69, then the one lug grounded out would work just fine WITH THE GREEN ATTACHED TO THE OTHER INSULATED FIELD LUG and nothing on the lug that is grounded out. Since you're using a two field wire harness for unknown reasons then that second field lug shouldn't be grounded out, it should be insulated just like the other one. You're cooking the blue wire as it's positive and you have a dead short to ground off that field lug.

Ok,, FFWD to Feb 2020! Hagerty had my fire damage all redone. Car looks better than probably did 4/26/69!
Gave the shop a new engine harness, and alternator. Everythings great, except....
The damn charging system, again..lol when Hot Rod hooked up alt he was beginning to cook wires and getting 18V! Im thinking BAD Alternator, or Too Much alt.
Same deal, I have a No CHARGE condition. Surely blue wire shouldnt be used here. Why Year One sells these M&H harnesses for 71 & Later w/Electronic ign, that have 2 field wires is beyond me. I dont have an amp clamp. So cant test its output. Car starts fine! But runs off battery. I guess next move, buy a 1 Wire 55/60 Amp Alternator? Can't keep throwing parts at it. And if its putting out 18V!? Don't wanna just "Jump" Alt to Batt.
(kaboom).. He did fix fuel guage tho...lol
Im so tired of OEM wiring!
Think I'll grab the DVOM & check resistance between TABS, again.
Thanks, in Advance!!!!


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
9:18 AM
Joined
Jan 29, 2018
Messages
15,786
Reaction score
45,734
Location
Midland Ontario, Canada
I don't know what else I can tell you. Did you listen to what I said in post #30 and isolate that grounded field spade so you can use that two wire voltage regulator???


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
I don't know what else I can tell you. Did you listen to what I said in post #30 and isolate that grounded field spade so you can use that two wire voltage regulator???
Yep, that Alternator I returned to Oreilley, bought one from a guy off e bay who says he builds em. I tested the spades to case, getting 0.001/0.005 ohm at both. Seems like this alternator is maybe too HOT, too many amps?


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
I don't know what else I can tell you. Did you listen to what I said in post #30 and isolate that grounded field spade so you can use that two wire voltage regulator???

You mean the Electronic Ignition 2 wire regulator?
Ive seen them on Year one


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
9:18 AM
Joined
Jan 29, 2018
Messages
15,786
Reaction score
45,734
Location
Midland Ontario, Canada
Yep, that Alternator I returned to Oreilley, bought one from a guy off e bay who says he builds em. I tested the spades to case, getting 0.001/0.005 ohm at both. Seems like this alternator is maybe too HOT, too many amps?
Like I said. I don't know what I can tell you that we haven't already been through! ...other than if those are really your OHM readings than this alternator has BOTH field spades grounded to the case and both should be insulated from the case and show a resistance reading to use that two wire regulator.


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
Wow, Yeah I agree! Again I apologize for the constant problem I seem to have here. Apparently I need a much better made Alternator! The blue wire has Voltage coming FROM it, If I plug it in, the wire heats up wants to melt! Output post is right at 15 volts. I beleive I need a 55 amp 2 wire unit?
(Car ran fine for years, one day just decided to DISCHARGE!)

Thank You again!!


RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Jul 1, 2015
Messages
3,593
Reaction score
4,000
Location
South Shores area of Decatur, Illinois
Yep, that Alternator I returned to Oreilley, bought one from a guy off e bay who says he builds em. I tested the spades to case, getting 0.001/0.005 ohm at both. Seems like this alternator is maybe too HOT, too many amps?

Testing the field connections, aka "spades" to the alternators case indicates, with the readings that you noted, that the terminals are grounded. These connections have NOTHING to do with the alternator being "too hot" finishing too many amps.
The field wires bring 12 v to the rotating field brushes (in with the blue wire out with the green wire) and back to the regulator which, thru its internal components, controls the current flowing thru the rotating field brushes and the Output VOLTAGE produced by the alternator. The alternators current is determined by diodes and stator windings and is design limited by the impedance of the windings.
Apparently, your eBay supplier, lacks the fundamental knowledge of how the Mopar alternator functions. The other basic difference between the 1970 round back alternator and the 1972 and later square back design alternator is the diode configuration. The rotating field brushes and brush holders are basically the same. Alternators prior to 1970 use one insulated and one grounded brush holder and a different firewall mounted voltage regulator that controls the current flowing thru the rotating field of the alternator and the maximum OUTPUT voltage of the alternator. The alternators maximum output CURRENT is still limited by design of the diodes and stator winding impedance.
You cannot arbitrarily interchange pre 1970 alternators with 1970 and later designs WITHOUT changing the rotating field connections and voltage regulator, as discussed previously.
Just my opinion of course. PM me if you want to discuss further.....
BOB RENTON


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
Testing the field connections, aka "spades" to the alternators case indicates, with the readings that you noted, that the terminals are grounded. These connections have NOTHING to do with the alternator being "too hot" finishing too many amps.
The field wires bring 12 v to the rotating field brushes (in with the blue wire out with the green wire) and back to the regulator which, thru its internal components, controls the current flowing thru the rotating field brushes and the Output VOLTAGE produced by the alternator. The alternators current is determined by diodes and stator windings and is design limited by the impedance of the windings.
Apparently, your eBay supplier, lacks the fundamental knowledge of how the Mopar alternator functions. The other basic difference between the 1970 round back alternator and the 1972 and later square back design alternator is the diode configuration. The rotating
You cannot arbitrarily interchange pre 1970 alternators with 1970 and later designs WITHOUT changing the rotating field connections and voltage regulator, as discussed previously.
Just my opinion of course. PM me if you want to discuss further.....
BOB RENTON

Makes sense! Just cannot fugure out for the life of me, why all of a sudden, with NEW M&H dash & engine harnesses FOR a 6 pack, electronic ign car, in which, THE AMMETER actually worked fine! Now, cant plug in that blue wire w/o cooking everything! Crazy...
I 'll message ya. And yeah the guy at "Ohio Auto Electric" DID 1st send me an Alternator with the refulator attatched to the case, I sent that back, and looks like he just removed the regulator... Uuugghh boy!


Thank YOU!!!


RM23M9A

FBBO Gold Member
FBBO Gold Member
Local time
8:18 AM
Joined
Feb 28, 2020
Messages
473
Reaction score
257
Location
Midwest USA
I am curious why are you using a dual pulley alternator on an A12 Super Bee anyway?

Was only Alternator under 110A over 55A and under $300 I could find at the time.
My bad, turns out, it a hunk of crap. I beleive it ws for a car with AC, I'm not currently attending any shows as of yet.
