Another BB Bellhousing Question

[jimbosride]

Casting #2463019 is it a 10.5 or a 11.00 bell housing? Some show it a 11.0 but then some internet sites show it a 10.5. Does anyone have a dimension drawing? or has some one installed this bell housing? Thanks



[69Bee]

11", 4 spd, 1964, B body, 361 - 426W



[Daves69]

Big block dart and my mopar both say 11" - 1964

https://www.bigblockdart.com/techpages/4sptech.shtml

MyMopar - Mopar Forums & Information - Mopar Transmission Bellhousing Casting Numbers 1960-1981

A dimensioned drawing here doesn't clarify which part number...........

Members and their rides!! (mopar1.us)

A 10-1/2" flywheel is about 13.190" O/A diameter.



[MCODECUDA]

The 2463019 uses a 10” flywheel hence the 130 teeth. It could also accommodate the 10.5” clutch and scalloped pressure plate.



[4mulas]

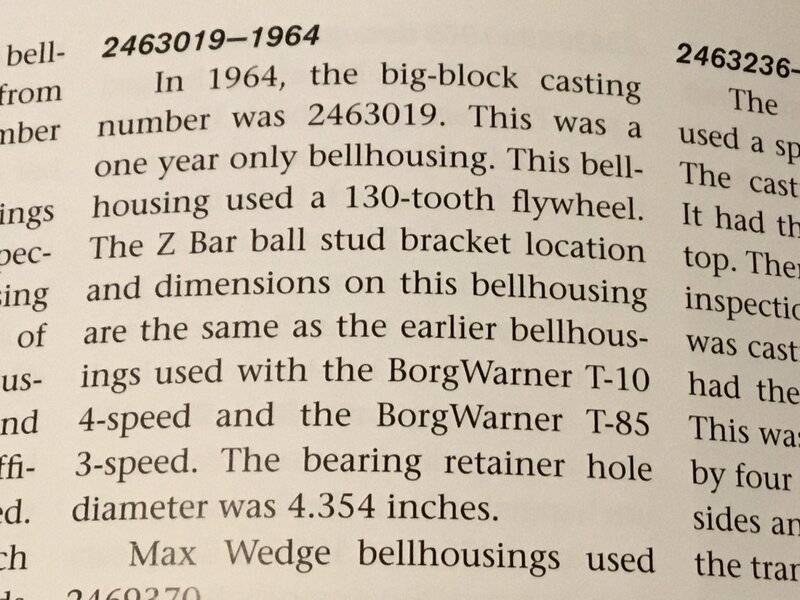

It is a 10.5” bell for 130 tooth flywheel, and takes a trans with the smaller 4.354” size bearing retainer...
